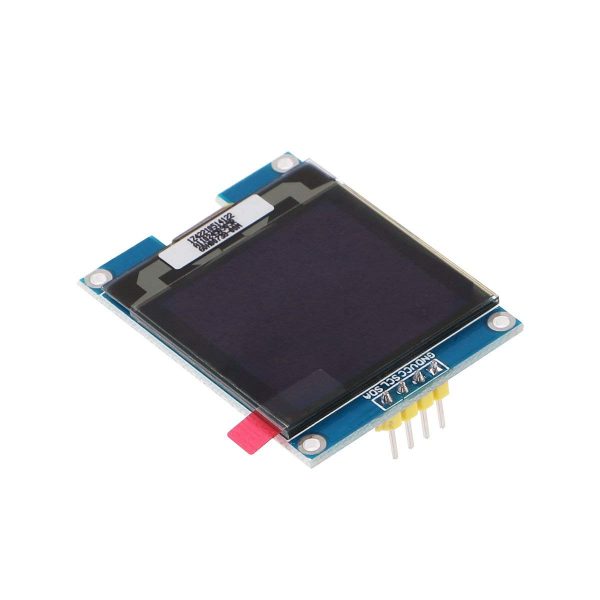

1.5吋 OLED 液晶顯示模組 白字 SSD1327 IC 驅動 I2C 通信 Arduino STM32 可用

描述

1.5吋 OLED 液晶顯示模組 白字 SSD1327 IC 驅動 I2C 通信 Arduino STM32 可用

1.5吋 OLED 液晶顯示模組  OLED顯示模塊，1.5英寸對角線，128×128像素，16位灰度級，通過I2C接口進行通信。128×128高分辨率，更清晰的顯示。板載轉換芯片為5V / 3.3V MCU 256級對比度可設置 常用的IIC接口支持16位灰度級顯示，這使得畫面的深度感更強，更逼真。

1.5吋 OLED 液晶顯示模組 採用  SSD1327是一款單芯片CMOS OLED / PLED驅動器，帶有控制器，用於有機/聚合物發光二極管點陣圖形顯示系統。它由128個段和128個公共組成。該IC設計用於共陰極型OLED / PLED面板。

參數：

• 驅動芯片：SSD1327
• 接口：2線IIC接口

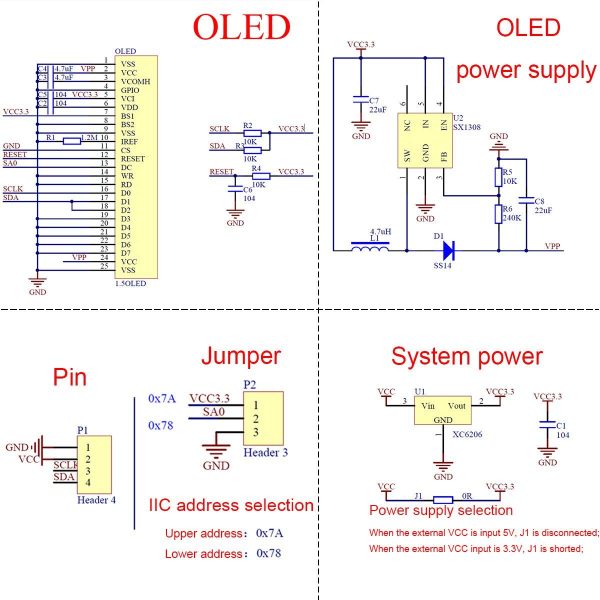

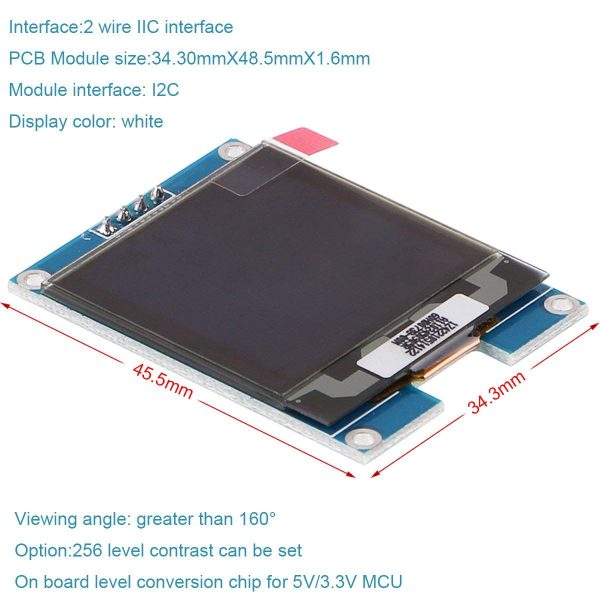

• PCB模塊尺寸： 34.30mm * 48.5mm * 1.6mm
• 模塊接口：I2C
• 顯示顏色：白色
• 灰度：16位
• 高分辨率：128×128
• 視角：大於160°
• 工作電壓：3.3V / 5V
• 模塊尺寸：45.5 * 34.3（mm）
• 選項：可設置256級對比度



• 分辨率：128 x 128矩陣面板
• 嵌入式128 x 128 x 4位SRAM顯示緩衝器
• 16灰階
• 引腳可選MCU接口
• 屏幕保持水平和垂直方向的連續滾動功能
• 可編程幀速率
• 可編程多路復用比率
• 行重新映射和列重新映射
• 片上振盪器上
• 電複位（POR） COG，COF的芯片佈局
• 工作溫度範圍廣：-40°C至85°C

1.5吋 OLED 液晶顯示模組 函數庫 https://www.arduinolibraries.info/libraries/u8g2

• Manual and data download link: https://drive.google.com/open?id=19LAGdkv_pw9T9SwnTg2OKHPPKeMfytcb. You can try use the library “U8G2” – Do NOT try to use the older superseded U8G Library – it simply does not include the needed setup info for this module. When using the U8G2 library, use the following Constructor line in your sketch: U8G2_SSD1327_EA_W128128_1_HW_I2C u8g2(U8G2_R0, /* reset=*/ U8X8_PIN_NONE);
• 1.5″ IIC OLED MODULEOLED: 1. for any platform which has the IIC interface; 2. 128*128 dots included in the OLED screen; 3. 256 level contrast can be set; 4. On board level conversion chip for 5V/3.3V MCU.
• SSD1327 Driver Chip: SSD1327 is a single-chip CMOS OLED/PLED driver with controller for organic/polymer light emitting diode dot-matrix graphic display system. It consists of 128 segments and 128 commons. This IC is designed for Common Cathode type OLED/PLED panel.
• High resolution: 128×128; Viewing angle: greater than 160°; Operating voltage: 3.3V / 5V; Module size: 45.5×34.3 (mm). Supports for 16-bit grey level display which makes the sense of depth of the picture more stronger and more realistic.
• Driver chip: SSD1327; Module interface: I2C; Display color: white; Gray scale: 16 bits; On board level conversion chip for 5V/3.3V MCU; 256 level contrast can be set; commonly used IIC interface.

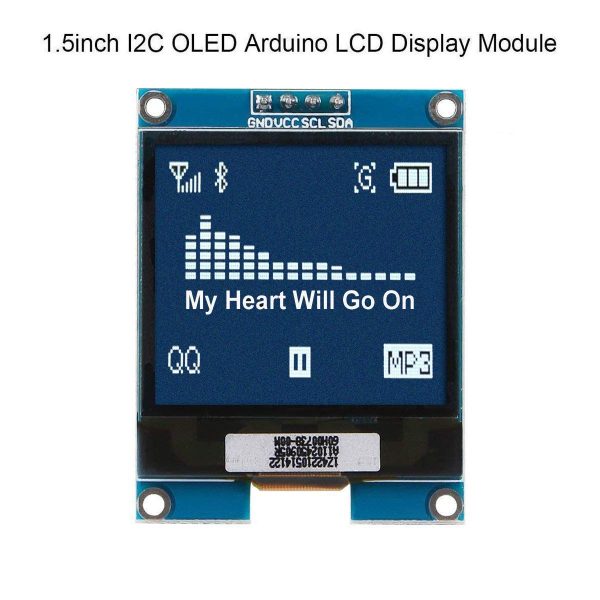

I2C OLED Display Module 1.5inch OLED Module Arduino LCD Display SSD1327 Driver Chip, 128×128 Pixels, 16-bit Grey Level with I2C interface,DC 3.3V/ 5V for Arduino

Parameter:

• Driver chip: SSD1327
• Interface: 2 wire IIC interface
• PCB Module size: 34.30mm * 48.5mm * 1.6mm
• Module interface: I2C
• Display color: white
• Gray scale: 16 bits
• High resolution: 128×128
• Viewing angle: greater than 160°
• Operating voltage: 3.3V / 5V
• Module size: 45.5 * 34.3 (mm)
• Option:256 level contrast can be set

Features:

• This is a general OLED display Module, 1.5inch diagonal, 128×128 pixels, 16-bit grey level, communicating via I2C interface.
• 128×128 high resolution, clearer display.
• On board level conversion chip for 5V/3.3V MCU
• 256 level contrast can be set
• commonly used IIC interfaceSupports for 16-bit grey level display which makes the sense of depth of the picture more stronger and more realistic.

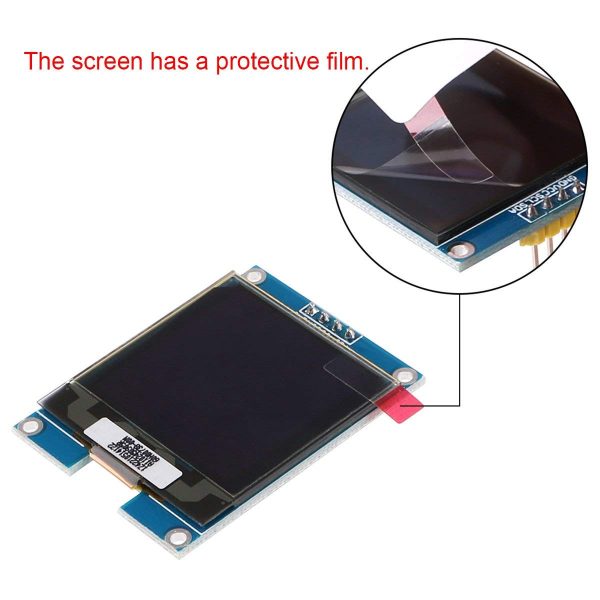

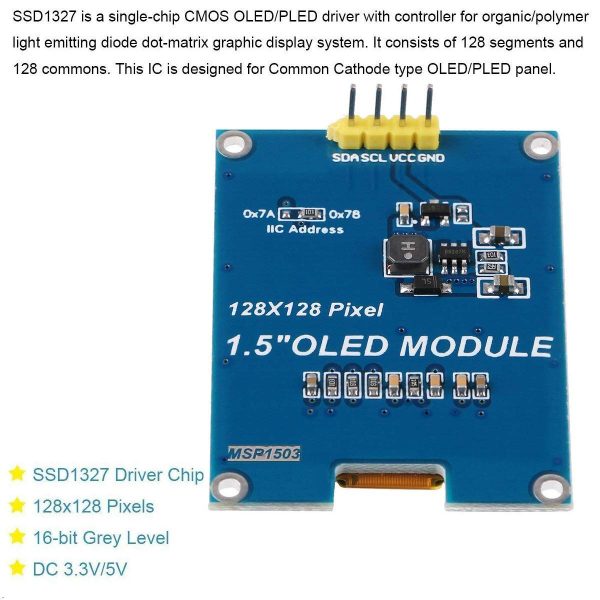

• SSD1327 is a single-chip CMOS OLED/PLED driver with controller for organic/polymer light emitting diode dot-matrix graphic display system. It consists of 128 segments and 128 commons. This IC is designed for Common Cathode type OLED/PLED panel.
• Resolution: 128 x 128 matrix panel
• Embedded 128 x 128 x 4 bit SRAM display buffer
• 16 gray scale
• Pin selectable MCU Interfaces
• Screen saving continuous scrolling function in both horizontal and vertical direction
• Programmable Frame Rate
• Programmable Multiplexing Ratio
• Row Re-mapping and Column Re-mapping
• On-Chip Oscillator
• Power On Reset (POR)
• Chip layout for COG , COF
• Wide range of operating temperature: -40°C to 85°C
