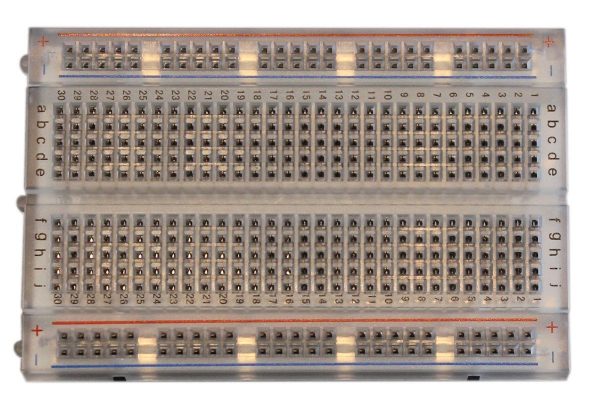

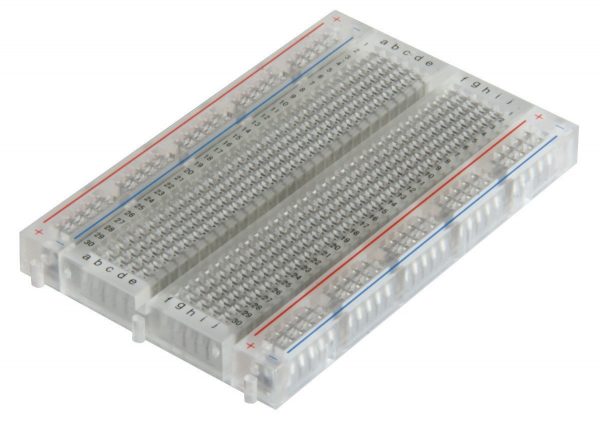

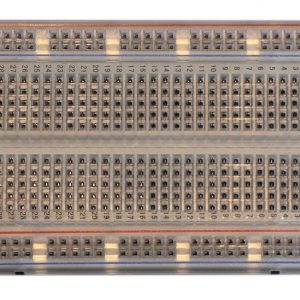

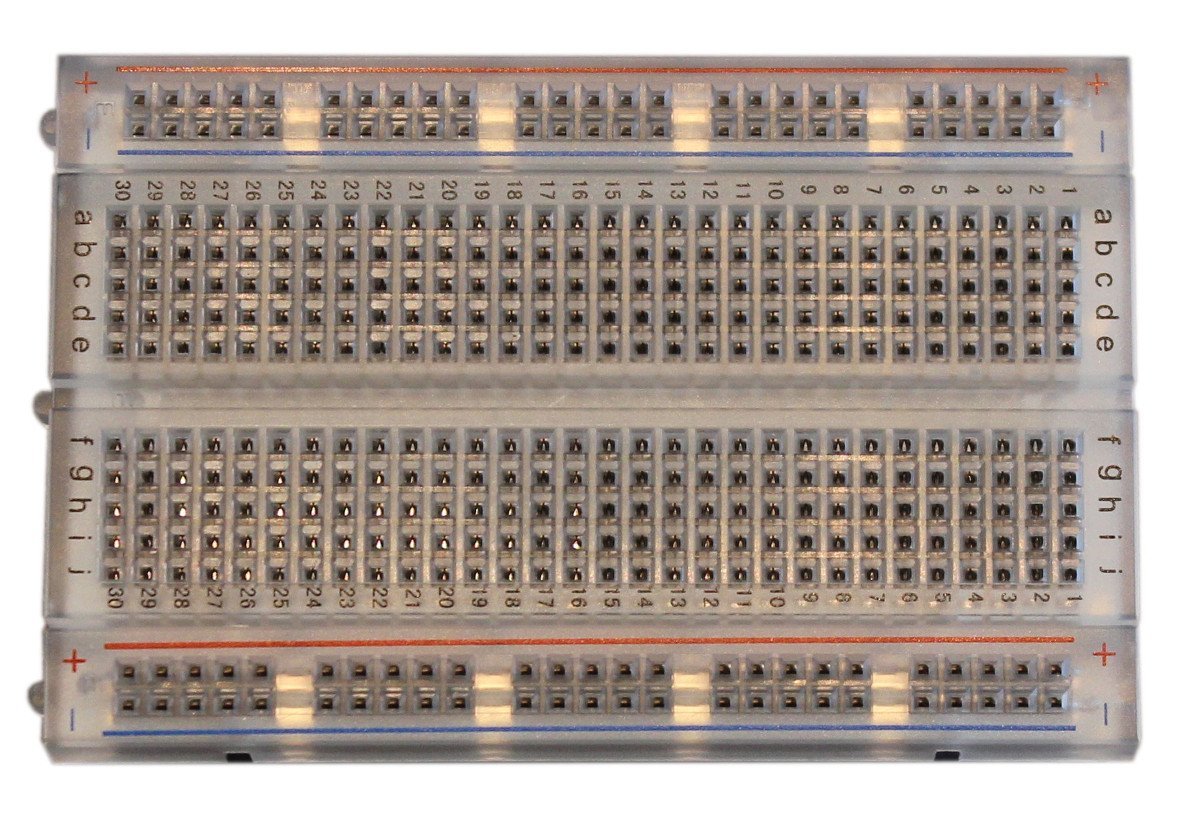

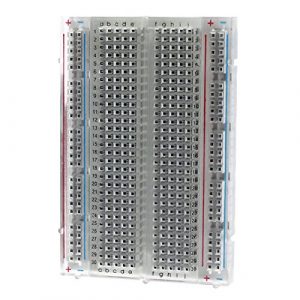

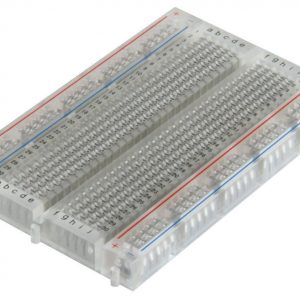

透明迷你小麵包板 400孔 迷你麵包板（透明）84X55 mm

描述

透明迷你小麵包板400孔迷你麵包板（透明）83X55 mm

• 尺寸(cm):8.3*5.5*0.85
• 材料：ABS，磷青銅鍍鎳簧片
• 1個端子條,300孔; 2個裝飾條,100孔

BB400 Solderless Plug-in BreadBoard, 400 tie-points, 4 power rails, With Metal Backing Plate, 3.3 x 2.2 x 0.3in (84 x 55 x 9mm)

• 400 tie points total: 300 tie-point IC-circuit area plus two 50 tie-point distribution strips providing 4 power rails.
• White ABS plastic body with black printed legend. Color legend on distribution strips. Peelable adhesive tape backing provided for attaching to a surface. Or stick to the metal backing plate instead (metal plate provided).
• Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions. Rated at 36 Volts, 2 Amps.
• Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter)
• Size: 3.3 x 2.1 x 0.3in (84 x 54.3 x 8.5mm).
