描述

交流 AC110V 220V 轉直流DC 5V2A 開關電源模組 低紋波 工業電源裸板

5V2A 高性能版本 優化設計，適合於控制板，單片機板供電系統非常穩定可靠！

硬體規格

• 電源型號:WX-DC1205
• 電源成色：全新
• 電源保護：超載、短路、過溫保護全有
• 電壓輸入：85-264V AC/110-370V DC
• 頻率輸入：47-63HZ
• 輸出電壓：DC 5V
• 輸出電流：額定2A/峰值3A
• 輸出功率：10W

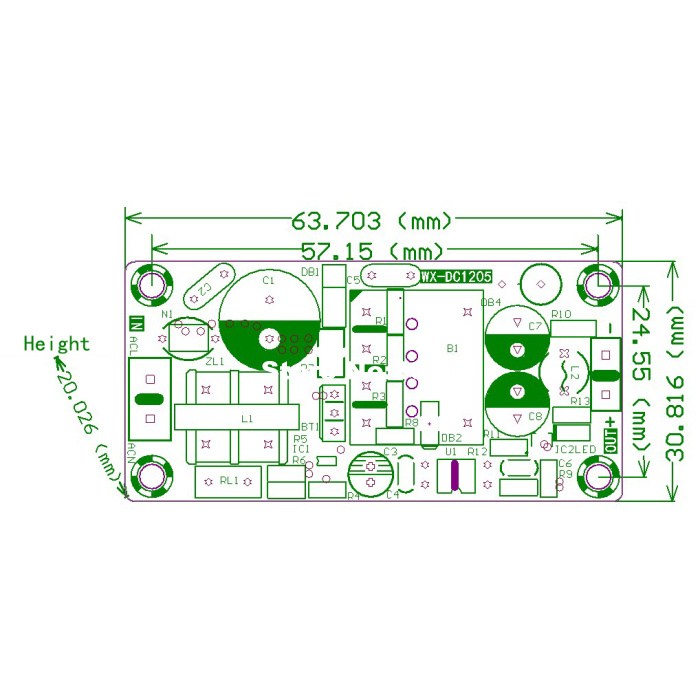

• 整體尺寸：長7mm*寬30.8mm*高20mm

產品特點

1. 安裝方便，輸入輸出可焊接5.08端子或者插針使用
2. 四角有固定安裝孔，用螺絲規定防止移動，固定孔直徑3.0mm
3. 全球通用輸入電壓：85-264V AC 或 110-370V DC
4. 輸出與輸入高低壓完全隔離
5. 超載保護，短路保護，溫度保護全有

AC 110V/220V to DC 5V 2A 10W Switching Mode Power Supply Board AC-DC Power Adapter Module 5V2A

• AC85~265V / DC100~370V wide voltage input.
• DC 5V 2A Ouput
• AC frequency: 50HZ / 60HZ
• Over current protection, Over voltage protection, Short circuit protection.
• Small size 6.25*3.1*2.2 cm

The AC/DC to DC Switching mode power supply board with mounting holes,input,output and EMI filter circuit. It has temperature protection,short circuit protection and overvoltage overload protection; AC85 ~265V wide input voltage, DC5V output voltage, 431 accurate voltage regulation. Compact,full-featured!

Protection features:Over current protection;Over voltage protection;Short circuit protection.
Input Voltage:AC85~265V / DC100~370V (Global common)
AC frequency: 50HZ / 60HZ
Output voltage: DC 5V
Output Current: Rated 2A(4A Max)
Output power: 10W
Positioning hole size: 5.5*2.3cm
Overall size: 6.25*3.1*2.2cm
