安信可 AI-Thinker NodeMCU ESP-S3-12K-Kit 開發板 ESP32-S3 開發板
NT$355 原始價格:NT$355。NT$310目前價格:NT$310。 (未稅)
- 描述
- 評價 (0)
描述
描述
NodeMCU ESP-S3-12K-Kit 開發板 ESP32-S3 開發板
ESP-S3-12K-Kit 開發板是AI-Thinker針對ESP-S3-12K 模組而設計的一款核心開發板,為 NodeMCU 開發板的後續型號,開發板主控芯片為 ESP32-S3 芯片,具有低功耗性能和 射頻性能,支援WiFiIEEE802.11b/g/n 協議和Bluetooth5.0。芯片搭載Xtensa-R32 位 LX7 雙核處理器,主頻高達 240 MHz,內置 512 KB SRAM (TCM),具有 45 個可編程 GPIO 管腳和豐富的通信接口。ESP32-S3 支持更大容量的高速 Octal SPI flash 和片外 RAM,支持用戶配置數據緩存與指令緩存。
ESP-S3-12K-Kit 開發板是AI-Thinker針對ESP-S3-12K 模組而設計的一款核心開發板,為 NodeMCU 開發板的後續型號,開發板主控芯片為 ESP32-S3 芯片,具有低功耗性能和 射頻性能,支援WiFiIEEE802.11b/g/n 協議和Bluetooth5.0。芯片搭載Xtensa-R32 位 LX7 雙核處理器,主頻高達 240 MHz,內置 512 KB SRAM (TCM),具有 45 個可編程 GPIO 管腳和豐富的通信接口。ESP32-S3 支持更大容量的高速 Octal SPI flash 和片外 RAM,支持用戶配置數據緩存與指令緩存。
芯片支持多種低功耗工作狀態,能夠滿足各種應用場景的功耗需求。芯片所特有的精細時鐘門控功能、動態電壓時鐘頻率調節功能、射頻輸出功率可調節功能等特性,可以實現通信距離、通信 速率和功耗之間的最佳平衡。
主板引出全部 I/O 至兩側的排針,開發者可以根據自己的需求連接外設。使用麵包板進行開發和調試時,兩側的 2.54mm 間距排針 可以使操作更加簡單方便。
商品特色
- 支援 WiFi802.11b/g/n,1T1R 模式數據速率高達 150Mbps
- 支援 Bluetooth5.0,Bluetooth mesh,速率支持:125Kbps,500Kbps,1Mbps, 2Mbps
Xtensa-R32位LX7雙核處理器,支持高達240MHz 的時鐘頻率,擁有512KBSRAM, 384 KB ROM,16KB RTC SRAM - 支援 UART/GPIO/ADC/PWM/I2C/I2S/SPI/LCD/DVP/RMT/SDIO/MCPWM/DMA/USB OTG/USB Serial 控制器/TWAI 控制器接口,溫度傳感器、脈衝計數器 、電容式傳感 器 GPIO
- 集成 WiFi MAC/BB/RF/PA/LNA/藍牙
- 支援多種休眠模式,深度睡眠電流小於 8uA
- 串口速率最高可達 5Mbps
- 支援STA/AP/STA+AP 模式和混雜模式
- 支援Android、IOS 的 Smart Config(APP)/AirKiss(微信)一鍵配網
- 支援串口本地升級和遠程固件升級(FOTA)
- 通用 AT 指令可快速上手
- 支持二次開發,集成了 Windows、Linux 開發環境
- 關於 Flash:ESP-S3-12K 模組默認內置 8MByte Flash
商品規格:
- 尺寸:60.8*25*14mm
- 重量:11g
- 型號:ESP-S3-12K-Kit
- 芯片:Xtensa-R32位LX7雙核處理器 240MHz
- USB芯片:CH340
- 封裝:DIP-42(2.54mm間距)
- 天線形式:板載天線
- 供電電壓:電源電壓5V,電流大於500mA
- 支援接口:UART / I2C / PWM / ADC / GPIO / SPI / i2s
- IO端口數量:37個GPIO(包括TX0 / RX0 和 USB_D-USB_D+)
- 藍牙:BLE 5.0,Bluetooth mesh,速率支持:125Kbps,500Kbps,不支持傳統藍牙
- WiFi:支援 WiFi802.11b/g/n,數據速率高達 150Mbps
- 安全制式:wep/wpa-psk/wpa2-psk
- SPI Flash:8MByte
- PSRAM:8MByt
NodeMCU-ESP-S3-12K-Kit
This is an entry-level development board based on Espressif ESP32-S3 SoC, which is is equipped with Xtensa® 32-bit LX7 single-core processor, operating frequency up to 240 MHz, supports secondary development without using other microcontrollers or processors.
The ESP32-S3 is a low-power MCU-based system-on-chip (SoC) that supports 2.4 GHz Wi-Fi and Bluetooth® Low Energy (Bluetooth LE). It consists of high-performance dual-core microprocessor (Xtensa® 32-bit LX7), a low power coprocessor, a Wi-Fi baseband, a Bluetooth LE baseband, RF module, and peripherals, designed for various applications such as internet of things (IoT), mobile devices, wearable electronics, smart home, etc.
- Onboard ESP-S3-12K module that comes with a PCB antenna
- Onboard CH340, USB to UART converter
- RGB 3-in-1 LED, convenient for secondary development
- USB port for power input, firmware programming, or UART debugging
- 2x21pin extension headers, breakout all the I/O pins of the module
- 2x keys, used as reset or user-defined
Features
- Complete Wi-Fi 802.11b/g/n, 1T1R mode data rate up to 150Mbps
- Support BLE5.0, Bluetooth mesh, rate support: 125Kbps, 500Kbps, 1Mbps, 2Mbps
- Built-in ESP32-S3 chip, Xtensa® 32bit LX7 dualcore processor, support up to 240 MHz clock frequency, with 384KB ROM, 512KB SRAM, 16KB RTC SRAM
- Support UART/I2C/PWM/ADC/GPIO/SPI/I2S
- Integrate Wi-Fi MAC/BB/RF/PA/LNA//BLE
- Support multiple sleep modes, deep sleep current is less than 8uA
- Support STA/AP/STA+AP work mode and mix mode
- Smart Config (APP) / AirKiss (WeChat) one-click distribution network supporting Android and IOS
- Support serial local upgrade and remote firmware upgrade (FOTA)
- General AT command can be used quickly
- Support secondary development, integrated Windows, Linux development environment
- NodeMCU-ESP-S3-12K-Kit module will use the built-in 8MByte Flash by default
Specifications
- Dimensions: 60.80mm x 25.27mm
- Package: DIP-42 (2.54mm pitch standard pin header)
- Antenna: PCB antenna
- WiFi frequency range: 2400~2483.5MHz
- Bluetooth: BLE5.0 (traditional Bluetooth is not available)
- Operating temperature: -40℃ ~ 85 ℃
- Storage condition: -40 ℃ ~ 125 ℃, < 90%RH
- Power supply: supply voltage 5V, supply current > 500mA
- Serial port data rate: support 110 ~ 4608000 bps, 115200 bps by default
- WiFi security: WEP/WPA-PSK/WPA2-PSK
- SPI Flash: default 8MByte
- PSRAM: 8MByte PSRAM

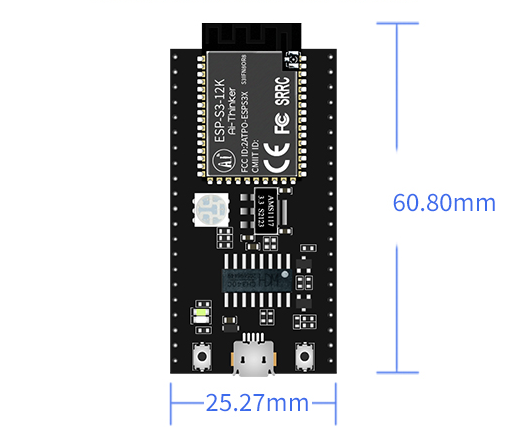

Dimensions

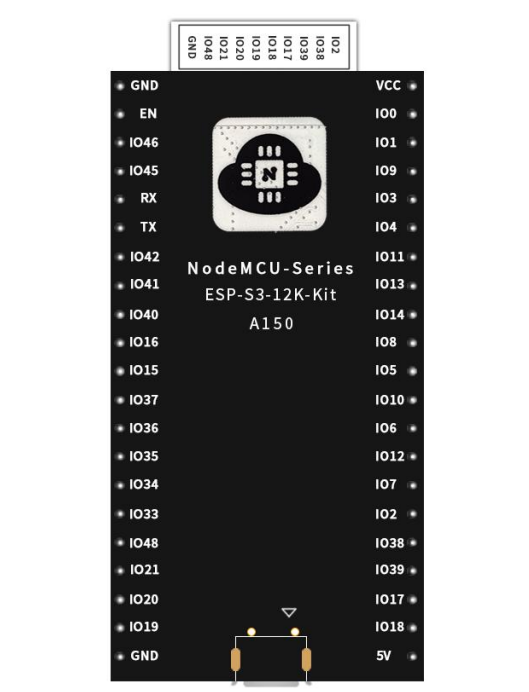

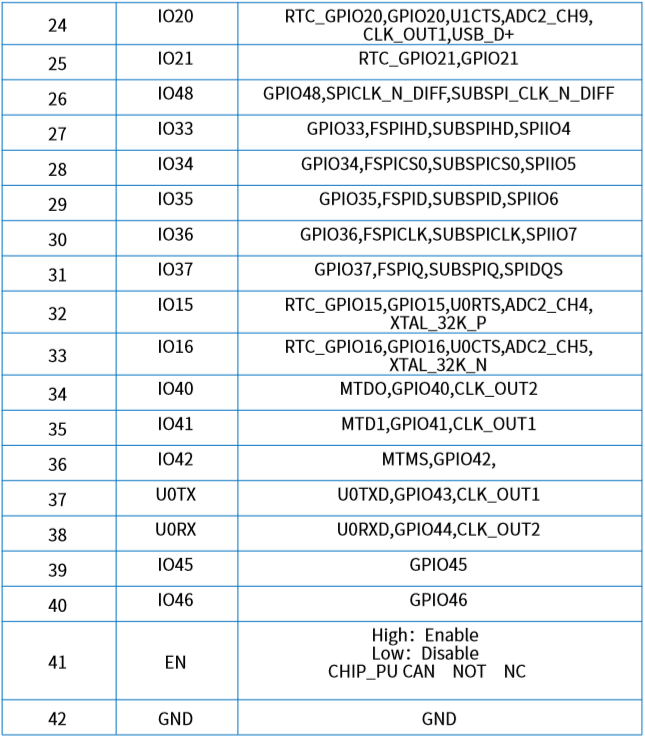

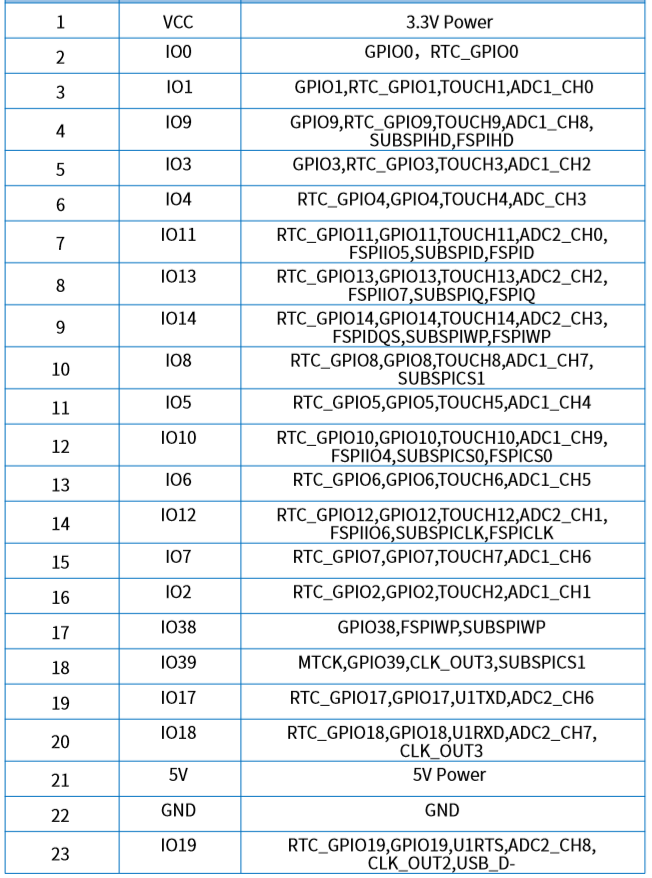

Pin definition
Resources
- ESP32-S3 datasheets
- ESP32-S3 technical_reference_manual
- ESP-S3-12K module datasheet
- esp-s3-12k module schematic
- NodeMCU-ESP-S3-12K-Kit schematic
Driver
