數字 I2C K型 高溫感測器模組 Gravity I2C High Temperature Sensor (K-Type, 800℃) DFRobot 原裝進口

描述

數字 I2C K型 高溫感測器模組 Gravity I2C High Temperature Sensor (K-Type, 800℃)   DFRobot 原裝進口 支援 Arduino 與 樹莓派 開發版

數字 I2C K型 高溫感測器模組 Gravity I2C High Temperature Sensor 由信號放大轉換模塊和鎧裝K型熱電偶探頭組成，當K型熱電偶探頭置於高溫熱源時，探頭兩端由於熱電效應產生一個與溫度呈正比的微弱電壓，信號放大轉換模塊採用MAX31855K專用芯片將這個微弱的電壓信號進行放大、模數轉換與相應補償，最終通過 Gravity I2C 接口向主控器發送探頭的測量溫度。信號放大轉換模塊最大可測量極寬的溫度範圍-270℃~1372℃，在-200℃~700℃誤差不超過±2℃，700℃~1350℃誤差不超過±4℃，配套的鎧裝K型熱電偶探頭測溫可達800℃，在量程範圍內誤差不大於±2.5℃，能夠滿足大部分400度以上超高溫度的測量場景。

PT100適用於大部分400℃以下高溫的測量，但是通常家用天然氣灶焰芯溫度可達800℃以上，燒製陶瓷的窖子或者大功率電爐溫度更可超過1000℃，在這些超高溫度的場景下就需要用到K型熱電偶。

特性

• 14位，0.25℃數字高分辨率測溫
• 極寬測溫度範圍
• 兼容3.3V/5V控制器
• Gravity I2C接口，連接方便
• 適配任何K型熱電偶探頭



應用場景

• 電烤箱、大功率電爐
• 高溫火焰、氣體
• 陶瓷窖



技術規格

1.數字信號放大轉換模塊

• 輸入電壓（VCC）：3.3V~5.5V
• 適配探頭：K型熱電偶探頭
• 測溫範圍：-270℃~1372℃
• 測溫分辨率：0.25℃
• 測溫誤差：≤±2℃（-200℃~700℃） ~ ±4℃（700℃~1350℃）
• 通信接口：Gravity I2C （邏輯電平0-3.3V）
• 產品尺寸：44.0mm*22.0mm

2.鎧裝K型熱電偶探頭

• 測溫範圍：0℃~800℃
• 測溫誤差：≤±2.5℃
• 線長：1.5m（金屬屏蔽線）
• 探頭長度：50mm
• 探頭直徑：Φ4mm
• 特性：防水、耐腐蝕（耐弱酸弱鹼，防銹）、耐高溫

配送清單

• 數字K型高溫傳感器 x1
• 鎧裝K型熱電偶探頭 x1
• Gravity-4P I2C傳感器連接線 x1

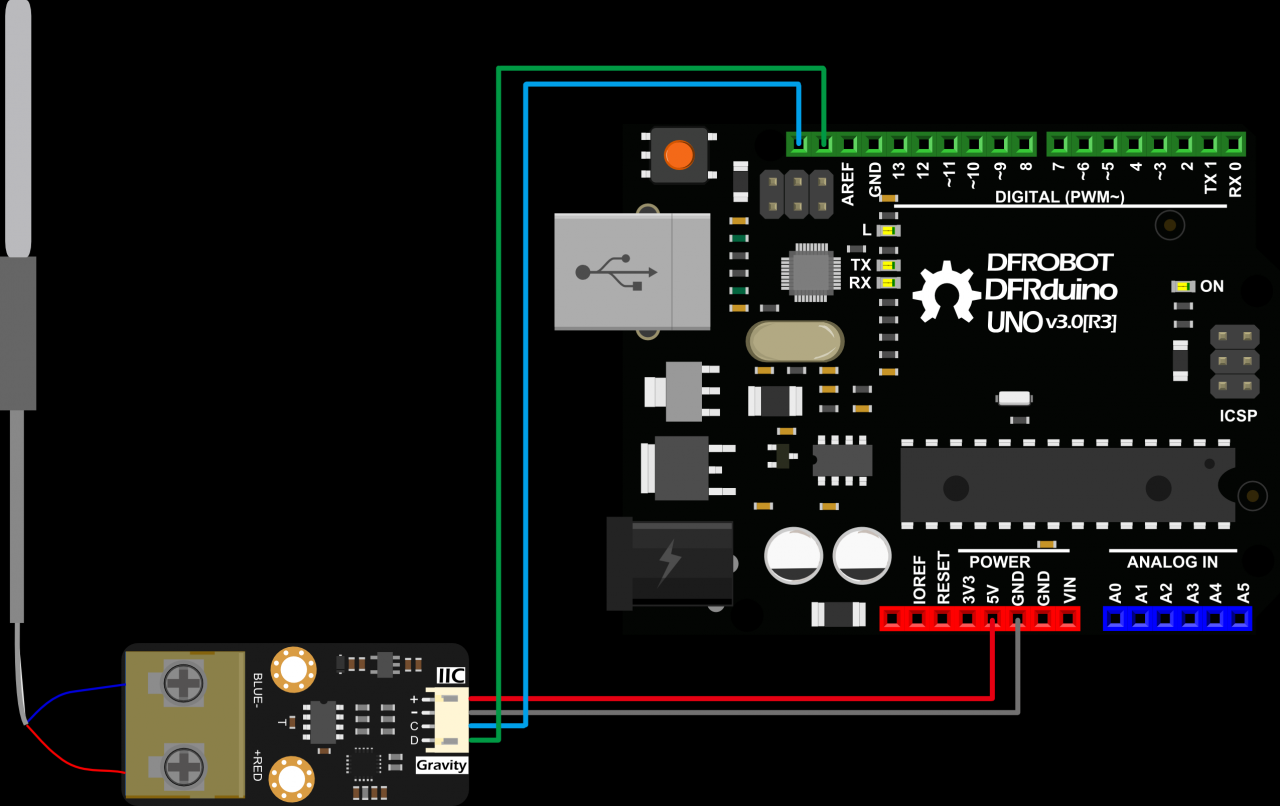

範例與文件下載

• 中文範例
• 英文範例

Gravity: Digital High Temperature Sensor (K-type)

Introduction

PT100 is suitable for most of the temperature measurement below 400°C, but usually the temperature of the household natural gas stove can reach over 800°C, and the temperature of the pottery kiln or high-power electric furnace can be more than 1000°C. The K-type thermocouple are commonly used in such ultra-high temperature scenes.

The digital K-type high temperature sensor consists of a signal amplification conversion module and a sheathed K-type thermocouple probe. When the K-type thermocouple probe is placed near a high-temperature heat source, the probe generates a small voltage proportional to the temperature due to the thermoelectric effect. The module uses a MAX31855K dedicated chip to amplify this small voltage, convert it to digital signals, and compensate accordingly. The temperature readings can be read through Gravity I2C interface. The module can measure extremely wide temperature ranging from -270°C to 1372°C, the error from -200°C to 700°C is within ±2°C, and the error from 700°C to 1350°C is within ±4°C. The attached K-type thermocouple can measure up to 800 °C with error within ± 2.5 °C.

Features

• 14 bit, 0.25°C digital high resolution temperature measurement
• Extremely wide temperature range
• Wide input voltage, compatible with 3.3V and 5V controllers
• Gravity I2C interface, convenient connection
• Fits any K-type thermocouple probe

Specifications

Signal Amplification Conversion Module

• Input Voltage (VCC): 3.3V~5.5V
• Probe: K Type Thermocouple
• Temperature Range: -270°C~1372°C
• Resolution: 0.25 °C
• Error: within ≤ ±2°C(-200°C~700°C) ~ ±4°C(700°C~1350°C)
• Interfaces: Gravity I2C (Logic Level 0-3.3V)
• Dimension: 44.0mm*22.0mm

Armored K-Type Thermocouple Probe

• Temperature Range: 0 °C ~ 800 °C
• Error: ≤ ±2.5°C
• Wire Length: 1.5m
• Probe Length: 50mm
• Probe Diameter: Φ4mm
• Features: Waterproof, Corrosion Resistant (Weak Acid or Alkali Resistant, Rustproof), High Temperature Resistance

Applications

• Electric Oven, Electric Furnace
• High Temperature Flame, Gas
• Pottery Kiln

Board Overview

Label Name Description 1 VCC Power VCC（3.3~5.5V） 2 GND Power GND 3 SCL I2C Clock Signal 4 SDA I2C Data Signal 5 BLUE- K type thermocouple negative electrode 6 +RED K type thermocouple positive electrode
