樂鑫 ESP32 S2 Kaluga-1 人機介面開發板套件 含鏡頭與觸控面板

樂鑫 ESP32 S2 Kaluga-1 人機介面開發板套件 基於ESP32-S2，具有多種功能，如LCD屏幕顯示，觸摸屏控制，相機圖像採集，音頻播放等。該板可以靈活地組裝和拆卸，滿足各種定制要求。ESP32-S2-kaluga-1是一款針對人機交互產品的開發套件，該套件由1個主板和4個主要功能的外接子板構成。

ESP32-S2-kaluga-1 是一款針對人機交互產品的開發套件，該套件由1 個主板和4 個主要功能的外接子板構成，可實現多子板的插接和拓展，實現Audio 音頻播放、 Touch 面板控制、 LCD 圖像顯示和Camera 圖像採集這四類功能，使用戶通過感官通道以及肢體語言與機器進行多維交互。

樂鑫 ESP32 S2 Kaluga-1 人機介面開發板套件



技術規格

Touch 面板控制

  • 支持14 個非常敏感的觸摸傳感器，其中有3個支持距離感應
  • 支持3 mm 亞克力面板
  • 支持濕手操作
  • 防誤觸設計：若多個觸摸按鍵同時被水滴大面積覆蓋，ESP32-S2 會啟動自鎖功能（擦掉水滴後恢復正常）

Audio 音頻播放

  • 連接音箱可播放音頻
  • 通過和Touch 面板的共用，可進行音頻播放開關、調整聲音大小。

LCD 圖像顯示

  • 支持LCD 接口（8-bit 並口RGB、8080、6800 接口）
  • 支持ST7789 和ILI9341 驅動的顯示屏
  • 支持將攝像頭數據實時顯示在LCD 屏上

Camera 圖像採集

  • 支持8/16 bit DVP 圖像傳感器接口
  • 支持OV3660 和OV2640 驅動的攝像頭
  • 最高時鐘頻率支持到40 MHz
  • DMA 傳輸帶寬優化，高分辨率圖像傳輸更輕鬆

組件說明

配送清單

  • ESP 32-S2-Kaluga-1 ×1
  • ESP-LyraT-8311A ×1
  • ESP-LyraP-CAM ×1
  • ESP-LyraP-TouchA ×1
  • ESP-LyraP-LCD32 ×1
  • 20引腳FPC電纜(用於連接ESP32-S2-Kaluga-1到ESP-LyraP-TouchA) ×1
  • 安裝螺栓 ×8
  • 安裝螺釘 ×4
  • 安裝螺母 ×4

相關文檔

ESP32-S2-Kaluga-1 Development Board Kit

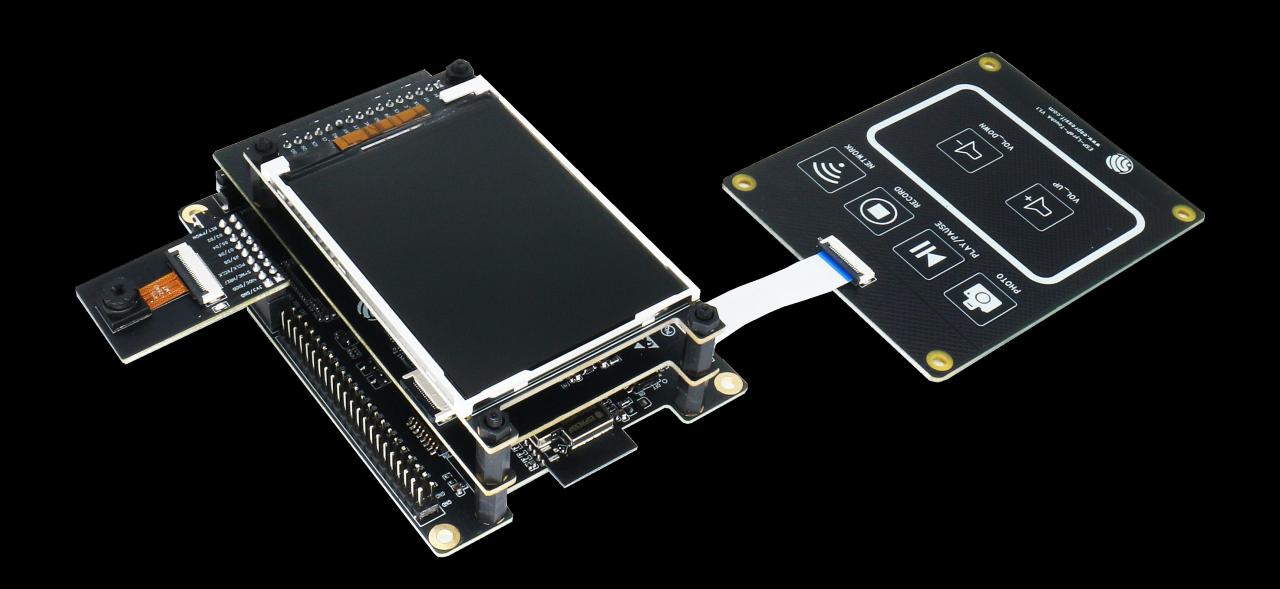

The ESP32-S2-Kaluga-1 is a development kit mainly designed for human-computer interaction applications. It includes one main-board and four extension boards that support: touch panel control, audio playback, LCD display and camera image acquisition, which allows users to interact with machine through sensory channels and body language.

ESP32-S2-Kaluga-1 Development Board Kit

Touch Panel Control

  • 14 touch sensors, three of which support distance detection(proximity mode)
  • Support acrylic panels up to 5mm
  • Wet hand operation
  • Mis-touch prevention; water rejection: ESP32-S2 can be configured to disable all touchpads automatically if multiple pads are simultaneously covered with water and to re-enable touchpads if the water is removed.

Audio Playback

  • Connect speakers to play audio
  • Use together with the Touch panel to control audio playback and adjust volume

LCD Display

  • LCD interface(8-bit parallel RGB, 8080, and 6800 interface)
  • Support display with ST7789 and ILI9341 driver
  • Support camera data real-time display on LCD screen

Camera Image Acquisition

  • Support OV2640 and OV3660 camera modules
  • 8/16-bits DVP image sensor interface
  • Clock frequency up to 40MHz
  • Optimized DMA transmission bandwidth for easier transmission of high-resolution images

Description of Components

ESP32-S2-Kaluga-1 Development Board Kit

ESP32-S2-Kaluga-1 Development Board Kit

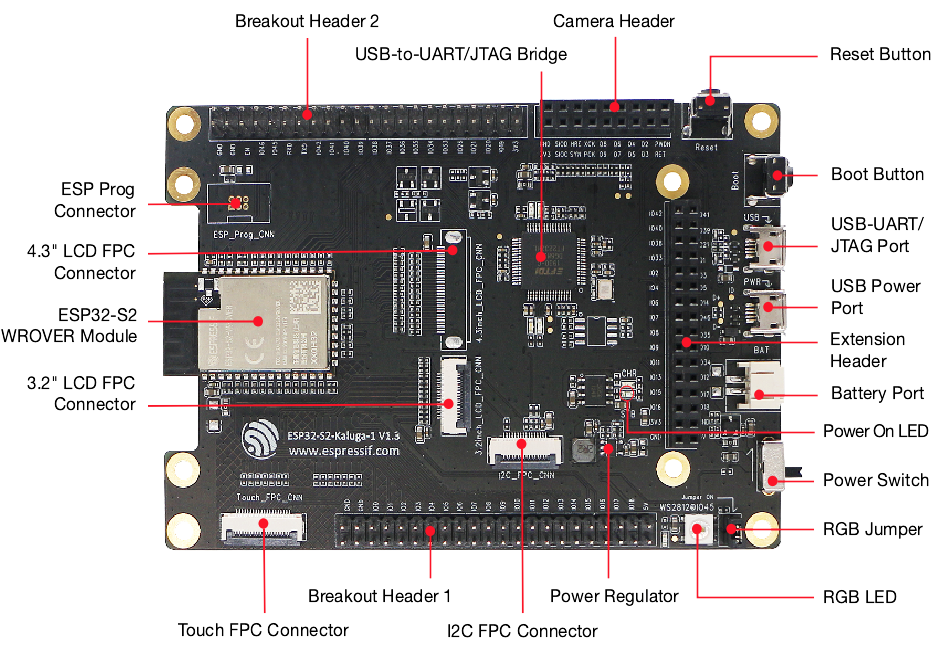

Key Component Description

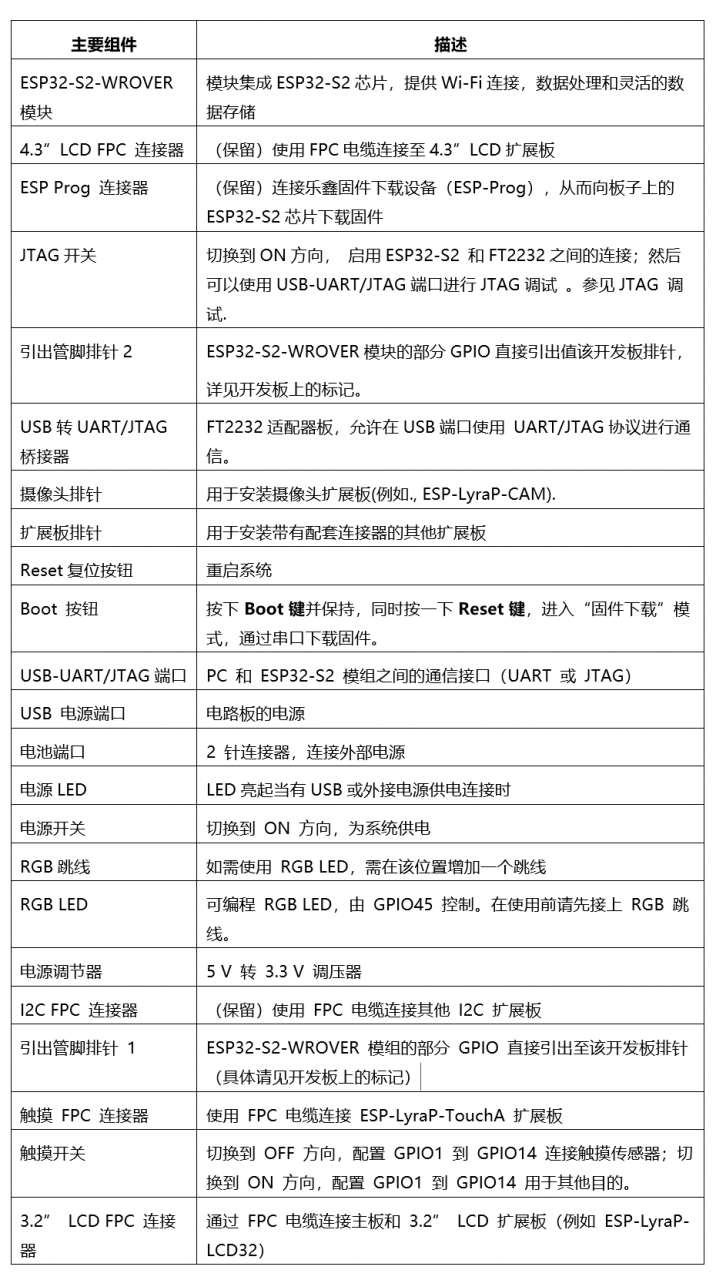

ESP32-S2-WROVER Module Module integrating the ESP32-S2 chip that provides Wi-Fi connectivity, data processing power, and flexible data storage.

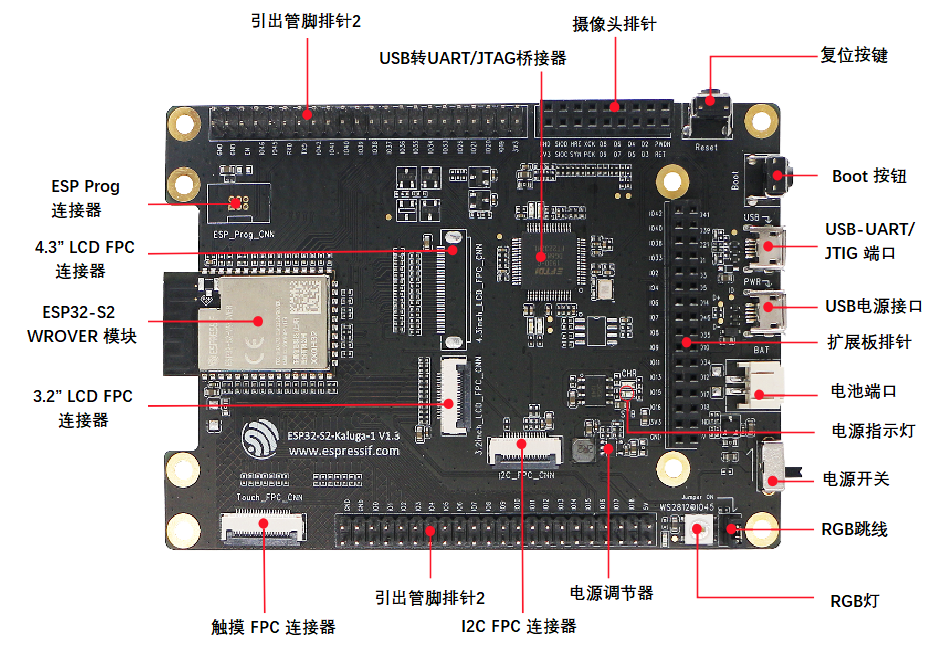

4.3” LCD FPC Connector (Reserved) Connect to a 4.3” LCD extension board using the FPC cable.
ESP Prog Connector (Reserved) Connection for Espressif’s download device (ESP-Prog) to flash ESP32-S2 system.

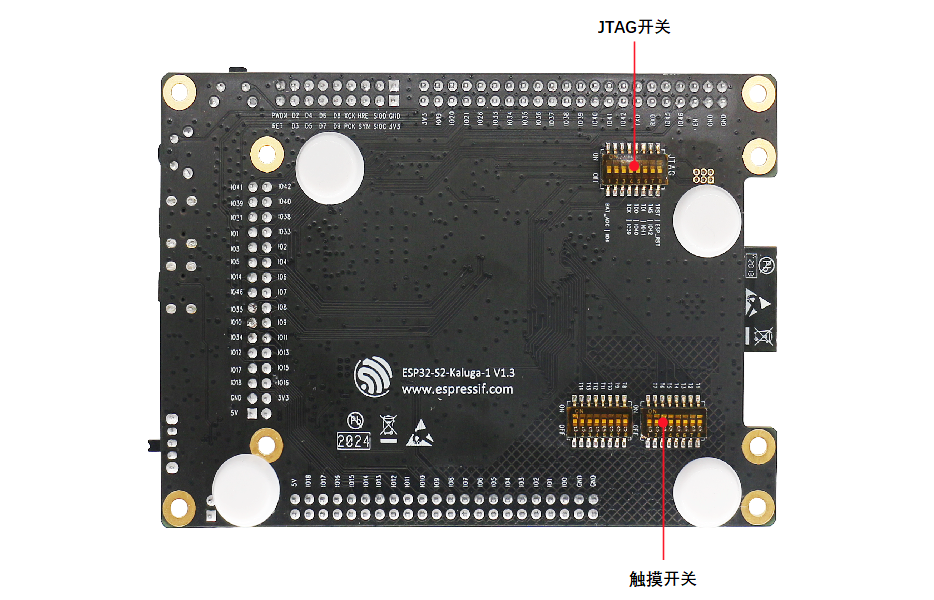

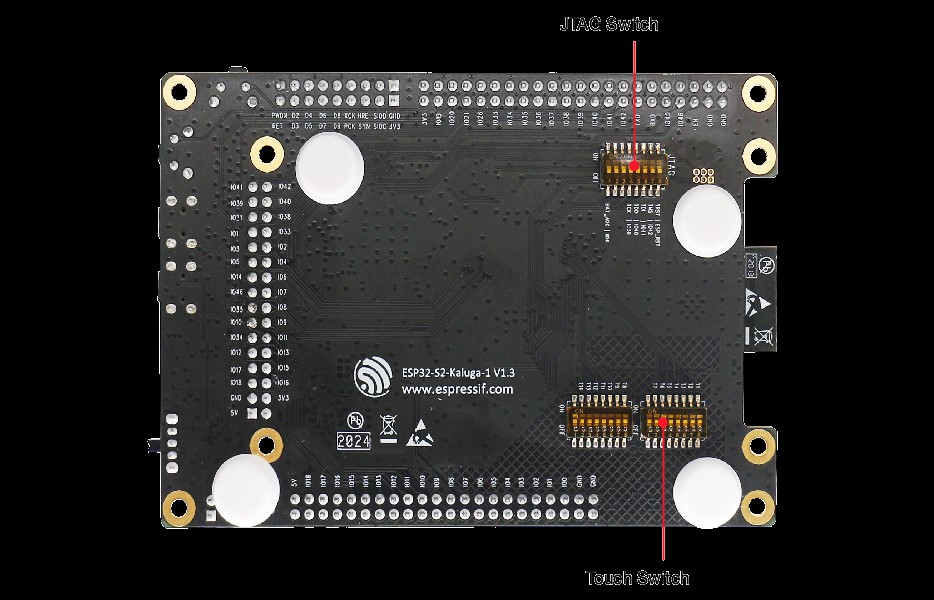

JTAG Switch Switch to ON to enable connection between ESP32-S2 and FT2232; JTAG debugging will then be possible using USB-UART/JTAG Port. See also JTAG.
Breakout Header 2 Some GPIO pins of the ESP32-S2-WROVER module are broken out to this header, see labels on the board.
USB-to-UART/JTAG Bridge FT2232 adapter board allowing for communication over USB port using UART/JTAG protocols.
Camera Header Mount a camera extension board here (e.g., ESP-LyraP-CAM).
Extension Header Mount the extension boards having such connectors here.
Reset Button Press this button to restart the system
Boot Button Holding down Boot and then pressing Reset initiates Firmware Download mode for downloading firmware through the serial port.
USB-UART/JTAG Port Communication interface (UART or JTAG) between a PC and the ESP32-S2 module.
USB Power Port Power supply for the board.
Battery Port Connect an external battery to the 2-pin battery connector.
Power On LED Turns on when the USB or an external power supply is connected to the board.
Power Switch Switch to ON to power the system.
RGB Jumper To have access to the RGB LED, place a jumper onto the pins.
RGB LED Programmable RGB LED and controlled by GPIO45. Before using it, you need to put RGB Jumper ON.
Power Regulator Regulator converts 5 V to 3.3 V.
I2C FPC Connector (Reserved) Connect to other I2C extension boards using the FPC cable.
Breakout Header 1 Some GPIO pins of the ESP32-S2-WROVER module are broken out to this header, see labels on the board.
Touch FPC Connector Connect the ESP-LyraP-TouchA extension board using the FPC cable.
Touch Switch In OFF position, GPIO1 to GPIO14 are used for connection to touch sensors; switch to ON if you want to use them for other purposes.
3.2” LCD FPC connector Connect a 3.2” LCD extension board (e.g., ESP-LyraP-LCD32) using the FPC cable.



DOCUMENTS



SHIPPING LIST



  • ESP 32-S2-Kaluga-1 ×1
  • ESP-LyraT-8311A ×1
  • ESP-LyraP-CAM ×1
  • ESP-LyraP-TouchA ×1
  • ESP-LyraP-LCD32 ×1
  • 20-Pin FPC Cable(to connect ESP32-S2-Kaluga-1 to ESP-LyraP-TouchA) ×1
  • Mounting Bolts ×8
  • Screws ×4
  • Nuts ×4
