海凌科人體存在感測器 LD2410B 毫米波雷達感應模組 支援光敏帶藍牙

描述

海凌科人體存在感測器 LD2410B 毫米波雷達感應模組 支援光敏帶藍牙 LD2410B單模組+連接線

LD2410B 是海淩科電子開發的一款高靈敏度的24GHz人體存在狀態感應模組。其工作原理是利用FMCW調頻連續波，對設定空間內的人體目標進行探測，結合雷達信號處理、精確人體感應演算法，實現高靈敏度的人體存在狀態感應，可識別運動和靜止狀態下的人體，並可計算出目標的距離等輔助資訊。本產品主要應用在室內場景，感知區域內是否有運動或者微動的人體，即時輸出檢測結果。最遠感應距離可達6米，距離解析度0.75m。提供視覺化的配置工具，可輕鬆配置感應距離範圍、不同區間的感應靈敏度和無人延時時間等，適應不同的具體應用需求。 支援 GPIO 和 UART 輸出，隨插即用，可靈活應用于不同的智慧場景和終端產品。

產品特點和優勢

• 隨插即用，簡易裝配方式
• 最遠感應距離為可達6米
• 探測角度大，覆蓋範圍可達±60度
• 區間內準確識別，支援感應範圍劃分，遮罩區間外幹擾
• 可以通過藍牙或串口實現多級智慧調參，滿足場景變化需求
• 視覺化調試和配置工具
• 小巧簡化，最小尺寸僅為 7mmx35mm
• 支持掛頂、掛壁等多種安裝方式
• 24GHz ISM 頻段，可通過 FCC 和 CE 頻譜法規認證
• 極致性價比之選

LD2410B人體感應模組採用24GHz毫米波雷達感測器技術，和其他方案對比，在人體感應應用上有著明顯的優勢：

1. 除了對運動人體感應靈敏外，對於傳統方案無法識別的靜止、微動、坐臥人體也都可靈敏感應到；
2. 有良好的環境適應性，感應效果不受溫度、亮度、濕度和光線波動等周圍環境影響。
3. 有良好的外殼穿透性，可隱藏在外殼裡面工作，無需在產品表面開孔，提高了產品美觀度。
4. 可靈活配置最遠感應距離和每個距離門上的靈敏度，實現靈活精細的個性化配置。
5. 帶有藍牙功能，可以無需接住串口，直接使用APP調試雷達參數

應用場景 LD2410B人體感應模組對運動、微動和站立、坐臥的人體均可進行探測識別，支持多級調參，可廣泛應用於 AIoT 各種場景，常用類型如下

• 人體感應燈控 感知所在空間是否有人存在，自動控制燈光，如公共場所照明設備、各類感應燈、球泡燈等。
• 廣告屏等設備的人體感應喚醒 人來自動開啟，無人自動休眠節電，資訊投放更精准高效
• 生命安全防護 UV燈工作保護，防止UV燈在周邊有人時開啟對人身造成傷害 危險場所自動檢測告警，防止有人進入特定高危空間，如煤礦爆破的進制人員進入的高危場所
• 智慧家電 房間內長時間無人，電視空調等電器自動關閉，節能又安全
• 智慧安防 對指定範圍內有人侵入、逗留等的檢測識別

文件與技術支援

• 官方開發文件下載
• Arduino 函數庫

HLK-LD2410B+BLE 24Ghz Human Presence Body Induction Distance Detection Radar Sensor Module support GPIO and UART

LD2410B is a high-sensitivity 24GHz human presence status sensing moduledeveloped by Hi-link. Its working principle is to use FMCW frequency-modulated continuous waves to detect human targets in the set space. Combined with radar signal processing and precise human body sensing algorithms, it realizes high-sensitivity human presence status sensing, and can identify human bodies in motion and stationary states. And auxiliary information such as the distance of the target can be calculated.

This product is mainly used in indoor scenes to sense whether there is a moving or micro-moving human body in the area, and output the detection results in real time. The farthest sensing distance can reach 5 meters, and the distance resolution is 0.75m. Provides a visual configuration tool, which can easily configure the sensing distance range, sensing sensitivity in different intervals and unmanned delay time, etc., to adapt to different specific application needs.

Support GPIO and UART output, plug and play, and can be flexibly applied to different smart scenarios and terminal products.

Product parameters

• Plug and play, easy assembly
• The longest sensing distance is up to 5 meters
• Large detection angle, coverage up to ±60 degrees
• Accurate identification within the interval, support the division of the sensing range, and shield the interference outside the interval

Multi-level intelligent parameter adjustment to meet the needs of scene changes

• Visual debugging and configuration tools
• Small and simplified, the minimum size is only 7mmx35mm

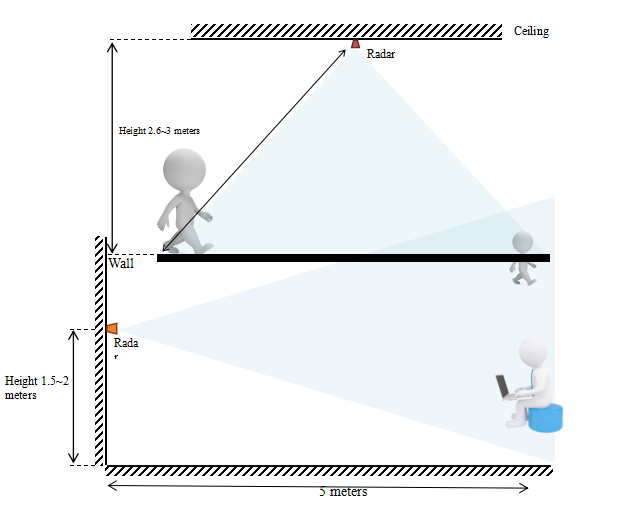

• Supports various installation methods such as ceiling hanging and wall hanging
• 24GHz ISM band, compliant with FCC and CE spectrum regulations
• 5～12V wide voltage power supply
• The ultimate cost-effective choice

Solution Advantage

LD2410 human body sensing module adopts 24GHz millimeter wave radar sensor technology. Compared with other solutions, it has obvious advantages in human body sensing applications:

1.In addition to being sensitive to the moving human body, it can also sensitively sense the static, fretting, and sitting and lying movements of the human body that cannot be recognized by traditional solutions.；

2.It has good environmental adaptability, and the sensing effect is not affected by the surrounding environment such as temperature, brightness, humidity and light fluctuations；

3.With good shell penetration and can be hidden in the shell to work without opening holes on the surface of the product, which improves the aesthetics of the product；

4.Flexible configuration of the farthest sensing distance and the sensitivity on each distance door for flexible and fine-tuned personalization；

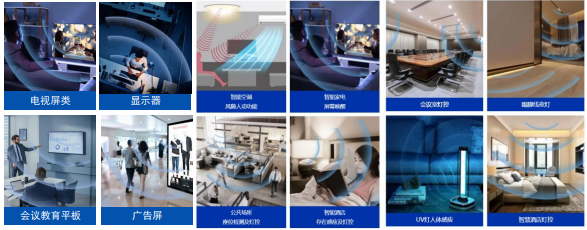

Application

* Human body sensor light control

It senses whether there is someone in the space, and automatically controls lights, such as lighting equipment in public places, various sensor lights, bulb lights, etc.

* Human body induction wake-up of advertising screen and other equipment

Automatically turn on when people come, and automatically sleep when no one comes to save power, information delivery is more accurate and efficient

* Life safety protection

UV lamp work protection, to prevent the UV lamp from being turned on when there are people around and causing personal injury

Automatic detection and alarm of dangerous places to prevent people from entering specific high-risk spaces, such as high-risk places entered by personnel from coal mine blasting

* Smart home appliances

When there is no one in the room for a long time, the TV, air conditioner and other electrical appliances are automatically turned off, saving energy and safety

* Intelligent security

Detection and identification of people intruding, staying, etc. within the specified range

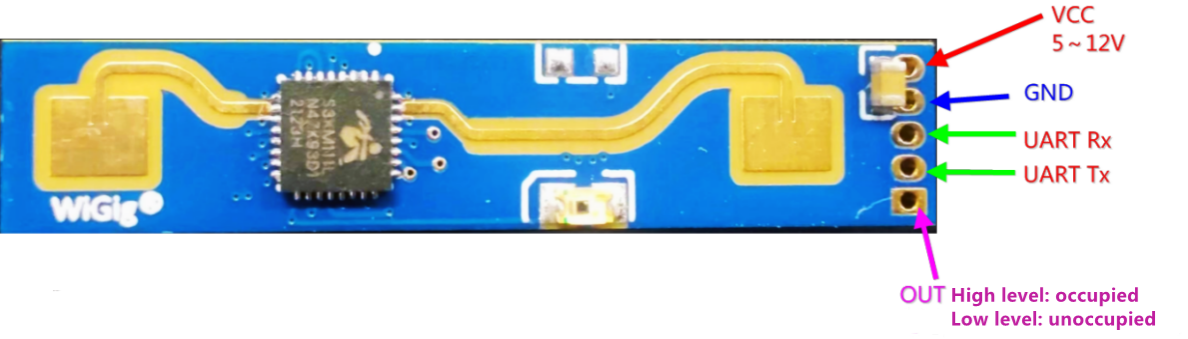

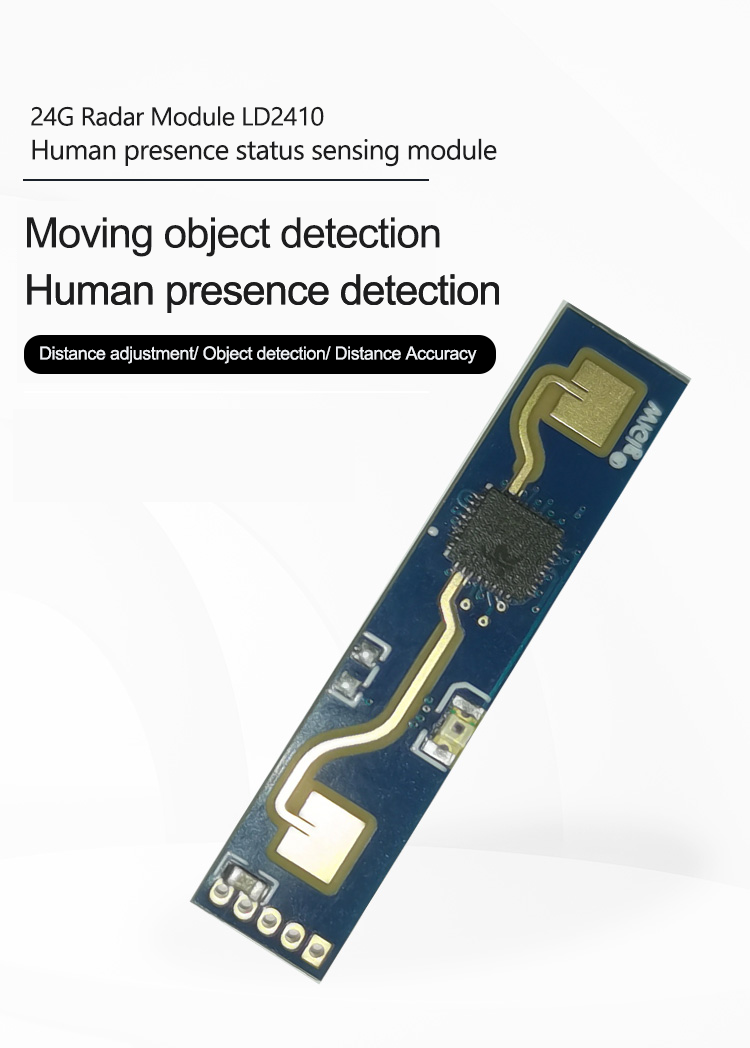

Hardware illustration

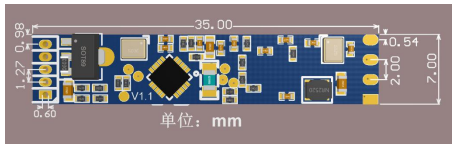

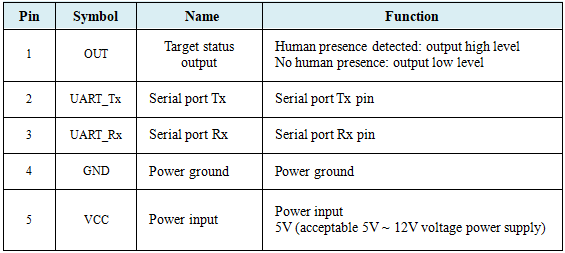

Module size: 7mmx35mm, 5 pin holes are reserved in the hardware (the factory default does not match the pins)

The pin hole diameter is 0.6mm, and the pin spacing is 1.27mm
