英國 BBC Micro:bit Go Bundle v2.21 入門學習套件 MicroBit v2.21 微型電腦開發板套件組

描述

英國 BBC Micro:bit v2.21 Go Bundle 入門學習套件

MicroBit v2.21 微型電腦開發板套件組

BBC micro:bit v2.21 是一款袖珍型計算機，可讓您利用數字技術發揮創意。每個訂單僅包含 micro:bit v2 開發板。您可以從任何地方編碼、自定義和控制您的 micro:bit！您可以將 micro:bit 用於各種獨特的創作，從機器人到樂器等等。雖然只有信用卡的一半大小，但您會驚訝於每塊板配備的硬件數量，包括 25 個可以閃爍消息的紅色 LED 燈。有兩個可編程觸覺按鈕和一個觸摸感應標誌，可用於控制遊戲或暫停和跳過播放列表中的歌曲。micro:bit 甚至可以檢測運動並告訴您前進的方向。它還可以使用低功耗藍牙 (BLE 5.0) 與其他設備和互聯網進行交互。

這個 micro:bit v2 Go Bundle 為您提供了連接和供電所需的一切。該套件包括 micro:bit v2、一根短 USB 數據線、一個 AAA 電池座和 AAA 電池。在 Go Bundle 中，您還會找到一份快速入門指南，其中包含四個獨特的想法，可幫助您開始使用 micro:bit！Go Bundle 是開始使用 micro:bit 的一種快速且經濟的方式。

在電路板的正面，您會發現可用作光傳感器的 5×5 LED 陣列、可在其上繪圖、顯示文字、數字和其他信息的小屏幕、麥克風輸入和 LED 指示燈、兩個可編程觸覺按鈕，以及觸摸感應標誌！在電路板的背面，您會發現 micro:bit 的大腦、一個 64 MHz、帶 FPU 的 ARM Cortex-M4 微控制器、512KB 閃存、128KB RAM 和一個內置溫度傳感器。此外，micro:bit 的背面裝有加速度計、羅盤、MEMS 麥克風、揚聲器和藍牙智能天線，以及用於不同電源選項的 microUSB 和兩針 JST 連接器。最後，在板的底部，您會發現 25 個帶金色標籤的邊緣引腳和五個環形連接器（三個用於數字/模擬 I/O，兩個用於電源和接地），用於連接外部組件。

micro:bit 甚至提供了一個直觀的移動應用程序，讓您可以通過藍牙（無需使用 USB 數據線）將代碼發送到您的 micro:bit。使用此應用程序，您將能夠以更高級別的可訪問性與您的 micro:bit 進行交互。

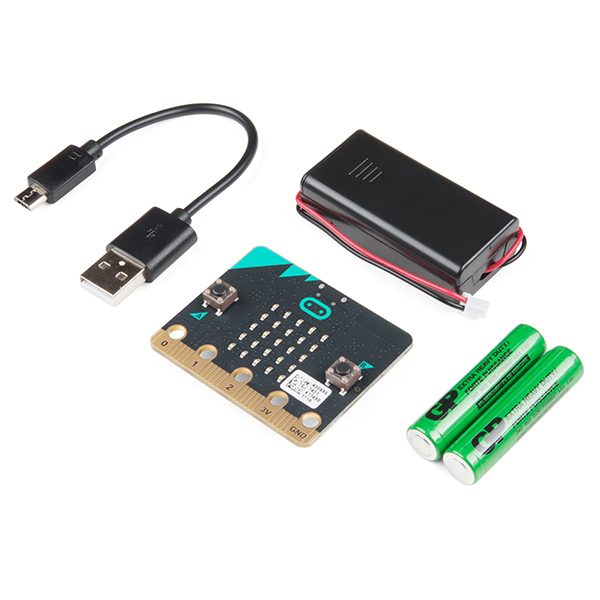

出貨清單

• 1x micro:bit v2 開發板
• 1x 微型 USB 數據線 — 6 英寸
• 1x 電池座 — 2xAAA
• 2 節 AAA 電池

原廠技術文件與範例

• 入門指南
• 入門視頻
• 關於 micro:bit
• micro:bit 硬件
• micro:bit 應用程序

micro:bit v2 Go Bundle

The BBC micro:bit v2 is a pocket-sized computer that lets you get creative with digital technology. Each order contains just the micro:bit v2 board. You can code, customize and control your micro:bit from anywhere! You can use your micro:bit for all sorts of unique creations, from robots to musical instruments and more. At half the size of a credit card, you will be surprised at the amount of hardware each board is equipped with, including 25 red LED lights that can flash messages. There are two programmable tactile buttons, and a touch sensative logo that can be used to control games or pause and skip songs on a playlist. The micro:bit can even detect motion and tell you which direction you’re heading. It can also use Bluetooth Low Energy (BLE 5.0) to interact with other devices and the Internet.

This micro:bit v2 Go Bundle provides you with everything you need to get hooked up and powered. This kit includes the micro:bit v2 a short USB cable, a AAA battery holder and AAA batteries. Also inside the Go Bundle you will find a Quick Start Guide with four unique ideas to get you started with micro:bit! The Go Bundle is a quick and economical way to get started with the micro:bit.

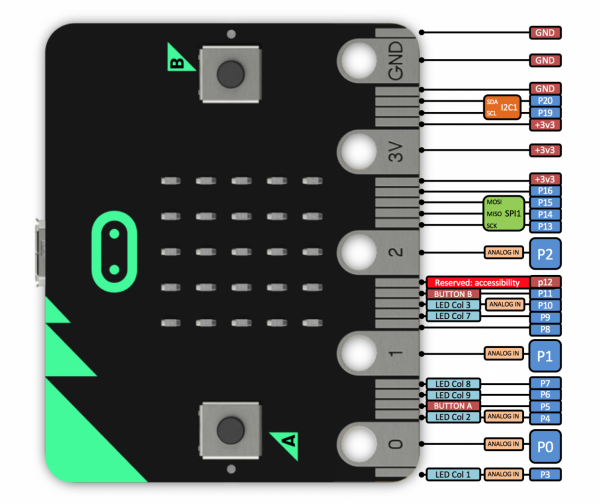

On the front of the board you will find the 5×5 LED array that you can use as a light sensor, a tiny screen to draw on, display words, numbers and other information, microphone input & LED indicator, two programmable tactile buttons, and the touch sensitive logo! On the back of the board you will find the brains of the micro:bit, a 64 MHz, ARM Cortex-M4 microcontroller with FPU, 512KB Flash, 128KB RAM and a built-in temperature sensor. Additionally, the back of the micro:bit is populated by an accelerometer, compass, MEMS microphone, speaker, and Bluetooth Smart antenna, as well as a microUSB and two-pin JST connector for different power options. Finally, at the bottom of the board you will find 25 gold-tabbed edge pins and five ring connectors (three for digital/analog I/O, two for power and ground) for hooking up external components. The tabs with larger holes can be easily used with alligator clips are now notched fore easier connection to prototype added components quickly.

The micro:bit has even supplied an intuitive mobile app that lets you send your code to your micro:bit over Bluetooth (without using a USB cable). With this app you will be able to interact with your micro:bit on a higher level of accessibility.

DOCUMENTS

• Getting Started Guide
• Getting Started Videos
• About micro:bit
• micro:bit Hardware
• micro:bit Apps
