高精度遠距雷射測距模組 室內(80M) 室外(50M) 輸出，兼容Arduino等多種控制板
原始價格：NT$3,200。NT$2,920目前價格：NT$2,920。 (未稅)
- 描述
- 評價 (0)
描述
描述
高精度遠距雷射測距模組 室內(80M) 室外(50M) 紅外激光測距傳感器 擁有高精度、遠距離測距、可視紅外激光、小視場角等特性,串口輸出，兼容Arduino等多種控制板
高精度遠距雷射測距模組 室內(80M) 室外(50M) 紅外激光測距傳感器 是一款高性價比的紅外激光測距傳感器，擁有高精度、遠距離測距、可視紅外激光、小視場角等特性。室內測量距離0.05~80m，室外測量距離0.05~50m，串口輸出，兼容Arduino等多種控制板。可用於無人機降落、電子尺以及大型糧倉料位機等應用場景中。

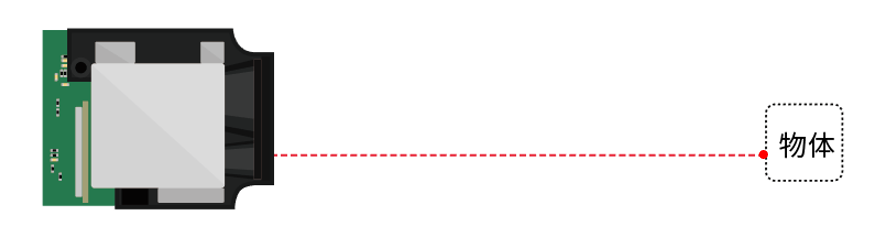

可視紅外激光小視場角
傳感器發出紅外激光，對射在物體上會顯示紅外激光點，室內80米內也能測量5x5cm大小物體的距離，超遠測量小物體的距離，讓測量更精準、更方便。

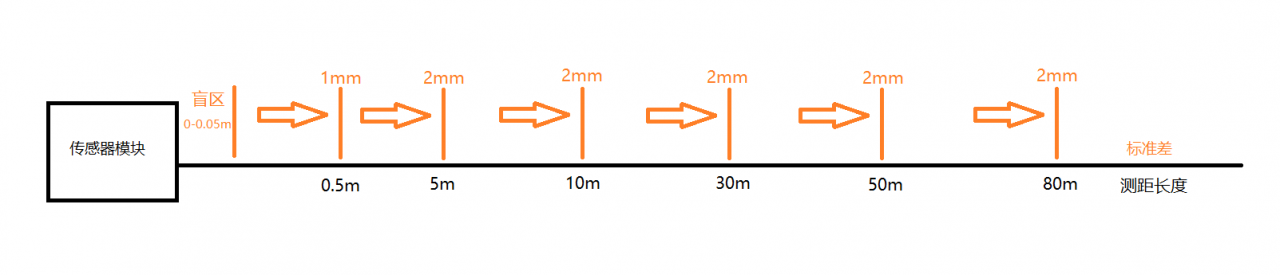

高精度 遠距離
測量距離室內可達80m、室外50m，盲區0.05m
易上手通用性強
傳感器3.3-5V供電，UART通訊接口，兼容Arduino
注意：對不同的測量目標和測量環境，由於環境光強度過大、環境溫度過高或者過低、目標反光過弱或過強，或者目標表面粗糙不平，都可能引起測程縮短或者對測量結果產生較大誤差。
功能特性
- 高精度
- 體積小
- 遠距離測距
技術規格
- 電源電壓：DC3.3V~5V
- 測量範圍: 室外0.05~50m，室內0.05~80m
- 測量精度（標準差）：±1.0mm
- 激光類型：620~690nm
- 激光等級：Ⅱ級，<1mW
- 在距離m處光斑直徑：6mm@10m，30mm@50m
- 單次測量時間：0.05~1s
- 防護等級：IP40
- 工作溫度：-10~+60℃
- 貯存溫度：-20~+80℃
- 重量：約60g
- 尺寸（長×寬×高）：48×42×18mm
配送清單
- 紅外激光測距模塊 x1
- USB轉TTL模塊 x1
範例與技術文檔
Infrared Laser Distance Sensor (50m/80m)
INTRODUCTION
This is a cost-effective IR laser distance sensor that features high accuracy, long-distance detection, visible IR laser, and small FOV. It offers the measuring ranges 0.05~80m for indoor use and 0.05~50m outdoor. With serial port output, it is compatible with all kinds of controller boards like Arduino. The sensor can be used in applications like UAV automatic landing, electronic scale, barn material level monitoring, etc.

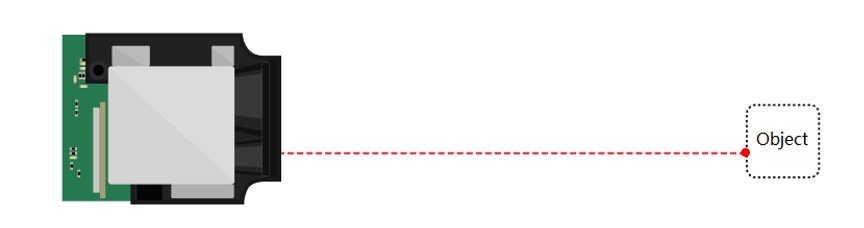

Visible Infrared Laser, Small FOV
The sensor will emit infrared laser to point to an object, then there will be an IR laser dot on that object. It can measure objects of size 5x5cm within 80m when used indoors. Long-distance detection of small objects, more accurate and easier to use.

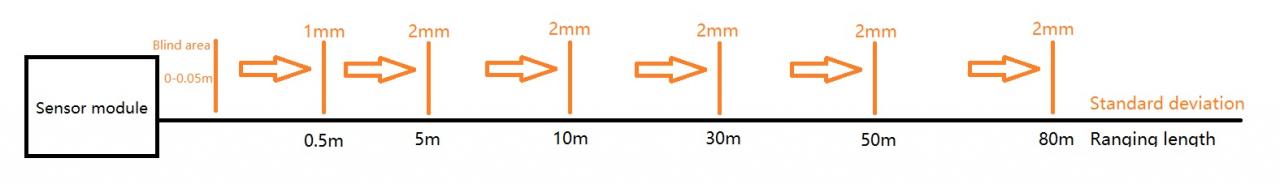

High Accuracy, Long Distance
Measuring Range 80m for using indoor, 50m outdoor. 0.05m Blind zone

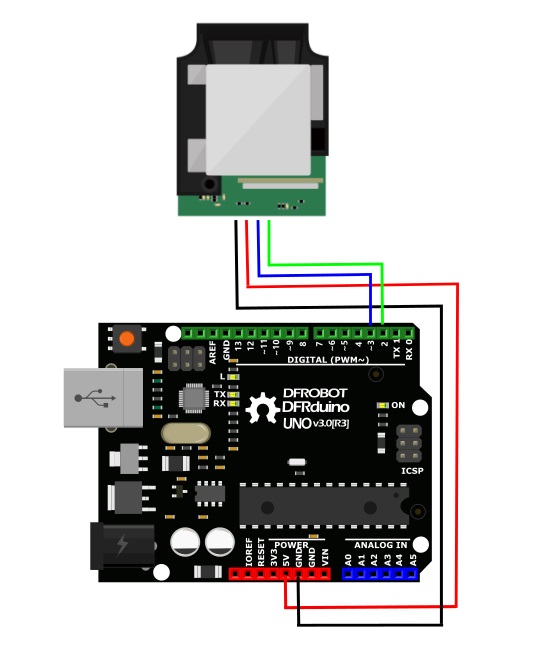

Easy to Get Started
3.3~5V power supply, UART communication port, compatible with Arduino.
Note:For different objects and operating environments, the measurement range of the sensor may be shortened or its performance may be affected due to factors like excessive intensity of ambient light, too high or too low operating temperature, rough surface of target, and too weak or strong light reflection of target object.
FEATURES
- High accuracy
- Small size
- Long-distance measurement
SPECIFICATION
- Power Supply: DC3.3V~5V
- Measuring Range: 0.05~50m(outdoor), 0.05~80m(indoor)
- Accuracy(Standard Deviation): ±1.0mm
- Laser Type: 620~690nm
- Laser Class: Ⅱ, <1mW
- Spot Diameter at Distance M: 6mm@10m，30mm@50m
- Single Measurement Time: 0.05~1s
- Protection Level: IP40
- Operating Temperature: -10~+60℃
- Storage Temperature: -20~+80℃
- Weight: about 60g
- Dimension(L*W*H): 48×42×18mm/1.89×1.65×0.71”
DOCUMENTS
SHIPPING LIST
- Infrared Laser Distance Sensor（50m/80m） ×1
- USB to TTL Converter ×1
