150W開關電源模組 交流110V 220V轉直流24V 6A大功率工業電源裸板

描述

150W開關電源模組 交流110V 220V轉直流24V 6A大功率工業電源裸板

150W開關電源模組 交流110V 220V轉直流24V 6A大功率工業電源裸板 獨家採用雙面PCB設計，性能更穩定，更可靠！更適用於工業控制系統的電源供電！

AC-DC電源模組150W大功率工業電源模組110V/220V轉24V 6-9A 保護功能：過壓、過流、短路保護全有。 交流輸入：AC100V-240V 全球通用 交流頻率：50HZ/60HZ 輸出電壓：直流DC24V 輸出電流：6-9A（無任何壓降） 輸出功率：150W（最大220W） 模組尺寸：長*寬*高 115*65*35(mm)

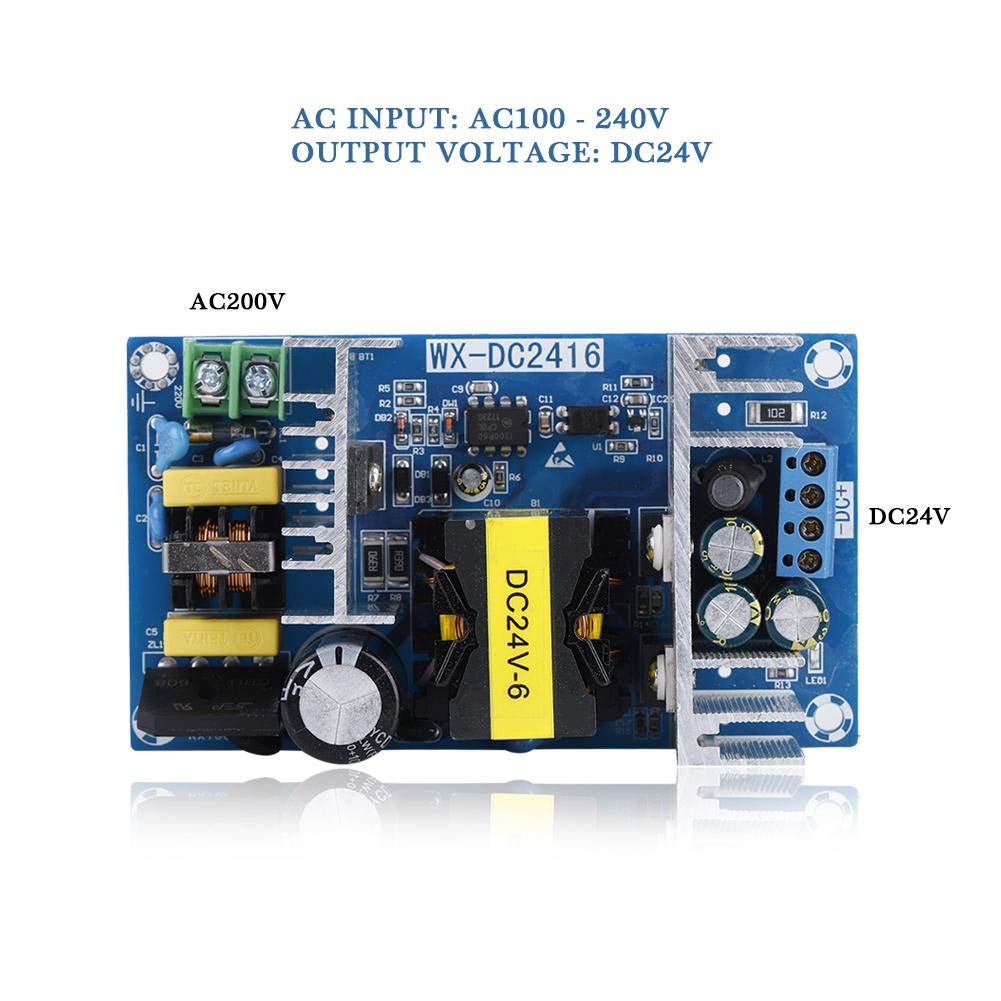

DC Power Module,24V 6A 150W Switching Power Supply Board High Power Power Module Bare Board for Power Industrial Control Systems

• Multi-peotection – over-voltage,over-current and short circuit protection.
• Exclusive use of double-sided PCB power supply module design,more stable and more reliable.
• High-quality power supply module.
• Very suitable for power industrial control systems.
• DC24V 6A 150W Switching Power Supply Board.

Type: Switching Power Supply Board
Protection: over-voltage, over-current, short circuit protection
AC input: AC100 – 240V
AC frequency: 50Hz / 60Hz
Output voltage: DC24V
Output current: 6 – 9A
Output power: 150W (Maximum 220W)
Dimensions: 11.5 * 6.5cm / 4.5 * 2.6in
Positioning hole size: 10.58 * 5.57cm / 4.2 * 2.2in
Output ripple: < 150MV
Material: PCB
Weight: Approx. 200g / 7.1oz
Size: Approx. 11.5 * 6.5 * 3cm / 4.5 * 2.6 * 1.2in
