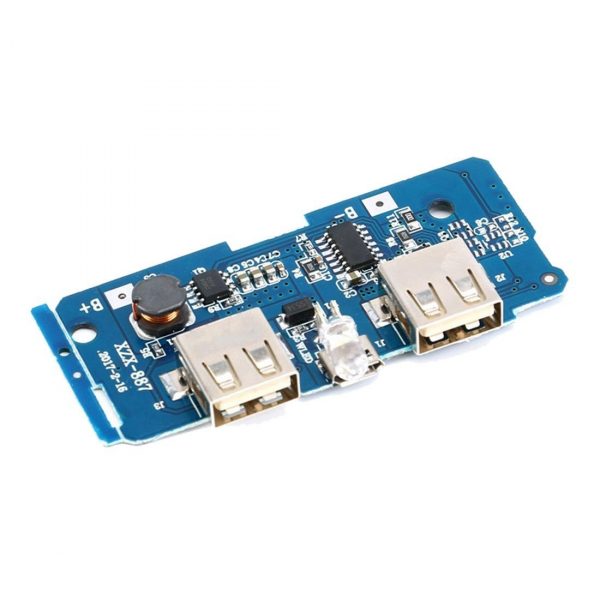

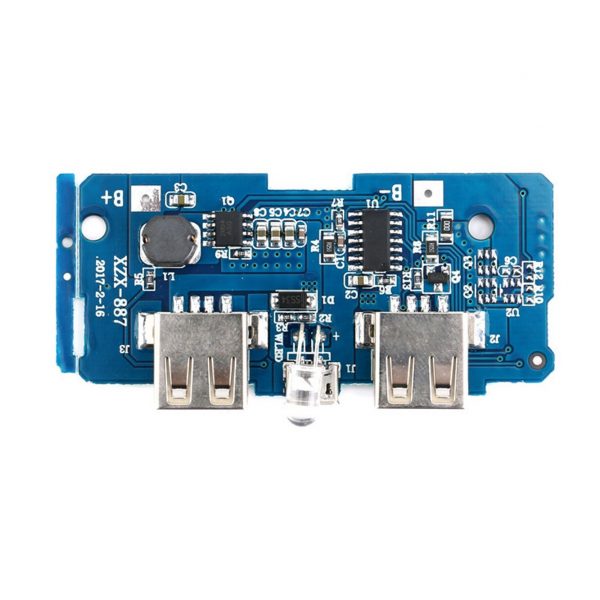

18650 電池 3.7V 轉 5V2A 升壓模組 DIY 行動電源模組 雙 USB 輸出

描述

18650 電池 3.7V 轉 5V2A 升壓模組 DIY 行動電源模組 雙 USB 輸出

18650 電池 3.7V 轉 5V2A 升壓模組可以輸入 2A 充電, 並可輸出 2.5A 支持邊充邊放，開關按長按5秒左右可關閉電源。  DIY 移動電源 / 充電寶電路板。

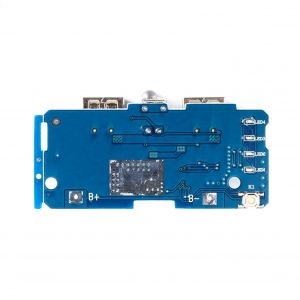

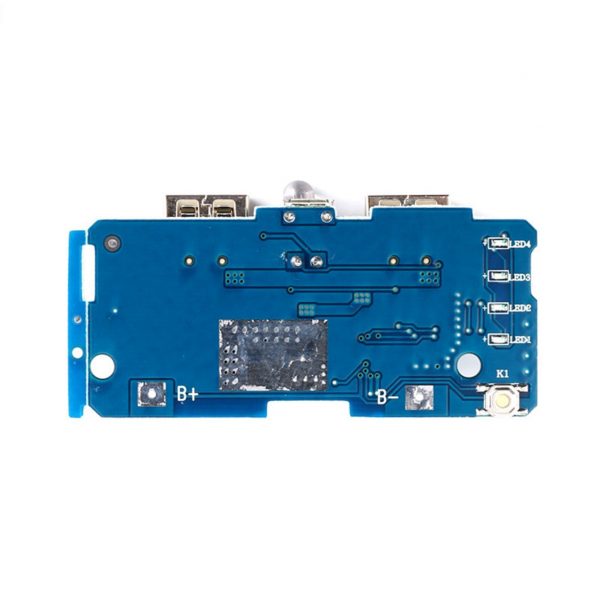

• 1. 4級LED燈顯示電量，非工作狀態智能自動關機。
• 2.內置鋰電池保護IC，有過流、過壓、欠壓保護。
• 3.雙USB輸出。
• 4、主板尺寸：厚8mm*寬32mm*長69mm。



18650 電池 3.7V 轉 5V2A 升壓模組 DIY 行動電源模組 充電電池要求：
可用電池：18650 電池、手機電池、平板電池、MP3電池等3.7V-4.2V聚合物鋰電池，可單節（片）供電，也可多節（片）並聯供電（不支持串聯，不可以串聯）。（注意：並聯增加容量，串聯是增加電壓，只能並聯用！）可以並聯2-6節18650電池！！！ 不可用電池：乾電池、蓄電池、1.2V可充電電池、鎳氫電池、3.2V鐵鋰聚合物鋰電池等。

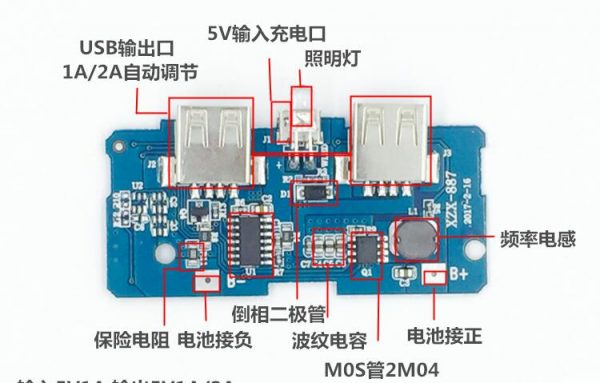

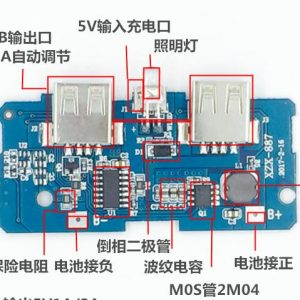

18650 電池 3.7V 轉 5V2A 升壓模組 產品安裝時需注意以下幾點：

• 1、電池要並聯，電壓要在3.2-4.2V之間才能工作，18650平頭與聚合物電池均可。
• 2、電池正接主板B+ 負接B-，裝反必燒主板。
• 3、新舊電池、型號品牌不一致電池不可混用。

輸入端口：MicroUSB（安卓口）
輸入要求：5V恆壓電源都可以做充電輸入電源，最匹配充電器為5V1A以上
輸出端口：USB
輸出參數：5V1A/5V2A



Dual Micro USB 3.7v to 5V 2A Mobile Power Bank DIY 18650 Lithium Battery Charger PCB Board Boost Step Up Module With Led

• LED lights show the power, non-working state of intelligent automatic shutdown
• Built-in lithium battery protection IC, over-current, overvoltage, undervoltage protection
• Dual USB output
• Output parameters: 5V1A/5V2A

Product Features:

• LED lights show the power, non-working state of intelligent automatic shutdown;
• Built-in lithium battery protection IC, over-current, overvoltage, undervoltage protection;
• Dual USB output.
• Product basic parameters:
• Input port: MicroUSB (Andrews mouth)
• Input requirements: 5V constant voltage power supply can be done to charge the input power supply, the most matching charger for 5V1A above
• Output port: USB
• Output parameters: 5V1A/5V2A

Requirements for rechargeable batteries:

Available battery: 18650 battery, cell phone battery, flat battery, MP3 battery, etc. 3.7V-4.2V polymer lithium battery can be single section (chip) power supply, can also be multi-section (chip) parallel power supply (not in series, not in series ). (Note: increase the capacity in parallel, the series is to increase the voltage, can only be used in parallel!)

Can be parallel 2-6 18650 battery.

Not available Battery: dry batteries, batteries, 1.2V rechargeable batteries, nickel-metal hydride batteries, 3.2V lithium iron polymer lithium batteries.

Product installation should pay attention to the following points:

• the battery should be in parallel, the voltage between 3.2-4.2V to work, 18650 flat and polymer batteries can be;
• the battery is connected to the motherboard B + negative access B-, installed anti-burning motherboard;
• the old and new batteries, models, inconsistent battery brand can not be mixed.
