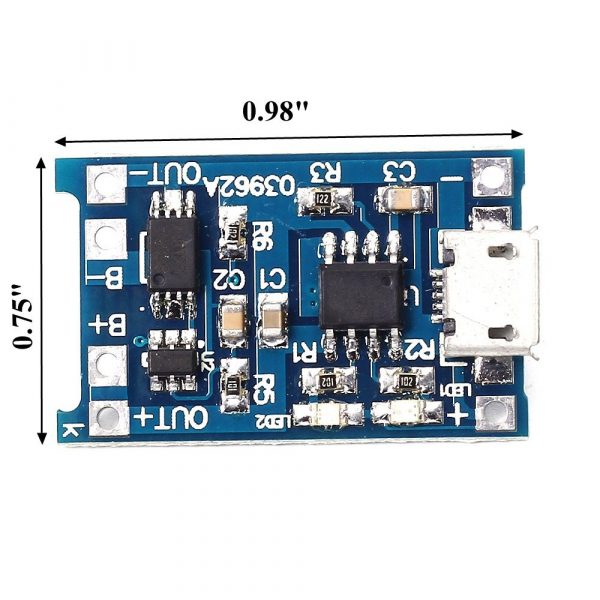

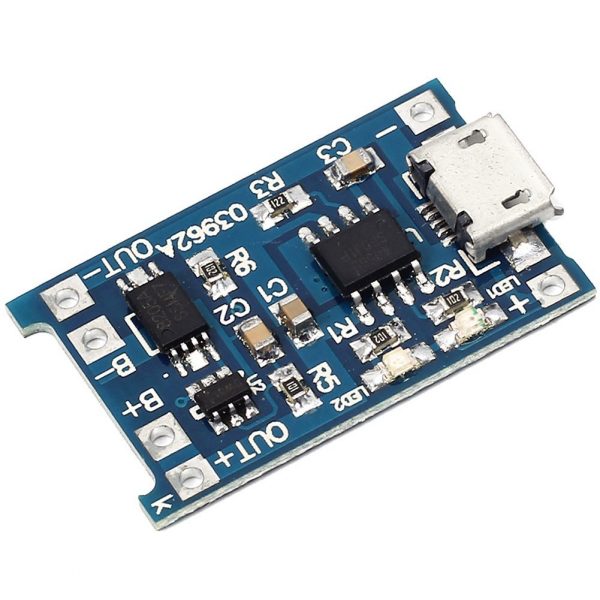

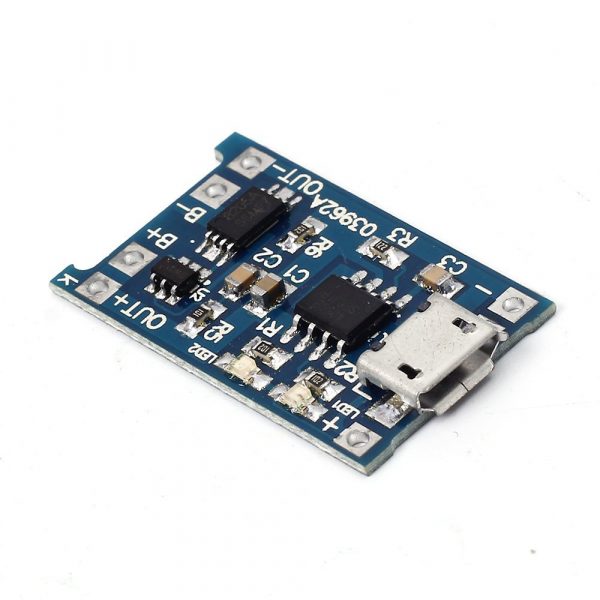

18650 鋰電池充電與保護一體充電保護二合一充電板

0 out of 5
( 目前沒有評價。 )

原始價格：NT$50。目前價格：NT$30。 (未稅)

狀態: 尚有庫存 貨號: EMD-001529 分類: 標籤: , , , , , , , ,

描述

18650 鋰電池充電與保護一體充電+保護二合一充電板

產品功能

  • Micro USB鋰離子/ lipo / 18650電池充電板具有過充，過放和過流保護功能
  • 板載微型USB和焊接點5V輸入端口和充電狀態指示燈（紅色指示燈正在充電，綠色指示燈已充滿電）
  • 輸入電壓：DC5V，充電截止電壓：4.2V±1％，最大充電電流：1A
  • 電池過放保護電壓：DC2.5V，電池過電流保護電流：3A，板尺寸：25 X 19 X 6mm / 0.98 X 0.75X0.24inch（長*寬*高）

產品描述

這款迷你鋰離子電池充電器板設置充電和電池過充過放保護，為您的DIY 18650電池供電提供一站式服務，延長其使用壽命。板載微型USB和焊接點5V輸入端口和充電狀態指示燈電池鋰電池或多節並行鋰電池。

技術指標：
輸入電壓：DC5V
充電截止電壓：4.2V±1％
最大充電電流：1A
電池過放保護電壓：DC2.5V
電池過電流保護電流：3A電路
板尺寸：26 X 17mm / 1.02 X 0.67inch L * W）



TP4056 Micro USB 5V 1A 18650 Lithium Battery Charger Board with Over Charge Discharge Protection

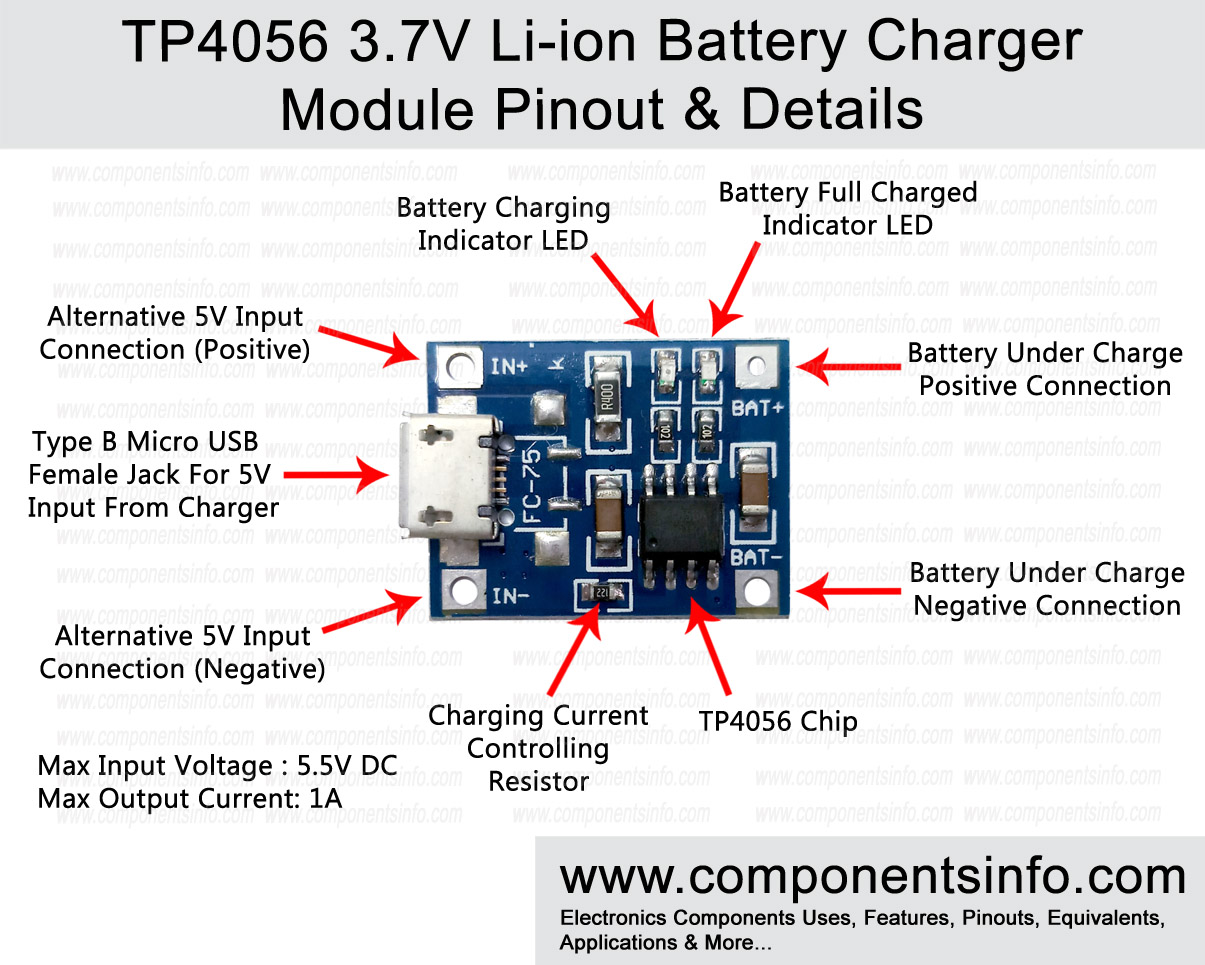

TP4056 3.7V Li-ion 18650 Battery Charger Module Pinout, Datasheet & Details

Product features

  • Micro USB lithium ion / lipo / 18650 battery charging board with overcharge, overdischarge and overcurrent protection
  • On-board micro USB and soldering joints 5V inputport and charging status indicator(red indicator is charging,green indicator is full charged)
  • Input Voltage: DC5V,Charging Cut-off Voltage: 4.2V±1%, Maximum Charging Current: 1A
  • Battery Over Discharge Protection Voltage: DC2.5V, Battery Over Current Protection Current: 3A, Board Size: 25 X 19 X 6mm/0.98 X 0.75X0.24inch(L*W*H)

Product description

This mini Li-ion battery charger board set charging and battery overcharge overdischarge protection all in one practial for your DIY 18650 battery power supply to prolong its lifetime.On-board micro USB and soldering joints 5V inputport and charging status indicator ieal for single-cell lithium or multi-section parallel lithium battery.

TP4056 Module Features & Technical Specs:

  • Over Current Protection
  • Output charging current can be controlled or adjusted from a single resistor
  • General Micro USB Female Connector
  • Battery Charging Indication LED
  • Battery full Charged Indication LED
  • Battery auto cutoff from the charging circuit when fully charged
  • Soft Start Charging
  • It can charge any size of 3.7V Li-ion cell
  • Low cost and reliable Li-ion battery charger
  • Battery temperature measurement inside (Disconnect charging when temperature of the battery goes high than normal)
  • Can connected to any USB port with a USB cable



TP4056 Charging Module Explained / Description:

TP4056 module is a very efficient 3.7V single li ion cell or lithium ion cell charging module. It can not only charge 18650 cell but a wide variety of different sized and kinds of 3.7V li ion batteries. The heart of the module is a TP4056 IC that is an advanced lithium battery charging IC. The IC is built and internally programed to provide efficient charging to a li ion cell which increases the cell back up and life.

The IC also has a temperature input pin from which we can connect a temperature sensor NTC type. The temperature sensor must be attached with the body of the battery to detect the temperature of the battery while charging. The IC is also programed to disconnect the charging when the battery temperature goes above from a limit set inside the IC’s program. The module is also having two indicators LEDs also marked in the module pinout & details above. One LED indicates the battery charging in progress and when the battery become full charged it automatically gets deactivated and the another LED will become activated to indicate that the battery is fully charged.

Where TO Use:

TP4056 li ion battery charger module can be used anywhere where you are using portable devices with li ion batteries. For example it can be used to make solar power banks and it can also be used in your electronics projects. Moreover it can also be used as a charger or alternative charger for cell phones, digital cameras and other portable devices.



How TO Use:

Using TP4056 module is very simple for providing input power to the circuit you can use a 5V 2A charger or you can also connect it with any USB outlet. Alternatively you can also connect a 5V 2A supply with the input terminals of the module.

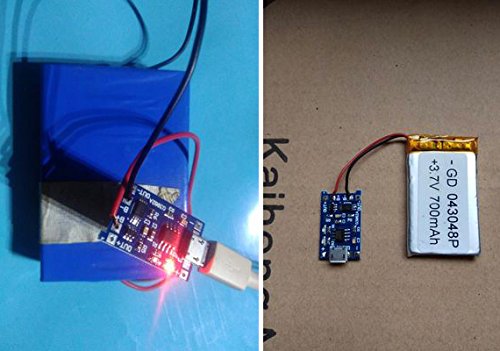

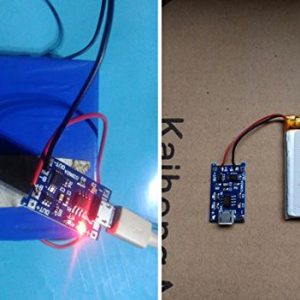

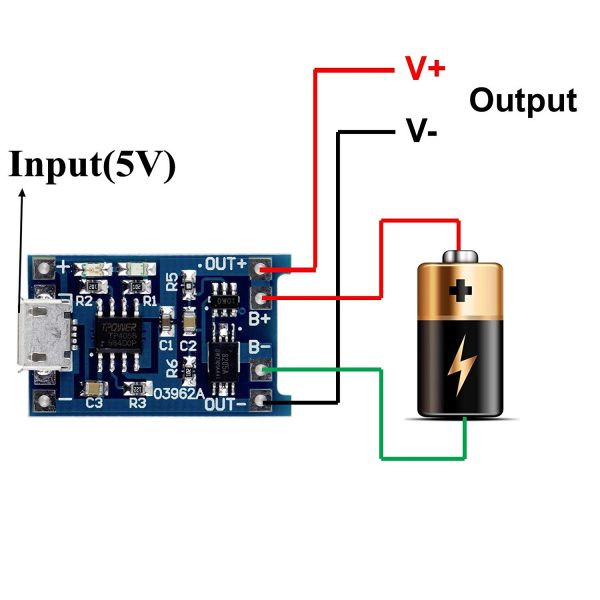

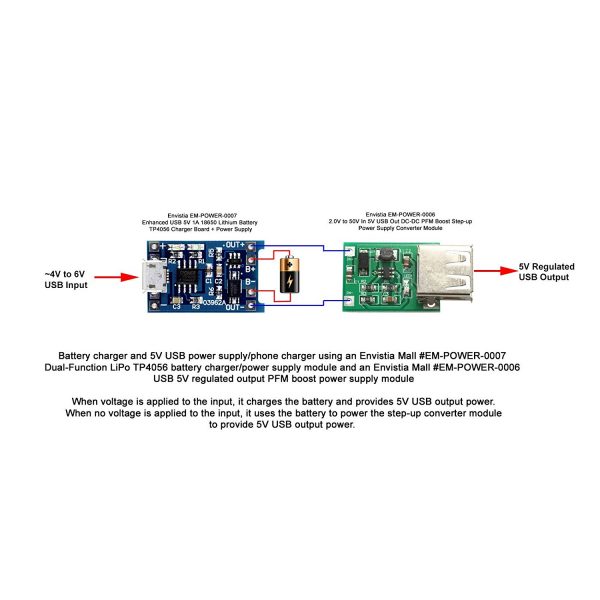

After connecting the supply connect the 3.7V lithium ion cell you want to charge with the battery connections points shown in the image above. The li ion cell should be connected in right polarity or the cell or charger may damage.



Datasheet:

To Download the datasheet just copy and paste the below link in your browser.

https://pdf1.alldatasheet.com/datasheet-pdf/view/1132405/ASIC/TP4056.html



Specifications:
Input Voltage: DC5V
Charging Cut-off Voltage: 4.2V±1%
Maximum Charging Current: 1A
Battery Over Discharge Protection Voltage: DC2.5V
Battery Over Current Protection Current: 3A
Board Size: 26 X 17mm/1.02 X 0.67inch(L*W)

Package Included: 1 x  TP4056 Micro USB 5V 1A 18650 Lithium Battery Charger Board

Where TO Use:

TP4056 li ion battery charger module can be used anywhere where you are using portable devices with li ion batteries. For example it can be used to make solar power banks and it can also be used in your electronics projects. Moreover it can also be used as a charger or alternative charger for cell phones, digital cameras and other portable devices.



How TO Use:

Using TP4056 module is very simple for providing input power to the circuit you can use a 5V 2A charger or you can also connect it with any USB outlet. Alternatively you can also connect a 5V 2A supply with the input terminals of the module.

After connecting the supply connect the 3.7V lithium ion cell you want to charge with the battery connections points shown in the image above. The li ion cell should be connected in right polarity or the cell or charger may damage.



Datasheet:

To Download the datasheet just copy and paste the below link in your browser.

https://pdf1.alldatasheet.com/datasheet-pdf/view/1132405/ASIC/TP4056.html
