Integrated with the ESP32-D0WD, this 540*960 4.7″ E-ink display comes with 16MB Flash and 8MB PSRAM, which can work well with other touch screens. It supports 16 grayscale levels and partial refresh. Compared with a regular LCD, E-ink displays are easier on the eyes, which makes them a good choice for reading or viewing for longer periods. Meanwhile, E-ink screens are low power consumption and have the ability to retain the image even if power to the display is terminated.

A 6pin touch screen interface is reserved as an optional accessory to facilitate your application. There are 5 buttons on the side: 3 of them are custom buttons, which can define functions flexibly; and one of them is the reset button. It also reserves 7 expansion IO ports for connecting other devices. Its back is designed with a PH 2.0 pitch 3.7V battery connector.

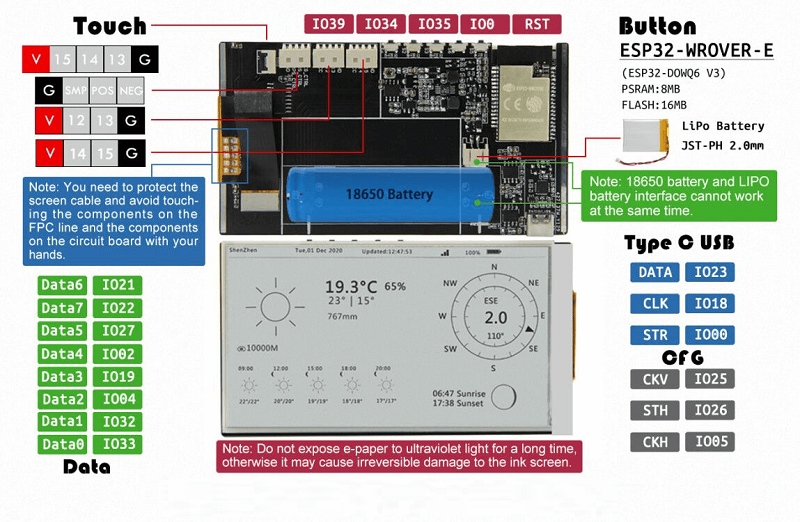

Board-Overview

• Desktop weather station
• STEM education
• IoT equipment
• Shelf label
• Message board

• Controller: ESP32-WROVER-E (ESP32-D0WDQ6 V3)
• Flash: 16MB
• PSRAM: 8MB
• Resolution: 540(H)×960(V)
• Display Grayscale Level: 16 levels
• Custom Buttons: 3
• IO Port: 7
• Battery Connector: PH 2.0 interface
• Battery Charge and Discharge Protection Chip: HX6610S
• Display Size: 4.7 inches
• Partial Refresh: support
• Touch Screen Interface: 6pin touch screen interface

• Product wiki

• E-ink Screen 4.7″ x1
• USB to Type-C Data Cable (30CM) x1
• Power Cable x1
