5V 開發板專用外接電源擴展模組 18650 電池座含充電保護 含5v,3.3v 電源輸出

5V 開發板專用外接電源擴展模組 ，你可以使用這個電池擴展模組提供電力給許多產品像Raspberry Pi 樹莓派 或 Arduino 等開發板。

5V 開發板專用外接電源擴展模組 是什麼讓它特別？

注意：如果放錯方向，充電芯片就會被破壞。本產品不包括電池18650

 18650 Battery Shield V3 ESP32 for Raspberry Pi and Arduino

• For raspberry pi 18650 battery and arduino 18650 battery, you can use this battery to shield power many products like Raspberry Pi or Arduino.
• In this version 18650 shield has a protection; Output current can reach 1A.
• Battery protection(Over charge or Over discharge); 58V Input Voltage.
• Note: Be careful of “+” and “-“, You should follow the direction of “+””-” on the PCB.

Now, the 18650 battery shield has been updated to V3. You can use this battery to shield power many products like Raspberry Pi or Arduino. In this version 18650 shield has a protection. Output current can reach 1A, I believe this will be useful for the project.

Features:
Battery protection(Over charge or Over discharge)

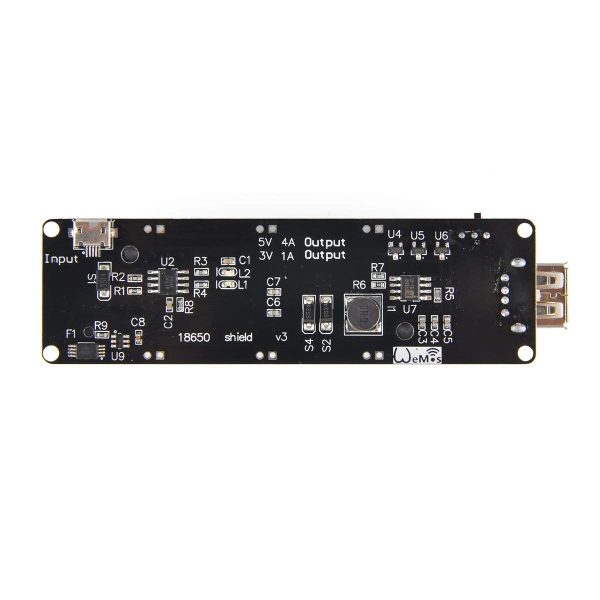

Micro USB port Input
Type-A USB Output
0.5A current charging
1 switch control USB output
5~8V Input Voltage
3V 1A Output
5V 1A Output
LED indicate(Green means full,Red means charging)

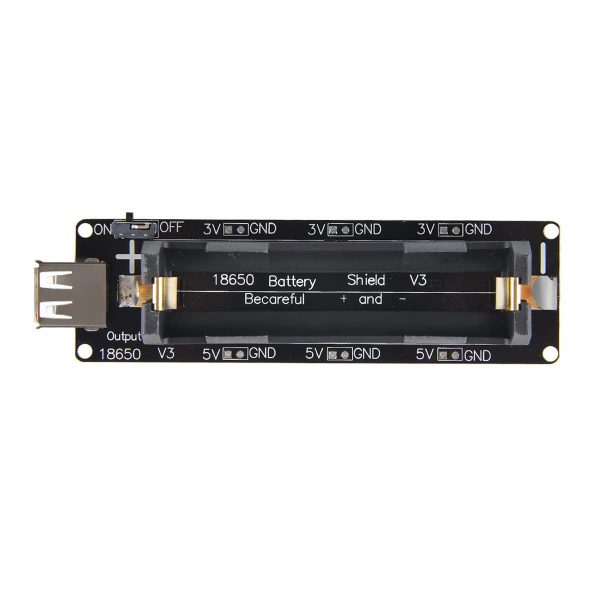

3V output port x3
5V output port x3
Be careful of “+” and “-“, You should follow the direction of “+””-” on the PCB.
If you put wrong direction, charging chip will be destroyed.
This product does not include 18650 battery.

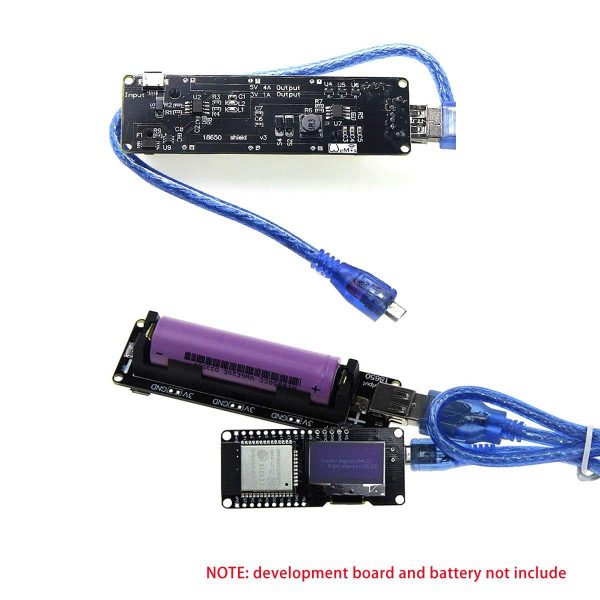

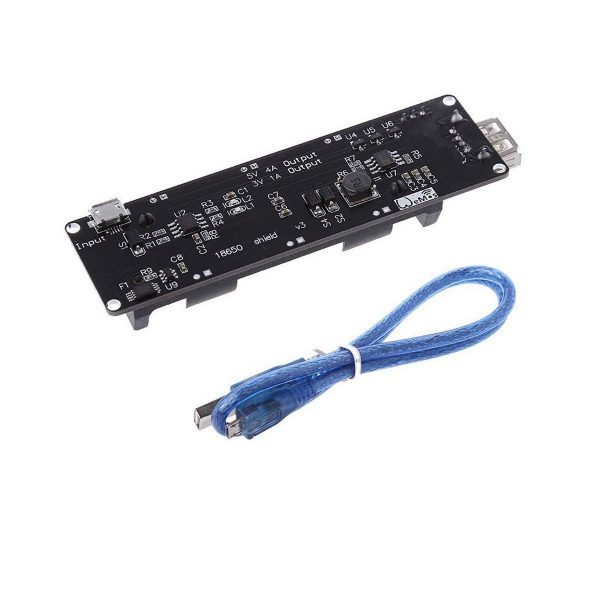

Package Including
1 * Battery Shield Module (does not include 18650 battery)

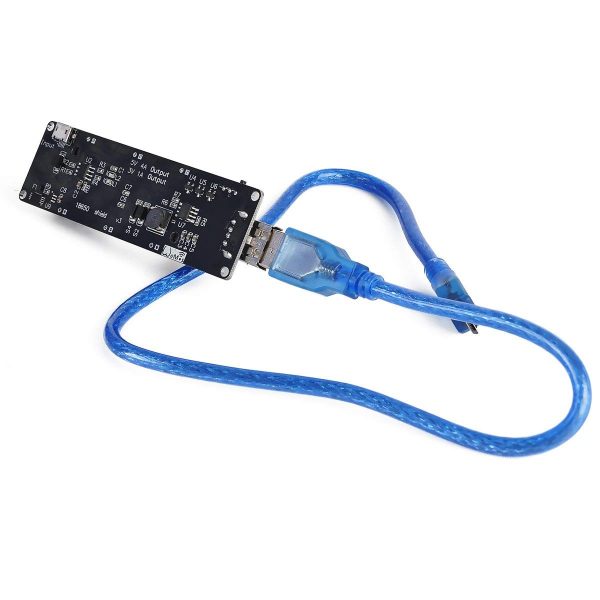

1 * USB Cable
