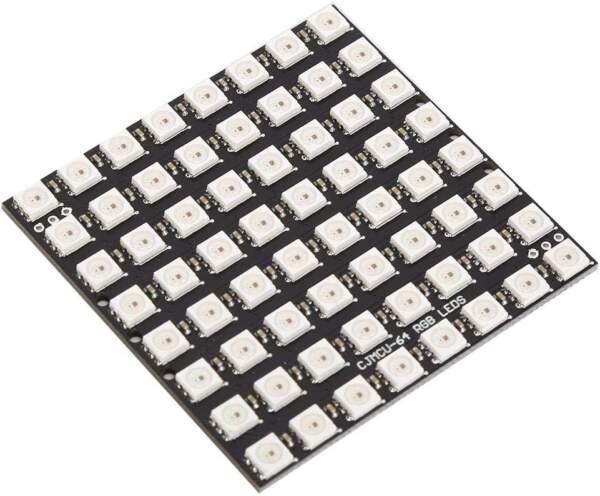

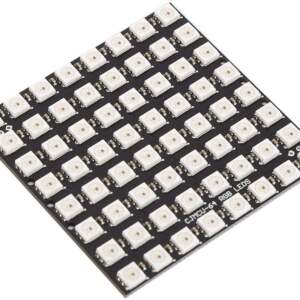

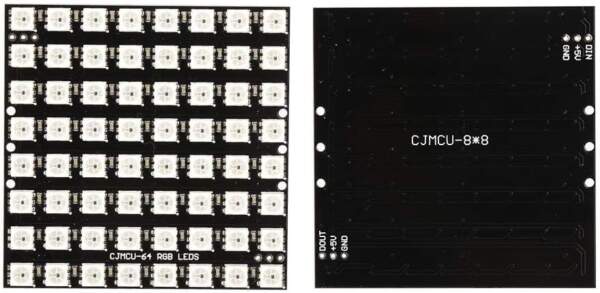

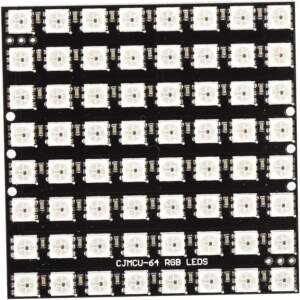

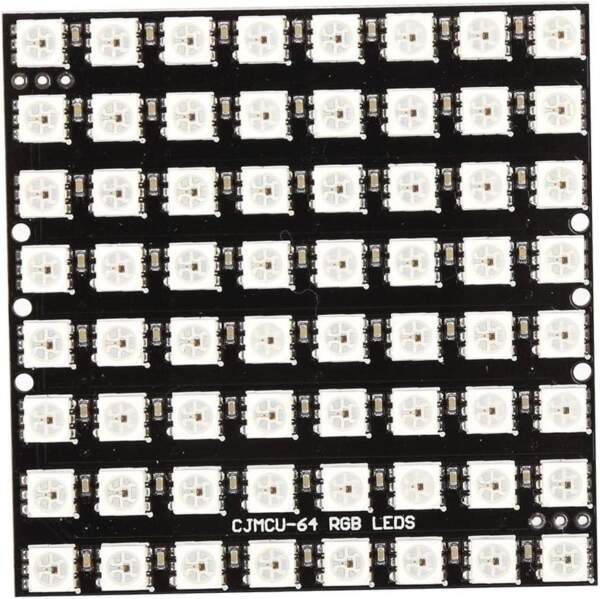

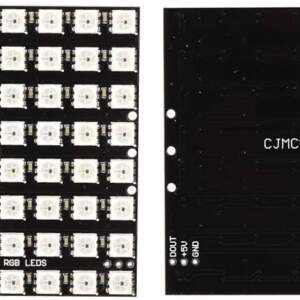

64位元 8×8 64 位元矩陣 WS2812 5050 RGB LED 全彩驅動彩燈方形 開發板

描述

64位元 8×8 64 位元矩陣 WS2812 5050 RGB LED 全彩驅動彩燈方形 開發板

1.智慧反接保護，電源反接不會損壞IC。
2. IC控制電路及高功率LED射燈實用。
3.控制電路晶片與RGB元件封裝在5050中，
形成完整的外部控制像素。
4.內建訊號整形電路，任一像素點接收訊號後經過波形
整形後再輸出，確保線路波形失真不會累積。
5. 內建上電重設和掉電重設電路。
6.每個像素點三基色可實現256級高亮，完成16777216種顏色的全
真彩顯示，掃描頻率不低於400Hz/s。
7.串行級聯接口，透過訊號線完成資料的接收和解碼。
8.任兩點之間的傳輸傳輸距離在5公尺以內，無需任何
額外電路。
9. 當刷新率為30幀/秒時，級聯數不少於1024點。
10.資料傳輸速度高達800Kbps。
11.光色高度一致，性價比高。

64 Digits LED Pixel Panel Driver Development Board Built in Full Color Driver Driver Board, 5V DC LED Matrix

• Meets Chinese Display: This RGB Integrated Drivers is fully capable of meeting the basic requirements of Chinese character display
• Easy to Carry: This RGB LED Driver Development Board is designed with small size, which is light weight and easy to carry
• 8×8 RGB LED: This 8*8 LED Matrix display panel is an LED dot lattice display. This product switch is specially designed for the LED display field
• Lower Consumption and Longer Life: This RGB Driver Board is designed with low voltage drive, green energy, high brightness, low power consumption and long life
• Advanced Intelligent LED Pixel Panel: This is a panel screen using the advanced smart LED driver chip WS2812 as the basic unit
