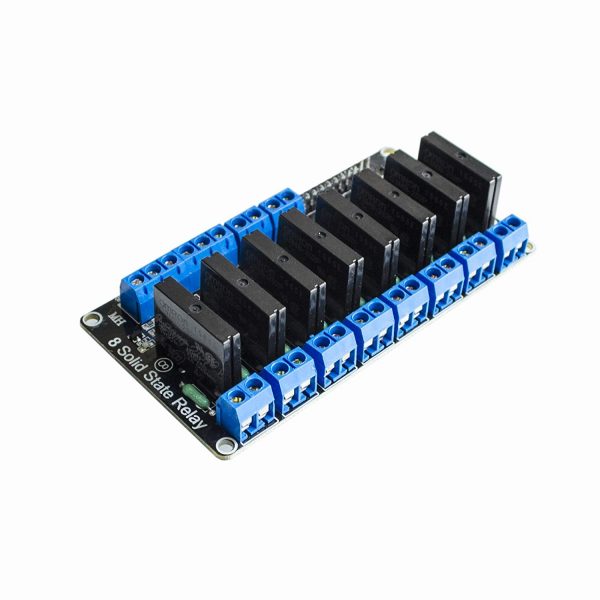

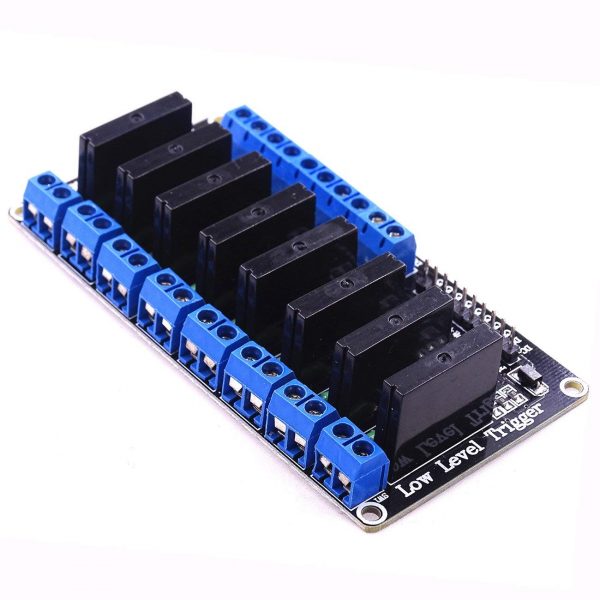

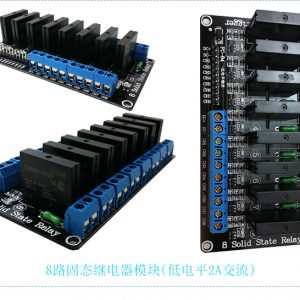

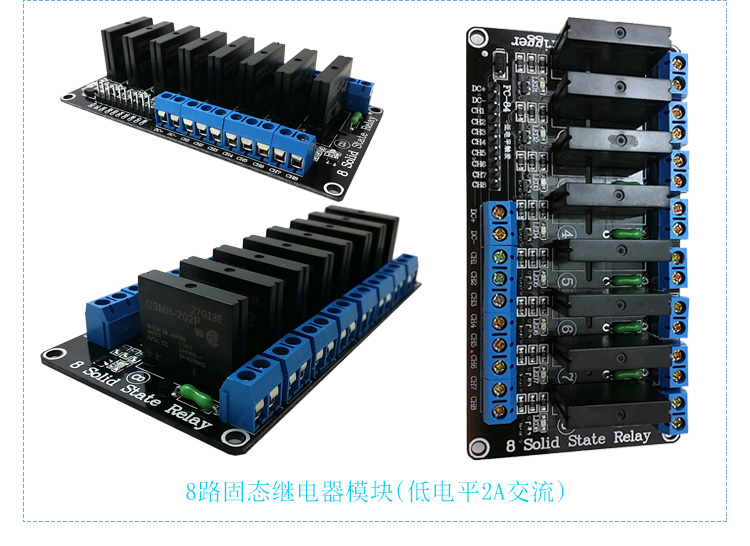

8路5V低電平觸發固態繼電器模組 SSR 固態繼電器 帶保險絲 直流控交流

描述

8路5V 低電平觸發固態繼電器模組 SSR 固態繼電器 帶保險絲

8路5V低電平觸發固態繼電器模組,  SSR 固態繼電器240V 2A，輸出帶電阻式保險絲240V 2A.

1. 尺寸：106*56*25(長*寬*高）淨重：70g
2. 輸入電源：5V DC  (160MA)
3. 輸入控制信號電壓：
   （0-1.5V狀態低電平繼電器ON)
   (2.5-5V狀態高電平繼電器OFF)
4. 有2.54CM排針和藍色KF301端子接控制線更方便。

8路5V低電平觸發固態繼電器模組 模組硬體規格

輸入部分：

• DC+:接電源正極（按繼電器電壓供電）
• DC-:接電源負極
• CH1: 1繼電器模塊信號觸發端（低電平觸發有效）
• CH2: 2 路繼電器模塊信號觸發端（低電平觸發有效）
• CH3: 3 繼電器模塊信號觸發端（低電平觸發有效）
• CH4: 4 路繼電器模塊信號觸發端（低電平觸發有效）
• CH5: 5 路繼電器模塊信號觸發端（低電平觸發有效）
• CH6: 6 路繼電器模塊信號觸發端（低電平觸發有效）
• CH7: 7 路繼電器模塊信號觸發端（低電平觸發有效）
• CH8: 8 路繼電器模塊信號觸發端（低電平觸發有效）低電平觸發指的是信號觸發端與電源負極之間的電壓為OV時，或者說觸發端的電壓比電源正極的電壓更低，低到可以觸發的電壓時，使繼電器吸合，通常是將電源的負極與觸發端連接的一種觸發方式，使繼電器則吸合。



8-channel 5v Solid State / Low Level trigger  Relay Module Board SSR

• Has been assembled, and electrical test passed.
• Led indicator for each relay.
• Size: 155 x 55 x 24 mm (approximately 6.1 x 2.17 x 0.95 inch)
• Input control signal voltage: 0V – 0.5V Low stage (SSR is OFF), 0.5V – 2.5V (unknown state), 2.5V – 20V High state (SSR is ON); SSR Output (each channel);
• Load voltage range: 75 to 264VAC (50/60Hz); Load current: 0.1 to 2 AMP Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
• 5V solid state relays per channel 250V 2A, output with resistive fuse 250V 2A
• 8 channel 2 AMP Solid State Relay board Good for lighting- holiday displays etc
• The input control signal voltage: (0-0.5V LOW solid state relay OFF) (2.5-20V high solid state relays ON)
• Rated output load: 2A at 100 to 240VAC (50/60Hz)
• Load voltage range: 75 to 264VAC (50/60Hz)
• Load current: 0. 1 to 2 AMP
• Power supply: 5VDC / 160mA (all channel ON)

5V Omron solid state relays 240V 2A, output with resistive fuse 240V 2A

Size: 103*53*21mm/4.05*2.08*0.82″

The input power supply: 5V DC (160mA)

The input control signal voltage:

(0-2.5V low state relays ON)

(3.3-5V state high relay OFF)

2.54cm pin and blue KF301 terminals connected to the control line is more convenient

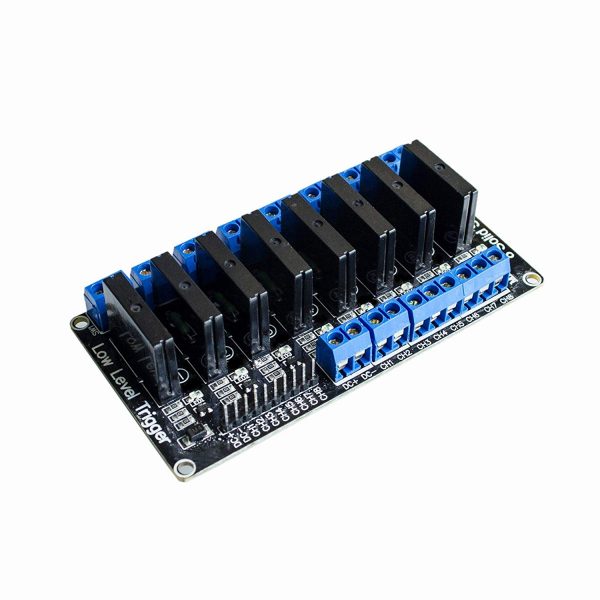

Input section:

DC +: positive power supply (relay voltage power supply)

DC-: connect power negative

CH1: 1 signal to trigger the end of the relay module (low level trigger valid)

CH2: 2-way relay module signal triggering end (low level trigger valid)

CH3: 3 relay module signal triggering end (low level trigger valid)

CH4: 4-channel relay module signal triggering end (low level trigger valid)

CH5: 5-way relay module signal triggering end (low level trigger valid)

CH6: 6-way relay module signal triggering end (low level trigger valid)

CH7: 7-way relay module signal triggering end (low level trigger valid)

CH8: 8-channel relay module signal triggering end (low level trigger valid)
