Arduino CAN-BUS Shield V2 擴展板 DFRobot 進口

Arduino CAN-BUS Shield V2 擴展板 是專為Arduino控制器設計的擴展板，板載 MCP2515 總線控制晶片能夠實現CAN總線上的數據控制，實現設備與設備之間的數據通信。擴展板兼容Arduino標準卡槽，可以完美適配於Arduino UNO，Leonardo等主控板。並且提供一個DB9和一個接線柱形式的接口，您可以根據需要自主選擇接口。內嵌MicroSD卡槽，可直插MicroSD卡，存儲數據。多種擴展接口使得用戶在DIY過程中得到更大的便利。

特性

  • 支持標準幀、擴展幀收發，支持輪訓和中斷兩種接收方式
  • 提供uart、I2C、DB9及接線柱等多種接口
  • 支持SD卡數據存儲
  • 支持Arduino主板供電以及DB9接口供電

參數

  • 晶片：MCP2515
  • 供電：3.3~5VDC Arduino 主板供電/DB9接口供電
  • 尺寸：76 mm * 54mm *19mm
  • 重量：40g

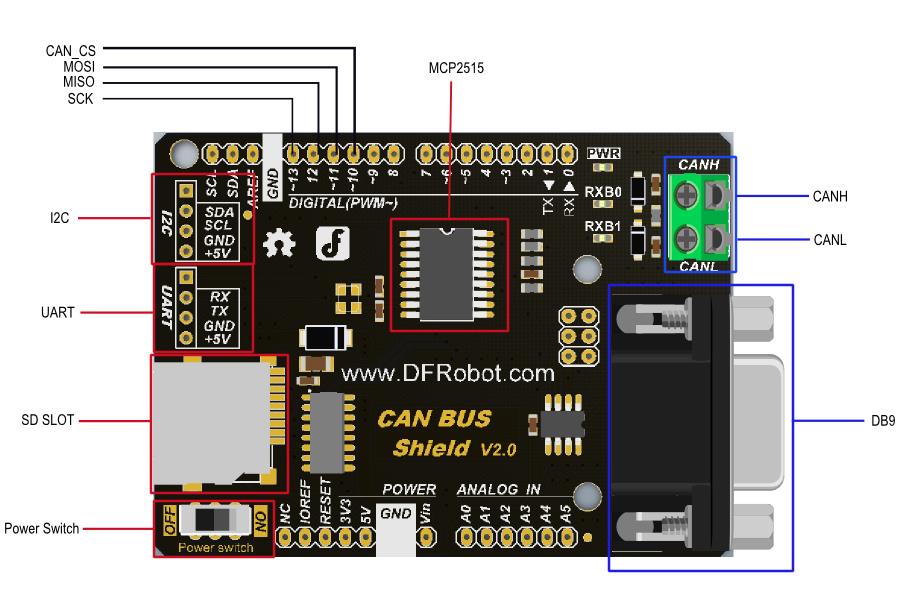

接口說明


兩種供電方式：

  • Power Switch 處於“ON”端，電源由DB9接口的供電
  • Power Switch 處於“OFF”端，電源由Arduino主板供應

注意：

  • 當DP9接口處的電壓大於7V時可以為arduino主控板供電，開關選擇”ON“；
  • 如果arduino主板是usb供電，那麼USB和DB9可以同時供電；如果arduino是DC-Vin電源供電，DB9就不能同時供電了，必須將開關置於”OFF“處

文件

CAN BUS Shield for Arduino

INTRODUCTION

This is an Arduino Can Bus shield.  It is compatible with the Arduino standard interface and can be stacked on an Arduino UNO, Leonardo or MEGA board.The shield integrates an MCP2515 CANBUS chip on the shield and has a CAN-BUS transceiver function. With an on-board DB9 and CAN-BUS connector you can choose a suitable port according to your host device.There is also an integrated MicroSD socket for data storage – a perfect solution for data logging applications.What is Canbus?  Controller Area Network (CAN bus) is a vehicle bus standard designed to allow microcontrollers and devices to communicate with each other in applications without a host computer. It is a message-based protocol, designed originally for multiplex electrical wiring within automobiles, but is also used in many other contexts.

FEATURES

  • Supports standard frame, extended frame transmitting and receiving
  • Supports two reception methods: Rotational and interrupt detection
  • Supports UART, i2C and DB9 terminal interfaces
  • Supports SD card data storage
  • Supports Arduino mainboard power supply or DB9 power supply (Switch)

SPECIFICATION

  • Chip: MCP2515
  • Power supply: 3.3 ~ 5V Arduino board power supply or DB9 interface power supply
  • Dimension: 76x54x19 (mm)/ 2.99×2.12×0.75 inches
  • Weight: 40g

DOCUMENTS
