Arduino MEGA Sensor Shield V2.0 新版 感測器擴展板 引腳全拉出

描述

Arduino MEGA Sensor Shield V2.0 新版 感測器擴展板 引腳全拉出

Arduino MEGA Sensor Shield V2.0 新版 感測器擴展板  允許您連接到各種模擬或數字模塊，如傳感器、繼電器、按鈕、電位計。過多的插頭引腳簡化了模擬和數字傳感器和設備的接線和接口。傳感器屏蔽的另一個優點是接口是標準的並帶有標籤——這意味著您不需要花時間弄清楚如何將傳感器連接到 Arduino——只需弄清楚如何在軟件中讀取傳入的傳感器數據。該板使您可以通過排針或連接器輕鬆訪問 Arduino Mega2560 上的所有數字、模擬和 I2C/Uart 接口。

MEGA Sensor Shield V2.0專用感測器擴展板集市面上各種擴展板優點於一體所設計，採用PCB沉金工藝加工，主機板不僅將全部數位與類比介面以舵機線序形式擴展出來，還特設藍牙模組通信介面、SD卡模組通信介面、APC220無線射頻模組通信介面、以及RB URF v1.1超聲波感測器接口，獨立擴出更加易用方便。

對於初學者來說，不必為繁瑣複雜電路連線而頭疼了，這款感測器擴展板真正意義上的將電路簡化，能夠很容易地將常 用感測器連接起來，一款感測器僅需要一種通用3P感測器連接線（不分數位連接線與類比連接線），完成電路連接後，編寫相應的程式下載到MEGA控制器中讀取感測器資料、或者接收無線模組回傳資料，經過運算處理，最終輕鬆完成你自己的互動作品。



特徵：

• 實現處理/接線語言
• 開源 IDE 可以免費下載（目前適用於 Mac OS X、Windows 和 Linux）
• Sensor Shield 允許您連接到各種模塊，如傳感器、伺服器、繼電器、按鈕、電位計
• Mega Sensor Shield V2.0 引腳排列所有 Arduino 數字和模擬接口
• 支持IIC接口
• 支持32路伺服電機驅動屏蔽接口
• 支持藍牙模塊通訊接口
• 支持SD卡模塊通訊接口
• 支持APC220無線射頻模塊通訊接口
• 支持RB URF超聲波傳感器接口
• 支持LCD串並接口
• 支持多種接口，完全兼容Arduino Mega
• 尺寸：55*106 毫米
• 重量：42g

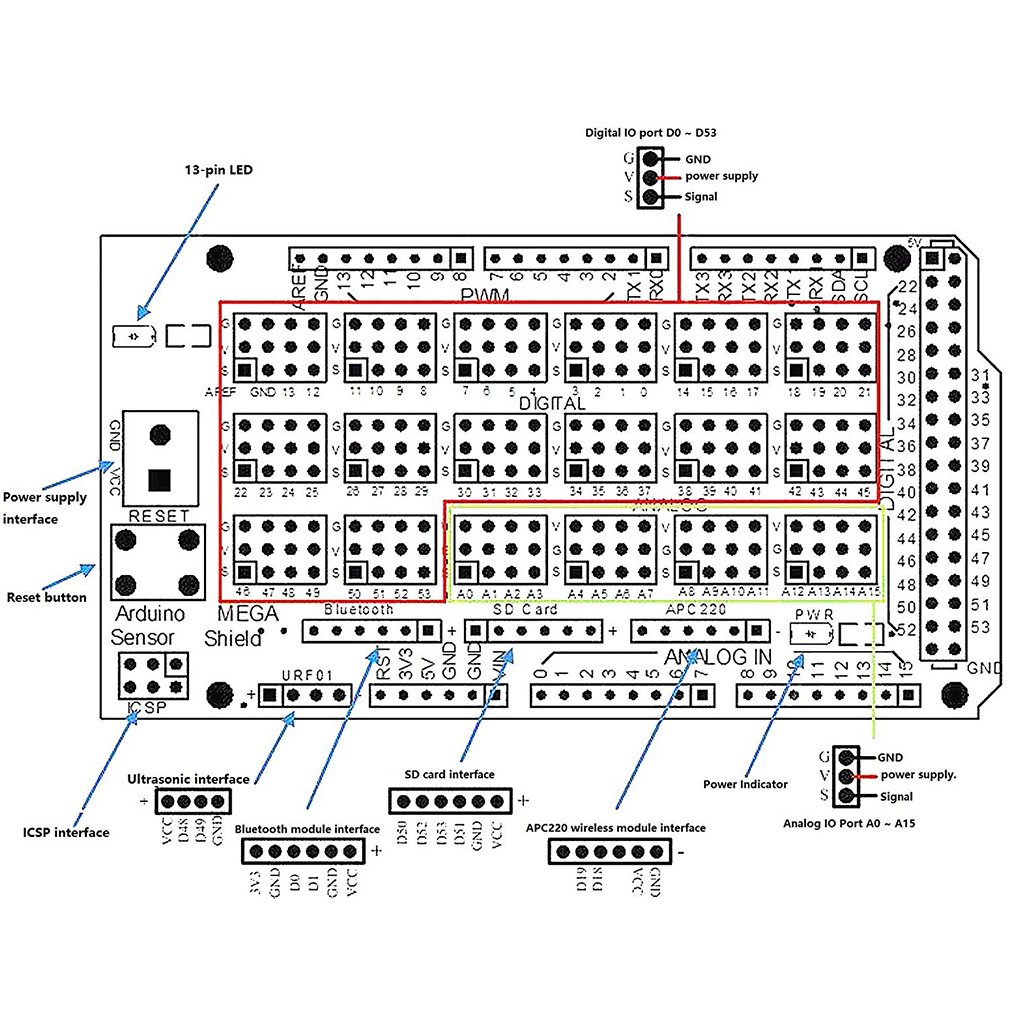

MEGA Sensor Shield V2.0 Sensor Expansion Board for UNO MEGA1280 MEGA2560 MEGA2560 R3

This sensor shield V2.0 is easy for fans to plug and play with. For some starters, it is difficult to add circuits on it, so this sensor expansion board which can connect most senor shields to control panel solves the problem easily.
It meets the expansion needs of most board. It’s is an open-source physical computing platform based on a simple i/o board and a development. It can be used to develop stand-alone interactive objects or can be connected to software on your computer (e.g. Flash, Processing, MaxMSP).

Features:

• Implements Processing/Wiring language
• The open-source IDE can be downloaded for free (currently for Mac OS X, Windows, and Linux)
  Sensor Shield allows you to connect to various modules like sensors, servos, relays, buttons, potentiometer
• Mega Sensor Shield V2.0 pinout all of the digital and analog interface
• Support IIC interface
• Support 32 road Servo Motor Drive Shield interface
• Support bluetooth module communication interface
• Support SD card module communication interface
• Support APC220 wireless rf modules communication interface
• Support RB URF ultrasonic sensors interface
• Support LCD serial and parallel interface
• Support Kinds of interface and can be fully compatibled with Arduino Mega

• This MEGA Sensor Shield V2.0 dedicated sensor expansion board assembly market a variety of advantages in one of the expansion board design, PCB Immersion Gold processing technology.
• Board not only all digital and analog interface to the steering gear line order form extended out, but also ad hoc Bluetooth module communication interface, SD card module communication interface, APC220 wireless RF module communication interface, and RB URF v1.1 ultrasonic sensor interface, independent expansion a more easy and convenient.
• For beginners, do not have to worry about cumbersome and complex circuit connection, will simplify this circuit sensor expansion board in the true sense, it can often be easily connected with the sensor.
• A sensor requires only a general 3P sensor cable (regardless of digital cable and analog cable), complete the circuit connection, the preparation of the corresponding program downloaded to MEGA controller reads the sensor data, or receive wireless module back pass data through the arithmetic processing, the final easy to complete your own interactive works.
• Sensor Shield allows you to connect to various modules like sensors, servos, relays, buttons, potentiometers.
