Name: CH376S USB隨身碟讀寫模組 U盤讀寫模組 透過串口通訊
SKU: OMD-006418
Availability: OutOfStock

-15%

CH376S USB隨身碟讀寫模組 U盤讀寫模組透過串口通訊

0 out of 5

( 目前沒有評價。 )

原始價格：NT$230。目前價格：NT$195。 (未稅)

狀態: 已售完貨號: OMD-006418 分類: 其他功能模組標籤: TIS, USB 記憶卡, USB 隨身碟

描述
評價 (0)

描述

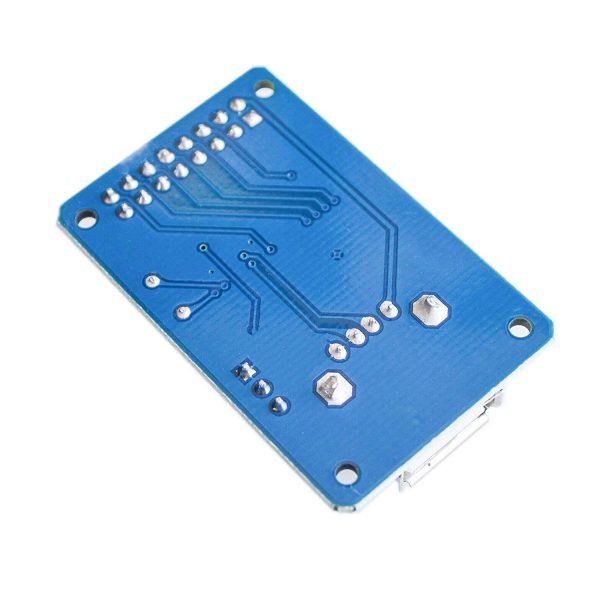

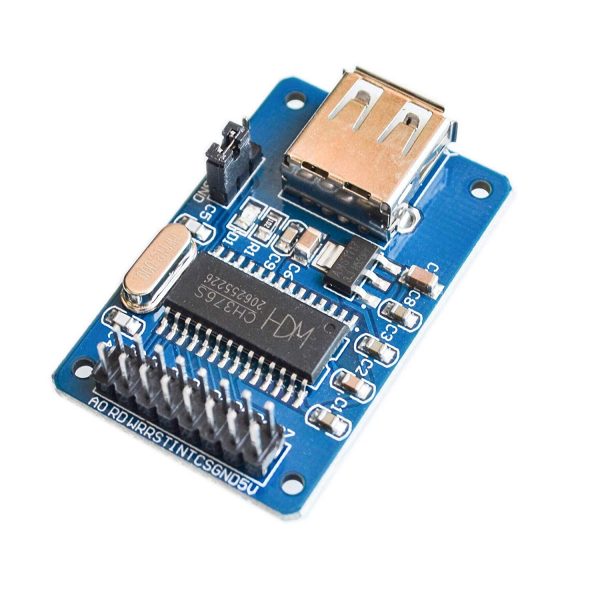

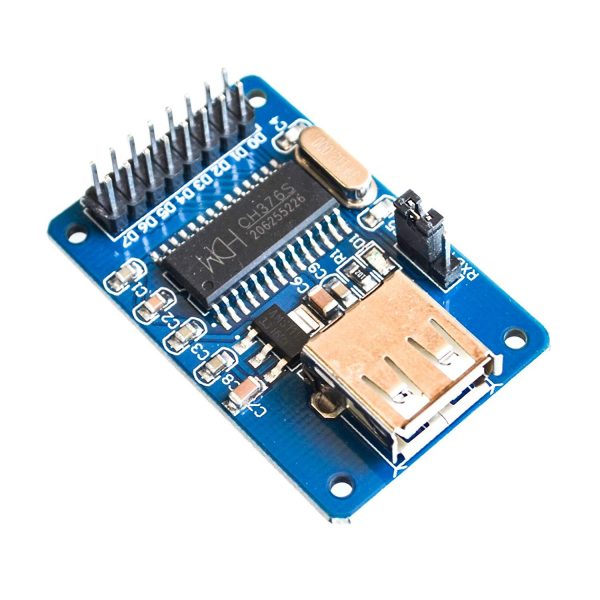

CH376S USB隨身碟讀寫模組 U盤讀寫模組透過串口通訊

CH376S USB隨身碟讀寫模組您是否曾經想過是否可以使用Arduino UNO從 USB 隨身碟來存取和檢索數據？大多數人都選擇SD卡來存儲其項目數據，但是您可能會驚訝地發現有一種方法！ CH376S USB隨身碟讀寫模組，可讓您存儲和檢索Arduino（或其他MCU）項目數據到USB記憶棒。

1）CH376晶片內部固化FAT檔案系統，檔操作簡單、快速
2）支援包括U盤、USB硬碟、USB快閃記憶體盤以及USB讀卡器在內的USB存放裝置
3）支援多種通訊介面：8位元並口、SPI介面和非同步串口
4）相容性：設備方式與CH372相容，主機方式與CH375相容
5）模組尺寸：50mm×34mm

使用方法與導覽

原始教學連結

CH376S USB讀/寫模塊”具有板載CH376S晶片，可以為您完成大部分艱苦的工作。您所要做的就是從Arduino向模塊發送一些命令，其餘的則由CH376S晶片完成。您可以通過三種不同的方式與模塊通信，本項目將僅向您顯示串列（UART）通信方法的連接和代碼。

• 並行通訊
• SPI通訊
• 和串列（UART）通信。

Arduino 範例

/* ===============================================================
      Project: CH376S USB Read/Write Module testing ground
       Author: Scott C
      Created: 1st May 2015
  Arduino IDE: 1.6.2
      Website: http://arduinobasics.blogspot.com/p/arduino-basics-projects-page.html
  Description: This project will allow you to perform many of the functions available on the CH376S module.
               Checking connection to the module, putting the module into USB mode, resetting the module,
               reading, writing, appending text to files on the USB stick. This is very useful alternative to
               SD card modules, plus it doesn't need any libraries.
================================================================== */

#include <SoftwareSerial.h>

byte computerByte;           //used to store data coming from the computer
byte USB_Byte;               //used to store data coming from the USB stick
int LED = 13;                //the LED is connected to digital pin 13
int timeOut = 2000;          //TimeOut is 2 seconds. This is the amount of time you wish to wait for a response from the CH376S module.
String wrData = "What is the meaning of life ?";     //We will write this data to a newly created file.
String wrData2 = "42";                                   //We will append this data to an already existing file.

SoftwareSerial USB(10, 11);                           // Digital pin 10 on Arduino (RX) connects to TXD on the CH376S module
                                                      // Digital pin 11 on Arduino (TX) connects to RXD on the CH376S module
                                                      // GND on Arduino to GND on CH376S module
                                                      // 5V on Arduino to 5V on CH376S module
//==============================================================================================================================================
void setup() {
  Serial.begin(9600);                                 // Setup serial communication with the computer (using a baud rate of 9600 on serial monitor)
  USB.begin(9600);                                    // Setup serial communication with the CH376S module (using the default baud rate of 9600)
  pinMode(LED,OUTPUT);                                // Define digital pin 13 as an OUTPUT pin - so that we can use it with an LED
  digitalWrite(LED,LOW);                              // Turn off the LED
}

//================================================================================================================================================
void loop() {
  if(Serial.available()){
    computerByte = Serial.read();                      //read any incoming bytes from the Serial monitor, and store this byte in the variable called computerByte
    if(computerByte==49){               //1            //If you send the number 1 from the serial monitor, the arduino will read it as digital number 49. Google "ascii table" for more info.
      printCommandHeader("COMMAND1: CHECK CONNECTION");
      checkConnection(0x01);                           // Check for successful connection and communication with the CH376S module.
    }
    if(computerByte==50){               //2
     printCommandHeader("COMMAND2: set_USB_Mode");
      set_USB_Mode(0x06);                              // Code used to enable read/write communication and monitoring of the USB stick
    }
    if(computerByte==51){               //3
      printCommandHeader("COMMAND3: resetALL");
      resetALL();                                      // Reset the USB device
    }
    if(computerByte==52){               //4
      printCommandHeader("COMMAND4: Create and Write to File : TEST4.TXT");
      writeFile("TEST4.TXT", wrData);                  // Create a file called TEST4.TXT and then Write the contents of wrData to this file
    }
    if(computerByte==53){               //5
      printCommandHeader("COMMAND5: Read File: TEST4.TXT");
      readFile("TEST4.TXT");                           // Read the contents of this file on the USB disk, and display contents in the Serial Monitor
    }
    if(computerByte==54){               //6
      printCommandHeader("COMMAND6: Append data to file: TEST4.TXT");
      appendFile("TEST4.TXT", wrData2);                // Append data to the end of the file.
    }
    if(computerByte==55){               //7
      printCommandHeader("COMMAND7: Delete File: TEST4.TXT");
      fileDelete("TEST4.TXT");                         // Delete the file named TEST4.TXT
    }
    if(computerByte==56){               //8
      printCommandHeader("COMMAND8: Read File: TEST2.TXT");
      readFile("TEST2.TXT");                           // Read the contents of the TEST2.TXT file on the USB disk, and display contents in the Serial Monitor
    }
    if(computerByte==57){               //9
      printCommandHeader("COMMAND9: Read File: TEST3.TXT");
      readFile("TEST3.TXT");                           // Read the contents of the TEST3.TXT file on the USB disk, and display contents in the Serial Monitor
    }
  }

  if(USB.available()){                                 // This is here to capture any unexpected data transmitted by the CH376S module
    Serial.print("CH376S has just sent this code:");
    Serial.println(USB.read(), HEX);
  }
}

//END OF LOOP FUNCTION ========================================================================================================================================

//print Command header
void printCommandHeader(String header){
   Serial.println("======================");
   Serial.println("");
   Serial.println(header);
   Serial.println("----------------------");
}

//checkConnection==================================================================================
//This function is used to check for successful communication with the CH376S module. This is not dependant of the presence of a USB stick.
//Send any value between 0 to 255, and the CH376S module will return a number = 255 - value.
void checkConnection(byte value){
  USB.write(0x57);
  USB.write(0xAB);
  USB.write(0x06);
  USB.write(value);

  if(waitForResponse("checking connection")){       //wait for a response from the CH376S. If CH376S responds, it will be true. If it times out, it will be false.
    if(getResponseFromUSB()==(255-value)){
       Serial.println(">Connection to CH376S was successful.");
       blinkLED();                               //blink the LED for 1 second if the connection was successful
    } else {
      Serial.print(">Connection to CH376S - FAILED.");
    }
  }
}

//set_USB_Mode=====================================================================================
//Make sure that the USB is inserted when using 0x06 as the value in this specific code sequence
void set_USB_Mode (byte value){
  USB.write(0x57);
  USB.write(0xAB);
  USB.write(0x15);
  USB.write(value);

  delay(20);

  if(USB.available()){
    USB_Byte=USB.read();
    //Check to see if the command has been successfully transmitted and acknowledged.
    if(USB_Byte==0x51){                                   // If true - the CH376S has acknowledged the command.
        Serial.println("set_USB_Mode command acknowledged"); //The CH376S will now check and monitor the USB port
        USB_Byte = USB.read();

        //Check to see if the USB stick is connected or not.
        if(USB_Byte==0x15){                               // If true - there is a USB stick connected
          Serial.println("USB is present");
          blinkLED();                                     // If the process was successful, then turn the LED on for 1 second
        } else {
          Serial.print("USB Not present. Error code:");   // If the USB is not connected - it should return an Error code = FFH
          Serial.print(USB_Byte, HEX);
          Serial.println("H");
        }

    } else {
        Serial.print("CH3765 error!   Error code:");
        Serial.print(USB_Byte, HEX);
        Serial.println("H");
    }
  }
  delay(20);
}

//resetALL=========================================================================================
//This will perform a hardware reset of the CH376S module - which usually takes about 35 msecs =====
void resetALL(){
    USB.write(0x57);
    USB.write(0xAB);
    USB.write(0x05);
    Serial.println("The CH376S module has been reset !");
    delay(200);
}

//readFile=====================================================================================
//This will send a series of commands to read data from a specific file (defined by fileName)
void readFile(String fileName){
  resetALL();                     //Reset the module
  set_USB_Mode(0x06);             //Set to USB Mode
  diskConnectionStatus();         //Check that communication with the USB device is possible
  USBdiskMount();                 //Prepare the USB for reading/writing - you need to mount the USB disk for proper read/write operations.
  setFileName(fileName);          //Set File name
  fileOpen();                     //Open the file for reading
  int fs = getFileSize();         //Get the size of the file
  fileRead();                     //***** Send the command to read the file ***
  fileClose(0x00);                //Close the file
}

//writeFile========================================================================================
//is used to create a new file and then write data to that file. "fileName" is a variable used to hold the name of the file (e.g TEST.TXT). "data" should not be greater than 255 bytes long.
void writeFile(String fileName, String data){
  resetALL();                     //Reset the module
  set_USB_Mode(0x06);             //Set to USB Mode
  diskConnectionStatus();         //Check that communication with the USB device is possible
  USBdiskMount();                 //Prepare the USB for reading/writing - you need to mount the USB disk for proper read/write operations.
  setFileName(fileName);          //Set File name
  if(fileCreate()){               //Try to create a new file. If file creation is successful
    fileWrite(data);              //write data to the file.
  } else {
    Serial.println("File could not be created, or it already exists");
  }
  fileClose(0x01);
}

//appendFile()====================================================================================
//is used to write data to the end of the file, without erasing the contents of the file.
void appendFile(String fileName, String data){
    resetALL();                     //Reset the module
    set_USB_Mode(0x06);             //Set to USB Mode
    diskConnectionStatus();         //Check that communication with the USB device is possible
    USBdiskMount();                 //Prepare the USB for reading/writing - you need to mount the USB disk for proper read/write operations.
    setFileName(fileName);          //Set File name
    fileOpen();                     //Open the file
    filePointer(false);             //filePointer(false) is to set the pointer at the end of the file.  filePointer(true) will set the pointer to the beginning.
    fileWrite(data);                //Write data to the end of the file
    fileClose(0x01);                //Close the file using 0x01 - which means to update the size of the file on close.
}

//setFileName======================================================================================
//This sets the name of the file to work with
void setFileName(String fileName){
  Serial.print("Setting filename to:");
  Serial.println(fileName);
  USB.write(0x57);
  USB.write(0xAB);
  USB.write(0x2F);
  USB.write(0x2F);         // Every filename must have this byte to indicate the start of the file name.
  USB.print(fileName);     // "fileName" is a variable that holds the name of the file.  eg. TEST.TXT
  USB.write((byte)0x00);   // you need to cast as a byte - otherwise it will not compile.  The null byte indicates the end of the file name.
  delay(20);
}

//diskConnectionStatus================================================================================
//Check the disk connection status
void diskConnectionStatus(){
  Serial.println("Checking USB disk connection status");
  USB.write(0x57);
  USB.write(0xAB);
  USB.write(0x30);

  if(waitForResponse("Connecting to USB disk")){       //wait for a response from the CH376S. If CH376S responds, it will be true. If it times out, it will be false.
    if(getResponseFromUSB()==0x14){               //CH376S will send 0x14 if this command was successful
       Serial.println(">Connection to USB OK");
    } else {
      Serial.print(">Connection to USB - FAILED.");
    }
  }
}

//USBdiskMount========================================================================================
//initialise the USB disk and check that it is ready - this process is required if you want to find the manufacturing information of the USB disk
void USBdiskMount(){
  Serial.println("Mounting USB disk");
  USB.write(0x57);
  USB.write(0xAB);
  USB.write(0x31);

  if(waitForResponse("mounting USB disk")){       //wait for a response from the CH376S. If CH376S responds, it will be true. If it times out, it will be false.
    if(getResponseFromUSB()==0x14){               //CH376S will send 0x14 if this command was successful
       Serial.println(">USB Mounted - OK");
    } else {
      Serial.print(">Failed to Mount USB disk.");
    }
  }
}

//fileOpen========================================================================================
//opens the file for reading or writing
void fileOpen(){
  Serial.println("Opening file.");
  USB.write(0x57);
  USB.write(0xAB);
  USB.write(0x32);
  if(waitForResponse("file Open")){                 //wait for a response from the CH376S. If CH376S responds, it will be true. If it times out, it will be false.
    if(getResponseFromUSB()==0x14){                 //CH376S will send 0x14 if this command was successful
       Serial.println(">File opened successfully.");
    } else {
      Serial.print(">Failed to open file.");
    }
  }
}

//setByteRead=====================================================================================
//This function is required if you want to read data from the file.
boolean setByteRead(byte numBytes){
  boolean bytesToRead=false;
  int timeCounter = 0;
  USB.write(0x57);
  USB.write(0xAB);
  USB.write(0x3A);
  USB.write((byte)numBytes);   //tells the CH376S how many bytes to read at a time
  USB.write((byte)0x00);
  if(waitForResponse("setByteRead")){       //wait for a response from the CH376S. If CH376S responds, it will be true. If it times out, it will be false.
    if(getResponseFromUSB()==0x1D){         //read the CH376S message. If equal to 0x1D, data is present, so return true. Will return 0x14 if no data is present.
      bytesToRead=true;
    }
  }
  return(bytesToRead);
}

//getFileSize()===================================================================================
//writes the file size to the serial Monitor.
int getFileSize(){
  int fileSize=0;
  Serial.println("Getting File Size");
  USB.write(0x57);
  USB.write(0xAB);
  USB.write(0x0C);
  USB.write(0x68);
  delay(100);
  Serial.print("FileSize =");
  if(USB.available()){
    fileSize = fileSize + USB.read();
  }
  if(USB.available()){
    fileSize = fileSize + (USB.read()*255);
  }
  if(USB.available()){
    fileSize = fileSize + (USB.read()*255*255);
  }
  if(USB.available()){
    fileSize = fileSize + (USB.read()*255*255*255);
  }
  Serial.println(fileSize);
  delay(10);
  return(fileSize);
}


//fileRead========================================================================================
//read the contents of the file
void fileRead(){
  Serial.println("Reading file:");
  byte firstByte = 0x00;                     //Variable to hold the firstByte from every transmission.  Can be used as a checkSum if required.
  byte numBytes = 0x40;                      //The maximum value is 0x40  =  64 bytes

  while(setByteRead(numBytes)){              //This tells the CH376S module how many bytes to read on the next reading step. In this example, we will read 0x10 bytes at a time. Returns true if there are bytes to read, false if there are no more bytes to read.
    USB.write(0x57);
    USB.write(0xAB);
    USB.write(0x27);                          //Command to read ALL of the bytes (allocated by setByteRead(x))
    if(waitForResponse("reading data")){      //Wait for the CH376S module to return data. TimeOut will return false. If data is being transmitted, it will return true.
        firstByte=USB.read();                 //Read the first byte
        while(USB.available()){
          Serial.write(USB.read());           //Send the data from the USB disk to the Serial monitor
          delay(1);                           //This delay is necessary for successful Serial transmission
        }
    }
    if(!continueRead()){                       //prepares the module for further reading. If false, stop reading.
      break;                                   //You need the continueRead() method if the data to be read from the USB device is greater than numBytes.
    }
  }
  Serial.println();
  Serial.println("NO MORE DATA");
}

//fileWrite=======================================================================================
//are the commands used to write to the file
void fileWrite(String data){
  Serial.println("Writing to file:");
  byte dataLength = (byte) data.length();         // This variable holds the length of the data to be written (in bytes)
  Serial.println(data);
  Serial.print("Data Length:");
  Serial.println(dataLength);
  delay(100);
  // This set of commands tells the CH376S module how many bytes to expect from the Arduino.  (defined by the "dataLength" variable)
  USB.write(0x57);
  USB.write(0xAB);
  USB.write(0x3C);
  USB.write((byte) dataLength);
  USB.write((byte) 0x00);
  if(waitForResponse("setting data Length")){      // Wait for an acknowledgement from the CH376S module before trying to send data to it
    if(getResponseFromUSB()==0x1E){                // 0x1E indicates that the USB device is in write mode.
      USB.write(0x57);
      USB.write(0xAB);
      USB.write(0x2D);
      USB.print(data);                             // write the data to the file

      if(waitForResponse("writing data to file")){   // wait for an acknowledgement from the CH376S module
      }
      Serial.print("Write code (normally FF and 14): ");
      Serial.print(USB.read(),HEX);                // code is normally 0xFF
      Serial.print(",");
      USB.write(0x57);
      USB.write(0xAB);
      USB.write(0x3D);                             // This is used to update the file size. Not sure if this is necessary for successful writing.
      if(waitForResponse("updating file size")){   // wait for an acknowledgement from the CH376S module
      }
      Serial.println(USB.read(),HEX);              //code is normally 0x14
    }
  }
}

//continueRead()==================================================================================
//continue to read the file : I could not get this function to work as intended.
boolean continueRead(){
  boolean readAgain = false;
  USB.write(0x57);
  USB.write(0xAB);
  USB.write(0x3B);
  if(waitForResponse("continueRead")){       //wait for a response from the CH376S. If CH376S responds, it will be true. If it times out, it will be false.
     if(getResponseFromUSB()==0x14){         //CH376S will send 0x14 if this command was successful
       readAgain=true;
     }
  }
  return(readAgain);
}

//fileCreate()========================================================================================
//the command sequence to create a file
boolean fileCreate(){
  boolean createdFile = false;
  USB.write(0x57);
  USB.write(0xAB);
  USB.write(0x34);
  if(waitForResponse("creating file")){       //wait for a response from the CH376S. If file has been created successfully, it will return true.
     if(getResponseFromUSB()==0x14){          //CH376S will send 0x14 if this command was successful
       createdFile=true;
     }
  }
  return(createdFile);
}


//fileDelete()========================================================================================
//the command sequence to delete a file
void fileDelete(String fileName){
  setFileName(fileName);
  delay(20);
  USB.write(0x57);
  USB.write(0xAB);
  USB.write(0x35);
  if(waitForResponse("deleting file")){       //wait for a response from the CH376S. If file has been created successfully, it will return true.
     if(getResponseFromUSB()==0x14){          //CH376S will send 0x14 if this command was successful
       Serial.println("Successfully deleted file");
     }
  }
}


//filePointer========================================================================================
//is used to set the file pointer position. true for beginning of file, false for the end of the file.
void filePointer(boolean fileBeginning){
  USB.write(0x57);
  USB.write(0xAB);
  USB.write(0x39);
  if(fileBeginning){
    USB.write((byte)0x00);             //beginning of file
    USB.write((byte)0x00);
    USB.write((byte)0x00);
    USB.write((byte)0x00);
  } else {
    USB.write((byte)0xFF);             //end of file
    USB.write((byte)0xFF);
    USB.write((byte)0xFF);
    USB.write((byte)0xFF);
  }
  if(waitForResponse("setting file pointer")){       //wait for a response from the CH376S.
     if(getResponseFromUSB()==0x14){                 //CH376S will send 0x14 if this command was successful
       Serial.println("Pointer successfully applied");
     }
  }
}


//fileClose=======================================================================================
//closes the file
void fileClose(byte closeCmd){
  Serial.println("Closing file:");
  USB.write(0x57);
  USB.write(0xAB);
  USB.write(0x36);
  USB.write((byte)closeCmd);                                // closeCmd = 0x00 = close without updating file Size, 0x01 = close and update file Size

  if(waitForResponse("closing file")){                      // wait for a response from the CH376S.
     byte resp = getResponseFromUSB();
     if(resp==0x14){                                        // CH376S will send 0x14 if this command was successful
       Serial.println(">File closed successfully.");
     } else {
       Serial.print(">Failed to close file. Error code:");
       Serial.println(resp, HEX);
     }
  }
}

//waitForResponse===================================================================================
//is used to wait for a response from USB. Returns true when bytes become available, false if it times out.
boolean waitForResponse(String errorMsg){
  boolean bytesAvailable = true;
  int counter=0;
  while(!USB.available()){     //wait for CH376S to verify command
    delay(1);
    counter++;
    if(counter>timeOut){
      Serial.print("TimeOut waiting for response: Error while: ");
      Serial.println(errorMsg);
      bytesAvailable = false;
      break;
    }
  }
  delay(1);
  return(bytesAvailable);
}

//getResponseFromUSB================================================================================
//is used to get any error codes or messages from the CH376S module (in response to certain commands)
byte getResponseFromUSB(){
  byte response = byte(0x00);
  if (USB.available()){
    response = USB.read();
  }
  return(response);
}



//blinkLED==========================================================================================
//Turn an LED on for 1 second
void blinkLED(){
  digitalWrite(LED, HIGH);
  delay(1000);
  digitalWrite(LED,LOW);
}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

380

381

382

383

384

385

386

387

388

389

390

391

392

393

394

395

396

397

398

399

400

401

402

403

404

405

406

407

408

409

410

411

412

413

414

415

416

417

418

419

420

421

422

423

424

425

426

427

428

429

430

431

432

433

434

435

436

437

438

439

440

441

442

443

444

445

446

447

448

449

450

451

452

453

454

455

456

457

458

459

460

461

462

463

464

465

466

467

468

469

470

471

472

473

474

475

476

477

478

479

480

481

482

483

484

485

486

487

488

489

490

491

492

493

494

495

496

497

498

499

500

501

502

503

504

/* ===============================================================

Project: CH376S USB Read/Write Module testing ground

Author: Scott C

Created: 1st May 2015

Arduino IDE: 1.6.2

Website: http://arduinobasics.blogspot.com/p/arduino-basics-projects-page.html

Description: This project will allow you to perform many of the functions available on the CH376S module.

Checking connection to the module, putting the module into USB mode, resetting the module,

reading, writing, appending text to files on the USB stick. This is very useful alternative to

SD card modules, plus it doesn't need any libraries.

================================================================== */

#include <SoftwareSerial.h>

byte computerByte; //used to store data coming from the computer

byte USB_Byte; //used to store data coming from the USB stick

int LED = 13; //the LED is connected to digital pin 13

int timeOut = 2000; //TimeOut is 2 seconds. This is the amount of time you wish to wait for a response from the CH376S module.

String wrData = "What is the meaning of life ?"; //We will write this data to a newly created file.

String wrData2 = "42"; //We will append this data to an already existing file.

SoftwareSerial USB(10, 11); // Digital pin 10 on Arduino (RX) connects to TXD on the CH376S module

// Digital pin 11 on Arduino (TX) connects to RXD on the CH376S module

// GND on Arduino to GND on CH376S module

// 5V on Arduino to 5V on CH376S module

//==============================================================================================================================================

void setup() {

Serial.begin(9600); // Setup serial communication with the computer (using a baud rate of 9600 on serial monitor)

USB.begin(9600); // Setup serial communication with the CH376S module (using the default baud rate of 9600)

pinMode(LED,OUTPUT); // Define digital pin 13 as an OUTPUT pin - so that we can use it with an LED

digitalWrite(LED,LOW); // Turn off the LED

}

//================================================================================================================================================

void loop() {

if(Serial.available()){

computerByte = Serial.read(); //read any incoming bytes from the Serial monitor, and store this byte in the variable called computerByte

if(computerByte==49){ //1 //If you send the number 1 from the serial monitor, the arduino will read it as digital number 49. Google "ascii table" for more info.

printCommandHeader("COMMAND1: CHECK CONNECTION");

checkConnection(0x01); // Check for successful connection and communication with the CH376S module.

}

if(computerByte==50){ //2

printCommandHeader("COMMAND2: set_USB_Mode");

set_USB_Mode(0x06); // Code used to enable read/write communication and monitoring of the USB stick

}

if(computerByte==51){ //3

printCommandHeader("COMMAND3: resetALL");

resetALL(); // Reset the USB device

}

if(computerByte==52){ //4

printCommandHeader("COMMAND4: Create and Write to File : TEST4.TXT");

writeFile("TEST4.TXT", wrData); // Create a file called TEST4.TXT and then Write the contents of wrData to this file

}

if(computerByte==53){ //5

printCommandHeader("COMMAND5: Read File: TEST4.TXT");

readFile("TEST4.TXT"); // Read the contents of this file on the USB disk, and display contents in the Serial Monitor

}

if(computerByte==54){ //6

printCommandHeader("COMMAND6: Append data to file: TEST4.TXT");

appendFile("TEST4.TXT", wrData2); // Append data to the end of the file.

}

if(computerByte==55){ //7

printCommandHeader("COMMAND7: Delete File: TEST4.TXT");

fileDelete("TEST4.TXT"); // Delete the file named TEST4.TXT

}

if(computerByte==56){ //8

printCommandHeader("COMMAND8: Read File: TEST2.TXT");

readFile("TEST2.TXT"); // Read the contents of the TEST2.TXT file on the USB disk, and display contents in the Serial Monitor

}

if(computerByte==57){ //9

printCommandHeader("COMMAND9: Read File: TEST3.TXT");

readFile("TEST3.TXT"); // Read the contents of the TEST3.TXT file on the USB disk, and display contents in the Serial Monitor

}

if(USB.available()){ // This is here to capture any unexpected data transmitted by the CH376S module

Serial.print("CH376S has just sent this code:");

Serial.println(USB.read(), HEX);

}

//END OF LOOP FUNCTION ========================================================================================================================================

//print Command header

void printCommandHeader(String header){

Serial.println("======================");

Serial.println("");

Serial.println(header);

Serial.println("----------------------");

}

//checkConnection==================================================================================

//This function is used to check for successful communication with the CH376S module. This is not dependant of the presence of a USB stick.

//Send any value between 0 to 255, and the CH376S module will return a number = 255 - value.

void checkConnection(byte value){

USB.write(0x57);

USB.write(0xAB);

USB.write(0x06);

USB.write(value);

if(waitForResponse("checking connection")){ //wait for a response from the CH376S. If CH376S responds, it will be true. If it times out, it will be false.

if(getResponseFromUSB()==(255-value)){

Serial.println(">Connection to CH376S was successful.");

blinkLED(); //blink the LED for 1 second if the connection was successful

} else {

Serial.print(">Connection to CH376S - FAILED.");

}

//set_USB_Mode=====================================================================================

//Make sure that the USB is inserted when using 0x06 as the value in this specific code sequence

void set_USB_Mode (byte value){

USB.write(0x57);

USB.write(0xAB);

USB.write(0x15);

USB.write(value);

delay(20);

if(USB.available()){

USB_Byte=USB.read();

//Check to see if the command has been successfully transmitted and acknowledged.

if(USB_Byte==0x51){ // If true - the CH376S has acknowledged the command.

Serial.println("set_USB_Mode command acknowledged"); //The CH376S will now check and monitor the USB port

USB_Byte = USB.read();

//Check to see if the USB stick is connected or not.

if(USB_Byte==0x15){ // If true - there is a USB stick connected

Serial.println("USB is present");

blinkLED(); // If the process was successful, then turn the LED on for 1 second

} else {

Serial.print("USB Not present. Error code:"); // If the USB is not connected - it should return an Error code = FFH

Serial.print(USB_Byte, HEX);

Serial.println("H");

}

} else {

Serial.print("CH3765 error! Error code:");

Serial.print(USB_Byte, HEX);

Serial.println("H");

}

delay(20);

}

//resetALL=========================================================================================

//This will perform a hardware reset of the CH376S module - which usually takes about 35 msecs =====

void resetALL(){

USB.write(0x57);

USB.write(0xAB);

USB.write(0x05);

Serial.println("The CH376S module has been reset !");

delay(200);

}

//readFile=====================================================================================

//This will send a series of commands to read data from a specific file (defined by fileName)

void readFile(String fileName){

resetALL(); //Reset the module

set_USB_Mode(0x06); //Set to USB Mode

diskConnectionStatus(); //Check that communication with the USB device is possible

USBdiskMount(); //Prepare the USB for reading/writing - you need to mount the USB disk for proper read/write operations.

setFileName(fileName); //Set File name

fileOpen(); //Open the file for reading

int fs = getFileSize(); //Get the size of the file

fileRead(); //***** Send the command to read the file ***

fileClose(0x00); //Close the file

}

//writeFile========================================================================================

//is used to create a new file and then write data to that file. "fileName" is a variable used to hold the name of the file (e.g TEST.TXT). "data" should not be greater than 255 bytes long.

void writeFile(String fileName, String data){

resetALL(); //Reset the module

set_USB_Mode(0x06); //Set to USB Mode

diskConnectionStatus(); //Check that communication with the USB device is possible

USBdiskMount(); //Prepare the USB for reading/writing - you need to mount the USB disk for proper read/write operations.

setFileName(fileName); //Set File name

if(fileCreate()){ //Try to create a new file. If file creation is successful

fileWrite(data); //write data to the file.

} else {

Serial.println("File could not be created, or it already exists");

}

fileClose(0x01);

}

//appendFile()====================================================================================

//is used to write data to the end of the file, without erasing the contents of the file.

void appendFile(String fileName, String data){

resetALL(); //Reset the module

set_USB_Mode(0x06); //Set to USB Mode

diskConnectionStatus(); //Check that communication with the USB device is possible

USBdiskMount(); //Prepare the USB for reading/writing - you need to mount the USB disk for proper read/write operations.

setFileName(fileName); //Set File name

fileOpen(); //Open the file

filePointer(false); //filePointer(false) is to set the pointer at the end of the file. filePointer(true) will set the pointer to the beginning.

fileWrite(data); //Write data to the end of the file

fileClose(0x01); //Close the file using 0x01 - which means to update the size of the file on close.

}

//setFileName======================================================================================

//This sets the name of the file to work with

void setFileName(String fileName){

Serial.print("Setting filename to:");

Serial.println(fileName);

USB.write(0x57);

USB.write(0xAB);

USB.write(0x2F);

USB.write(0x2F); // Every filename must have this byte to indicate the start of the file name.

USB.print(fileName); // "fileName" is a variable that holds the name of the file. eg. TEST.TXT

USB.write((byte)0x00); // you need to cast as a byte - otherwise it will not compile. The null byte indicates the end of the file name.

delay(20);

}

//diskConnectionStatus================================================================================

//Check the disk connection status

void diskConnectionStatus(){

Serial.println("Checking USB disk connection status");

USB.write(0x57);

USB.write(0xAB);

USB.write(0x30);

if(waitForResponse("Connecting to USB disk")){ //wait for a response from the CH376S. If CH376S responds, it will be true. If it times out, it will be false.

if(getResponseFromUSB()==0x14){ //CH376S will send 0x14 if this command was successful

Serial.println(">Connection to USB OK");

} else {

Serial.print(">Connection to USB - FAILED.");

}

//USBdiskMount========================================================================================

//initialise the USB disk and check that it is ready - this process is required if you want to find the manufacturing information of the USB disk

void USBdiskMount(){

Serial.println("Mounting USB disk");

USB.write(0x57);

USB.write(0xAB);

USB.write(0x31);

if(waitForResponse("mounting USB disk")){ //wait for a response from the CH376S. If CH376S responds, it will be true. If it times out, it will be false.

if(getResponseFromUSB()==0x14){ //CH376S will send 0x14 if this command was successful

Serial.println(">USB Mounted - OK");

} else {

Serial.print(">Failed to Mount USB disk.");

}

//fileOpen========================================================================================

//opens the file for reading or writing

void fileOpen(){

Serial.println("Opening file.");

USB.write(0x57);

USB.write(0xAB);

USB.write(0x32);

if(waitForResponse("file Open")){ //wait for a response from the CH376S. If CH376S responds, it will be true. If it times out, it will be false.

if(getResponseFromUSB()==0x14){ //CH376S will send 0x14 if this command was successful

Serial.println(">File opened successfully.");

} else {

Serial.print(">Failed to open file.");

}

//setByteRead=====================================================================================

//This function is required if you want to read data from the file.

boolean setByteRead(byte numBytes){

boolean bytesToRead=false;

int timeCounter = 0;

USB.write(0x57);

USB.write(0xAB);

USB.write(0x3A);

USB.write((byte)numBytes); //tells the CH376S how many bytes to read at a time

USB.write((byte)0x00);

if(waitForResponse("setByteRead")){ //wait for a response from the CH376S. If CH376S responds, it will be true. If it times out, it will be false.

if(getResponseFromUSB()==0x1D){ //read the CH376S message. If equal to 0x1D, data is present, so return true. Will return 0x14 if no data is present.

bytesToRead=true;

}

return(bytesToRead);

}

//getFileSize()===================================================================================

//writes the file size to the serial Monitor.

int getFileSize(){

int fileSize=0;

Serial.println("Getting File Size");

USB.write(0x57);

USB.write(0xAB);

USB.write(0x0C);

USB.write(0x68);

delay(100);

Serial.print("FileSize =");

if(USB.available()){

fileSize = fileSize + USB.read();

}

if(USB.available()){

fileSize = fileSize + (USB.read()*255);

}

if(USB.available()){

fileSize = fileSize + (USB.read()*255*255);

}

if(USB.available()){

fileSize = fileSize + (USB.read()*255*255*255);

}

Serial.println(fileSize);

delay(10);

return(fileSize);

}

//fileRead========================================================================================

//read the contents of the file

void fileRead(){

Serial.println("Reading file:");

byte firstByte = 0x00; //Variable to hold the firstByte from every transmission. Can be used as a checkSum if required.

byte numBytes = 0x40; //The maximum value is 0x40 = 64 bytes

while(setByteRead(numBytes)){ //This tells the CH376S module how many bytes to read on the next reading step. In this example, we will read 0x10 bytes at a time. Returns true if there are bytes to read, false if there are no more bytes to read.

USB.write(0x57);

USB.write(0xAB);

USB.write(0x27); //Command to read ALL of the bytes (allocated by setByteRead(x))

if(waitForResponse("reading data")){ //Wait for the CH376S module to return data. TimeOut will return false. If data is being transmitted, it will return true.

firstByte=USB.read(); //Read the first byte

while(USB.available()){

Serial.write(USB.read()); //Send the data from the USB disk to the Serial monitor

delay(1); //This delay is necessary for successful Serial transmission

}

if(!continueRead()){ //prepares the module for further reading. If false, stop reading.

break; //You need the continueRead() method if the data to be read from the USB device is greater than numBytes.

}

Serial.println();

Serial.println("NO MORE DATA");

}

//fileWrite=======================================================================================

//are the commands used to write to the file

void fileWrite(String data){

Serial.println("Writing to file:");

byte dataLength = (byte) data.length(); // This variable holds the length of the data to be written (in bytes)

Serial.println(data);

Serial.print("Data Length:");

Serial.println(dataLength);

delay(100);

// This set of commands tells the CH376S module how many bytes to expect from the Arduino. (defined by the "dataLength" variable)

USB.write(0x57);

USB.write(0xAB);

USB.write(0x3C);

USB.write((byte) dataLength);

USB.write((byte) 0x00);

if(waitForResponse("setting data Length")){ // Wait for an acknowledgement from the CH376S module before trying to send data to it

if(getResponseFromUSB()==0x1E){ // 0x1E indicates that the USB device is in write mode.

USB.write(0x57);

USB.write(0xAB);

USB.write(0x2D);

USB.print(data); // write the data to the file

if(waitForResponse("writing data to file")){ // wait for an acknowledgement from the CH376S module

}

Serial.print("Write code (normally FF and 14): ");

Serial.print(USB.read(),HEX); // code is normally 0xFF

Serial.print(",");

USB.write(0x57);

USB.write(0xAB);

USB.write(0x3D); // This is used to update the file size. Not sure if this is necessary for successful writing.

if(waitForResponse("updating file size")){ // wait for an acknowledgement from the CH376S module

}

Serial.println(USB.read(),HEX); //code is normally 0x14

}

//continueRead()==================================================================================

//continue to read the file : I could not get this function to work as intended.

boolean continueRead(){

boolean readAgain = false;

USB.write(0x57);

USB.write(0xAB);

USB.write(0x3B);

if(waitForResponse("continueRead")){ //wait for a response from the CH376S. If CH376S responds, it will be true. If it times out, it will be false.

if(getResponseFromUSB()==0x14){ //CH376S will send 0x14 if this command was successful

readAgain=true;

}

return(readAgain);

}

//fileCreate()========================================================================================

//the command sequence to create a file

boolean fileCreate(){

boolean createdFile = false;

USB.write(0x57);

USB.write(0xAB);

USB.write(0x34);

if(waitForResponse("creating file")){ //wait for a response from the CH376S. If file has been created successfully, it will return true.

if(getResponseFromUSB()==0x14){ //CH376S will send 0x14 if this command was successful

createdFile=true;

}

return(createdFile);

}

//fileDelete()========================================================================================

//the command sequence to delete a file

void fileDelete(String fileName){

setFileName(fileName);

delay(20);

USB.write(0x57);

USB.write(0xAB);

USB.write(0x35);

if(waitForResponse("deleting file")){ //wait for a response from the CH376S. If file has been created successfully, it will return true.

if(getResponseFromUSB()==0x14){ //CH376S will send 0x14 if this command was successful

Serial.println("Successfully deleted file");

}

//filePointer========================================================================================

//is used to set the file pointer position. true for beginning of file, false for the end of the file.

void filePointer(boolean fileBeginning){

USB.write(0x57);

USB.write(0xAB);

USB.write(0x39);

if(fileBeginning){

USB.write((byte)0x00); //beginning of file

USB.write((byte)0x00);

} else {

USB.write((byte)0xFF); //end of file

USB.write((byte)0xFF);

}

if(waitForResponse("setting file pointer")){ //wait for a response from the CH376S.

if(getResponseFromUSB()==0x14){ //CH376S will send 0x14 if this command was successful

Serial.println("Pointer successfully applied");

}

//fileClose=======================================================================================

//closes the file

void fileClose(byte closeCmd){

Serial.println("Closing file:");

USB.write(0x57);

USB.write(0xAB);

USB.write(0x36);

USB.write((byte)closeCmd); // closeCmd = 0x00 = close without updating file Size, 0x01 = close and update file Size

if(waitForResponse("closing file")){ // wait for a response from the CH376S.

byte resp = getResponseFromUSB();

if(resp==0x14){ // CH376S will send 0x14 if this command was successful

Serial.println(">File closed successfully.");

} else {

Serial.print(">Failed to close file. Error code:");

Serial.println(resp, HEX);

}

//waitForResponse===================================================================================

//is used to wait for a response from USB. Returns true when bytes become available, false if it times out.

boolean waitForResponse(String errorMsg){

boolean bytesAvailable = true;

int counter=0;

while(!USB.available()){ //wait for CH376S to verify command

delay(1);

counter++;

if(counter>timeOut){

Serial.print("TimeOut waiting for response: Error while: ");

Serial.println(errorMsg);

bytesAvailable = false;

break;

}

delay(1);

return(bytesAvailable);

}

//getResponseFromUSB================================================================================

//is used to get any error codes or messages from the CH376S module (in response to certain commands)

byte getResponseFromUSB(){

byte response = byte(0x00);

if (USB.available()){

response = USB.read();

}

return(response);

}

//blinkLED==========================================================================================

//Turn an LED on for 1 second

void blinkLED(){

digitalWrite(LED, HIGH);

delay(1000);

digitalWrite(LED,LOW);

}

評價 (0)

商品評價

目前沒有評價。

搶先評價 “CH376S USB隨身碟讀寫模組 U盤讀寫模組透過串口通訊” 取消回覆

你必須登入才能發表評論。

CH376S USB隨身碟讀寫模組 U盤讀寫模組透過串口通訊

CH376S USB隨身碟讀寫模組 U盤讀寫模組透過串口通訊

描述

描述

CH376S USB隨身碟讀寫模組 U盤讀寫模組透過串口通訊

使用方法與導覽

評價 (0)

商品評價

搶先評價 “CH376S USB隨身碟讀寫模組 U盤讀寫模組透過串口通訊” 取消回覆

0.91吋 OLED IIC 12832 白字黑底 SSD1306 OLED 液晶屏顯示模組

1602a IIC/I2C LCD 藍色背光液晶顯示模組藍底白字已焊接好 5V

防水型 DS18b20 溫度感測器 100CM 長度帶不鏽鋼探頭

Arduino LCD Keypad Shield LCD1602 液晶螢幕按鍵擴展板

最新消息

2025農曆春節連續假期出貨調整通知調整通知

CH376S USB隨身碟讀寫模組 U盤讀寫模組 透過串口通訊

CH376S USB隨身碟讀寫模組 U盤讀寫模組 透過串口通訊

描述

描述

CH376S USB隨身碟讀寫模組 U盤讀寫模組 透過串口通訊

使用方法與導覽

評價 (0)

商品評價

搶先評價 “CH376S USB隨身碟讀寫模組 U盤讀寫模組 透過串口通訊” 取消回覆

相關商品

0.91吋 OLED IIC 12832 白字黑底 SSD1306 OLED 液晶屏顯示模組

1602a IIC/I2C LCD 藍色背光液晶顯示模組 藍底白字 已焊接好 5V

防水型 DS18b20 溫度感測器 100CM 長度 帶不鏽鋼探頭

Arduino LCD Keypad Shield LCD1602 液晶螢幕按鍵擴展板

最新消息

2025農曆春節連續假期出貨調整通知調整通知

CH376S USB隨身碟讀寫模組 U盤讀寫模組透過串口通訊

CH376S USB隨身碟讀寫模組 U盤讀寫模組透過串口通訊

CH376S USB隨身碟讀寫模組 U盤讀寫模組透過串口通訊

搶先評價 “CH376S USB隨身碟讀寫模組 U盤讀寫模組透過串口通訊” 取消回覆

1602a IIC/I2C LCD 藍色背光液晶顯示模組藍底白字已焊接好 5V

防水型 DS18b20 溫度感測器 100CM 長度帶不鏽鋼探頭
