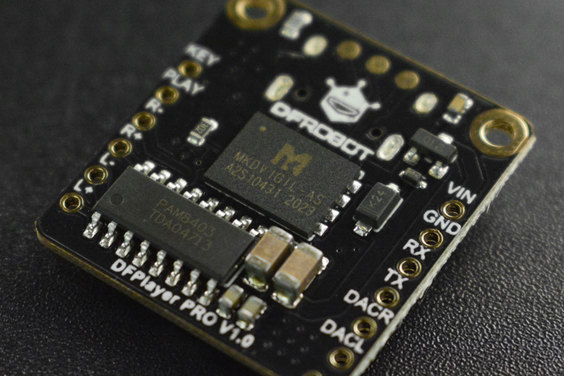

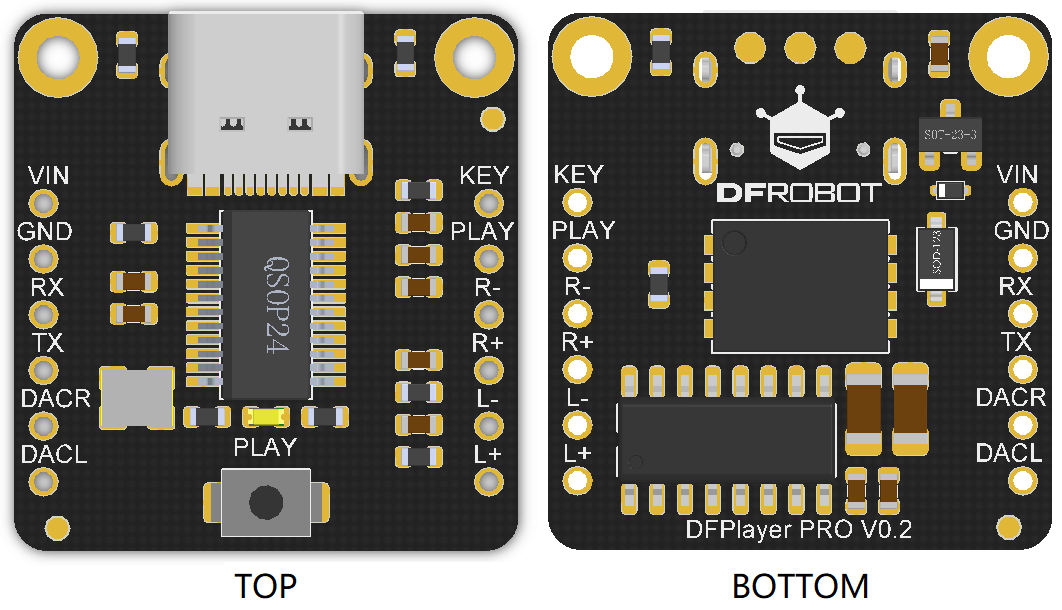

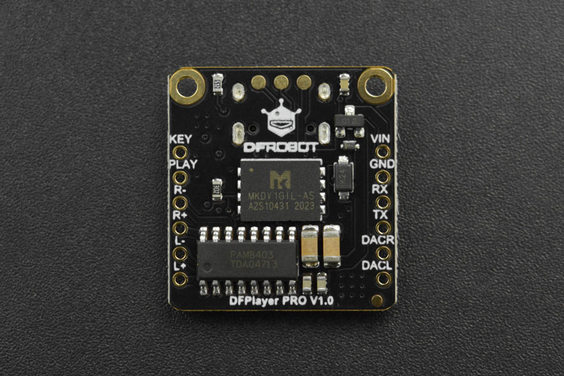

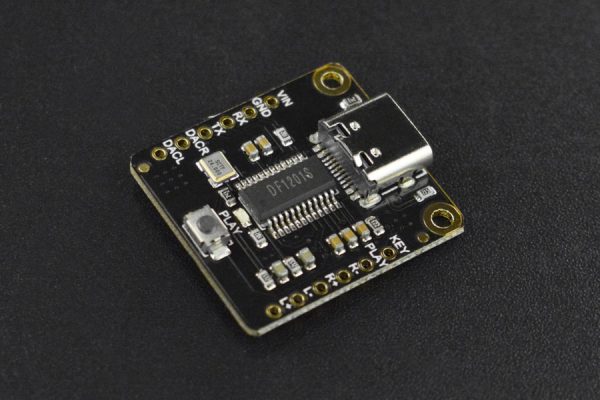

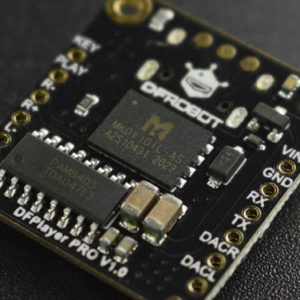

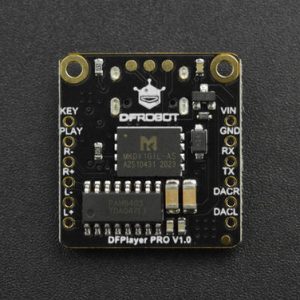

DF1201S DFPlayer PRO MP3播放器模組 內建 128MB 儲存空間
DF1201S DFPlayer PRO MP3播放器模組讓你解決 MP3 撥放的各種問題,您是否在尋找一款簡單又強大的MP3播放模組?看這裡!這款MP3播放模組支持arduino、AT指令、板載按鍵和AD按鍵四種控制方式。通過板載按鍵即使在沒有微控制器的情況下也能進行音樂播放和切換。模塊搭載了128MB的存儲空間,通過USB線您可以很容易的將您喜歡的音樂拷貝到模組中。該模組可作為電腦或Raspberry Pi 撥聲卡,用USB數據線將模組和電腦連接,電腦播放音樂即可通過該模組輸出。
特性
- 搭載128MB的高速存儲
- 支持按鍵進行播放切換
- 雙聲道
- 支持模擬U盤
應用場景
- 毛絨玩具DIY
- 個性化禮物
- 音樂鬧鐘
- USB聲卡
技術規格
- 供電電壓:3.3V~5V
- 工作電流:>20mA
- 存儲空間:128MB
- 音頻格式:MP3、WAV、WMA、FLAC、AAC、APE
- 通訊方式:UART
- 工作溫度範圍:-20℃~70℃
- 工作濕度範圍:5%RH~95%RH

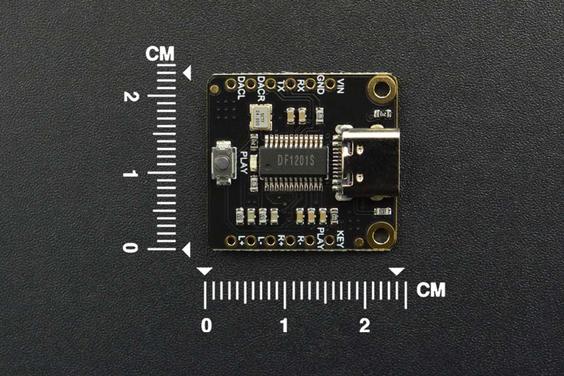

- 產品尺寸:23*24.5mm

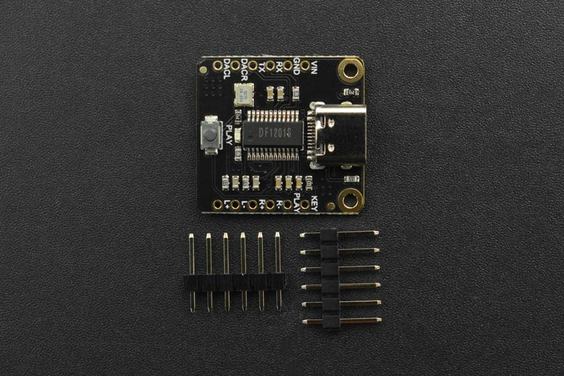

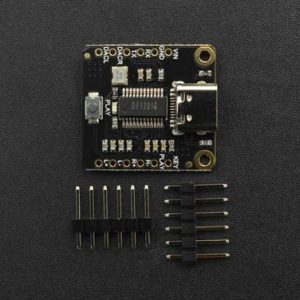

配送清單
- DFPlayer PRO x1
- 2.54-6P黑色單排排針 x2
相關文檔
Fermion: DFPlayer Pro – A mini MP3 Player with On-board 128MB Storage (Breakout)
Here comes the DFPlayer Pro—A mini simple but powerful MP3 Player! This MP3 player module supports four controlling modes: Arduino, AT command, on-board buttons, and ADKEY. You can directly press the on-board button to play or switch music without using a controller. Moreover, this player module has 128MB of storage. By using a USB cable, you can easily copy your favorite songs into this module to play them anywhere you want, or use it as a sound card for your PC or Raspberry Pi after connecting them.
FEATURES
- On-board 128MB High-speed Storage
- Playback Switch by Button
- Dual-channel
- Support analog U-disk
APPLICATIONS
- DIY Plush Toys
- Handmade Personalized Gift
- Musical Alarm Clock
- USB Sound Card
SPECIFICATION
- Power Supply: 3.3V~5V
- Operating Current: >20mA
- Storage: 128MB
- Audio Format: MP3, WAV, WMA, FLAC, AAC, APE
- Communication: UART
- Operating Temperature: -20℃~70℃
- Operating Humidity: 5%RH~95%RH
- Dimension: 23*24.5mm/0.91*0.96”
DOCUMENTS
SHIPPING LIST
- DFPlayer PRO – A MP3 Player x1
- 2.54-6P Black Single-Row Pin x2
