DFRobot 蓋革計數器模組 電離輻射檢測器 Arduino 構建電離輻射探測器

原始價格:NT$2,800。目前價格:NT$2,400。 (未稅)

描述

DFRobot 蓋革計數器模組 電離輻射檢測器 Arduino 構建電離輻射探測器

電離輻射這個看不見摸不著的大敵,不僅僅存在於核電站反應堆中。事實上,我們無時無刻不在被周圍環境和外太空的輻射轟擊,幸好我們的身體足夠強壯,能夠抵抗自然本底輻射。

沒有主動接觸並不意味著不會遇到高能電離輻射。天然大理石建材、不同顏色的礦石寶石、成分不明的“負離子粉”,可能含有不同量的放射性元素。使用蓋革計數器,這些放射源無處可藏。

此外,蓋革計數器是一個很好的隨機數發生器,未確定的高能粒子電離事件可以提供足夠的隨機熵,讓你得到一個真正的隨機數,而不是基於隨機算法的固定隨機序列。

何謂

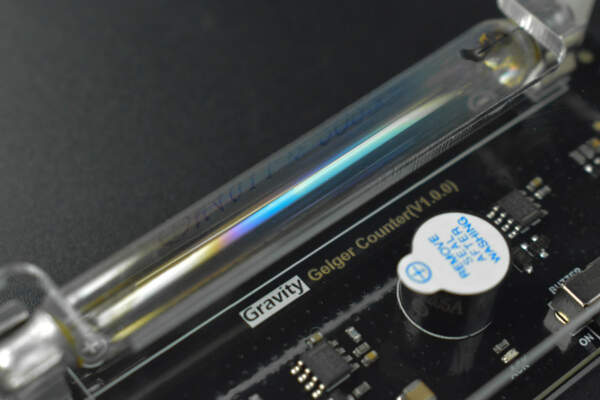

蓋格計數器是根據射線對氣體的游離性質設計成的。其探測器(稱「蓋格管」)的通常結構是在一根兩端用絕緣物質密閉的金屬管內充入稀薄氣體(通常是摻加了稀有氣體,如氦、氖、氬等),在沿管的軸線上安裝有一根金屬絲電極,並在金屬管壁和金屬絲電極之間加上略低於管內氣體擊穿電壓的電壓。這樣在通常狀態下,管內氣體不放電;而當有高速粒子射入管內時,粒子的能量使管內氣體游離導電,在絲極與管壁之間產生迅速的氣體放電現象,從而輸出一個脈衝電流信號。

注意事項!!

  • ♥ 本產品非專業測量儀器,僅適用於原理研究和教學演示。不得用於直接影響人身安全的輻射劑量測量。
  • ⚠ 蓋革管易碎,使用時請輕拿輕放。
  • ☢ 蓋革計數器只能檢測電離輻射,如核輻射、X射線、宇宙射線等,無法檢測電磁輻射,如微波爐輻射、手機輻射、WiFi輻射、電磁爐輻射。
  • ☢ M4011蓋革管可檢測α射線、β射線、γ射線。其中硬β射線和γ射線可以定量測定。
  • ☀ 強光照射可能會導致蓋革計數器讀數偏高,請避免陽光直射蓋革管。
  • 蓋革管由高達400V的電壓驅動,通電後請勿觸摸蓋革管正極附近的高壓電路。

規格

蓋革計數器

  • 供電電壓:3.3V~5V
  • 信號輸出:數字輸出,檢測到脈衝時下拉
  • 驅動電壓:≈400V
  • 最大量程:1200μSv/h(理論值)
  • 外形尺寸:107mm×42mm

M4011蓋革管

  • 工作電壓:380V~450V
  • 後台計數:≈25CPM
  • CPM比率:153.8 CPM/(μSv/h)
  • 外形尺寸:Φ10mm×88mm

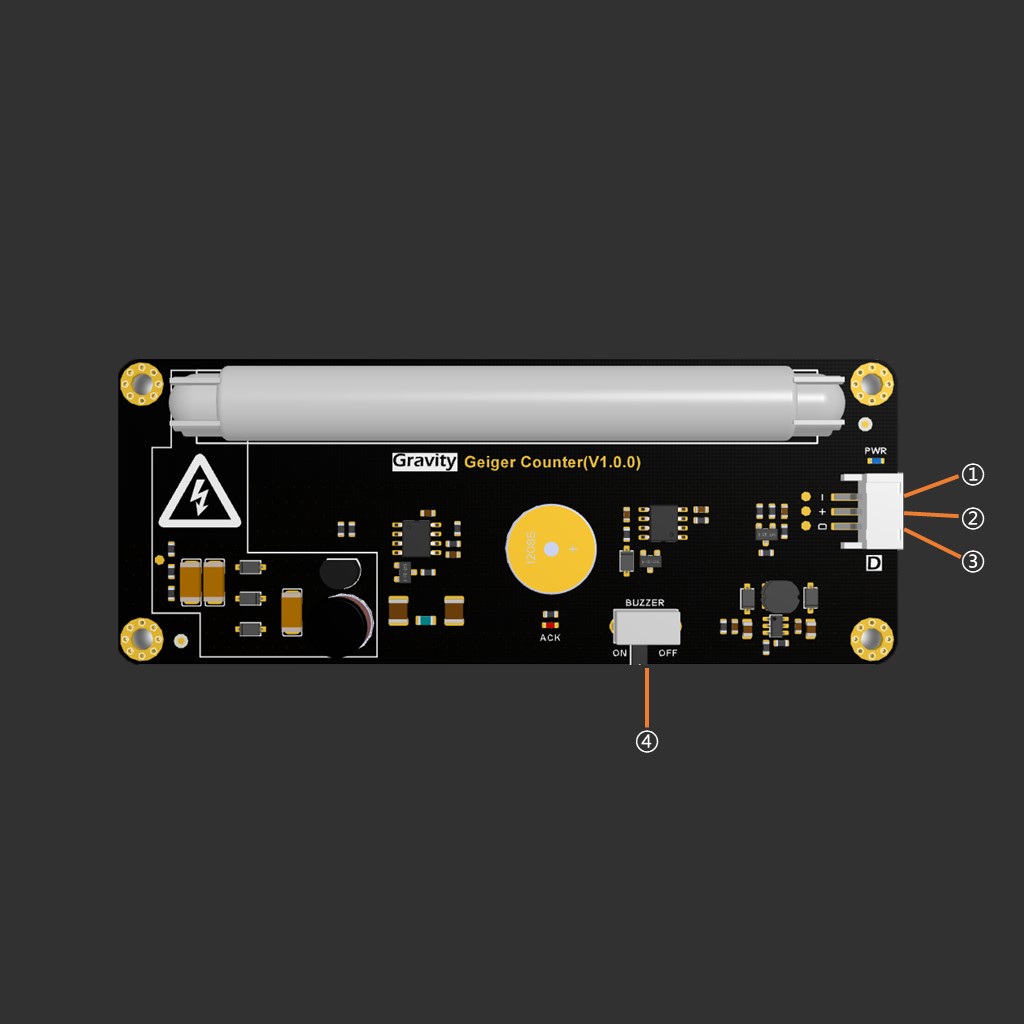

功能說明

別針

  1. 別針
  • ① – 負電源
  • ②+正電源
  • ③ D信號輸出
  1. 轉變
  • ④ 信號蜂鳴器開關

文件

Gravity: Geiger Counter Module Ionizing Radiation Detector

Ionizing radiation, an invisible and intangible enemy, exists not only in nuclear power plant reactors. In fact, we are bombarded by radiation from the surrounding environment and outer space all the time, and fortunately, our body is strong enough to resist the natural background radiation.

No active contact does not mean that high-energy ionizing radiation will not be encountered. Natural marble building materials, ore gems with different colors, and “negative ion powder” of unknown composition may contain different amounts of radioactive elements. With a Geiger counter, these radioactive sources have nowhere to hide.

Gravity: Geiger Counter Module Ionizing Radiation Detector

The Geiger counter can only detect ionizing radiation, such as nuclear radiation, X-rays, cosmic rays, etc. Electromagnetic radiation such as microwave oven radiation, mobile phone radiation, WiFi radiation, induction cooker radiation can not be detected.

In addition, the Geiger counter is a good random number generator, and undetermined high-energy particle ionization events can provide enough random entropy to get you a truly random number, rather than a fixed random sequence based on a random algorithm.

Note

This product is not a professional measuring instrument and is only suitable for principle research and teaching demonstration. Not for use in radiation dose measurement that directly affects personal safety.
