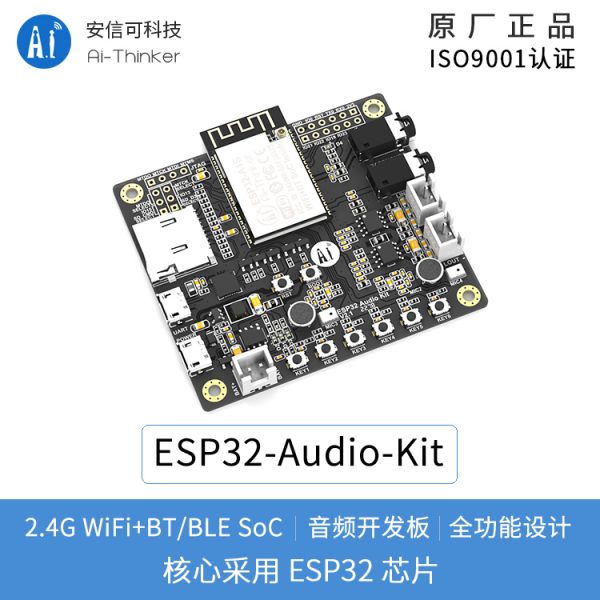

ESP32 Aduio Kit WiFi+藍牙模塊ESP32 串口 轉 WiFi | 安信可 音頻開發板

描述

ESP32 Aduio Kit WiFi+藍牙模塊ESP32 串口 轉 WiFi | 安信可 音頻開發板

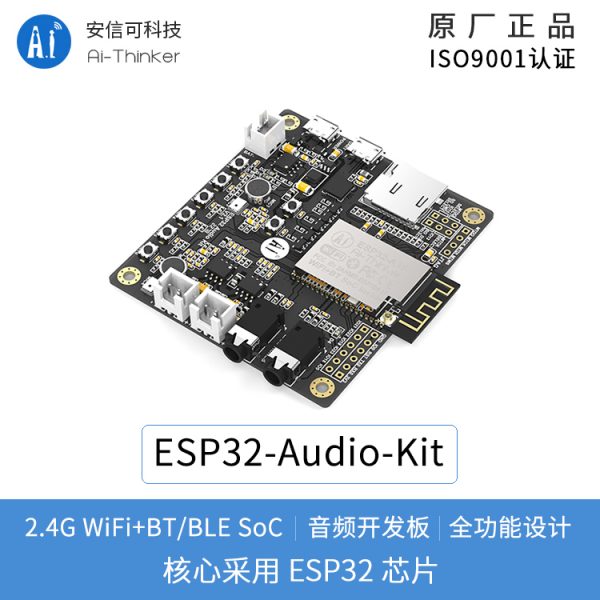

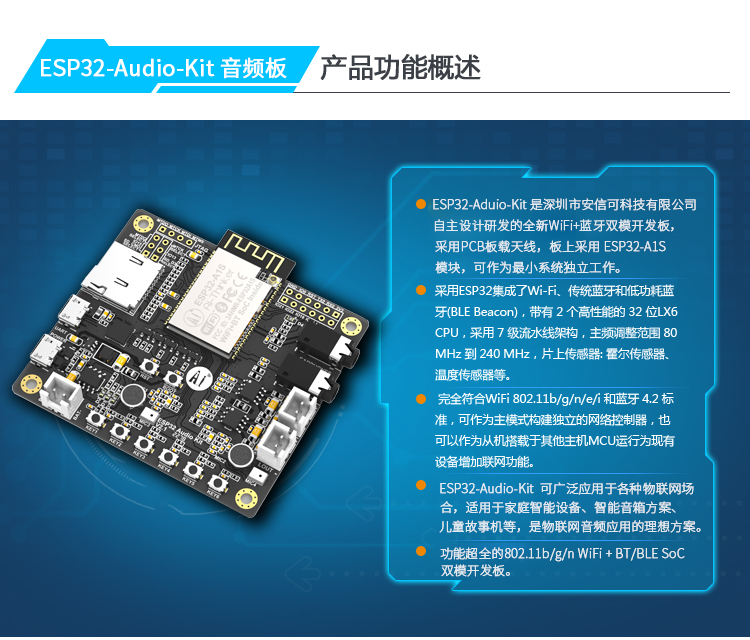

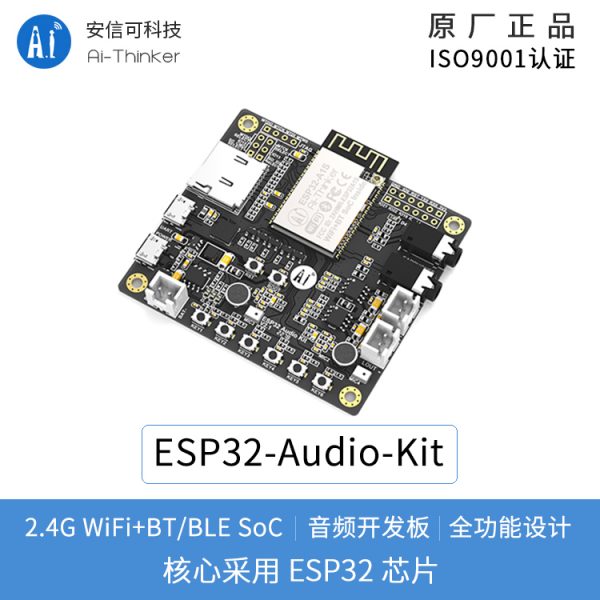

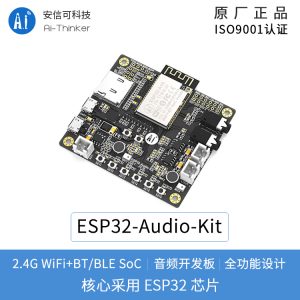

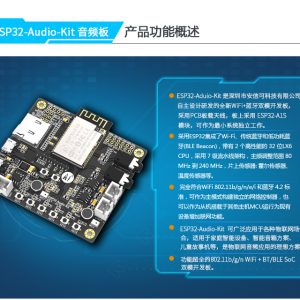

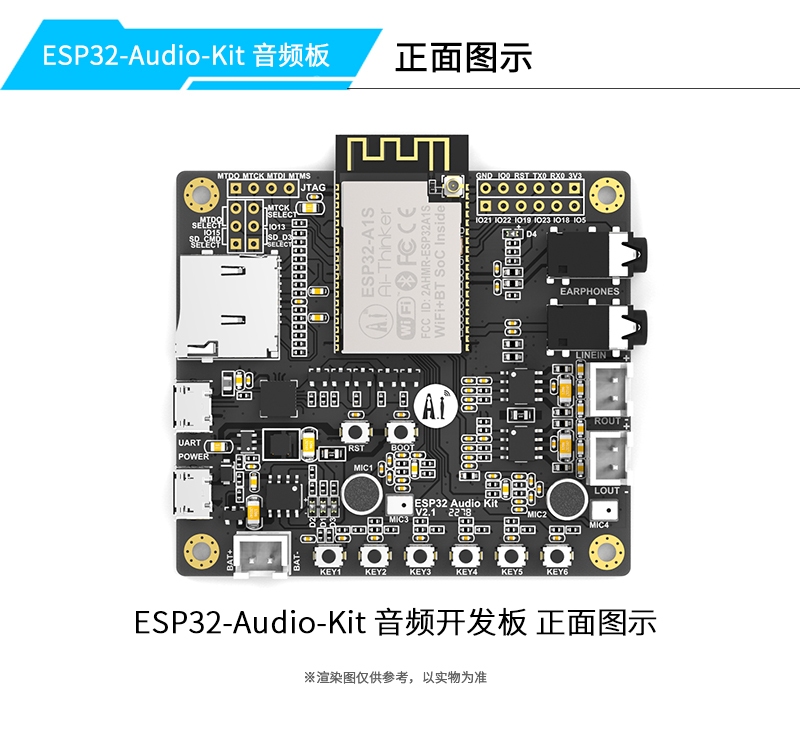

ESP32 Aduio Kit 是安信可科技基於 ESP32-A1S 模組開發的小型音頻開發板，大多數音頻外設分佈在開發板兩側，支持TF卡，耳機輸出，兩路麥克風輸入和兩路喇叭輸出。方便開發人員迅速開發。適用於家庭智能設備、智能音箱方案、兒童故事機原型等，是物聯網應用的理想解決方案。

ESP32 Aduio Kit 模組特色

● 採用低功耗雙核32位CPU，可作應用處理器

● 主頻高達240MHz，運算能力高達600 DMIPS

● 內置520 KB SRAM，8M PSRAM

● 支持UART/SPI/I2C/PWM等接口

● 耳機口：插入3.5mm耳機插口，支持左右聲道輸出

● 左右聲道揚聲器：支持輸出4Ω 3W喇叭輸出，同時支持雙聲道輸出

● 兩路模擬麥克風，分別作為音頻輸入；支持耳機麥克風輸入

● 支持3.7V鋰電池輸入；支持5V 2A電源輸入，支持同時鋰電池充電

● 支持64G SD卡讀寫

● 支持多種休眠模式

● 內嵌Lwip和FreeRTOS

● 支持STA/AP/STA+AP工作模式

● 支持Smart Config/AirKiss一鍵配網

● 支持二次開發

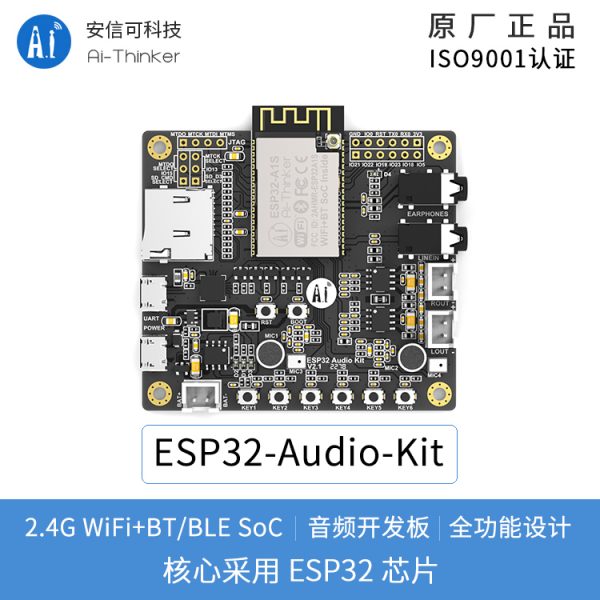

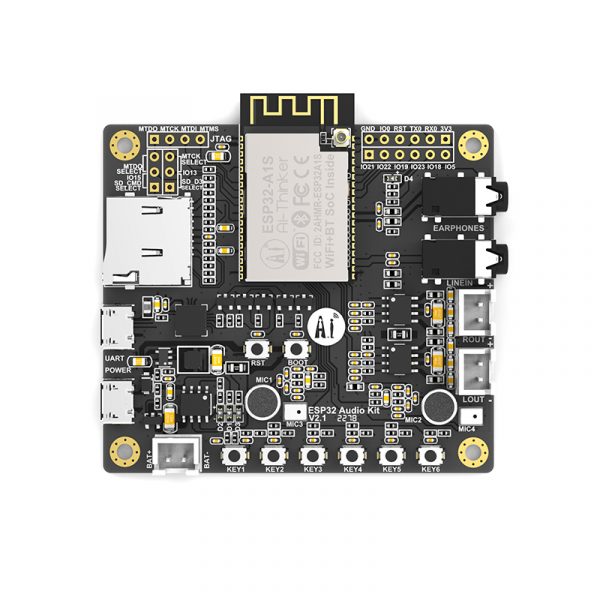

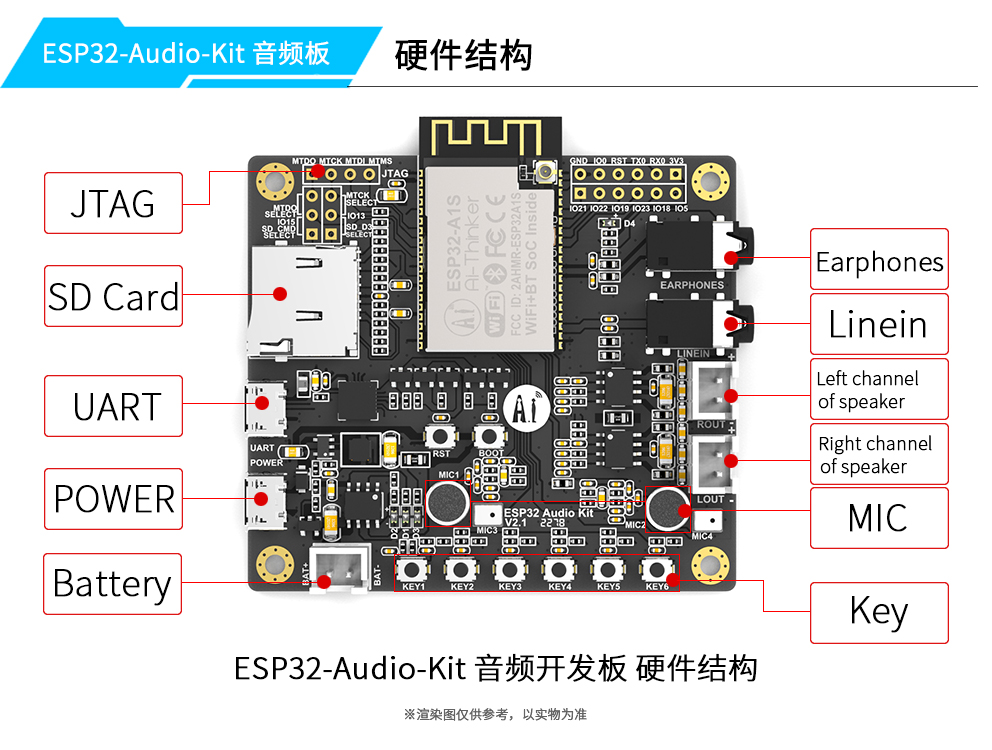

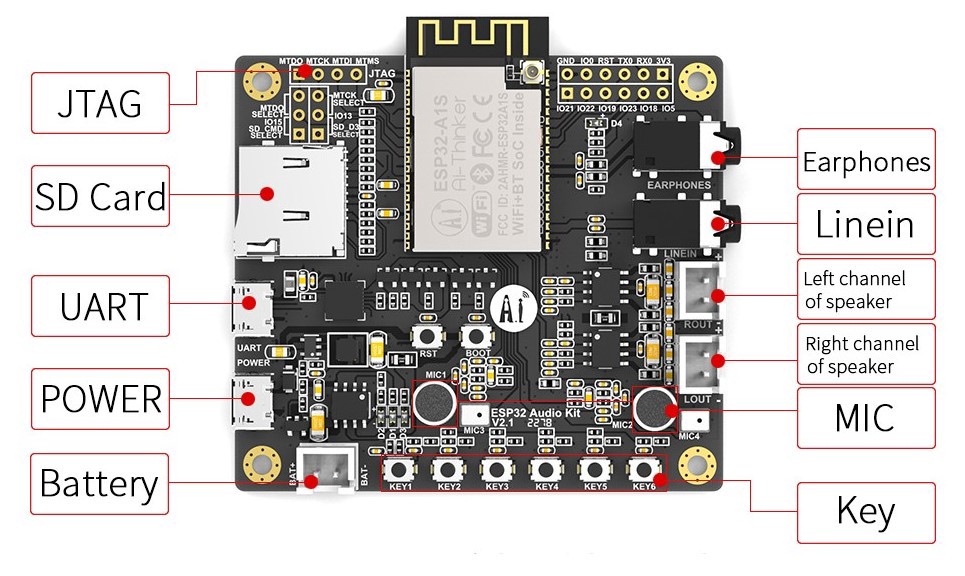

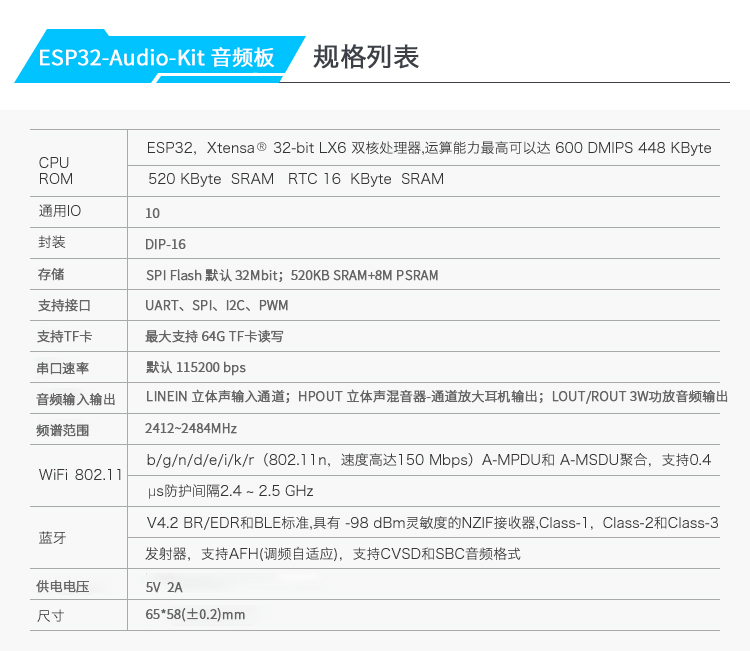

The ESP32 Audio Kit is based on Ai-Thinker’s ESP32-A1S with most of the interfaces located at the edge of the development board for easy access. As far as hardware goes, the ESP32-Audio-Kit is outfitted with a dual-core Xtensa LX6 CPU (520Kb SRAM, 8Mb of PSRAM), micro SD slot (up to 64Gb of storage), and 802.11 b/g/n Wi-Fi + Bluetooth 4.2 LE. Audio ports are many and include 3.5mm headphone jack, 3.5mm line-in jack, a pair of 2-pin headers for left/right speakers (up to 4Ω/3W output), and a couple of built-in microphones.

Expansion options include headers for I2C, UART, SPI, PWM, and an unpopulated header for JTAG with micro USB port for UART access. It also features six user buttons, as well as 5V/2A via micro USB, and support for 3.7V Li-ion battery via 2-pin header for power options.



安信可原廠文件下載
