ESP32-CAM Development Board ESP32-CAM AI 攝像頭開發板 WiFi+藍牙模組

0 out of 5
( 目前沒有評價。 )

原始價格：NT$370。目前價格：NT$330。 (未稅)

狀態: 尚有庫存 貨號: EDB-005775 分類: 標籤: , , , , , , , , , ,

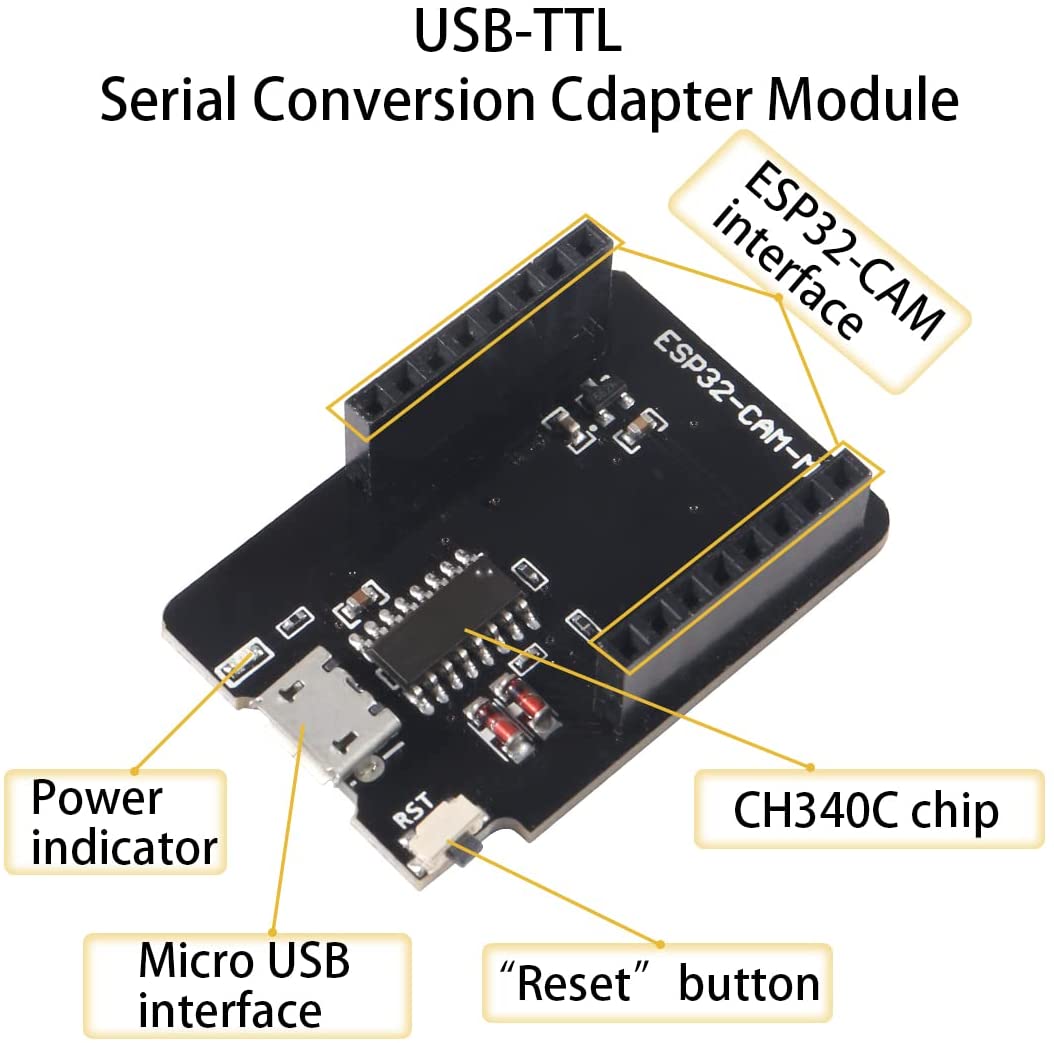

  • 使用 ESP32-CAM-MB USB 【EDB-011697】編程器將代碼上傳到 ESP32-CAM （最簡單的方法）。這個微型 USB 編程器的工作原理就像您連接到 ESP32-CAM 板上的擴展板。編程器帶有一個 USB 插座，您可以直接連接到您的電腦。 【詳細底版介紹】

描述

ESP32-CAM 攝像頭開發板 WiFi+藍牙模組 ESP32-CAM Development Board with camera

ESP32-CAM 攝像頭開發板 具有極具競爭力的小尺寸相機模塊，可作為最小系統獨立運行，佔地面積僅為27 * 40.5 * 4.5mm，深度睡眠電流高達6mA。ESP-32CAM可廣泛用於各種物聯網應用。它適用於家庭智能設備，工業無線控制，無線監控，QR無線識別，無線定位系統信號和其他物聯網應用。它是物聯網應用的理想解決方案。

ESP32-CAM 攝像頭開發板 採用DIP封裝，可直接插入背板，實現產品的快速生產，為客戶提供高可靠性的連接方式，便於各種物聯網硬件終端的應用。

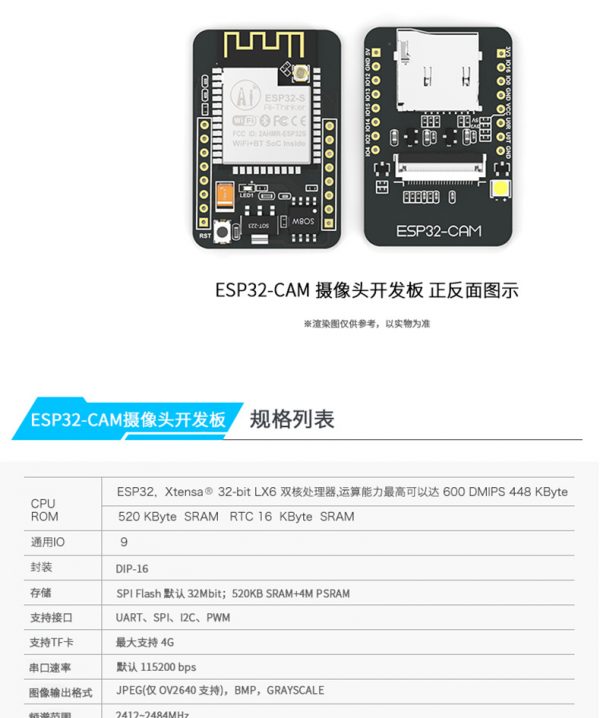

ESP32-CAM 攝像頭開發板 特徵

  • 最小的802.11b / g / n Wi-Fi BT SoC模塊
  • 低功耗32位CPU，也可以為應用處理器服務
  • 高達160MHz的時鐘速度，總計計算能力高達600 DMIPS
  • 內置520 KB SRAM，外部4MPSRAM
  • 支持UART / SPI / I2C / PWM / ADC / DAC
  • 支持OV2640和OV7670攝像頭，內置閃光燈。
  • 支持圖像WiFI上傳
  • 支持TF卡
  • 支持多種睡眠模式。
  • 嵌入式Lwip和FreeRTOS
  • 支持STA / AP / STA + AP操作模式
  • 支持Smart Config / AirKiss技術
  • 支持串口本地和遠程固件升級（FOTA）

規格書：esp32-cam_產品規格書.pdf

攝像頭規格書(英文版)：ov2640_ds_1.8_.pdf

使用教程：https://github.com/donny681/ESP32_CAMERA_QR/wiki



ESP32-CAM WiFi + Bluetooth Camera Module Development Board ESP32 With Camera Module OV2640

Introducing the ESP32-CAM

ESP32-CAM WiFi + Bluetooth Camera Module Development Board

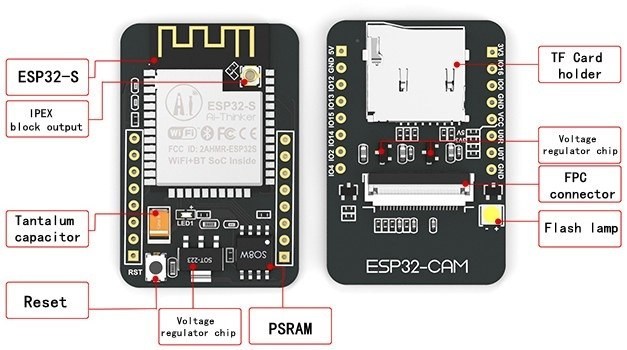

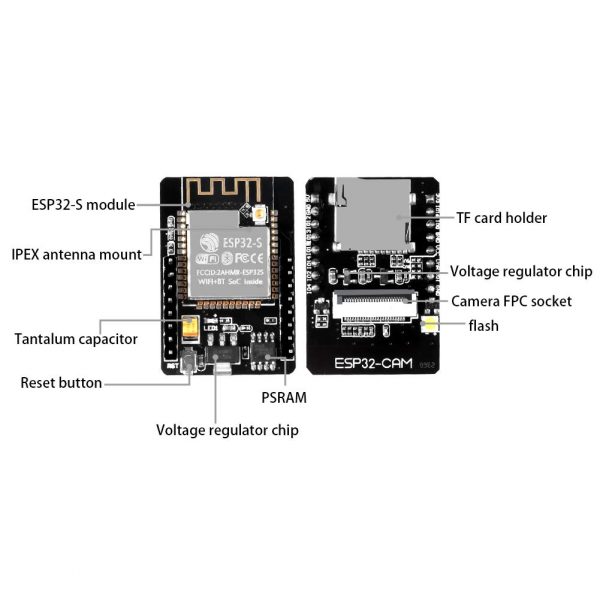

The ESP32-CAM is a very small camera module with the ESP32-S chip that costs approximately $10. Besides the OV2640 camera, and several GPIOs to connect peripherals, it also features a microSD card slot that can be useful to store images taken with the camera or to store files to serve to clients.

Features:
– Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module
– Low-power dual-core 32-bit CPU for application processors
– Up to 240MHz, up to 600 DMIPS
– Built-in 520 KB SRAM, external 4M PSRAM
– Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC
– Support OV2640 and OV7670 cameras with built-in flash
– Support for images WiFI upload
-Support TF card
– Support multiple sleep modes
– Embedded Lwip and FreeRTOS
– Support STA/AP/STA+AP working mode
– Support Smart Config/AirKiss One-click distribution network
– Support for serial local upgrade and remote firmware upgrade (FOTA)

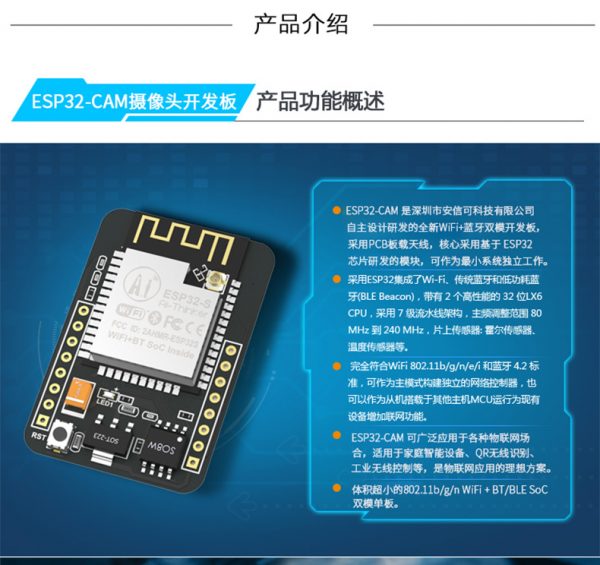

Description:

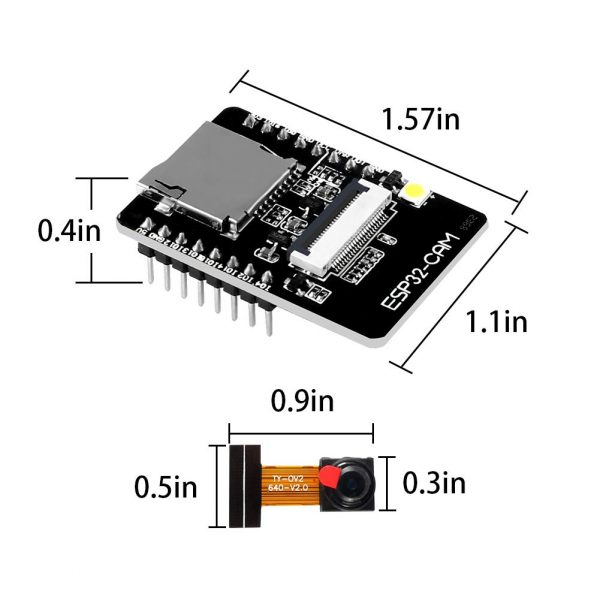

The ESP32-CAM has a very competitive small-size camera module that can operate independently as a minimum system, measuring only 27*40.5*4.5mm, with deep sleep current and a minimum of 6mA.
ESP-32CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications.
ESP-32CAM is packaged in DIP and can be directly plugged into the backplane for quick production. It provides customers with a highly reliable connection method and is convenient for use in various IoT hardware terminals.
Note:
This product contains the OV2640 Camera Module. If you need to use the OV7670 camera, please purchase it separately.

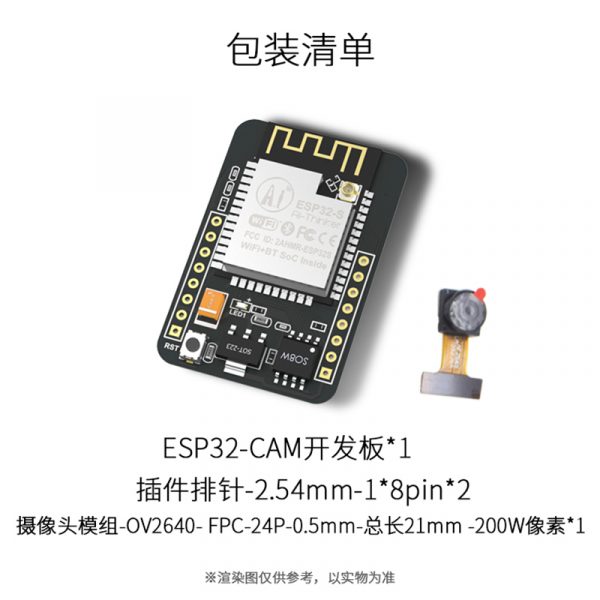

Package Included:

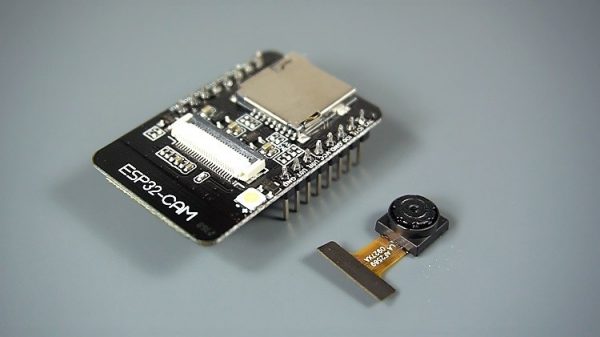

1 x ESP32-CAM Module
1 x Camera Module OV2640
