ESP32 LoRa 1-Channel Gateway LoRa 單通道 LoRaWAN 網關模組 SparkFun 原裝進口
NT$1,480 原始價格:NT$1,480。NT$1,295目前價格:NT$1,295。 (未稅)
- 描述
- 評價 (0)
描述
描述

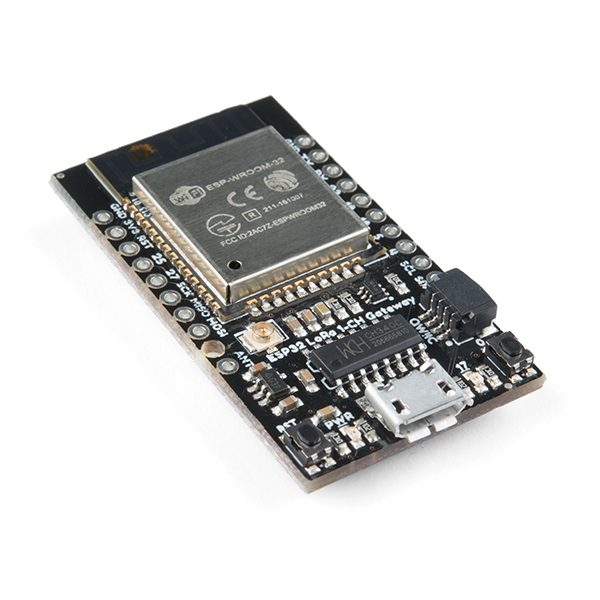

ESP32 LoRa 1-Channel Gateway LoRa 單通道 LoRaWAN 網關模組 SparkFun 原裝進口
ESP32 LoRa 1-Channel Gateway LoRa 單通道 LoRaWAN 網關模組 將 ESP32(一種具有WiFi和藍牙無線電的可編程微控制器)與RFM95W LoRa收發器相結合,創建了單通道LoRa網關。它是一種完美的,低成本的工具,用於監控十幾個LoRa設備,並將其消息中繼到雲端。
ESP32 LoRa 1-Channel Gateway LoRa 單通道 LoRaWAN 網關模組 配有 Qwiic連接器 和麵包板兼容的 ESP32 引腳分支陣列,還可用作通用ESP32 / RFM95W開發平台。因此,您可以將其轉換為LoRa設備,並使用功能強大的ESP32微控制器來監控傳感器,託管 Web 服務器,運行顯示器等,而不是將其用作LoRaWAN網關。這些板是開始進入 LoRa和 LoRaWAN 世界的好方法。 ESP32 LoRa 1-Channel Gateway LoRa 單通道 LoRaWAN 網關模組 不僅可以編程為通用的單通道網關,而且還可以用作LoRa設備或通用ESP32 / RFM95W 開發板。

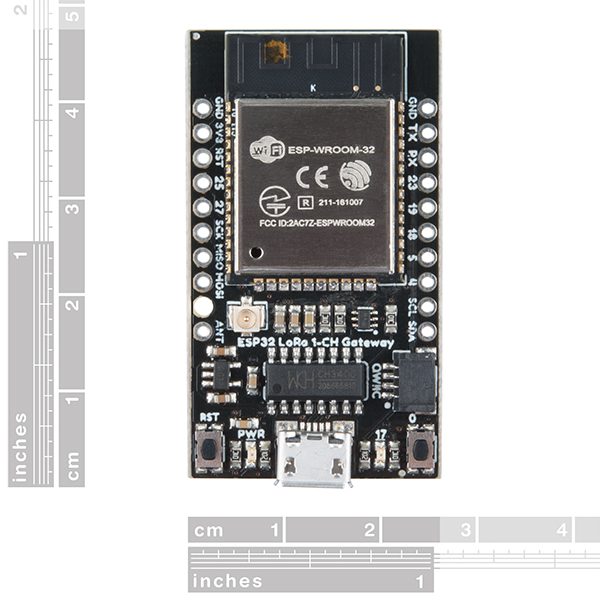

硬體規格與特色
- ESP32-WROOM-32模塊-16MB
- WiFi,BT + BLE微控制器
- 集成PCB天線

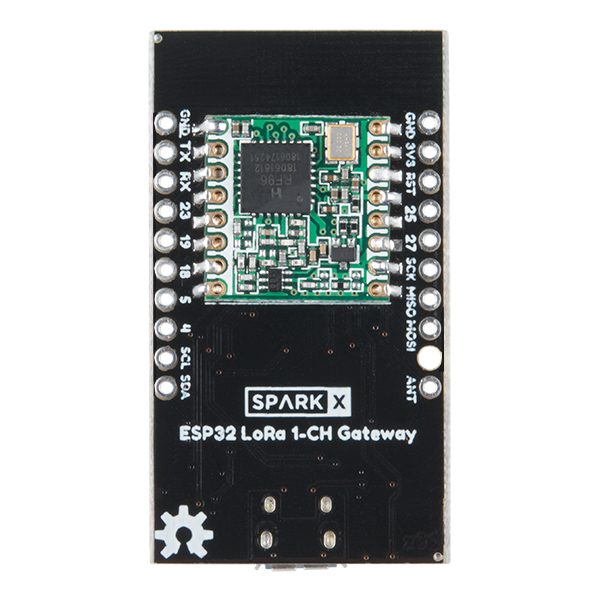

- 希望RFM95W LoRa調製解調器
- 頻率範圍:868/915 MHz
- 利差係數:6-12
- SPI控制接口
- 用於LoRa收音機的U.FL天線連接器
- 重置和ESP32 pin0按鈕
- 14個GPIO ESP32引腳突破
- 電源和用戶LED
- Qwiic連接器
- CH340C USB到串行接口
- Micro-B USB連接器,用於電源和編程
- 所有電流消耗均在5V下測試
- 在網關模式下格式化SPIFFS時約為170 mA
- 在網關模式下搜索WiFi網絡時約為150 mA
- 網關穩定運行時為80至100 mA
- 使用LoRa設備示例時約為70 mA
資源下載與教學
- Schematic
- Eagle Files
- Hookup Guide
- Datasheets
- Arduino Firmware
- Arduino Library
- GitHub
- 如何使用與開發範例
- 產品存儲庫 – GitHub存儲庫,您可以在其中找到所有最新的硬件和軟件設計文件。
- 硬件
- 原理圖 – PDF原理圖
- Eagle Files – PCB設計文件
- ESP32 WROOM數據表 – ESP32 WROOM模塊的數據表
- RFM95W數據表 – RFM95W LoRa無線電模塊的數據表
- 軟件
- ESP-1ch-Gateway-v5.0 – 本教程中使用的單通道LoRaWAN網關Arduino固件。
- Arduino-LMIC庫 – 用於創建LoRaWAN設備的LoRaMAC-in-C(LMIC)Arduino庫。
- ESP-1CH-TTN-Device-ABP – 使用Arduino-LMIC庫的單通道LoRaWAN設備示例。
ESP32 LoRa 1-CH Gateway, LoRaWAN, and the Things Network
The ESP32 LoRa 1-CH Gateway combines an ESP32 – a programmable microcontroller featuring both WiFi and Bluetooth radios – with an RFM95W LoRa transceiver to create a single-channel LoRa gateway. It’s a perfect, low-cost tool for monitoring a dozen-or-so LoRa devices, and relaying their messages up to the cloud.

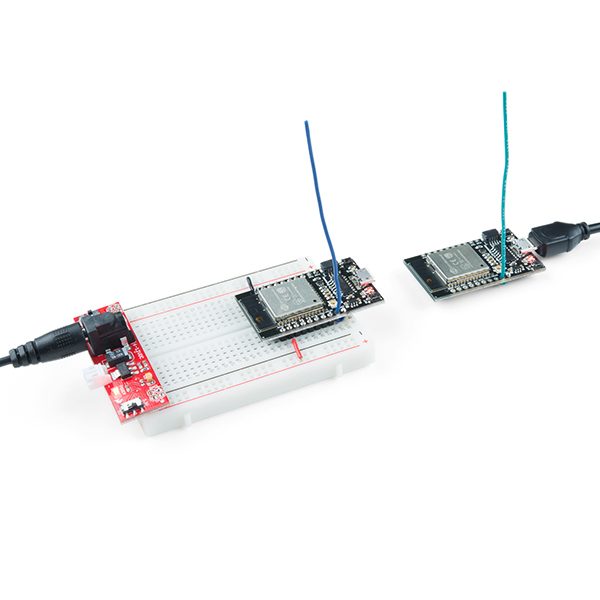

Complete with a Qwiic connector and a breadboard-compatible array of ESP32 pin-breakouts, this board can can also serve as a general-purpose ESP32/RFM95W development platform. So, instead of using it as a LoRaWAN gateway, you can turn it into a LoRa device, and use the powerful ESP32 microcontroller to monitor sensors, host a web server, run a display or more.
These boards are a great way to begin dipping your toes into the world of LoRa and LoRaWAN. Not only can they be programmed as versatile single-channel gateway, but they can also be used as a LoRa device, or a general ESP32/RFM95W development board.

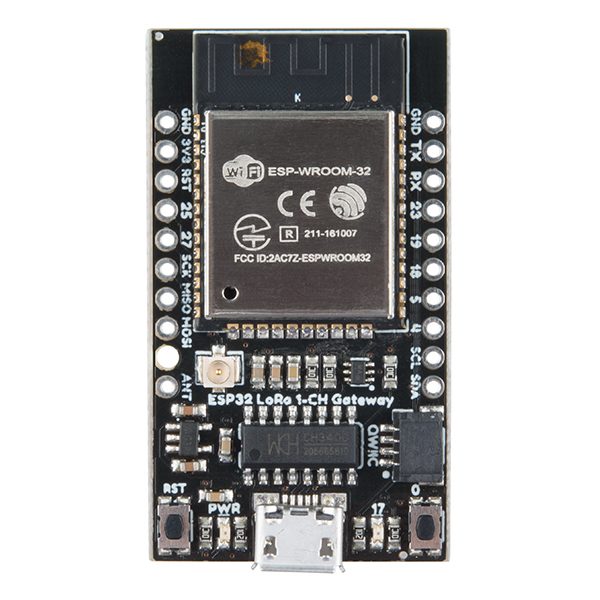

FEATURES
- New For this revision: Update the ESP32-WROOM-32 module from 4MB to 16MB
- ESP32-WROOM-32 module – 16MB
- WiFi, BT+BLE microcontroller
- Integrated PCB antenna
- Hope RFM95W LoRa modem
- Frequency range: 868/915 MHz
- Spread factor: 6-12
- SPI control interface

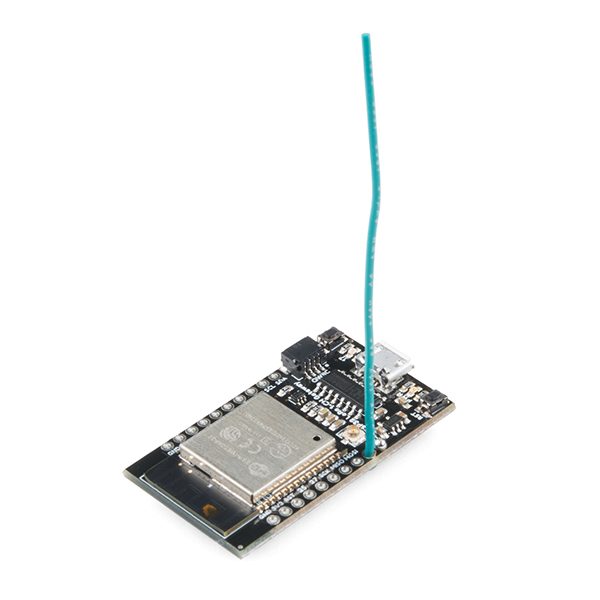

- U.FL antenna connector for LoRa radio
- Reset and ESP32 pin0 buttons
- 14 GPIO ESP32 pin-breakouts
- Power and user LEDs
- Qwiic connector
- CH340C USB-to-Serial interface
- Micro-B USB connector for power and programming
- All current consumption tested at 5V
- ~170 mA when formatting SPIFFS in Gateway mode
- ~150 mA when searching for WiFi network in Gateway mode
- 80 to 100 mA in steady operation of Gateway
- ~70 mA when using the LoRa Device example
- ESP32-WROOM-32 module – 16MB
