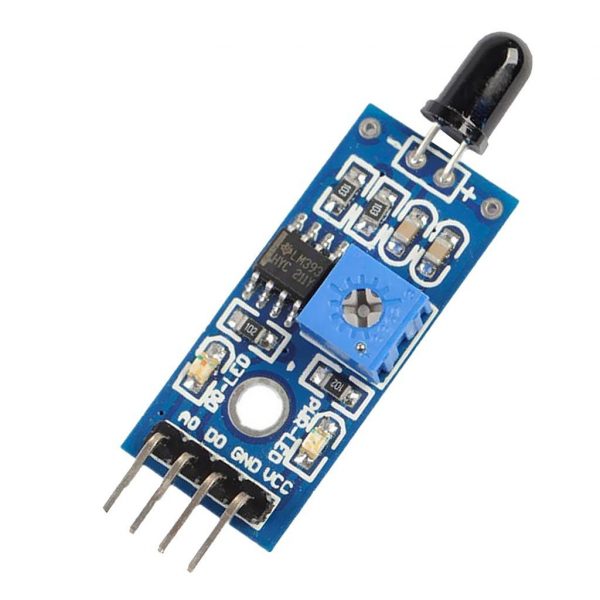

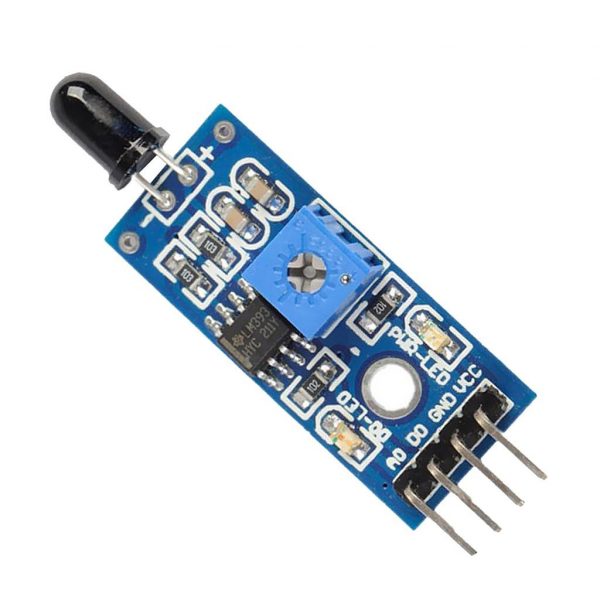

Flame 火焰感測器模組 火源探測 紅外接收火光檢測報警 4針

描述

Flame 火焰感測器模組 火源探測 紅外接收火光檢測報警 4針

Flame 火焰感測器模組

1、可以檢測火焰或者波長在760納米～1100納米範圍內的光源，打火機測試火焰距離為80cm，對火焰越大，測試距離越遠
2、探測角度60度左右，對火焰光譜特別靈敏
3 、靈敏度可調（圖中藍色數字電位器調節）
4、比較器輸出，信號乾淨，波形好，驅動能力強，超過15mA
5、配可調精密電位器調節靈敏度
6、工作電壓3.3V-5V
7、輸出形式：DO數字開關量輸出（0和1）和AO模擬電壓輸出
8、設有固定螺栓孔，方便安裝
9、小板PCB尺寸：3.2cm x 1.4cm
10、使用寬電壓LM393比較器

Flame 火焰感測器模組

模組使用說明：

1 、4針火焰感測器模組對火焰最敏感，對普通光也是有反應的，一般用做火焰報警等用途。
2、小板輸出接口可以與單片機IO口直接相連。
3、傳感器與火焰要保持一定距離，以免高溫損壞傳感器，對打火機測試火焰距離為80cm，對火焰越大，測試距離越遠。
4、小板模擬量輸出方式和AD轉換處理，可以獲得更高的精度。

Infrared Flame Detection Sensor Module for Arduino for Wide Voltage LM393 Comparator

• Great for fire alarm, can detect the flame/wavelength at 760 nm to 1100 nm range of the light source.
• Distance of the test flame lighter: 80cm. The larger the flame is, the larger the distance test is.
• Detection angle is 60 degrees, flame spectrum is especially sensitive.
• Adjustable sensitivity, it is shown in blue digital potentiometer adjustment.
• Output signal waveform of the comparator is clean and good, driving ability: more than 15mA.
• Working Voltage : 3-5.5V DC;Total Size : 5 x 1.5 x 1.5cm/2″ x 0.59″x 0.59″(L*W*H)
• lame Detection Sensor Module;Fit for : for Arduino
• Accuracy adjustable
• High Quality Atomic Market Product

Description:

– Great for fire alarm, can detect the flame/wavelength at 760 nm to 1100 nm range of the light source.
– Distance of the test flame lighter: 80cm. The larger the flame is, the larger the distance test is.
– Detection angle is 60 degrees, flame spectrum is especially sensitive.
– Adjustable sensitivity, it is shown in blue digital potentiometer adjustment.
– Output signal waveform of the comparator is clean and good, driving ability: more than 15mA.

Specification:

– Size: Approx. 32 ×14 ×3 mm/ 1.26 ×0.55 ×0.12 inch
– Operating Voltage: 3.3V-5V
– Output Form: DO digital switching outputs (0 and 1), and AO analog voltage output
– fixed bolt holes for easy installation
– Using a wide voltage LM393 comparator
– With adjustable precision potentiometer, sensitivity adjustment
– Can be directly connected with the microcontroller IO port
