Gravity: 氯化氫氣體感測器 (出廠校準) – I2C & UART 訊號輸出

This is a sensor that detects hydrogen chloride concentration and supports three output modes: analog, I2C, and UART. The probe has been calibrated at the factory, which can quickly and accurately measure the concentration of hydrogen chloride in the environment. Can be widely used in the detection of hydrogen chloride in the industrial, underground, and environmental protection fields.

The probe adopts the electrochemical principle, has the characteristics of strong anti-interference ability, high stability, high sensitivity, etc., and the service life is as long as two years. The sensor has 32 modifiable I2C addresses, an integrated temperature compensation algorithm, and a threshold alarm function, It has good compatibility with mainstream main control devices such as Arduino, ESP32, and Raspberry Pi. The easy-to-use Gravity interface, coupled with our sample code, can quickly build a hydrogen chloride concentration detector.

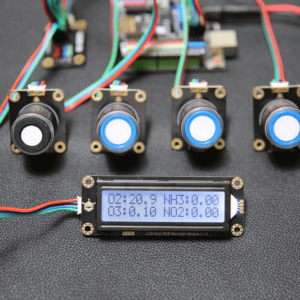

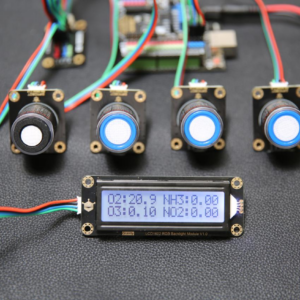

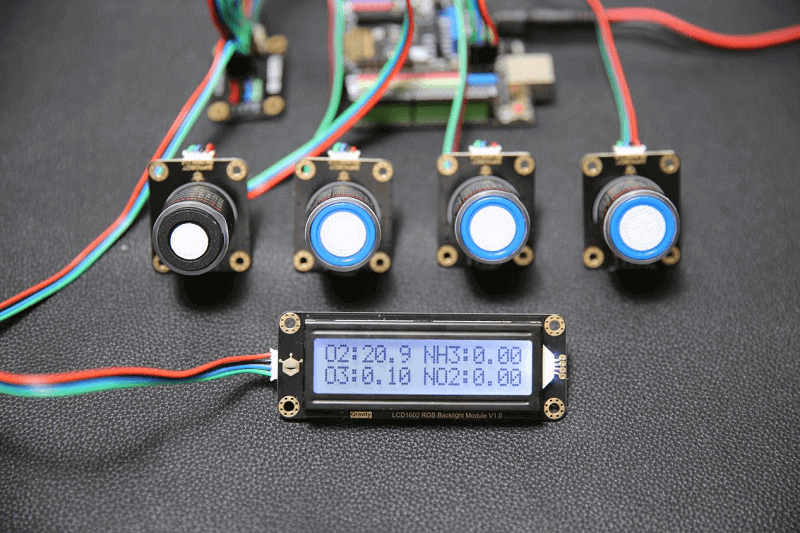

DFRobot has introduced 12 gas detection sensors in this series, CO, O2, NH3, H2S, NO2, HCL, H2, PH3, SO2, O3, CL2, HF, which are used in exactly the same way and data format, so you can combine them according to your needs.

• Strong anti-interference ability
• High stability
• High sensitivity

• Industrial hydrogen chloride detection
• Underground hydrogen chloride detection
• Environmental protection device

• Detection Gas: Hydrogen chloride (HCL)
• Detection range: 0~10ppm
• Working Voltage: 3.3～5.5V DC
• Working Current: ＜5mA
• Output Signal: I2C, UART (0~3V), analog voltage
• Working Temperature: -20～50℃
• Working Humidity: 15～90%RH (non-condensing)
• Storage Temperature: -20～50℃
• Storage Humidity: 15～90%RH (non-condensing)
• Lifespan: >2 years (in the air)

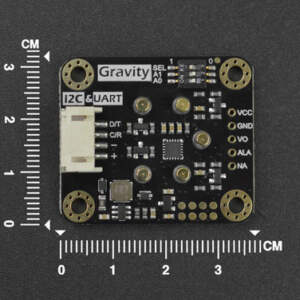

• Adapter Plate Size: 37*32mm
• Compatibility: Arduino, ESP32, Raspberry pi

• Product wiki

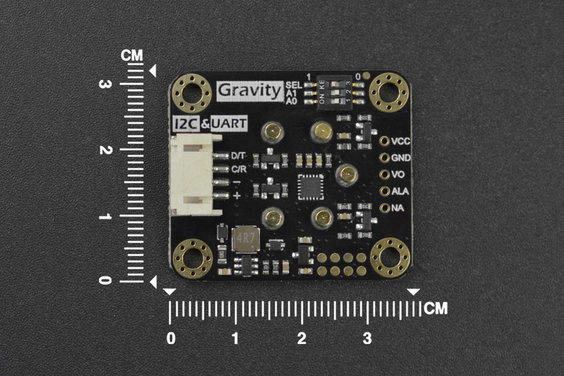

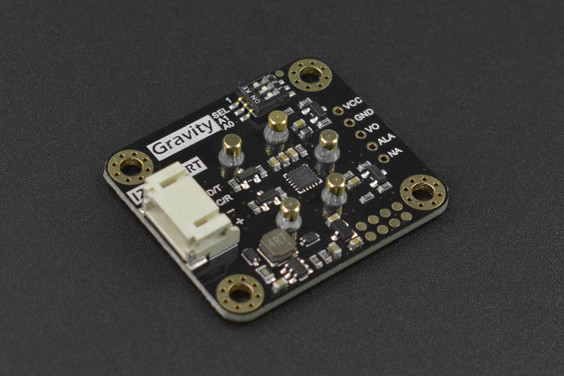

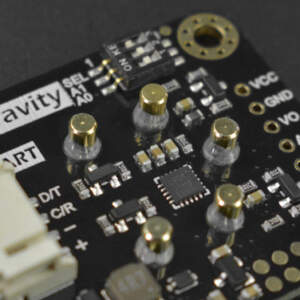

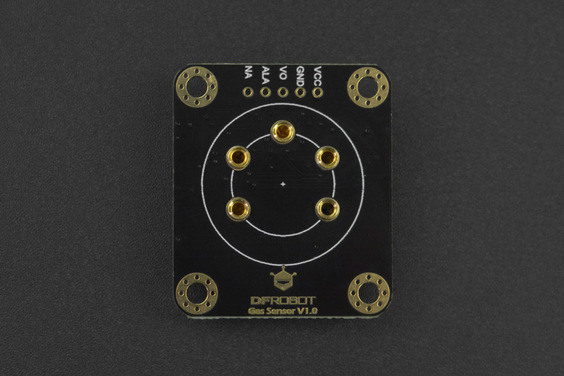

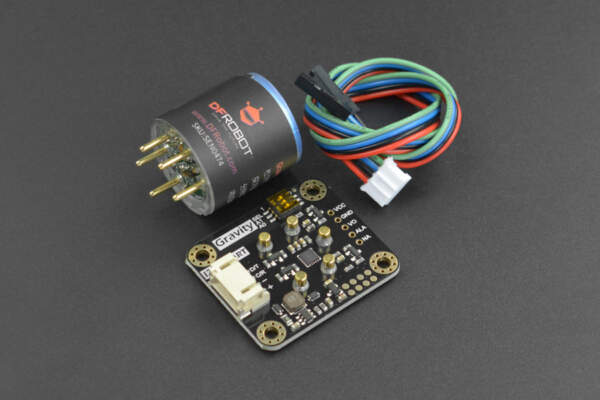

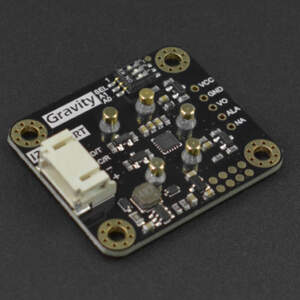

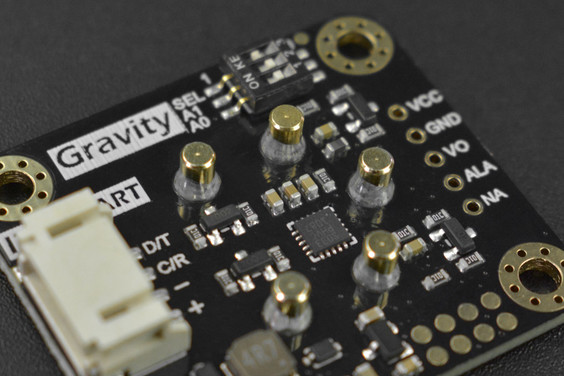

• Gravity: HCL Signal Conversion Board x1

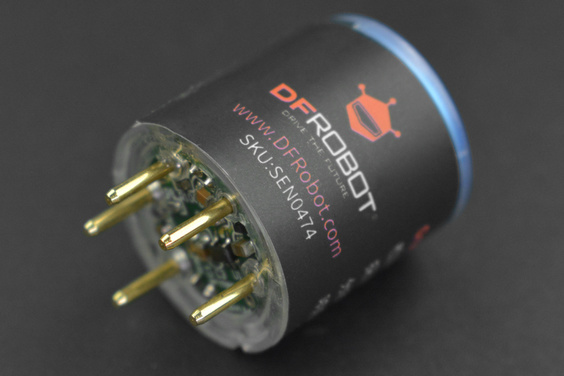

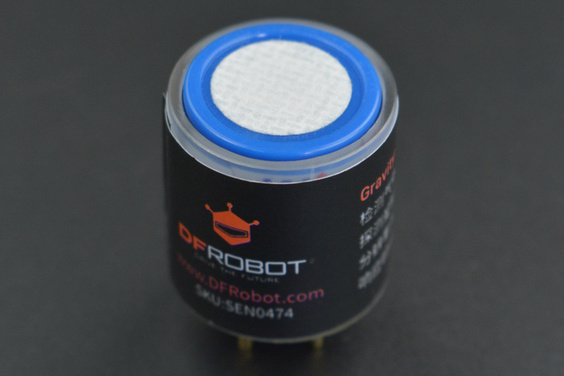

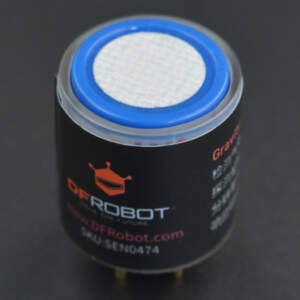

• HCL sensor probe x1
• Gravity – 4pin Cable x1
