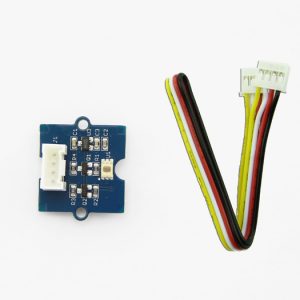

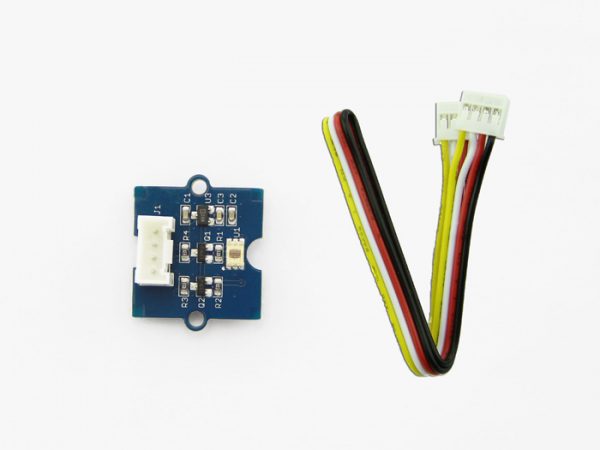

Grove – Digital Light Sensor TSL2561 數字型光感測器

描述

Grove – Digital Light Sensor  TSL2561數字型光感測器 紅外模式、全光譜、人類可見模式

該模組基於 I2C 光轉數字轉換器 TSL2561 將光強度轉換為數字信號。與傳統模擬光傳感器（Grove-Light Sensor）不同，該數字模組具有可選擇的光譜範圍，因為其具有雙光敏二極管：紅外和全光譜。 您可以在三種檢測模式之間切換以獲取您的讀數。它們是紅外模式，全光譜和人類可見模式。當在人類可見模式下運行時，這個傳感器會給你提供與你的眼睛感覺接近的讀數。

特徵

• 可選的檢測模式
• 400 kHz I2C快速模式下的高分辨率16位數字輸出
• 寬動態範圍：0.1 – 40,000 LUX
• 寬工作溫度範圍：-40°C至85°C
• 具有用戶自定義的上限和下限設置的可編程中斷功能

應用的想法

• 環境光線感應
• 顯示面板的背光控制
• 鍵盤照明控制

產品規格

項目	敏	典型	馬克斯	單元
電源電壓，VDD	3.3	五	5.1	V
工作溫度	-30		70	℃
SCL，SDA輸入低電壓	-0.5		0.8	V
SCL，SDA輸入高電壓	2.3		5.1	V

技術文件與範例

• 原廠技術文件與說明
• [Eagle] Grove – Digital Light Sensor Eagle File
• [PDF] Grove – Digital Light Sensor Sch PDF File
• [PDF] Grove – Digital Light Sensor PCB PDF File
• [Library] Library Github Grove-Digital Light
• [Datasheet] TSL2561 Datasheet

This module is based on the I2C light-to-digital converter TSL2561 to transform light intensity to a digital signal. Different from traditional analog light sensor, as Grove – Light Sensor, this digital module features a selectable light spectrum range due to its dual light sensitive diodes: infrared and full spectrum.  You can switch between three detection modes to take your readings. They are infrared mode, full spectrum and human visible mode. When running under the human visible mode, this sensor will give you readings just close to your eye feelings. Features

• Selectable detection modes
• high resolution 16-Bit digital output at 400 kHz I2C Fast-Mode
• Wide dynamic range: 0.1 – 40,000 LUX
• Wide operating temperature range: -40°C to 85°C
• Programmable interrupt function with User-Defined Upper and lower threshold settings

Application Ideas

• Ambient light sensing
• Backlighting control for display panel
• Keyboard illumination control

Technical Details

Dimensions	24mm x 20mm x 9.8mm
Weight	G.W 6g
Battery	Exclude
Dynamic range:	0.1 – 40,000 LUX
Operating temperature range:	-40℃ to 85℃

Part List

Grove – Digital Light Sensor

1
