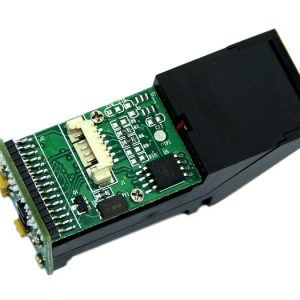

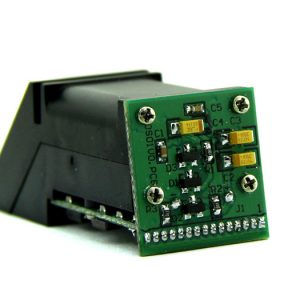

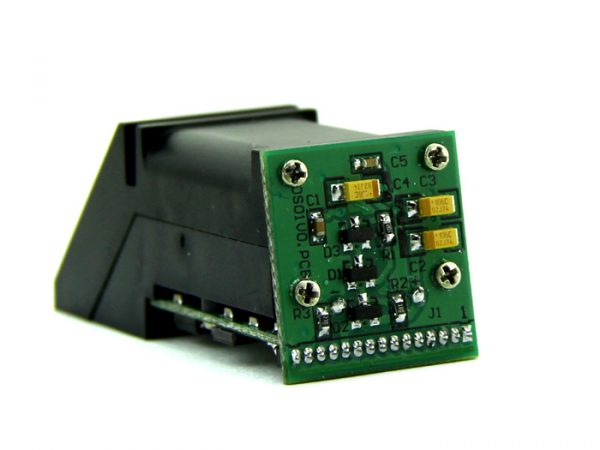

Grove – Fingerprint Sensor 指紋掃描模組
指紋傳感器是一種光學指紋感測器,可以使指紋檢測和驗證更加簡單。高性能的DSP芯片AS601可以進行圖像渲染,計算,特徵搜索和搜索。您也可以直接註冊新的手指 – 最多可將162個指紋存儲在板載FLASH存儲器中。鏡頭中有一個紅色LED,在拍照時會亮起,以便了解其工作狀態。它易於使用,並且是目前最好的指紋傳感器。
產品規格
- 電源電壓:3.6〜6.0 V
- 工作電流(最大):120 mA
- 指紋成像時間:1.0秒
- 匹配模式:比較模式1:1
- 搜索模式:1:N
- 存儲容量:162個模板
- 錯誤接受率:0.001%(安全級別3)
- 錯誤拒絕率:1.0%(安全級別3)
- 波特率:9600,19200,28800,38400,57600bps(默認為57600)
- 接口:TTL串行
- 工作溫度:-20〜+ 50℃

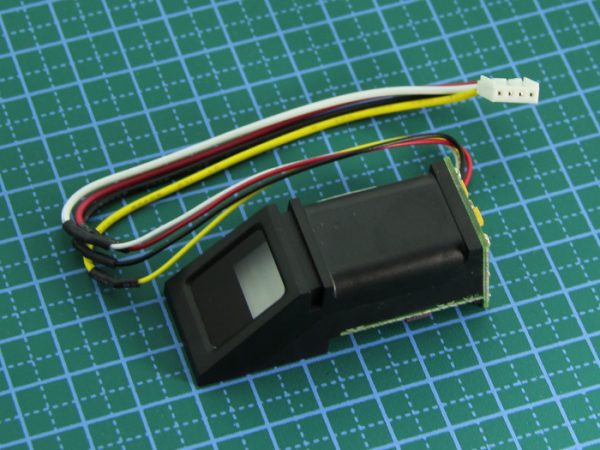

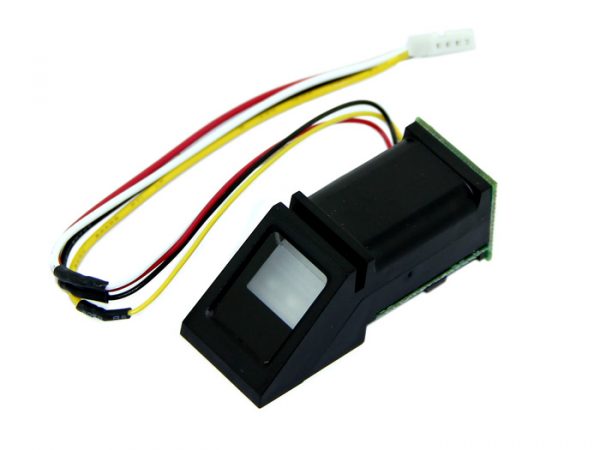

- Grove 接口
針號 | 名稱 | 類型 | 功能說明 |
---|---|---|---|
1 | VIN | 在 | 正電源輸入端子(線顏色:紅色) |
2 | TD | 出 | 串行數據輸出,TTL邏輯電平(線顏色:黃色) |
3 | RD | 在 | 串行數據輸入,TTL邏輯電平(線色:白色) |
4 | GND | – | 信號地線(線條顏色:黑色) |
技術文件與教學資源
The Fingerprint Sensor is one optical fingerprint sensor which will make adding fingerprint detection and verification super simple.There’s a high powered DSP chip AS601 that does the image rendering, calculation, feature-finding and searching. You can also enroll new fingers directly – up to 162 finger prints can be stored in the onboard FLASH memory. There’s a red LED in the lens that lights up during a photo so you know its working. It is easy to use and by far the best fingerprint sensor you can get.FEATURES
- • Fingerprint Adaptable
- • Appatation Widely
- • Can set the security level and baud rate flexibility
Technical Details
Dimensions | 110mm x 65mm x 21mm |
Weight | G.W 23g |
Battery | Exclude |
