Grove – NFC Tag 進場通訊模組

描述

Grove – NFC Tag 進場通訊模組

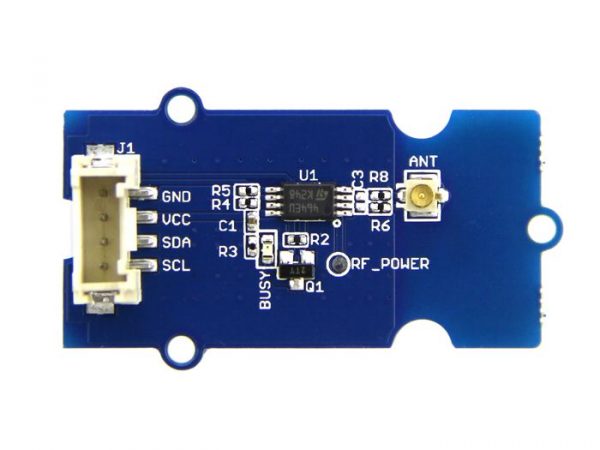

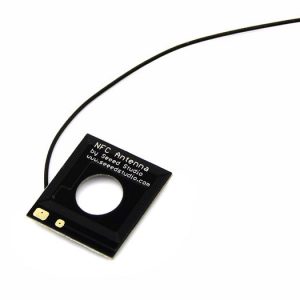

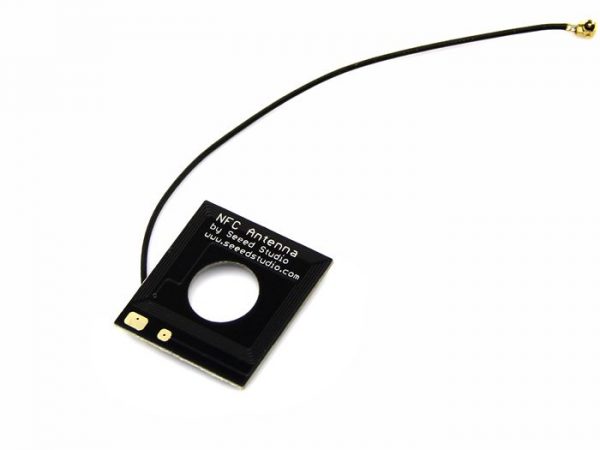

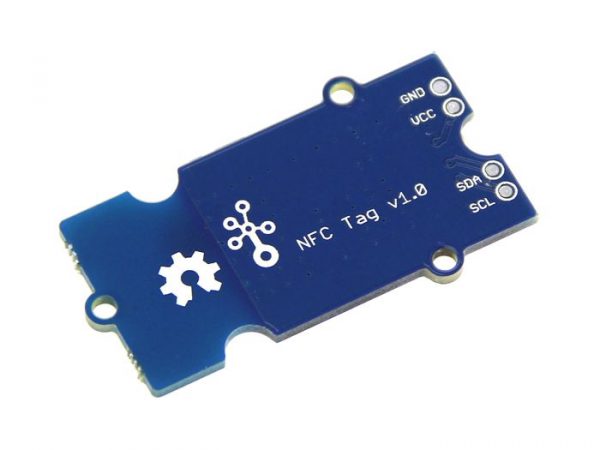

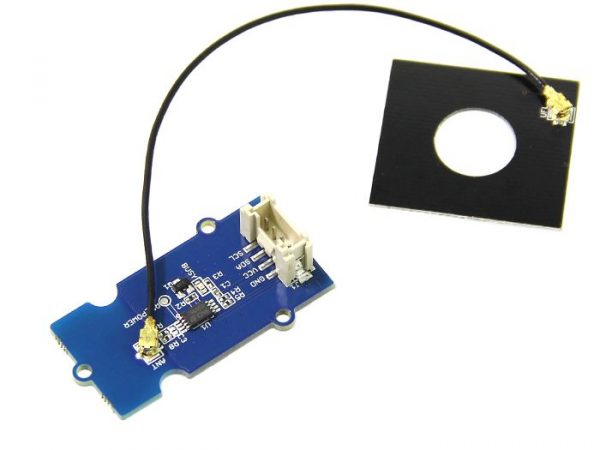

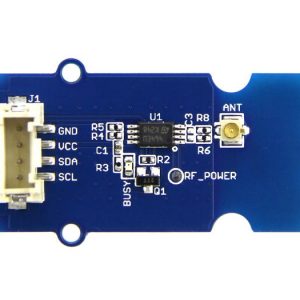

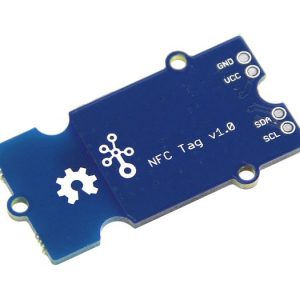

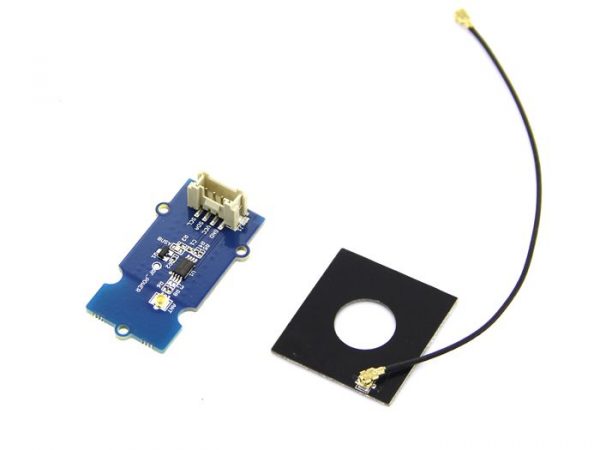

Grove – NFC Tag is a highly integrated Near Field Communication Tag module,this module is I2C interface,which base on M24LR64E-R,M24LR64E-R have a 64-bit unique identifier and 64 -Kbit EEPROM.Grove – NFC Tag attach an independent PCB antenna which can easily stretch out of any enclosure you use, leaving more room for you to design the exterior of your project.

SPECIFICATION

• Working Voltage:5V or 3V3
• Working Current<1mA
• 2CM max effective range
• Serve for contactless communication at 13.56MHz
• ISO 15693 and ISO 18000-3 mode 1 compatible
• 64-bit unique identifier (UID)
• Read Block & Write (32-bit blocks)
• Grove I2C Interface
