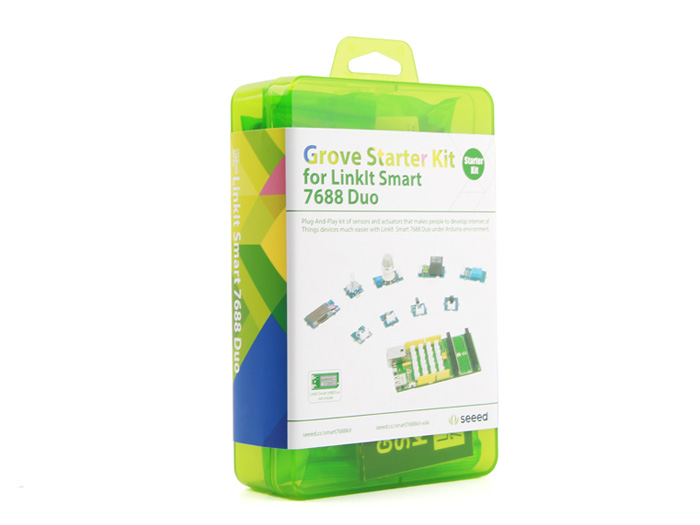

Grove Starter Kit for LinkIt 7688 Duo 感測器入門學習套件 Linkit 7688 Duo Grove 入門學習套件

The kit contains 9 selective Grove modules and the Smart 7688 Duo breakout board to get you quickly started with LinkIt Smart 7688 Duo under Arduino environment. It has an online tutorial with step-by-step instructions. People can learn more about open source hardware and cloud service, as well as to build up projects with this kit.

Features

• Grove interfaced to simply wiring process.
• Starter kit for novice and cost-effective.
• Starter kit special for smart-home applications.
• All essential and basic functional parts included.
• Detailed and complete tutorial.

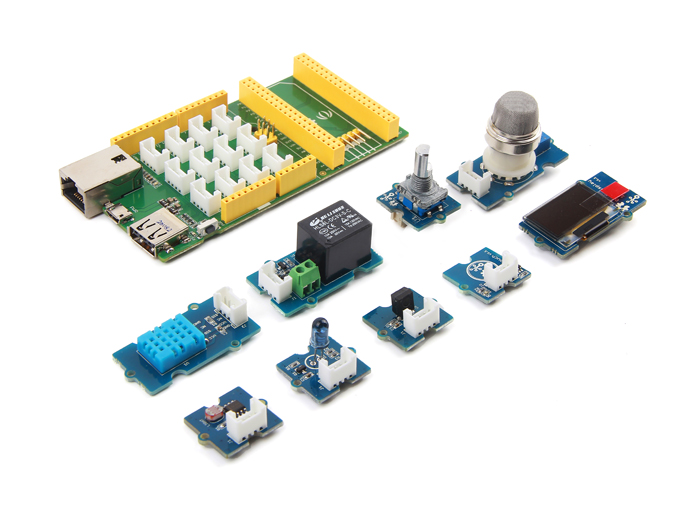

Part List

• 1 x Grove – Light Sensor
• 1 x Grove – Infrared Emitter
• 1 x Grove – Infrared Receiver
• 1 x Grove – Encoder
• 1 x Grove – Touch Sensor
• 1 x Grove – OLED Display 0.96″
• 1 x Grove – Temperature & Humidity Sensor
• 1 x Grove – Relay
• 1 x Grove – Gas Sensor (MQ2)
• 1 x IR Remote Control
• 1 x Smart 7688 Duo breakout board

A simple demo

You can build an IoT application easily with Grove modules supplied in this kit. Now we use some Grove modules supplied to build a demonstrative IoT application, which is used to collect data from sensors in house and control home appliances. To be specific, this demonstrative application achieve following functions:

• Collect data on illumination strength, ambient temperature and humidity and display them on OLED screen, these data also can be accessed from a cloud server.
• Use a relay to connect a desk lamp, with which you can switch the lamp with a control or switch the lamp with a button from the cloud server.

Material required

• LinkIt Smart 7688 Duo
• Breakout
• Grove – Light Sensor
• Grove – Temp&Humi Sensor
• Grove – IR Receiver
• IR remote

Documents

Please visit our Wiki page for more info about this product.
