GY-BMP280-3.3 高精度 大氣壓力感測器模組 大氣壓強度傳感器 高度計傳感器

描述

GY-BMP280-3.3 高精度 大氣壓力感測器模組 大氣壓強度傳感器 高度計傳感器

博世已經加強了他們的新一代BMP280傳感器，這是一款具有溫度和氣壓的環境傳感器，是下一代升級到BMP085 / BMP180 / BMP183的環境傳感器。這款傳感器非常適合各種天氣傳感，甚至可以用於I2C和SPI！這款來自博世的精密傳感器是測量大氣壓力的最佳低成本，高精度傳感解決方案，精度為±1 hPa，溫度精度為±1.0°C。由於壓力隨高度變化而變化，壓力測量結果如此之好，您還可以將其用作±1米精度的高度計

GY-BMP280-3.3 特色

GY-BMP280-3.3  氣壓傳感器是專為移動應用。該傳感器模塊是使用一個非常緊湊的封裝。它的小尺寸和低功耗允許在電池供電的移動電話等設備的實現，GPS模塊或手錶。BMP280已探明的壓阻式壓力傳感器技術具有精度高、線性度以及長期穩定性和魯棒性高的電磁兼容。許多設備操作選項提供靈活性，優化的功耗的裝置，分辨率和濾波器的性能。一個測試的例子使用的情況下，默認的設置是為開發商為了使設計盡可能簡單的。

特徵：

• 型號： GY-BMP280-3.3
• 晶片：BMP280 電源：3V通訊方式：標準IIC / SPI通訊協議
• 氣壓範圍：300-1100hPa
• 引腳間距：2.54mm
• 模塊尺寸：11.5mm * 15mm

典型應用：

• 增強GPS導航功能（如時間到先修改，航位推算，坡度檢測）
• 室內導航（樓層檢測，電梯檢測）
• 戶外導航，休閒和運動應用
• 天氣預報
• 醫療保健應用（例如，矽測量）
• 垂直速度指示（例如風險/水槽速度）

包括：

1 x GY-BMP280-3.3高精度大氣壓力傳感器模組

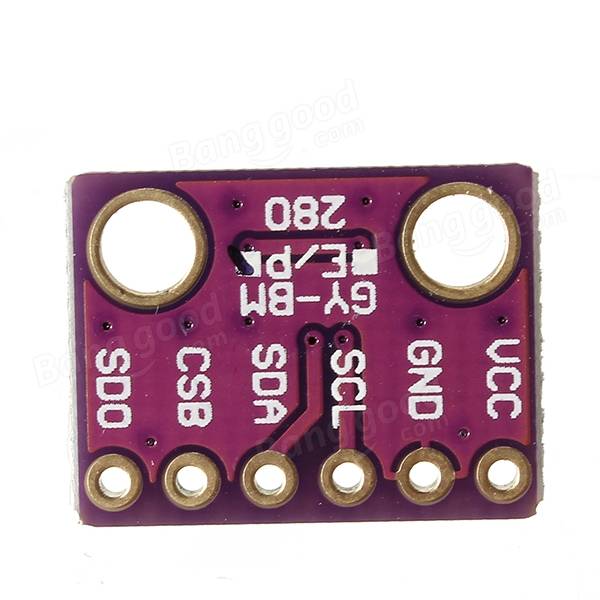

GY-BMP280-3.3 Pressure Sensor Module

• 100% brand new and high quality
• Their new BMP280 sensor, an environmental sensor with temperature, barometric pressure that is the next generation upgrade to the BMP085/BMP180/BMP183. This sensor is great for all sorts of weather sensing and can even be used in both I2C and SPI!
• This precision sensor from the best low-cost, precision sensing solution for measuring barometric pressure with ±1 hPa absolute accuracy, and temperature with ±1.0°C accuracy. Because pressure changes with altitude, and the pressure measurements are so good, you can also use it as an altimeter with ±1 meter accuracy

Description:

Bosch has stepped up their game with their new BMP280 sensor, an environmental sensor with temperature,
barometric pressure that is the next generation upgrade to the BMP085/BMP180/BMP183. This sensor is great
for all sorts of weather sensing and can even be used in both I2C and SPI!
This precision sensor from Bosch is the best low-cost, precision sensing solution for measuring barometric pressure
with ±1 hPa absolute accuracy, and temperature with ±1.0°C accuracy. Because pressure changes with altitude,
and the pressure measurements are so good, you can also use it as an altimeter with ±1 meter accuracy

Feature:

Model: GY-BMP280-3.3
Chip: BMP280
Power supply: 3V
Communication method: Standard IIC/SPI communication protocol
Air pressure range: 300-1100hPa
Pin pitch: 2.54mm
Module size: 11.5mm*15mm

Typical application:

Enhancement of GPS navigation(e.g.time-to-first-fix improvement,dead-reckoning,slope detection)
Indoor navigation(floor detection,elevator detection)
Outdoor navigation,leisure and sports applications
Weather forecast
Health care application(e.g. sirometry)
Vertical velocity indication(e.g. risk/sink speed)
