IoT Power Relay V2 新版 物聯網智慧繼電器電源模組 40A 美國原裝進口

描述

IoT Power Relay V2 新版 物聯網智慧繼電器電源模組 40A 美國原裝進口

使用 IoT Power Relay V2 新版 物聯網智慧繼電器電源模組，可以讓你想用你的微控制器控制一個標準的牆壁插座設備，但又不想弄亂高壓線嗎？物聯網功率繼電器是一種可控功率繼電器，配備四個輸出，可幫助您創建具有安全、可靠功率控制的物聯網項目。借助物聯網電源繼電器，您可以使用 Arduino、Raspberry Pi 或其他單板計算機或微控制器輕鬆控制設備的電源。它提供了電源開關尾部的替代方案。

IoT Power Relay V2 新版 物聯網智慧繼電器電源模組 旨在讓您安全地控制在 3–48VDC 或 12–120VAC 下運行的插座設備。每個物聯網電源繼電器都有一個輸入（來自隨附的 C13 電源線）到四個輸出：一個常開、一個常開和兩個常關。耐用的 SPDT 控制繼電器的額定電流為 30/40A，可進行 400,000 次操作。

IoT Power Relay v2 物聯網智慧繼電器電源模組 特色

• 通用控制電壓3-60VDC或12-120VAC
• 一個輸入信號切換四個插座：一個常開，一個常開，兩個常閉。
• 光電隔離，繼電器滯後和去跳動保護增加了安全性。
• 一個大的MOV箝位浪湧為乾淨的90-140VAC力量。
• 耐用的SPDT控制繼電器的額定值為30 / 40A，在12A時為> 400,000次，在5A時為200萬次+。
• 12A熱安全斷路器開關可防止過載。
• 帶有兩個螺絲孔的安裝標籤

IoT Power Relay

Do you want to control a standard wall outlet device with your microcontroller, but don’t want to mess with the high-voltage wiring? The IoT Power Relay is a controllable power relay equipped with four outputs that help you create an Internet of Things project with safe, reliable power control. With the IoT Power Relay you can easily control the power going to a device with an Arduino, Raspberry Pi or other single-board computer or microcontroller. It provides an alternative to the Power Switch Tail.

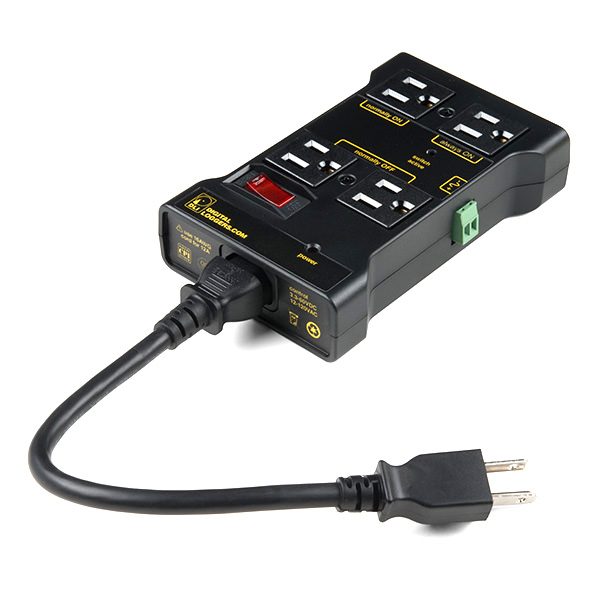

The IoT Power Relay is designed to allow you to safely control an outlet device that operates at 3–48VDC or 12–120VAC. Each IoT Power Relay features a single input (from the included C13 power cable) to four outputs: one normally on, one always on, and two normally off. The durable SPDT control relay is rated at 30/40A, for 400,000 operations.

• Universal control voltage 3-60VDC or 12-120VAC

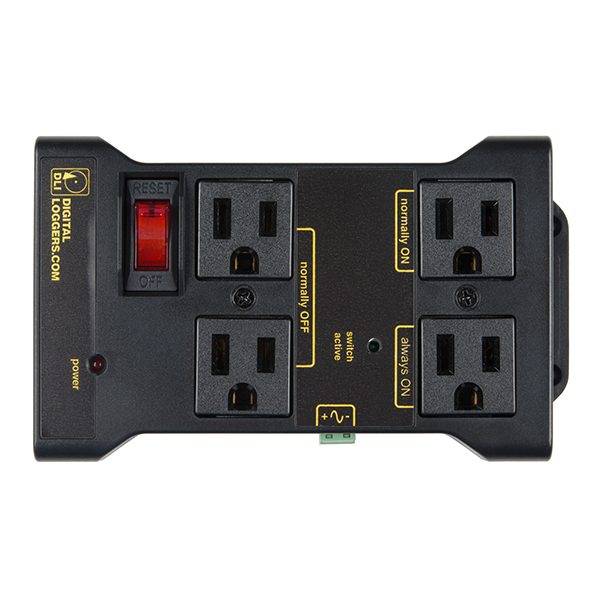

• A single input signal switches four outlets: one normally on, one always on, two normally off.
• Optical isolation, relay hysteresis and de-bounce protection add safety.
• A large MOV clamps surges for clean 90-140VAC power.
• The durable SPDT control relay is rated at 30/40A, >400,000 operations at 12A or 2 million+ operations at 5A.
• A 12A thermal safety circuit breaker switch prevents overloads.
• Mounting tab with two screw holes
