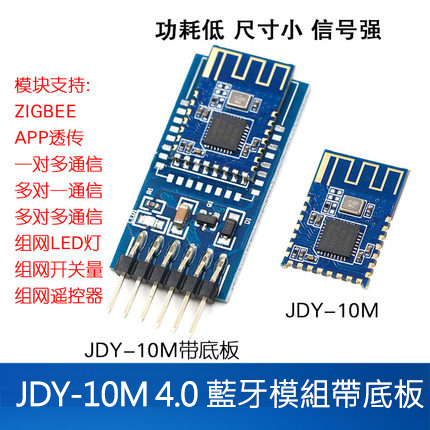

JDY-10M 4.0 藍芽模組 主從一體 支持MESH組網 Zigbee app 透傳
JDY-10M 4.0 藍芽模組 是基於藍牙4.0協議標準,工作頻段為2.4GHZ範圍,調製方式為GFSK,最大發射功率為8db,最大發射距離50米,具有功耗低、尺寸小、信號強、資料傳輸穩定等特性。
產品特徵
- 1:支援Android、IOS手機資料透傳
- 2:支援一對多、多對一、多對多資料傳輸與控制

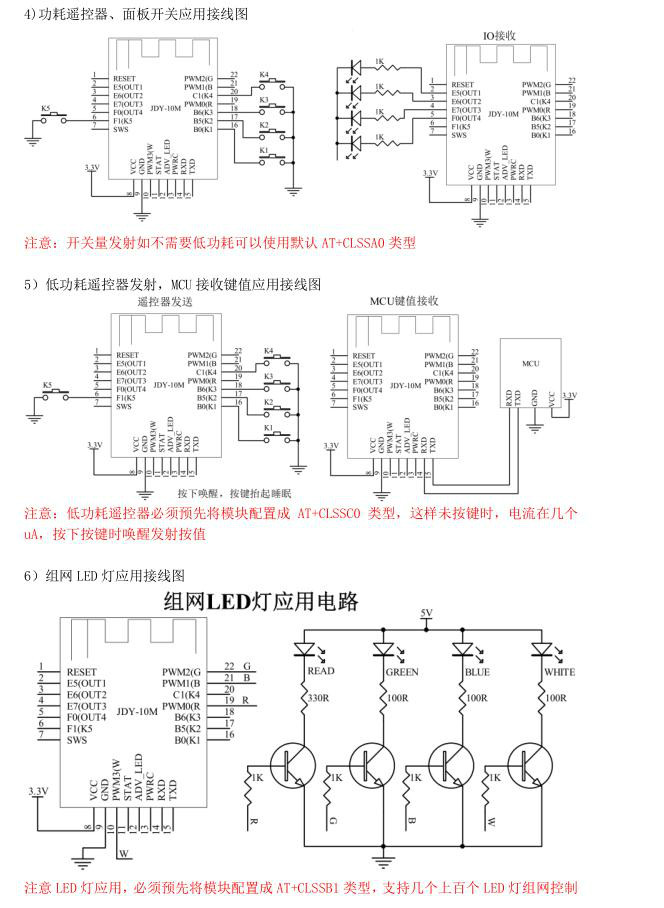

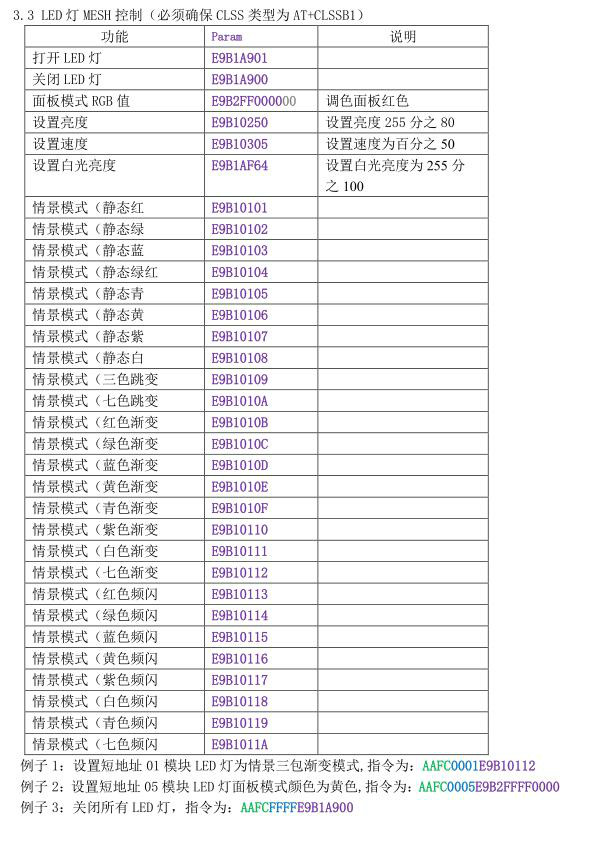

- 3:支援組網LED燈(26種情景模式、面板模式)、亮度、白光、速度可調
- 4:支援組網GPIO控制(一對多、多對一、多對多)
- 5:可通過FCC/CE等標準認證
- 6:支援組網遙控器(超低功耗),兩節乾電池至少可以使用一年以上

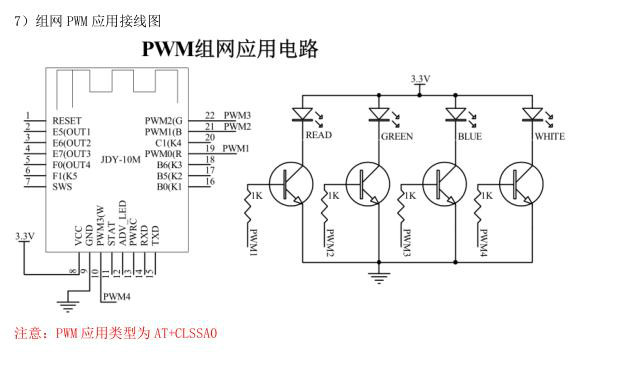

- 7:支援組網4路PWM控制
- 8:最大組網數量255
- 9:支援廣播與單播MESH發送資料
- 10:支援BLE主從同時工作,無需主從切換
- 11:至少60%以上的智慧家居應用JDY-10M可以勝任
產品應用範圍
- 1:藍牙組網LED燈(一對多、多對一、手機或遙控器控制、多對多控制)
- 2:藍牙組網電機控制應用(一對多、多對一、手機或遙控器控制、多對多控制)
- 3:組網面板開關、86開關(超低功耗)
- 4:組網智慧家居應用(開關、繼電器、窗簾)控制
- 5:組網感測器應用
- 6:WIFI組網閘道應用
- 7:Zigbee組網應該
- 8:手機組網控制應用
JDY-10M BL Mesh Networks Module
The JDY-10 transparent transmission module is based on the Bluetooth 4 protocol standard, the working frequency range is 2.4GHZ, the modulation mode is GFSK, the maximum transmit power is 8dB, and the maximum transmitting distance is 50 meters. It has the characteristics of low power consumption, small size, strong signal and stable data transmission, etc.
Product features
1:Support Android and IOS mobile data transmission.
2:Support one-to-multiple, multiple to one, and multiple to multiple data transmission and control.
3:Support mesh networks LED lights (26 profiles and panel modes), brightness, white light, adjustable speed.
4:Support mesh networks GPIO control (one-to-multiple, multiple to one, and multiple to multiple).
5:It can be certified by FCC/CE.
6:Support mesh networks remote control (ultra low power consumption), two batteries can use at least one year.
7:Support mesh networks 4 PWM control.
8:Maximum mesh networks number 255.
9:Support broadcast and unicast MESH to send data.
10:Support BLE master-slave working at the same time without a master and slave switching.
Product Application Range
1:Bluetooth mesh networks LED lights (one-to-multiple, multiple to one, cell phone or remote control, and multiple to multiple control)
2:Application of motor control in Bluetooth mesh networks (one-to-multiple, multiple to one, cell phone or remote control, and multiple to multiple control).
3:Mesh networks panel switch, 86 switch (ultra-low power consumption)
4:Mesh networks intelligent home application control(switches, relays, and curtains).
5:Application of mesh networks sensor.
6:Application of WIFI mesh networks gateway.
7:Application of Zigbee mesh networks.
8:Application of mobile phone mesh networks control.
