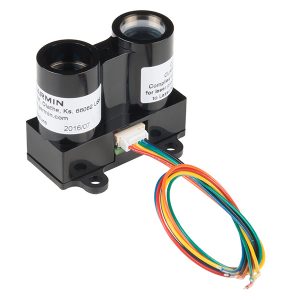

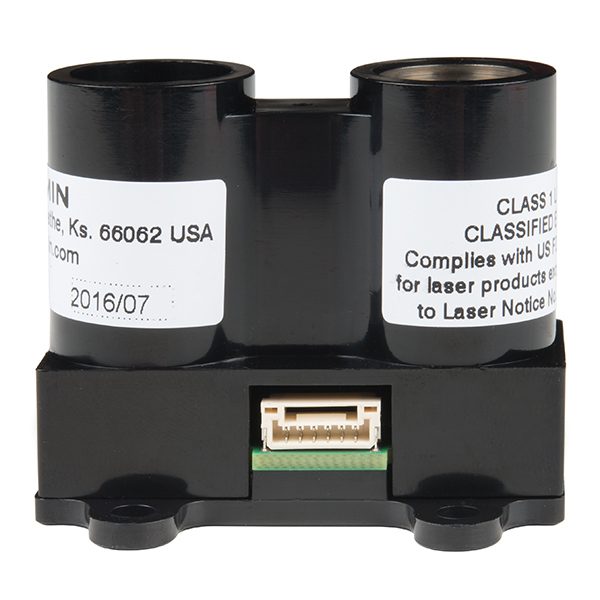

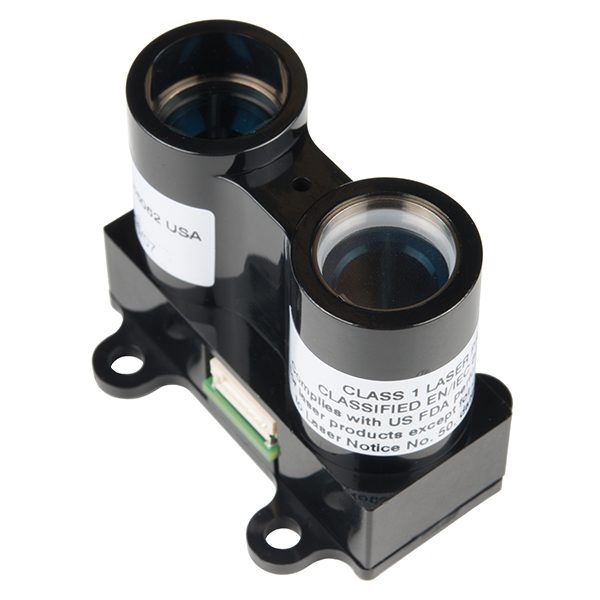

LIDAR-Lite v3 雷射激光高性能光學距離測量感測器 原裝 SparkFun 進口
Garmin LIDAR-Lite v3 一款來自 Garmin™ 的緊湊型高性能光學距離測量傳感器。當空間和重量要求很嚴格時,LIDAR-Lite v3會飆升。LIDAR-Lite v3是無人機,機器人或無人駕駛車輛應用的理想解決方案。這款簡單易用的40米激光光學測距傳感器具有使LIDAR-Lite v2如此受歡迎的所有核心功能。採集過程中體積小,重量輕,功耗低於130mA。而且它是用戶可配置的,所以您可以在精度,工作範圍和測量時間之間進行調整。
每個LIDAR-Lite v3都具有邊緣發射,905nm(1.3瓦),單條激光發射器,4米Radian x 2米Radian光束髮散角和12.5mm的光圈。LIDAR-Lite的第三個版本仍然在5V DC下運行,連續工作時電流消耗率<100mA。除此之外,LIDAR-Lite是用戶可配置的,允許在精度,工作範圍和測量時間之間進行調整。它可以通過I 2 C或PWM與附帶的200mm附件電纜連接。
尺寸: 20 x 48 x 40 mm(0.8 x 1.9 x 1.6英寸)
特徵:
- 範圍:0-40m激光發射器
- 精度:距離大於1m時+/- 2.5cm
- 功率:4.75-5V DC; 6V最大
- 電流消耗:105mA空閒; 130mA連續
- 頻率:1-500Hz
- 激光波長/峰值功率:905nm / 1.3瓦
- 光束髮散:4m Radian x 2m Radian
- 光學孔徑:12.5mm
- 接口:I 2 C或PWM
文件:


This is the LIDAR-Lite v3, a compact, high-performance optical distance measurement sensor from Garmin™. When space and weight requirements are tight, the LIDAR-Lite v3 soars. The LIDAR-Lite v3 is the ideal solution for drone, robot or unmanned vehicle applications.
This easy-to-use 40-meter laser-based optical ranging sensor has all the core features that made the LIDAR-Lite v2 so popular. Small in form and light in weight with low power consumption of less than 130mA during an acquisition. And it’s user-configurable so you can adjust between accuracy, operating range and measurement time.
Each LIDAR-Lite v3 features an edge-emitting, 905nm (1.3 watts), single-stripe laser transmitter, 4 m Radian x 2 m Radian beam divergence, and an optical aperture of 12.5mm. The third version of the LIDAR-Lite still operates at 5V DC with a current consumption rate of <100mA at continuous operation. On top of everything else, the LIDAR-Lite is user-configurable, allowing adjustment between accuracy, operating range and measurement time. It can be interfaced via I2C or PWM with the included 200mm accessory cable.
Note: CLASS 1 LASER PRODUCT CLASSIFIED EN/IEC 60825-1 2014. This product is in conformity with performance standards for laser products under 21 CFR 1040, except with respect to those characteristics authorized by Variance Number FDA-2016-V-2943 effective September 27, 2016.
Dimensions: 20 x 48 x 40 mm (0.8 x 1.9 x 1.6 inches)
Features:
- Range: 0-40m Laser Emitter
- Accuracy: +/- 2.5cm at distances greater than 1m
- Power: 4.75–5V DC; 6V Max
- Current Consumption: 105mA idle; 130mA continuous
- Rep Rate: 1–500Hz
- Laser Wave Length/Peak Power: 905nm/1.3 watts
- Beam Divergence: 4m Radian x 2m Radian
- Optical Aperture: 12.5mm
- Interface: I2C or PWM
