描述

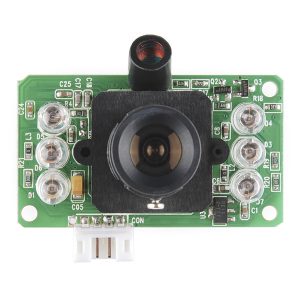

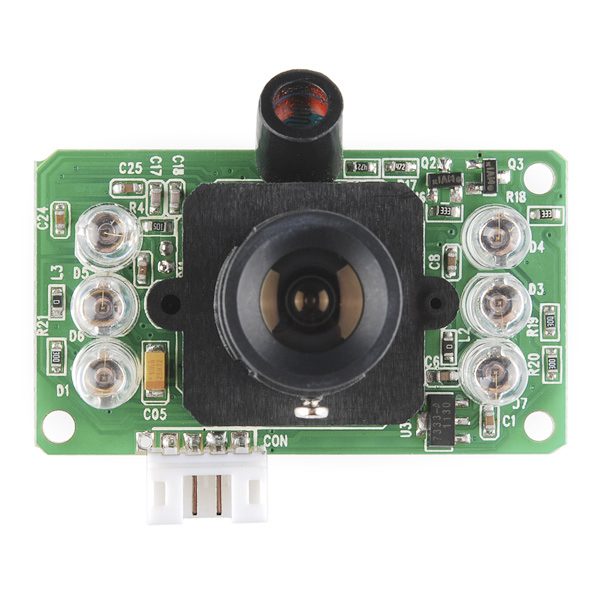

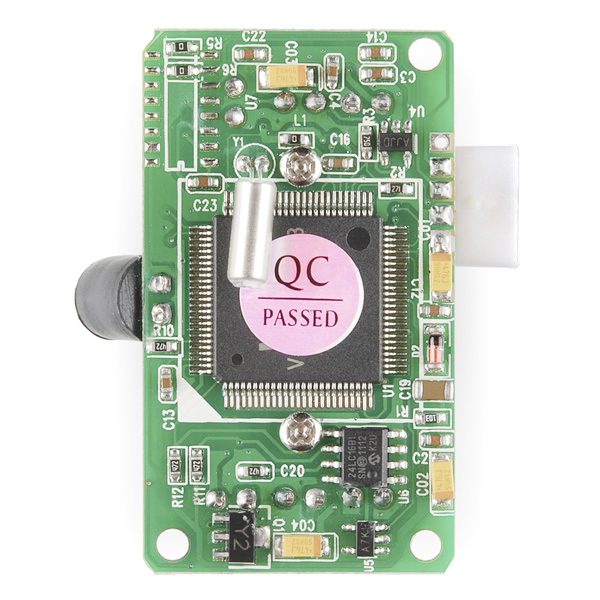

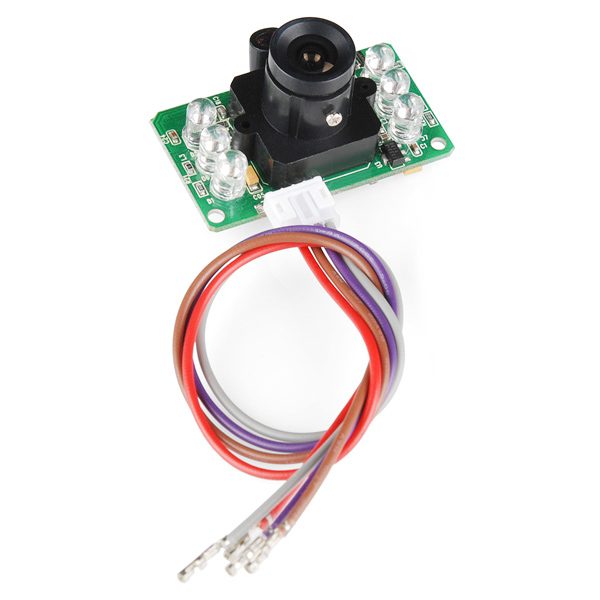

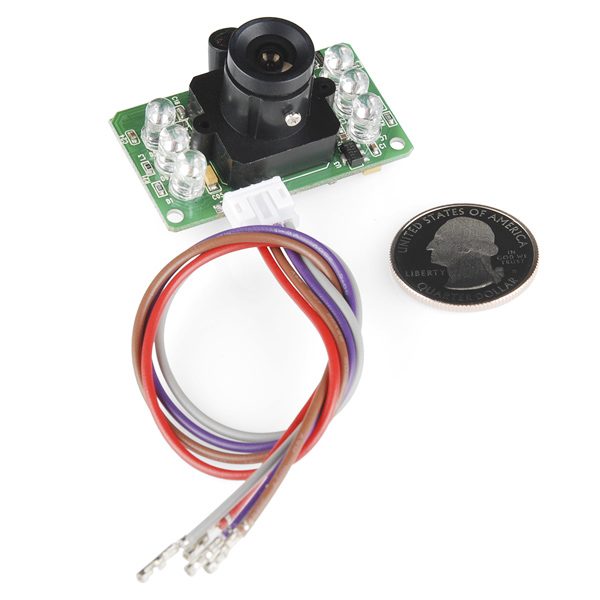

LinkSprite JPEG Color Camera 紅外線彩色攝像機模組 TTL接口

美國 SparkFun 原裝進口

紅外熱像儀都是可以的！LinkSprite的最新串行端口攝像頭模塊可以捕獲高分辨率圖片並通過TTL串行傳輸，因此非常適合嵌入式應用。它可以在黑暗中完成，這要歸功於紅外LED。紅外功能甚至有一個內置的光傳感器，所以一旦環境光線足夠低，它會自動打開紅外LED的夜視！

• VGA / QVGA / 160 * 120 分辨率
• 支持從串口捕獲JPEG
• 串口默認波特率是38400
• DC 3.3V或5V電源
• 電流消耗：80-100mA
• C03附近的引腳是AV輸出引腳，是模擬輸出引腳
• 45.6x30x28mm

原廠技術文件與範例

• 使用手冊與說明
• Imaging Specs
• Arduino 範例程式代碼

LinkSprite JPEG Color Camera TTL Interface – Infrared

Are you a super spy trying to spot ninja assassins in the dark? Or maybe you’re just trying to figure out who’s been sneaking to the kitchen at night and eating your snacks… Either way, an infrared camera is the way to go! LinkSprite’s latest serial port camera module can capture high resolution pictures and transport them over TTL serial, making it ideal for embedded applications. And it can do it in the dark, thanks to infrared LEDs. The infrared feature even has a built-in light sensor, so as soon as the ambient light gets low enough, it will automatically turn on the infrared LEDs for night vision!

規格與特色

• VGA/QVGA/160*120 resolution
• Support capture JPEG from serial port
• Default baud rate of serial port is 38400
• DC 3.3V or 5V power supply
• Current consumption: 80-100mA
• The pin near C03 is AV output pin, which is an analog output pin
• 45.6x30x28mm

原廠技術文件與範例

• User Manual
• Imaging Specs
• Arduino Code
