LM2596 4路多路輸出開關電源模組 輸入 5-40V 四路輸出 3.3V 5V 12V ADJ

描述

LM2596 4路多路輸出開關電源模組 輸入 5-40V 四路輸出 3.3V 5V 12V ADJ

LM2596 4路多路輸出開關電源模組 為多功能多路電源模組, 輸入 DC-DC 5-40V 至 3.3V 5V 12V ADJ 可調降壓穩壓器 LM2596 4路多路輸出開關電源模塊板，5A降壓轉換器變壓器穩定器。

特色

• 4路多路輸出：DWZ降壓轉換器具有4個不同的電壓輸出端子（3.3V，5V，12V，ADJ），該轉換器可以承受較寬的輸入範圍（DC 5-40V），可以滿足不同的應用。
• LM2596優良芯片：該穩壓器配備有4個高質量和高性能的LM2596芯片，可以提供穩定而準確的輸出。
• 過電流保護：該降壓轉換器具有過電流保險絲，可有效保護模塊免受過電流損壞。
• 溫馨提示：該穩壓電源模塊的ADJ輸出應比輸入電壓低2V。最高 單路輸出電流為3A，最大 所有方式的輸出電流應小於5A。

DC-DC 5-40V to 3.3V 5V 12V ADJ Adjustable Step Down Voltage Regulator, LM2596 4-Way Multiple Output Switching Power Supply Module Board, 5A Buck Volt Converter Transformer Stabilizer

• 4-WAY MULTIPLE OUTPUT: DWZstep down voltage converter owns 4 various volt output terminals (3.3V, 5V, 12V, ADJ) and this converter can tolerate wide input range(DC 5-40V), which can fulfill different application.
• LM2596 GOOD-PERFORMANCE CHIP: This voltage stabilizer is equipped with 4 high quality and good performance LM2596 chips, which can provide stable and accurate output.
• OVER-CURRENT PROTECTION: This buck converter has a over-current production fuse, effectively protect the module from damaging by over-current.
• WARM TIPS: The ADJ output of this regulated power supply module should be 2V lower than the input voltage. The max. output current of a single way is 3A and the max. output current of all ways should be less than 5A.

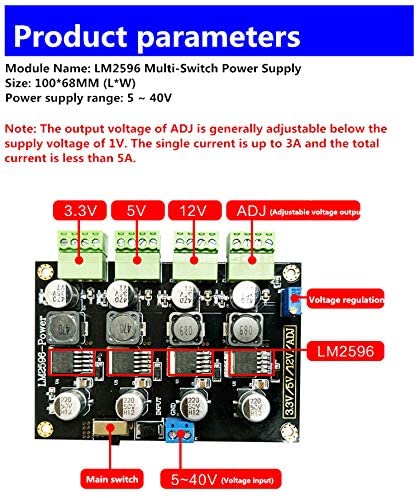

Module Type: DC DC Step Down Converter
Size: 39.4in x26.8in (100mm x 68mm), L x W
Input Voltage Range: 5.0V-40.0V DC
Output Voltage: 4-way output,3.3V,5V,12V and ADJ Adjustable Voltage
ADJ Adjustable Voltage Range: buck mode 2V drop
1-way Maximum Output Current: 3A
Multiple Maximum Output Current: 5A，can be multiplexed output at the same time
Over-current Protection: Yes, an anti-over-current fuse

Package Includes:
1x Multi-output Converter Board
