Maixduino AI Development Board (GC0328) K210 RISC-V AI+lOT ESP32 人工智慧開發板

0 out of 5
( 目前沒有評價。 )

原始價格：NT$1,200。目前價格：NT$1,085。 (未稅)

狀態: 已售完 貨號: AIB-008299 分類: 標籤: , , , , , ,

描述

Maixduino AI Development Board K210 RISC-V AI+lOT ESP32 人工智慧開發板 含 GC0328 攝影鏡頭模組

Maixduino AI Development Board 是一款基於Kendryte K210 RISC-V AI處理器、基於Arduino UNO形式並且板載ESP32 Wi-Fi 和藍牙模塊以及M1 AI模塊的AI開發板。

K210芯片帶有獨立FPU的雙核處理器，64位的CPU位寬，8M片內SRAM，400M可調標稱頻率，支持乘法、除法和平方根運算的雙精度FPU。還具有神經網絡處理器(KPU)、音頻處理器(APU)、現場可編程IO陣列(FPIOA/IOMUX)以及快速傅里葉變換加速器。使其在AI處理方面大大提高，可進行卷積、批歸一化、激活、池化等運算，同時也可以進行語音方向掃描和語音數據輸出的前置處理工作。將其高性能的核心處理特性展露無遺。

本產品板載的無線模塊為搭載雙核ESP32 Xtensa LX6處理器的ESP32-WROOM-32，支持2.4GHz 802.11.b/g/n WiFi 4, 和Bluetooth 4.2 LE 連接；除此之外，該產品還有DVP攝像頭接口、LCD顯示接口、集成MEMS麥克風，TM8211 I2S音頻DAC，3W功放，板載CH522芯片同時支持K210和ESP32，通過USB 2.0 Type-C就能供電以及下載程序，而且接口與Arduino UNO兼容，包括數字IO口，PWM,I2C,UART,6個模擬輸入引腳。

典型應用場景：智能家居（智能掃地機器人或者智能音箱），醫療設備，工業4.0（智能監控電氣設備），也可以應用於農業和教育。

該套餐包含Maixduino開發板和GC0328攝像頭。

注意： Arduino UNO R3外形和引腳兼容，但是電平不兼容， Arduino採用5V，Maixduino引腳都是3.3V或者1.8V,所有引腳均不支持5V耐受。

功能特性

  • CPU：RISC-V 雙核64bit、內置FPU、400Mhz標準頻率（可超頻）
  • 內置神經網絡處理器
  • OV2640攝像頭：200W像素通用24P攝像頭
  • 連接器：兼容Arduino 接口、TF卡槽、揚聲器接口
  • 無線功能：支持2.4G 802.11.b/g/n、支持Bluetooth 4.2
  • 音頻功能：MEMS 麥克風、3W揚聲器輸出
  • 8 Bit(256 級) 可調顏色,5Bit (32 級)亮度調節
  • DVP 攝像頭接口：24P 0.5mm FPC 連接器，支持OV2640、5640、7740等
  • LCD接口：24P 0.5mm FPC 連接器，支持8bit MCU LCD
  • ESP32模塊：支持2.4G 802.11.b/g/n

                         802.11 n(2.4G)速率達到150Mbps

                         Bluetooth v4.2全規格，包含傳統藍牙(BR/EDR)和低功耗藍牙（BLE）

  • 開發環境：支持Mind+、Arduino IDE、MaixPy IDE、OpenMV IDE等

技術規格

  • 尺寸：68mm 54mm
  • 電源輸入：USB Type-C（支持6~12V輸入）
  • 溫升：<20K
  • 工作溫度範圍：-30~85ºC
  • MCU：ESP8285
  • 無線標準：802.11 b/g/n
  • 頻率範圍：2400Mhz~2483.5Mhz
  • 發射功率：802.11.b:+15dBm

802.11.g:+10dBm(54Mbps)

802.11.n:+10dBm(65Mbps)

  • 無線連接器：IPEX 3.03.0mm
  • Wi-Fi模式：Station/SoftAP/SoftAP+Station



配送清單

  • Maixduino AI Development Board  x1
  • GC0328          x1

相關文檔

Maixduino AI Development Board（GC0328）K210 RISC-V AI+lOT ESP32

Based on Kendryte K210 RISC-V AI processor, the Maixduino AI development board comes with MI AI module and ESP32 module for WiFi and Bluetooth connectivity in Arduino UNO form factor.

K210 comes with dual-core processor chip with independent FPU, 64 bits CPU bit width, 8 MB on-chip SRAM, 400 adjustable nominal frequency, and double-precision FPU supporting multiplication, division, and square root operation. Besides, Maixduino AI Development Board is equipped with neural network hardware accelerator KPU, voice processing unit (APU), programmable IO array (FPIOA/IOMUX), and Fast Fourier Transform Accelerator. In the AI processing, K210 can perform operations such as convolution, batch normalization, activation, and pooling. At the same time, the pre-processing of voice direction scanning and voice data output can also be performed.

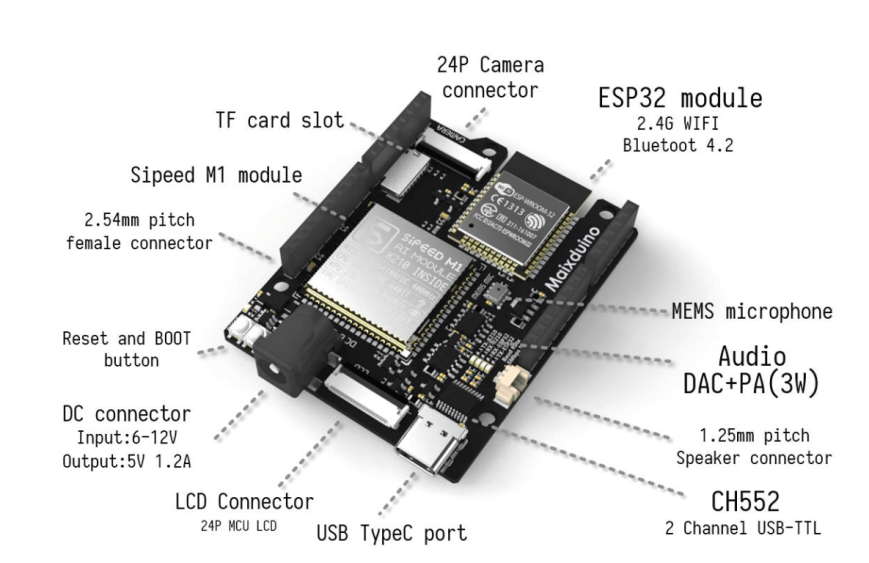

The on-board wireless module of the product is the ESP32-WROOM-32 with dual-core ESP32 Xtensa LX6 processor, supporting 2.4GHz 802.11.b/g/n WiFi 4 and Bluetooth 4.2 LE connectivity. Besides, it has DVP camera connector, LCD display connector, built-in MEMS microphone, TM8211 I2S audio DAC, 3W power amplifier, USB 2.0 Device type C port for powering and programming via dual-channel CH522 chip to support for both K210 and ESP32, Arduino UNO compatible headers with digital I/Os / PWM, I2C, UART, and 6 analog inputs.

Application: smart home(Robotic vacuum cleaner and Smart speaker), medical device, industry 4.0, agriculture, and education.

Maixduino AI Development Board (OV2640)

Maixduino Development Board and GC0328 Camera are included in the package.

Note: The shape and pins are compatible with Arduino UNO R3 but the voltage level is not compatible, which requires great attention, otherwise the board can be damaged. Maixduino supports 3.3V and 1.8V levels, and the pins are divided into several BANKs, each BANK can be set to a voltage of 1.8V or 3.3V by software, However, these pins are not 5V tolerated. Therefore, when using the peripheral device of Arduino, be careful not to short the 5V to the pin or RST (1.8V) pin.

FEATURES



  • CPU: RISC-V Dual Core 64bit, built-in FPU, 400MHz standard frequency (overclockable)
  • Built-in neural network processor

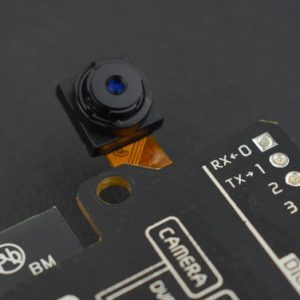

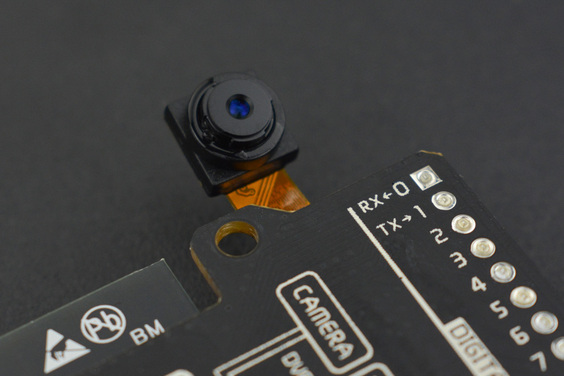

  • GC0328 Camera: 200W pixel 24P camera
  • Connector: compatible with Arduino interface, TF card slot, speaker port
  • Wireless: support 2.4G 802.11.b/g/n and Bluetooth 4.2
  • Audio: MEMS microphone, 3W speaker output
  • 8 Bit (256 levels) adjustable color, 5Bit (32 levels) brightness adjustment
  • DVP Camera Interface: 24P 0.5mm FPC connector, support 0V2640, 5640, 0V7740, etc.
  • LCD Interface: 24P 0.5mm FPC connector; support 8bit MCU LCD
  • ESP32 Module: support 2.4G 802.11.b/g/n

802.11 n (2.4 GHz) speed reaches 150 Mbps

Bluetooth v4.2 full specification, including traditional Bluetooth (BR / EDR) and Bluetooth Low Energy (BLE)

  • Development Environment: support for Arduino IED, MaixPy IDE, OpenMV IDE

SPECIFICATION

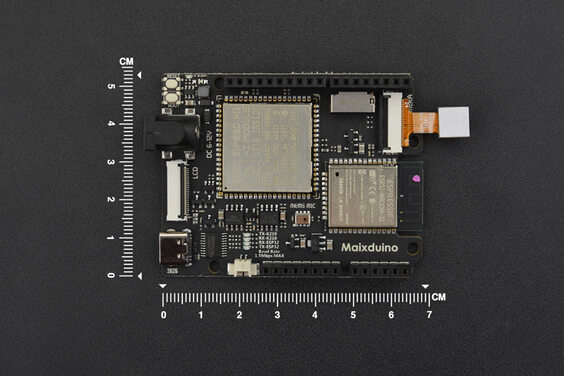

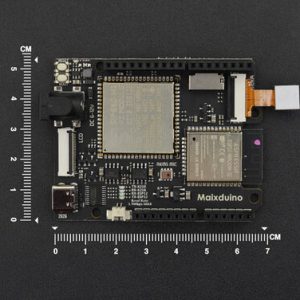

  • Dimension: 68x54mm/2.68 x2.13”
  • Power Input: USB Type-C (6~12V)
  • Temperature Rise: <20K
  • Operating Temperature: -30~85ºC
  • MCU: ESP8285
  • Wireless Standard: 802.11 b/g/n
  • Frequency Range: 2400Mhz~2483.5Mhz
  • Transmit Power: 802.11.b:+15dBm

802.11.g:+10dBm(54Mbps)

802.11.n:+10dBm(65Mbps)

  • Wireless Connector: IPEX 3.03.0mm
  • WiFi Mode: Station/SoftAP/SoftAP+Station

DOCUMENTS

SHIPPING LIST

  • Maixduino AI Development Board x1
  • GC0328 1
