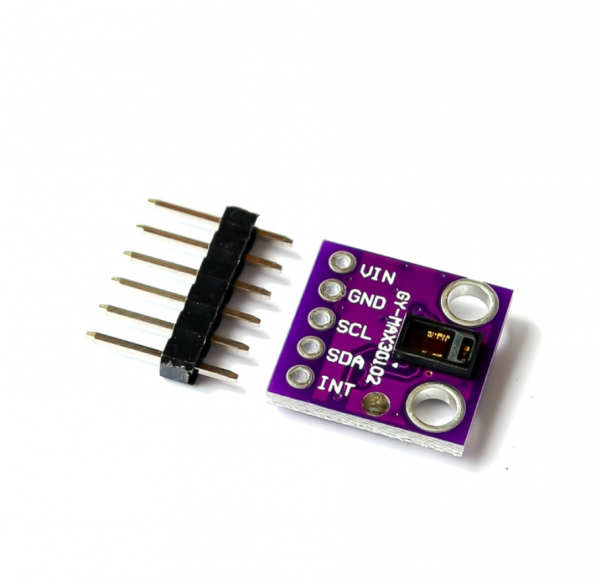

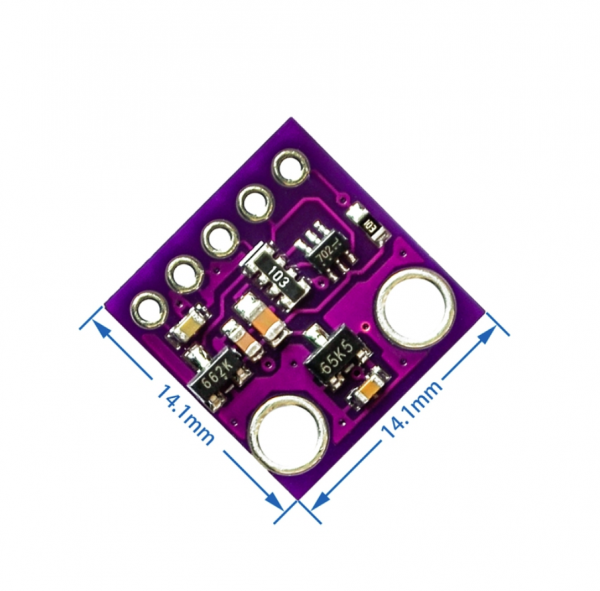

MAX30102 心率脈搏血氧濃度感測器模組
MAX30102 心率脈搏血氧濃度感測器模組 適用於健身和醫療保健的高靈敏度脈搏血氧儀和心率生物感測器。MAX30102是集成式脈搏血氧儀,心率監測器模塊。它包括內部LED,光電探測器,光學元件和低噪聲電子設備具有環境光抑制能力。 MAX30102提供完整的系統解決方案,可簡化設計過程適用於移動和可穿戴設備。使用 I2C 的標准進行通信接口。可以通過軟件關閉模塊零待機電流,使電源軌能夠始終保持供電。
MAX30102
其工作原理基於血紅蛋白在血液中的吸收特性。氧合血紅蛋白比紅光吸收更多的紅外光,而脫氧血紅蛋白比紅外光吸收更多的紅光。因此,
血氧儀中的紅色和紅外LED交替發光,並且光電二極管接收未被吸收的光信號。接收到的紅色和紅外光的比率光電二極管用於計算血液中的氧氣百分比。基於動脈血流的脈動性質,在測量期間還確定並顯示脈搏率和強度。
優點和特點
- 內置心率監測器和脈搏血氧儀傳感器LED反光解決方案
- 微型5.6mm x 3.3mm x 1.55mm 14針光學模塊
- 集成式玻璃罩,確保最佳,堅固性能
- 移動設備的超低功耗操作
- 可編程的採樣率和LED電流省電
- 低功率心率監測器(<1mW)
- 超低關斷電流(典型值0.7µA)
- 快速的數據輸出能力
- 高採樣率以及強大的運動偽影彈性
- 高信噪比
- -40°C至+ 85°C的工作溫度範圍
Maxim Integrated MAX30102 Pulse Oximeter & Heart-Rate Sensor
Maxim Integrated MAX30102 Sensor is an integrated pulse oximetry and heart-rate monitor module. The MAX30102 includes internal LEDs, photodetectors, optical elements, and low-noise electronics with ambient light rejection. This highly sensitive device operates on a single 1.8V power supply and a separate 5.0V power supply for the internal LEDs. Communication is through a standard I2C-compatible interface. This sensor can be shut down through software with zero standby current, allowing the power rails to remain powered at all times.
FEATURES
- Heart-rate monitor and pulse oximeter sensor in an LED reflective solution
- Tiny 5.6mm x 3.3mm x 1.55mm 14-pin optical module
- Integrated cover glass for optimal, robust performance
- Ultra-low power operation for mobile devices
- Programmable sample rate and LED current for power saving
- Low-power heart rate monitor (<1mW)
- Ultra-low shutdown current (0.7µA Typ.)
- Fast data output capability
- High sample rates
- Robust motion artifact resilience
- High SNR
- -40°C to +85°C operating temperature range
