MCP23017 ARDUINO I2C介面16路IO擴展模組 IIC 輸入輸出擴展板

描述

MCP23017/SS ARDUINO I2C介面16路IO擴展模組 IIC 輸入輸出擴展板

MCP23017/SS ARDUINO I2C介面16路IO擴展模組 是12C接口的16路IO擴展模組，內置在MicroChip的MCP23017 晶片中。晶片功能齊全。可以將每個IO任意配置為輸入或輸出，可以設置上拉電阻，並且可以為配置為輸入的IO啟用中斷功能。IO接口具有很強的驅動能力，電流和電流可以達到25mA。
MCP23017 ARDUINO I2C介面16路IO擴展模組  是高速IIC接口。它支持100KHz，400KHz和1.7MHz的IIC頻率。該芯片具有3個地址引腳，可以設置8個不同的地址。因此，可以通過兩個IIC總線連接8個模塊，以實現多達128個IO擴展，該模組配置靈活，驅動能力強。有許多並行連接。引腳說明：

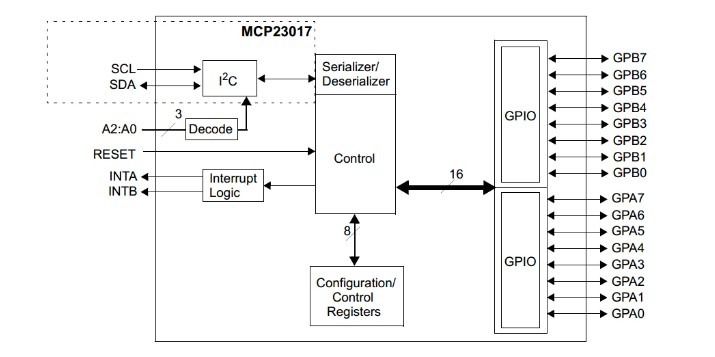

MCP23017能夠將16位並行數據轉換為IIC接口的串行數據並可相互轉化。
內部集成上電複位(POR) 電路，復位到器件的默認狀態。兩個對立的可編程
中斷源輸出。極性翻轉寄存器可配置GPIO輸入極性。

工作溫度範圍: -40°C~85 °C
工作電壓1.8V~5.5V
IIC通信頻率:最大1.7MHz
工作電流: 1uA

ICC從機器件地址

IIC Input Output Expansion Board MCP23017 I2C Interface 16Bit 16-Channel I/O Expansion Module Pin Board Converter

Description:
This module is the 16 way IO extension module of the 12C interface, and built in the MCP23017 chip of MicroChip. The function of the chip is complete. Each IO can be arbitrarily configured as input or output, and a pull up resistor can be set, and the interrupt function can be enabled for the IO configured as input. The IO interface has a strong driving capacity, and the current and current can reach 25mA.
MCP23017 is a high-speed IIC interface. It supports the IIC frequency of 100KHz, 400KHz and 1.7MHz. The chip has 3 address pins, which can be set up for 8 different addresses. So 8 modules can be connected through two IIC buses to achieve up to 128 IO extensions.
This module is flexible in configuration and strong in driving ability. There are many parallel connections.

Parameters:

No.	Parameter	Value
1	Operating voltage	3.0V-5.5V
2	Drive chip	MCP23017
3	Number of IO	16 (input, output, interruption)
4	Drive power supply	25mA1
5	12C frequency	100KHz, 400KHz, 1.7MHz
6	working temperature	-40 Celsius -125  Celsius
7	Chip level	Industrial grade
8	Parallel multiple	Up to 8
9	Driver	51 and Arduino
10	Module size	65mm*19mm

Pin Description:

No.	Pin	Function	Function
1	VCC	Power source input	3.0V-5.5V
2	GND	Power negative electrode	0V
3	SCL	12C clock line	SCL connecting single chip IO pin or MCU 12C interface
4	SDA	12C data line	SDA connecting single chip IO pin or MCU 12C interface
5	RST	Chip reduction	Low level effective, connecting MCU IO pin or unconnected
6	ITA	GPIOA port interrupt output	Connect MCU IO pin, without connection when interruption
7	ITB	GPIOB port interrupt output	Connect MCU IO pin, without connection when interruption

Packing List:

No.	Component	Quantity	Unit
1	STC15W408AS MSP	1	Piece
2	Double row straight pin	2*7	Pin
3	Double row Bending pin	2*7	Pin
4	Single row straight pin	1*20	Pin
5	Single row Bending pin	1*20	Pin
