MicroBit 專用 Grove 介面擴展板 V2版本 Grove Shield for micro:bit v2.0
NT$420 原始價格:NT$420。NT$375目前價格:NT$375。 (未稅)
- 描述
- 評價 (0)
描述
描述

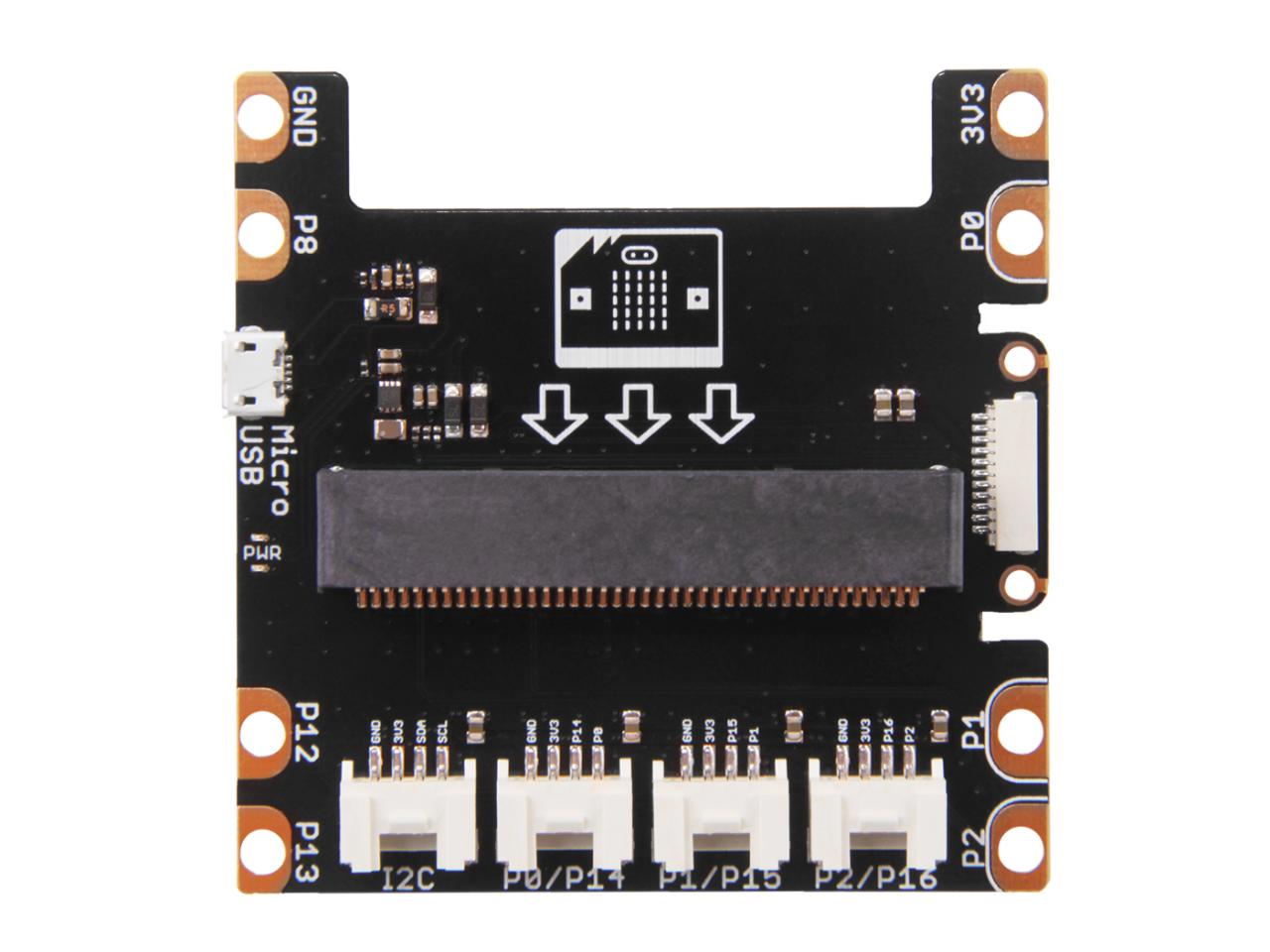

MicroBit 專用 Grove 介面擴展板 v2 版本 Grove Shield for micro:bit v2.0
Micro:bit 是一款口袋大小的微控制器,專為兒童和初學者學習如何編程,讓他們輕鬆將想法帶入 DIY 數字遊戲,互動項目和機器人技術。用於 Micro:bit 的 Grove 擴展板 是用於 Micro:bit 的即插即用樹叢擴展板, MicroBit 專用 Grove 介面擴展板 作為 Micro:bit 和我們的 grove t系統的橋樑,提供數百種不同的 Grove 模組,包括傳感器,執行器,通信,展示等將擴大 MicroBit 能夠輕鬆快速地創建更多項目的能力。
MicroBit 專用 Grove 介面擴展板 ,用於 Micro:bit 的樹叢屏蔽集成了4個樹狀連接器,如果用戶需要更多樹狀連接器,則可以預留額外的4個插針。除此之外,我們還預留了一些具有特殊功能的引腳,如P0,P1,P2,具有觸控功能,因此您可以像水果鋼琴一樣構建項目。或者你可以簡單地使用鱷魚夾來連接引腳,就像你可以在 micro:bit 上做的那樣。第三,使用板載micro USB接口,您可以從grove shield中為 Micro:bit 供電。
MicroBit 專用 Grove 介面擴展板 是2.0的更新版本。根據用戶的反饋,我們對電路板進行了機械調整,使其更穩定,更穩定
漂亮。 具體變化如下:
1-更換Micro:bit 連接器。在新版本中,隱藏了連接器的引腳。
2-將電氣組件從電路板背面移到前面。這樣我們就可以避免由於與工作台的摩擦而損壞電路板上的元件。
MicroBit 專用 Grove 介面擴展板 特徵
- 4個Grove 端口可覆蓋不同的接口
- 用於鱷魚夾和 4mm 香蕉插頭的邊緣連接器
- 板載USB端口可為 Micro:bit 供電
技術細節
外形尺寸 | 0mm x 0mm x 0mm |
重量 | GW 27.50g |
電池 | 不含 |
直流接口 | Micro USB x1 |
格羅夫接口 | P0 / P14,P1 / P15,P2 / P16,I2C |
Grove ZERO界面 | Grove ZERO x1 |
邏輯接口 | 3V3 / P0 / P1 / P2 / P8 / P12 / P13 / GND |
零件清單
Grove Shield for Micro:bit v2.0 | 1 |
ECCN / HTS
ECCN | EAR99 |
HSCODE | 8543909000 |
文件
- 認識 Micro:bit
- Grove Shield 為 BBC Micro:bit_eagle file.zip
- Grove Inventor Kit for Micro:bit 用戶手冊
- 適用 Micro:bit v2.xlsx的Grove 模組
Grove Shield for micro:bit v2.0
micro:bit is a pocket-sized microcontroller designed for kids and beginners learning how to program, letting them easily bring ideas into DIY digital games, interactive projects and robotics. The Grove shield for micro:bit is a plug-and-play grove extension board for micro:bit, the shield acts as a bridge for micro:bit and our grove system, which provides hundreds of different grove modules including sensor, actuator, communication, display etc. that will broaden micro:bit’s ability in creating more projects easily and quickly.
As an extension board, the grove shield for micro:bit integrated 4 grove connectors on board and reserves extra 4 pin outs if users need more grove connector. Apart from that, we have also reserved some pinout that has special functions such as P0, P1, P2 that have touch function, so that you can build project like fruit piano. Or you can simple use crocodile clip to connect the pinout, just like what you can do on micro:bit. Thirdly, with the on-board micro USB interface, you can power micro:bit from the grove shield.
The Grove Shield for micro:bit v2.0 is the update version of Grove Shield for micro:bit . According to the feedback from our users, we made mechanical adjustments to the board, making it work more stable and more
pretty. The specific changes are as follows:
1- Change the micro:bit connector. In the new version, pins of the connector are hidden.
2- Move the electrical components from the back of the board to the front. So that we can avoid damage to components on the board due to friction with the table.
If you don’t know how to get started with this shield, have no idea which grove modules to use, don’t worry, we have already prepared a Grove Inventor Kit for micro:bit which contains this grove shield and other 8 groves that can let you getting getting started.
Features
- 4 Grove ports to cover different interfaces
- Edge connectors for crocodile clip and 4mm banana plugs
- On-board USB port to power up your micro:bit
Technical Details
Dimensions | 0mm x 0mm x 0mm |
Weight | G.W 27.50g |
Battery | Exclude |
DC Interfaces | Micro USB x1 |
Grove Interface | P0/P14,P1/P15,P2/P16,I2C |
Grove ZERO Interface | Grove ZERO x1 |
Logic Interface | 3V3/P0/P1/P2/P8/P12/P13/GND |
Part List
Grove Shield for micro:bit v2.0 | 1 |
ECCN/HTS
ECCN | EAR99 |
HSCODE | 8543909000 |
