Micro:bit Boson 擴展板 MicroBit 專用 IO 腳位擴展板 DFRobot 原裝代理進口

描述

Micro:bit Boson 擴展板 MicroBit 專用 IO 腳位擴展板 DFRobot 原裝代理進口

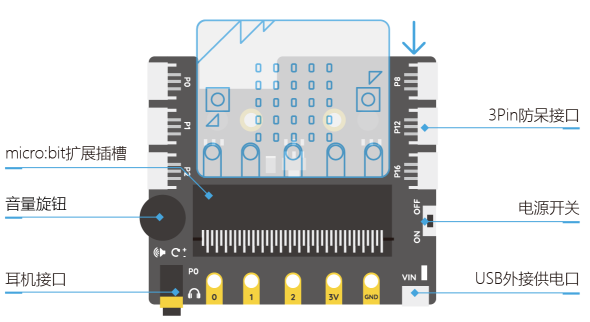

Micro:bit Boson 擴展板 能輕鬆將micro:bit 額外的引腳引出，即插即用，簡單快捷。擴展板使用金手指插槽連接micro:bit。配合3Pin防呆接口以及附贈的連接線，最多能夠連接6個外擴元件。此外，擴展板還附帶了3.5mm耳機接口和音量旋鈕，方便耳機直插。外接的USB供電口能為外部元件提供額外的供電，更好地支持燈帶，舵機等大電流設備。 Micro:bit Boson 擴展板 最大額定電流為500mA，請在使用前確定元件的最大功率。請勿將擴展板與大型舵機一起使用，可能引起板載元件損壞！

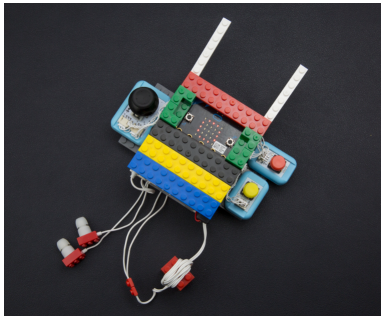

Micro:bit Boson 擴展板 兼容 DFRobot Boson 造物粒子套件，能幫助孩子與樂高積木結合快速搭建電子項目。

Micro:bit Boson 擴展板 兼容上百款 Gravity 系列電子元件，滿足進階用戶需求，甚至原型搭建需求。

技術規格

• 工作電壓：3.3V
• 工作電流：500mA
• 供電電壓：
• MicroUSB供電口：5V
• PH2.0電源接口：3-3.3V
• 鱷魚夾接口：3-3.3V
• 檢測範圍：0-3.3V
• 工作溫度：0-85 ℃
• 產品尺寸：80×70 mm
• 重量：48g

兼容產品清單

• 人體紅外熱釋電運動傳感器(SEN0171)
• 數字觸摸開關(DFR0030)
• 模擬角度傳感器(DFR0054)
• 模擬灰度傳感器(DFR0022)
• 模擬聲音傳感器(DFR0034)
• 模擬搖桿(DFR0061)
• 模擬滑動變阻器(DFR0053)
• 模擬量交流電流傳感器(SEN0211)
• 心率傳感器(SEN0203)
• 帶功放喇叭模塊（FIT0449）
• 等其他3.3v傳感器

micro:bit Expansion Board for Boson (Gravity Compatible)

The expansion board comes with 6 fool-proof 3-Pin sockets, compatible with hundreds of DFRobot’s Boson and Gravity modularized electronic blocks, covering most popular digital and analog sensors and actuators, supporting sound, light and motion interaction.

Moreover, the on-board 3.5MM headphone jack and volume knob supports direct connection of headphone.
To ensure a steady current supply for these peripherals, the expansion board can be powered externally through the USB power port.

FEATURES

• 3-Pin fool-proof connector x 6
• Headphone jack with volume knob
• External power port and ON/OFF switch
• DFRobot Gravity and Boson electronic module compatible

SPECIFICATION

• MicroUSB Power Port Voltage：5V
• PH2.0 Input/output Voltage: 3.3V
• Input/output ring Voltage: 3.3V
• Maximum Current: 500mA
• Working temperature: 0-85 ℃
• Dimension 80 * 70 mm / 3.15 * 2.76
• Weight: 48g

DOCUMENTS

micro:bit Educational Foundation
micro:bit online Block edicter

SHIPPING LIST

• micro:bit Expansion Board for Boson x 1
• 200mm fool-proof PH2.0 cable x 6

FEATURES

• 3-Pin fool-proof connector x 6
• Headphone jack with volume knob
• External power port and ON/OFF switch
• DFRobot Gravity and Boson electronic module compatible

SPECIFICATION

• MicroUSB Power Port Voltage：5V
• PH2.0 Input/output Voltage: 3.3V
• Input/output ring Voltage: 3.3V
• Maximum Current: 500mA
• Working temperature: 0-85 ℃
• Dimension 80 * 70 mm / 3.15 * 2.76
• Weight: 48g

DOCUMENTS

micro:bit Educational Foundation
micro:bit online Block edicter

SHIPPING LIST

• micro:bit Expansion Board for Boson x 1
• 200mm fool-proof PH2.0 cable x 6
