PDSink PD誘騙模USB 模組​​ TypeC 電源變更模組 5V-20V 可調測試板電子

描述

PDSink PD誘騙模USB 模組​​ TypeC 電源變更模組 5V-20V 可調測試板電子  PD3.0/PD2.0/BC.12等快充協議

PD誘餌支援PD3.0/2.0、BC1.2等升壓快充協議，支援最高100W功率並提供過溫、過壓保護等功能。電壓可透過選擇開關調節，最大輸出電壓為20V。

規格

• 支援PD3.0/2.0、BC1.2等快充協議
• 支援USBType-CPD
• 支援正反插偵測並自動切換
• 支援4V至22V輸入電壓
• 功率高達100W

PDSink PD Decoy PD Decoy Board Fast USB Modules TypeC Power Supply Change Modules 5V-20V Adjustable Pd Decoy Modules

PDSink PD Decoy PD Decoy Board Fast USB Modules TypeC Power Supply Change Modules 5V-20V Adjustable pd decoy modules

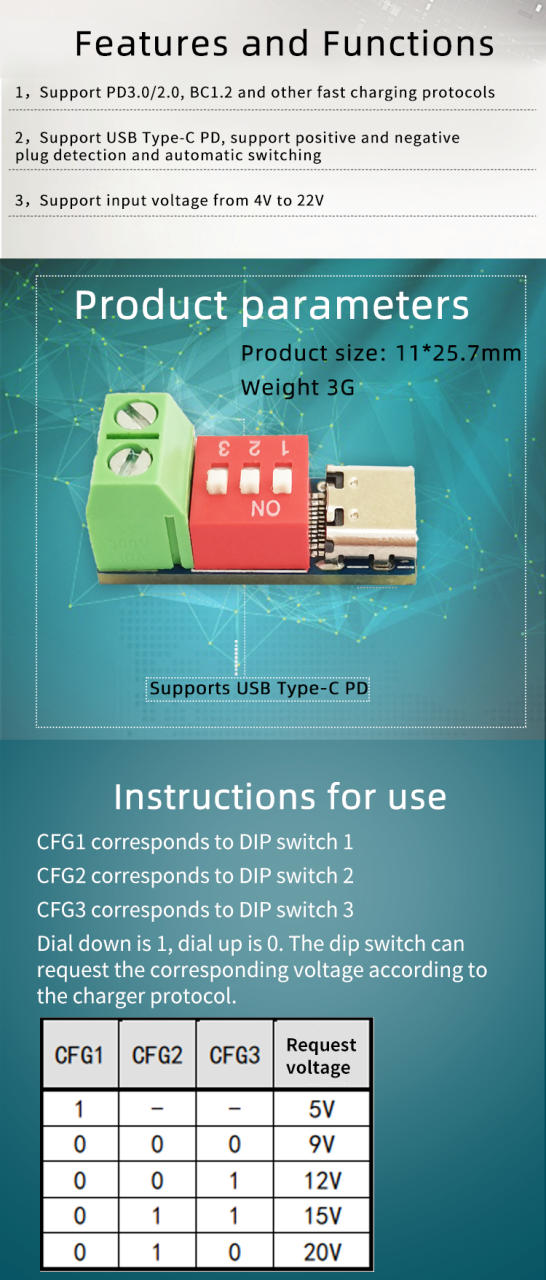

Features:
Brand new and
Support USB TypeC PD, forward and reverse insertion detection and automatic switching
Support 4V to 22V input voltages.
PD decoy supports PD3.0/2.0, BC1.2 and other and fast charging protocols, supports up to 100W power.
Provides over-temperature and over-voltage protection and other functions.

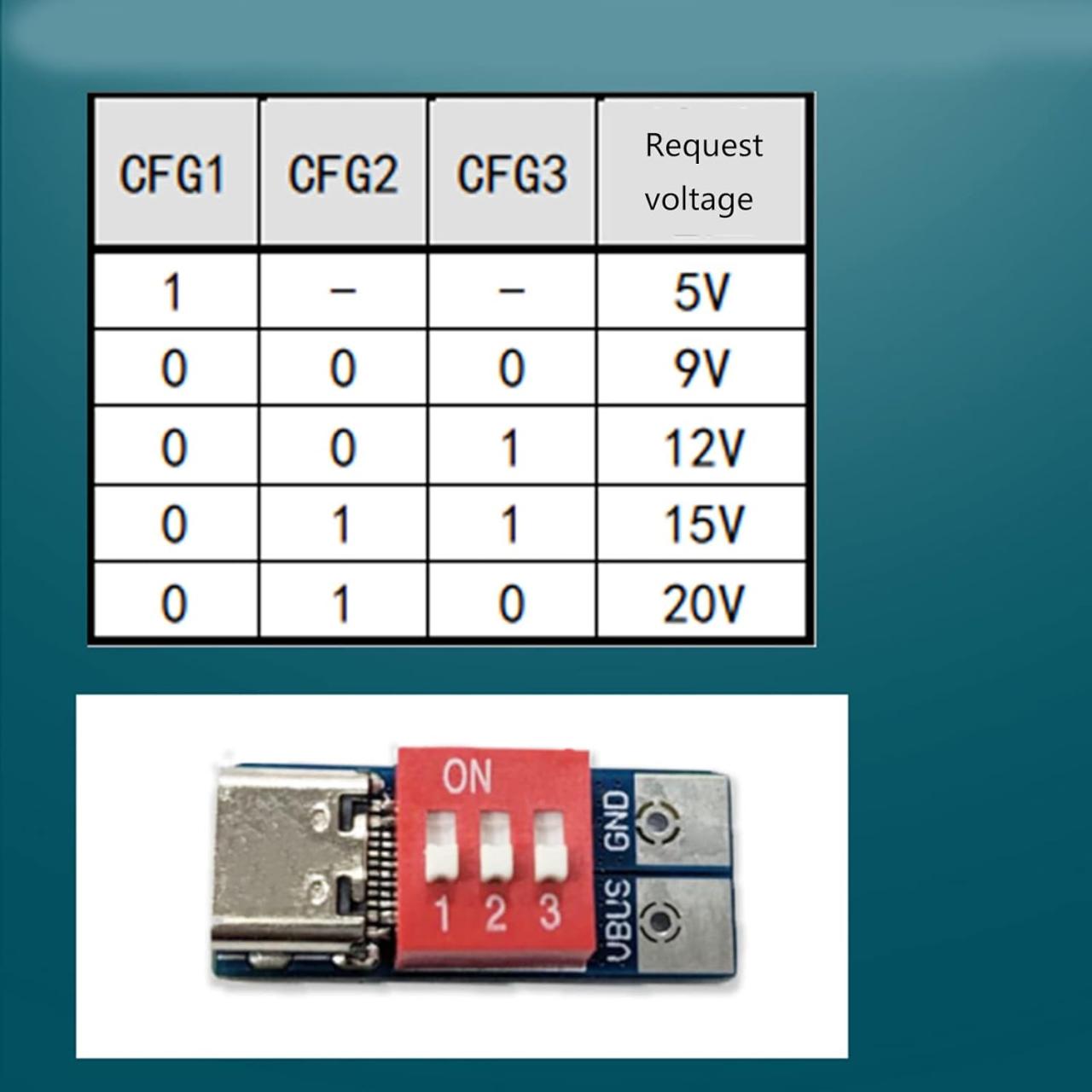

The voltages can be adjusted by dial-code switches, and the output voltages is 20V.

Specifications:
Material:ABS
Size: Approx.11×25.7mm/0.43x1inches
