Pixy 2 CMUcam5 影像辨識模組 Arduino 影像辨識系統 Smart Vision Sensor

• 快速入門指南
• Pixy2最新軟件/固件發布下載
• 將Pixy2連接到Arduino
• 將Pixy2連接到Raspberry Pi
• 教Pixy2一個對象
• 很多不同的應用程序
• 項目
• 引腳信息。
• 什麼是“顏色代碼”
• 彩色連接組件API
• 線跟踪API
• 在哪裡獲得幫助
• Pixy2指數

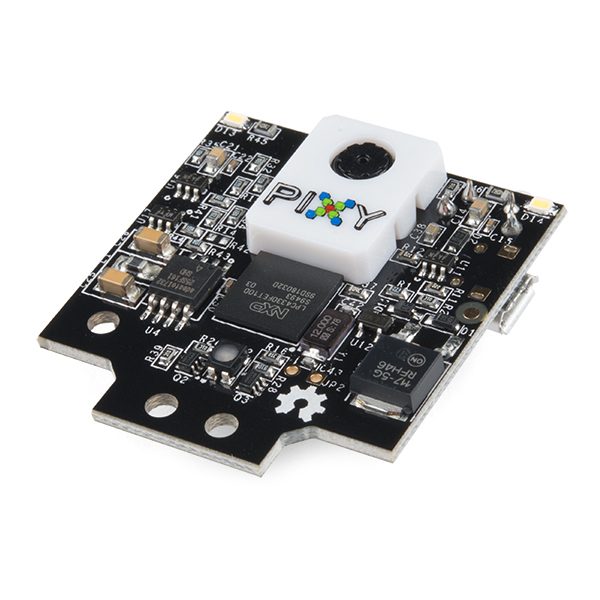

Pixy 2 CMUcam5 Smart Vision Sensor

Pixy2 is the second version of Pixy. It’s faster, smaller and more capable than the original Pixy, adding line tracking/following algorithms as well as other features.

Here’s what we’ve added to Pixy2:

• Pixy2 detects lines, intersections and small barcodes, intended for line-following robots
• Improved framerate – 60 frames-per-second
• Tracking algorithms have been added to color-based object detection
• Improved and simplified libraries for Arduino, Raspberry Pi and other controllers

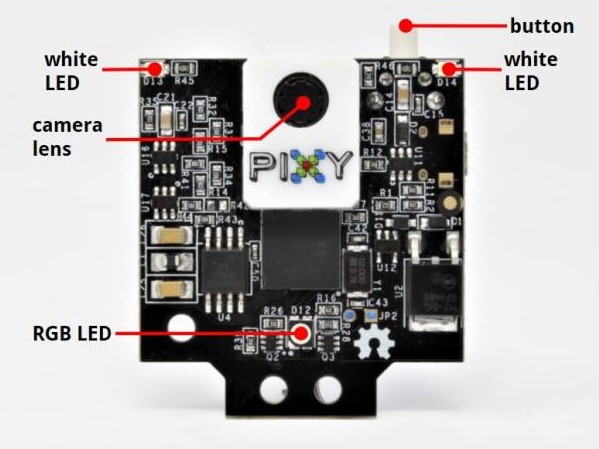

• Integrated light source

And of course, Pixy2 does everything that the original Pixy can do:

• Small, fast, easy-to-use, low-cost, readily-available vision system
• Learns to detect objects that you teach it
• Connects to Arduino with included cable. Also works with Raspberry Pi, BeagleBone and similar controllers
• All libraries for Arduino, Raspberry Pi, etc. are provided
• C/C++ and Python are supported

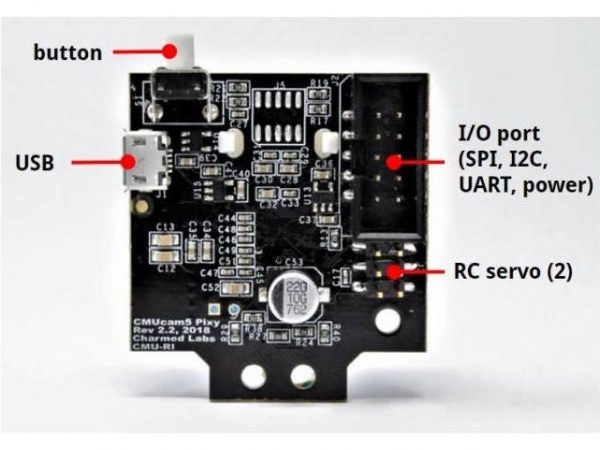

• Communicates via one of several interfaces: SPI, I2C, UART, USB or analog/digital output
• Configuration utility runs on Windows, MacOS and Linux
• All software/firmware is open-source GNU-licensed
• All hardware documentation including schematics, bill of materials, PCB layout, etc. are provided

Typical Functions Overview

• Seven color signatures
• Hundreds of objects
• Teach it the objects you’re interested in

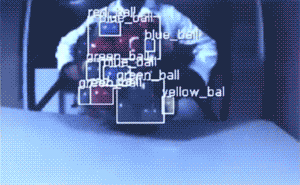

• Pixy2 “tracks” each object it detects
• color code
• Detecting and tracking lines
• Detecting Intersections and “branching”
