Raspberry Pi Pico 樹莓派最迷你最小的微型控制器 RP2040 Arduino IDE可用

• Raspberry Pi Pico 數據表

  基於 RP2040 的微控制器板

• RP2040 數據表

  樹莓派的微控制器

• RP2040硬件設計

  使用 RP2040 微控制器構建電路板和產品

• 開始使用 Raspberry Pi Pico

  使用 Raspberry Pi Pico 和其他基於 RP2040 的微控制器板進行 ​​C/C++ 開發

• 樹莓派 Pico C/C++ SDK

  用於在 RP2040 微控制器上進行 C/C++ 開發的庫和工具

• 樹莓派 Pico Python SDK

  RP2040

Raspberry Pi Pico是樹莓派基金會最新發布的低成本，高性能微控制器開發板。它採用Raspberry Pi 官方自主研發的RP2040 微控制器芯片，體積小巧，功能強大，具有靈活數字接口。

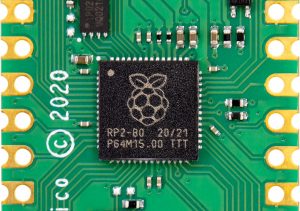

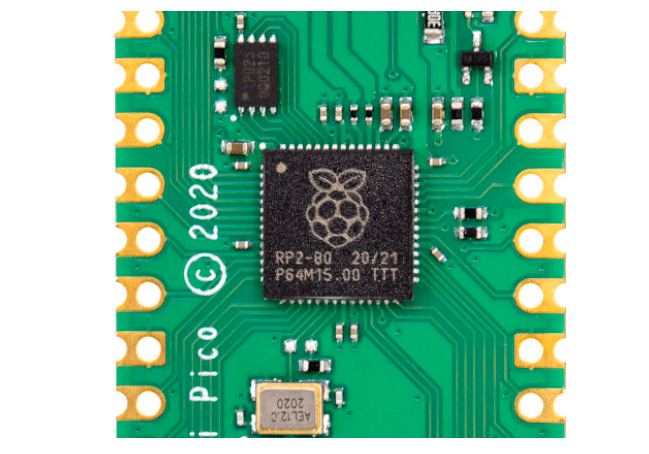

RP2040

RP2040搭載了ARM Cortex M0 + 雙核處理器，高達133MHz的運行頻率，內置了264KB的SRAM和多達16MB的片外閃存。除了通常的固定外設I2C，SPI等，Pico還有特殊的硬件位，PIO（可編程I/O）單元，用於自定義外設支持。這塊經濟划算的小板子能給你的項目帶來無限可能。

對於初學者，對於資深用戶

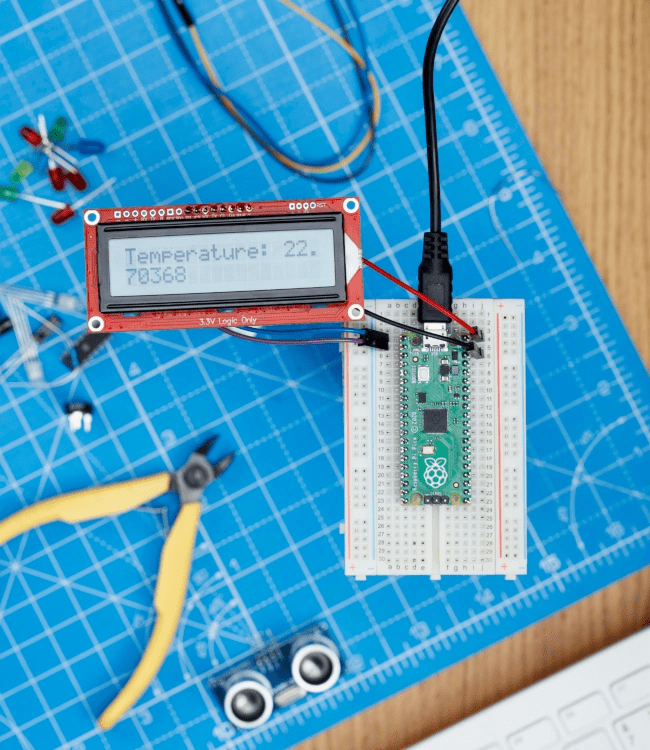

從控制電器到操作燈光顯示，Raspberry Pi Pico將日常設備操作的核心技術放到你的手中。Pico可以用C和MicroPython編程，能適應各種各樣的應用程序和技能水平，讓入門學習就像拖放文件一樣輕鬆。更有經驗的用戶們可以利用Raspberry Pi Pico豐富的外圍設備集，包括SPI、I2C和八個可編程I/O（PIO）狀態機，來獲得定制的外圍設備支持。

技術規格

• 外形尺寸：21 mm×51 mm
• 採用了Raspberry Pi 官方自主設計的RP2040 微控制器芯片
• 搭載了雙核ARM Cortex M0 + 處理器，運行頻率高達133 MHz 靈活時鐘
• 264KB 片上SRAM
• 板載2MB 的QSPI Flash
• 多達26 個多功能的GPIO 引腳，包括3個模擬輸入引腳
• 2 ×UART, 2 ×SPI controllers, 2 ×I2C controllers, 16 ×PWM channels
• USB 1.1控制器和PHY，支持主機和設備
• 8 個可編程I/O (PIO) 狀態機，用於自定義外設支持
• 輸入電源：1.8–5.5V DC
• 工作溫度： -20°C to +85°C
• 郵票孔設計，可直接焊接集成到用戶自主設計的底板上
• 可通過USB 識別為大容量存儲器進行拖放式下載程序
• 支持低功耗睡眠和休眠模式
• 精確的片上時鐘
• 溫度傳感器
• 片上加速整數和浮點庫

Raspberry Pi Pico

The Raspberry Pi Pico is a low-cost, high-performance microcontroller board with flexible digital interfaces. It feature the RP2040 which marks Raspberry Pi’s first microcontroller designed in-house. Pico provides minimal (yet flexible) external circuitry to support the RP2040 chip (Flash, crystal, power supplies and decoupling and USB connector). The majority of the RP2040 microcontroller pins are brought to the user IO pins on the left and right edge of the board. Four RP2040 IO are used for internal functions – driving an LED, on-board Switched Mode Power Supply (SMPS) power control and sensing the system voltages.

Pico uses an on-board buck-boost SMPS which is able to generate the required 3.3 volts (to power RP2040 and externalcircuitry) from a wide range of input voltages (~1.8 to 5.5V). This allows significant flexibility in powering the unit from various sources such as a single Lithium-Ion cell, or 3 AA cells in series. Battery chargers can also be very easily integrated with the Pico powerchain. Reprogramming the Pico’s flash memory can be done using USB (simply drag and drop a file onto the Pico which appears as a mass storage device) or via the Serial Wire Debug (SWD) port. The SWD port can also be used to interactively debug coderunning on the RP2040

Pico has been designed to use either soldered 0.1″ pin-headers (it is one 0.1″ pitch wider than a standard 40-pin DIP package) or can be used as a surface mountable “module”, as the user IO pins are also castellated. There are SMT pads underneath the USB connector and BOOTSEL button, which allow these signals to be accessed if used as a reflow-soldered SMT module.
