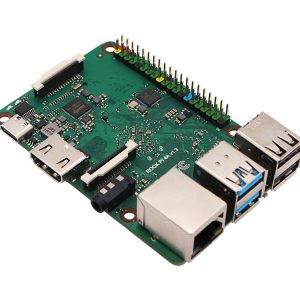

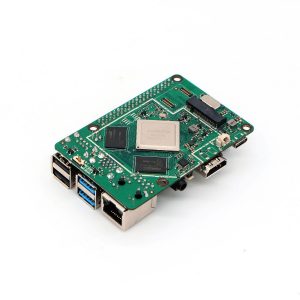

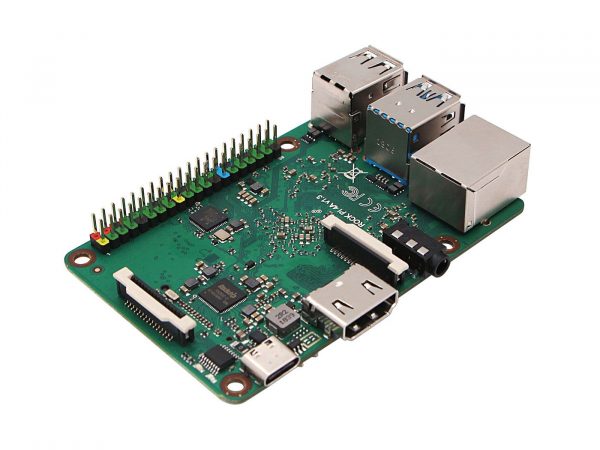

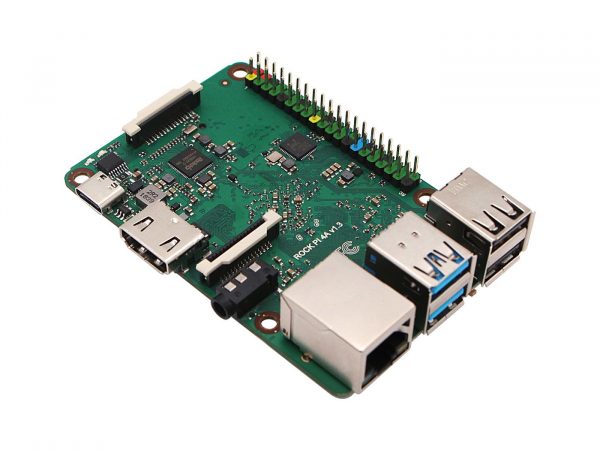

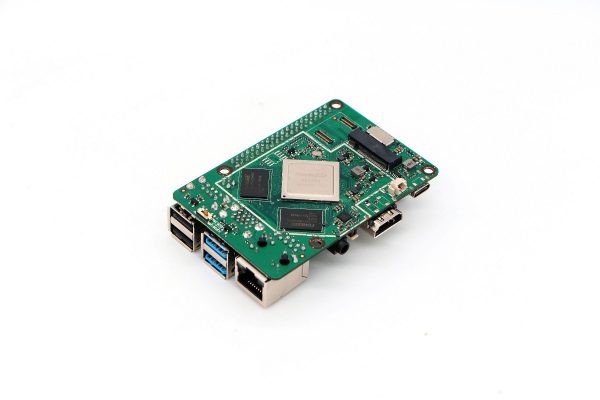

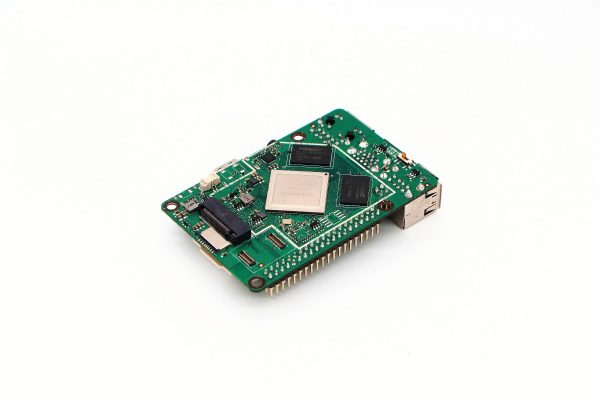

ROCK Pi 4 Model A 4GB 單板電腦 六核ARM處理器 內置 RK3399
ROCK Pi 4 Model A 4GB 是一款超小尺寸的單板計算機(SBC),可提供一流的性能,同時又具有出色的機械兼容性。ROCK PI為製造商,IoT愛好者,業餘愛好者,PC DIY愛好者和其他人提供了一個可靠且功能強大的平台,用於將他們的想法付諸實踐。
ROCK Pi 4 Model A 4GB 是一款基於瑞芯微 RK3399 SBC(單板電腦)由 Radxa。它可以運行android或某些Linux發行版。ROCK Pi 4具有六核ARM處理器,64位雙通道3200Mb / s LPDDR4,高達4K @ 60 HDMI,MIPI DSI,MIPI CSI,帶有麥克風的3.5毫米插孔,802.11 ac WIFI,藍牙5.0,USB端口,GbE LAN 40針彩色擴展接頭RTC。此外,ROCK Pi 4支持USB PD和QC供電。
一流的表現 超越樹莓派4
ROCK Pi內置了現代而強大的基於ARM的六核處理器RK3399,與其他流行的SBC板相比,它提供了顯著改進的性能。所有型號均配備LPDDR4 3200Mb/s RAM和可選的高性能eMMC模塊,可促進所有應用。
廠商友好,物聯網連接 相容樹莓派各式周邊與擴展板
ROCK Pi具有製造商友好的擴展選項,包括40引腳GPIO接口,該接口允許與按鈕,開關,傳感器,LED等的範圍輸入接口。ROCK Pi還具有用於網絡的Gbit LAN,具有專用的總線和控制器,在重負載網絡應用程序中不會出現延遲。板載802.11 ac wifi提供2.4G&5G WLAN連接。借助藍牙5.0,ROCK Pi可提高藍牙速度並擴大範圍。ROCK Pi還具有1個USB 3.0主機和1個USB 3.0 OTG端口,每個5Gbps / s獨立工作。USB 3.0 OTG可以用作USB設備,例如Android ADB或USB小工具。提供了用於OTG模式切換的硬件開關。
人工智能運算能力
ROCK Pi通過GPU加速支持主流的 AI 堆棧。此外,ROCK Pi 即將推出的專用硬件NPU加速器將增強複雜的機器學習算法並降低功耗。工業標準MIPI CSI連接器使將現有攝像機輕鬆連接到ROCK Pi變得很容易,並且ROCK Pi還支持LCD和触摸屏的工業標準MIPI DSI。借助硬件加速算法,非常適合計算機視覺應用程序,機器人技術等。
處理器
|
64位六核處理器
|
瑞芯微RK3399 | |
雙Cortex-A72,頻率為1.8Ghz,四核Cortex-A53,頻率為1.4Ghz | |
Mali T860MP4 GPU,支持OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2、Vulkan 1.0,Open CL 1.1 1.2,DX11。 | |
記憶
|
LPDDR4
|
64bit雙通道LPDDR4 @ 3200Mb / s,4GB | |
存儲
|
eMMC模塊
|
可選的工業兼容高性能eMMC模塊,提供8G / 16G / 32G / 64G / 128G | |
uSD卡 | |
uSD插槽最多支持128G uSD卡 | |
M.2固態硬盤 | |
M.2連接器最多支持2T M.2 NVME SSD | |
顯示
|
HDMI接口
|
HDMI 2.0最高4k @ 60 | |
MIPI DSI | |
通過FPC連接器的MIPI DSI 2通道 | |
HDMI和MIPI DSI可以同時工作,支持鏡像模式或擴展模式。 | |
音訊
|
3.5mm麥克風插孔
|
高清編解碼器,最多支持24位/ 96kHz音頻。 | |
相機
|
MIPI CSI
|
通過FPC連接器的MIPI CSI 2通道,最多支持8MP攝像機 | |
無線
|
沒有
|
USB
|
USB 3.0 OTG x1
|
主機/設備開關的硬件開關,上部 | |
USB 3.0主機x1 | |
專用USB3.0通道,較低的一個 | |
USB 2.0主機x2 | |
乙太網路
|
千兆以太網
|
IO
|
40針擴展接頭:
|
-1個UART | |
-2 x SPI總線 | |
-2 x I2C總線 | |
-1 x PCM / I2S | |
-1 x SPDIF | |
-1 x PWM | |
-1 x ADC | |
-6 x GPIO | |
-2 x 5V DC電源輸入 | |
-2 x 3.3V電源引腳 | |
其他
|
實時時鐘
|
RTC電池連接器,用於時間備份(可選) | |
功率
|
USB PD
|
支持USB Type C PD 2.0、9V / 2A,12V / 2A,15V / 2A,20V / 2A | |
Qualcomm®Quick Charge™ | |
支持QC3.0 / 2.0適配器,9V / 2A,12V / 1.5A | |
尺寸
|
85毫米x 54毫米
|
![ROCK Pi 4 Model A 4GB 單板電腦 ROCK Pi 4 Model A 4GB 單板電腦](https://www.taiwansensor.com.tw/wp-content/uploads/2020/04/383px-Rockpi_4b_interfaces_description_blue.png)
技術文件與安裝導覽
ROCK Pi 4 Model A 4GB
ROCK PI is a Single Board Computer (SBC) in an ultra-small form factor that offers class-leading performance while leveraging outstanding mechanical compatibility. The ROCK PI offers makers, IoT enthusiasts, hobbyists, PC DIY enthusiasts and others a reliable and extremely capable platform for building and tinkering their ideas into reality.
ROCK Pi 4 is a Rockchip RK3399 based SBC(Single Board Computer) by Radxa. It can run android or some Linux distributions. ROCK Pi 4 features a six-core ARM processor, 64bit dual channel 3200Mb/s LPDDR4, up to 4K@60 HDMI, MIPI DSI, MIPI CSI, 3.5mm jack with mic, 802.11 ac WIFI, Bluetooth 5.0, USB Port, GbE LAN, 40-pin color expansion header, RTC. Also, ROCK Pi 4 supports USB PD and QC powering.
Class-Leading Performance
ROCK Pi has a modern and powerful hexa-core ARM-based processor, RK3399 inside, it offers significantly improved performance versus other popular SBC boards. All models are equipped with LPDDR4 3200Mb/s RAM and optional high-performance eMMC modules, boost all applications.
Maker Friendly, IoT Connectivity
ROCK Pi features maker friendly expansion options, including a 40-pin GPIO interface that allow for interfacing with range inputs from buttons, switches, sensors, LEDs, and much more. ROCK Pi also features a Gbit LAN for the network, with dedicated bus and controller, it works without latency under heavy load network applications. On board 802.11 ac wifi offers 2.4G&5G WLAN connectivity. With Bluetooth 5.0, ROCK Pi benefits-improved Bluetooth speed and greater range. ROCK Pi also features one USB 3.0 host and one USB 3.0 OTG ports, each 5Gbps/s, working independently. The USB 3.0 OTG can work as a USB device such as Android ADB or USB gadgets. A hardware switch is provided for OTG mode switch.
AI Capabilities
ROCK Pi supports mainstream AI stack with GPU acceleration. Furthermore, a dedicated hardware NPU accelerator coming up next for ROCK Pi will boosts complex Machine Learning algorithm and reduce the power. Industrial standard MIPI CSI connector makes it easy to connect existing cameras to ROCK Pi and ROCK Pi also supports industrial standard MIPI DSI for LCD and touch screen. With the hardware-accelerated algorithm, it’s great for Computer Vision application, Robotics and much more
Processor
|
64bit hexa core processor
|
Rockchip RK3399 | |
Dual Cortex-A72, frequency 1.8Ghz with quad Cortex-A53, frequency 1.4Ghz | |
Mali T860MP4 GPU, supports OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11. | |
Memory
|
LPDDR4
|
64bit dual channel LPDDR4@3200Mb/s, 4GB | |
Storage
|
eMMC module
|
Optional industrial compatible high-performance eMMC module, 8G/16G/32G/64G/128G available | |
uSD card | |
uSD slot supports up to 128G uSD card | |
M.2 SSD | |
M.2 connector supports up to 2T M.2 NVME SSD | |
Display
|
HDMI
|
HDMI 2.0 up to 4k@60 | |
MIPI DSI | |
MIPI DSI 2 lanes via FPC connector | |
HDMI and MIPI DSI can work at the same time, support mirror mode or extend mode. | |
Audio
|
3.5mm jack with mic
|
HD codec that supports up to 24-bit/96kHz audio. | |
Camera
|
MIPI CSI
|
MIPI CSI 2 lanes via FPC connector, support up to 8MP camera | |
Wireless
|
None
|
USB
|
USB 3.0 OTG x1
|
hardware switch for host/device switch, the upper one | |
USB 3.0 HOST x1 | |
dedicated USB3.0 channel, the lower one | |
USB 2.0 HOST x2 | |
Ethernet
|
GbE LAN
|
IO
|
40-pin expansion header :
|
– 1 x UART | |
– 2 x SPI bus | |
– 2 x I2C bus | |
– 1 x PCM/I2S | |
– 1 x SPDIF | |
– 1 x PWM | |
– 1 x ADC | |
– 6 x GPIO | |
– 2 x 5V DC power in | |
– 2 x 3.3V power pin | |
Others
|
RTC
|
RTC battery connector for time backup(optional) | |
Power
|
USB PD
|
Support USB Type C PD 2.0, 9V/2A, 12V/2A, 15V/2A, 20V/2A | |
Qualcomm® Quick Charge™ | |
Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A | |
Size
|
85mm x 54mm
|
