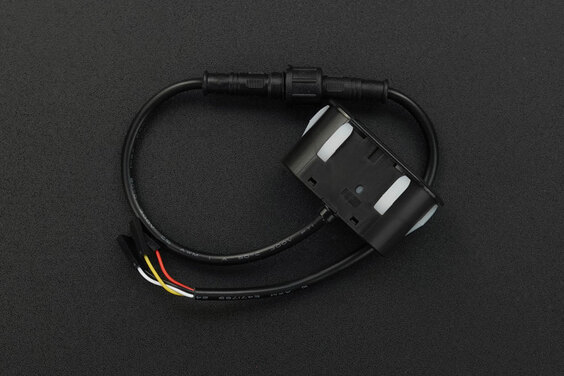

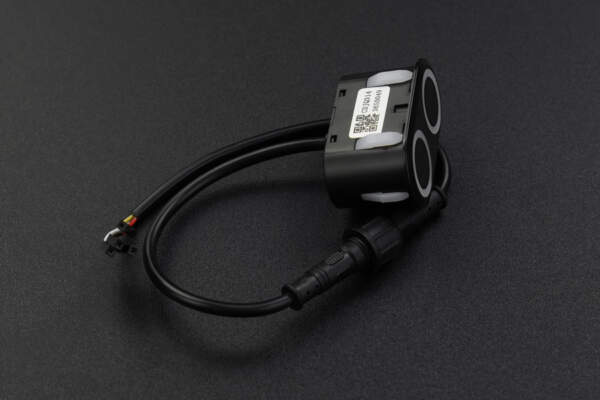

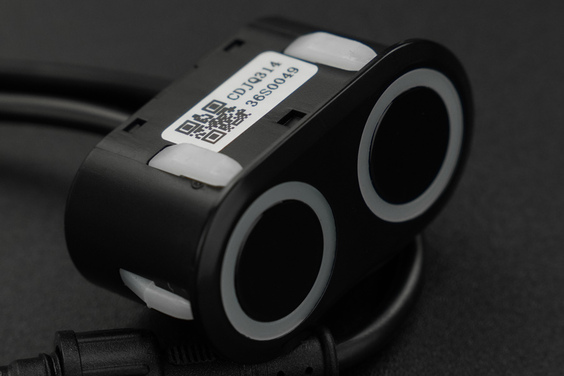

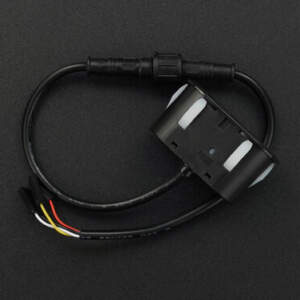

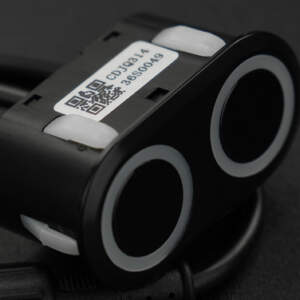

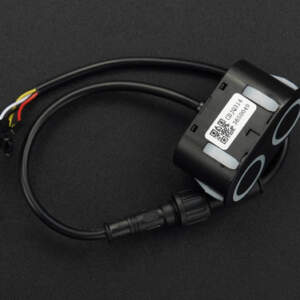

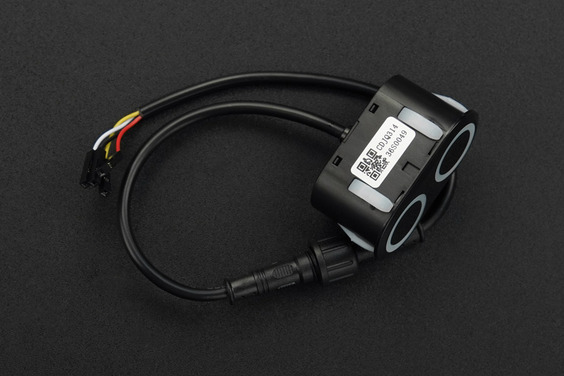

RS485 5M 超音波距離測距 避障感測器(5米測距,RS485,IP67防水)

原始價格:NT$1,490。目前價格:NT$1,240。 (未稅)

描述

RS485 5M 超音波距離測距 避障感測器(5米測距,RS485,IP67防水)

這款超音波距離測距傳感器採用超音波技術,在機器人自動化控制應用中可以檢測到5米範圍內的障礙物。它具有一系列優勢,如極小的盲區(測量精度:1 + (S * 0.3%) 厘米)、狹窄的測量角度(水平40-65°,垂直60-80°)、短暫的反應時間(僅15-750毫秒)、對相同頻率干擾的過濾、小巧的尺寸、高度的安裝適應性、IP67防塵和防水性能、長壽命和高可靠性。

利用創新的超音波處理技術,它可以識別並過濾掉外部超音波,從而實現更穩定和可靠的數據輸出。這大大減少了相同頻率干擾的概率,滿足了機器人自動化控制領域中複雜環境應用的要求。

它具有RS485輸出以傳送傳感器數據,用戶可以與Arduino的TTL到RS485擴展板一起使用。它廣泛應用於機器人避障、自動控制、停車管理系統、安全閘口檢測、門禁系統以及物體接近和存在檢測等領域。

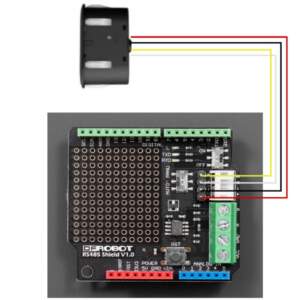

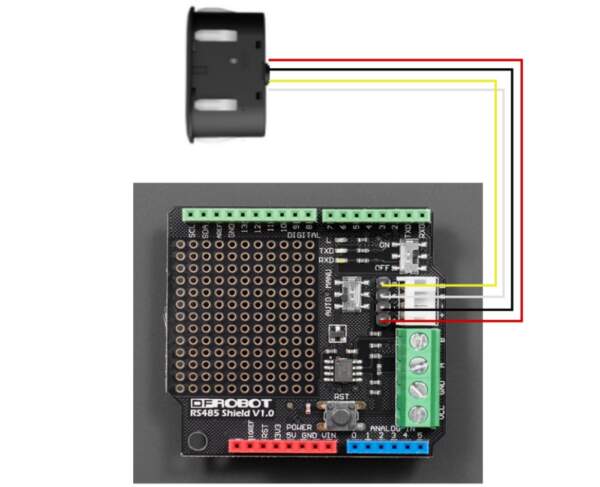

圖: RS485超聲波測距傳感器和Arduino TTL到RS485擴展板的連線圖
圖: RS485超聲波測距傳感器和Arduino TTL到RS485擴展板的連線圖

特點:

  • 小巧的尺寸,極小的盲區
  • 輕量且反應速度快
  • 防水等級達IP67
  • 智能超聲波處理技術,減少干擾

應用領域:

  • 機器人避障
  • 自動控制
  • 停車管理系統
  • 安全閘口檢測
  • 門禁系統
  • 物體接近
  • 存在檢測

規格:

  • 測量範圍:3-500厘米
  • 測量精度:1 + (S * 0.3%) 厘米
  • 工作電壓:3.3-24V
  • 工作電流:≤10mA
  • 通信方式:RS485
  • 輸出反應時間:15-750毫秒
  • 上電延遲操作時間:≤1000毫秒
  • 雙角度:水平40-65°,垂直60-80°
  • 工作溫度:-25°C 到 65°C
  • 工作濕度:65% 到 80%RH
  • 儲存溫度:-30°C 到 80°C
  • 儲存濕度:65% 到 90%RH

文件:

配送清單:

  • 超聲波測距傳感器(5米)x1

Ultrasonic Distance Ranging Obstacle Avoidance Sensor (5m, RS485, IP67)

The ultrasonic distance range sensor uses ultrasonic technology to detect obstacles up to 5 meters away in robot automation control applications.

It offers advantages such as small blind zones (Measurement accuracy: 1 + (S * 0.3%) cm), narrow measurement angles (horizontal 40-65°, vertical 60-80°), short response times only 15-750ms, filtering of same-frequency interference, compact size, high installation adaptability, IP67 dust and waterproof capabilities, long lifespan and high reliability.

Utilizing innovative ultrasound processing technology, it can identify and filter out foreign ultrasound, resulting in more stable and reliable data output. This greatly reduces the probability of same-frequency interference, meeting the complex environmental application requirements in the field of robot automation control.

It features RS4585 output for sensor data, and users can use it in conjunction with Arduino TTL to RS485 expansion board. It finds wide applications in robot obstacle avoidance, automatic control, parking management systems, security gate detection, access control systems, and object proximity and presence detection.

FEATURES

  • Compact in size, with a small blind zone
  • Lightweight and fast response time
  • Waterproof level of IP67
  • Intelligent ultrasound processing technology for reduced interference

APPLICATIONS

  • Robot obstacle avoidance
  • Automatic control
  • Parking management systems
  • Security gate detection
  • Access control systems
  • Object proximity
  • Presence detection

SPECIFICATION

  • Measurement range: 3-500cm
  • Measurement accuracy: 1 + (S * 0.3%) cm
  • Operating voltage: 3.3-24V
  • Operating current: ≤10mA
  • Communication method: RS485
  • Output response time: 15-750ms
  • Power-on delay operating time: ≤1000ms
  • Dual angles: horizontal 40-65°, vertical 60-80°
  • Operating temperature: -25°C to 65°C
  • Operating humidity: 65% to 80%RH
  • Storage temperature: -30°C to 80°C
  • Storage humidity: 65% to 90%RH

DOCUMENTS

SHIPPING LIST

  • Ultrasonic Ranging Sensor (5m) x1
