RS485/Modbus DC 直流電壓電流功率電能耗量監測模組 電壓 0-300V / 電流 10A

原始價格:NT$480。目前價格:NT$380。 (未稅)

狀態: 尚有庫存 貨號: VMD-005111 分類: 標籤: , , , , , , ,
選購金額
NT$0
價格
NT$380

描述

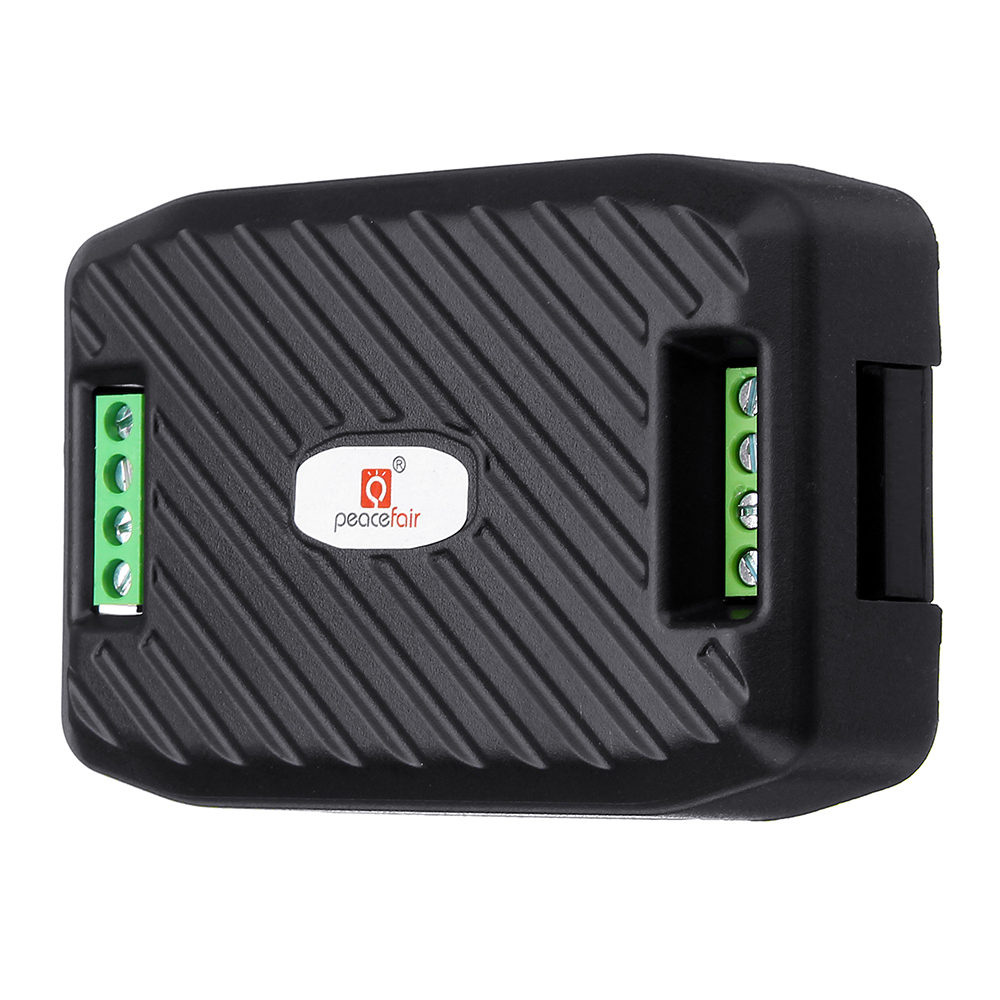

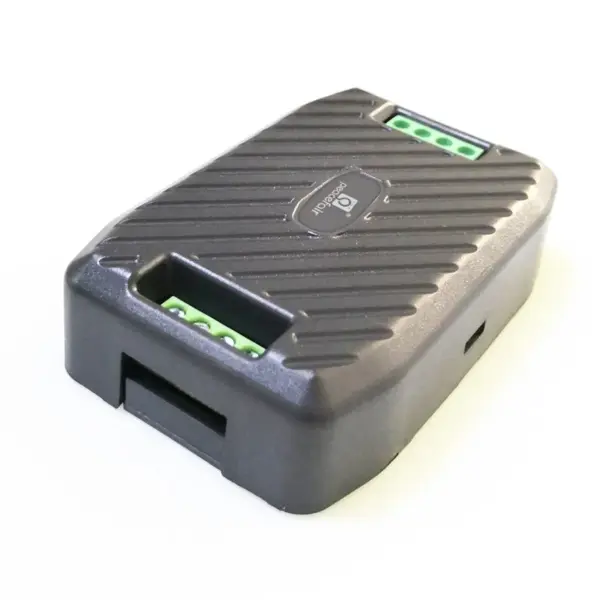

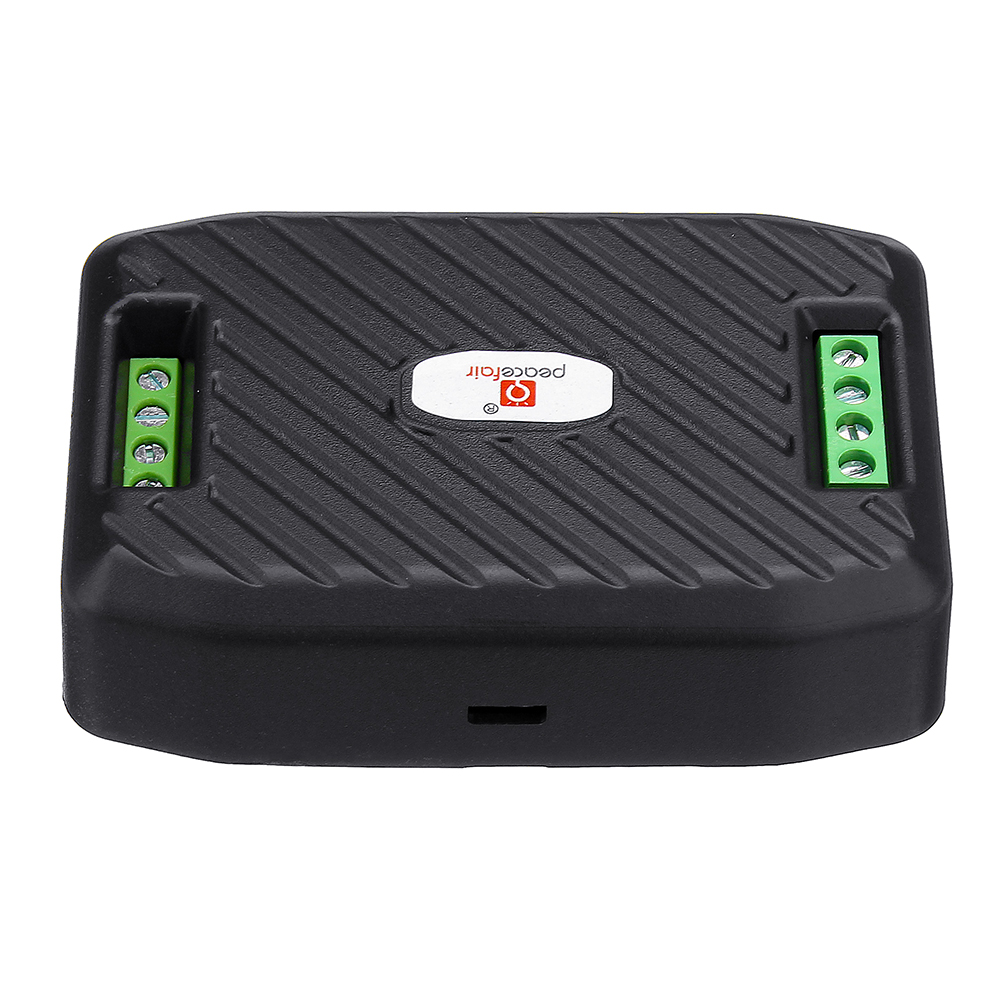

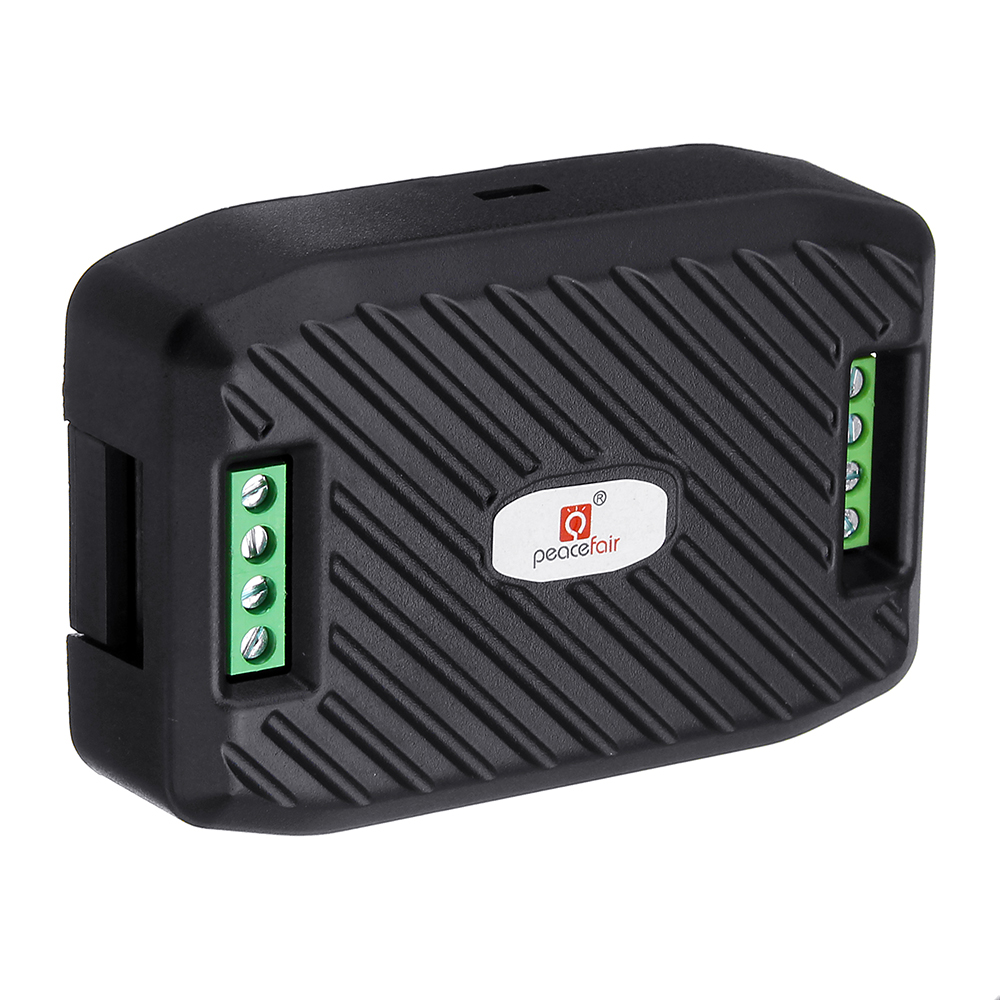

RS485/Modbus DC 直流電壓電流功率電能耗量監測模組 電壓 0-300V / 電流 10A

主要用於測量直流電壓,電流,有功功率,頻率和能耗,模塊無顯示功能,數據通過RS485讀取接口。我們提供將其與PC連接的軟件,可以使用所有Win系統。如果要將其與PLC,SCM等其他終端設備連接,請準備好合適的電纜並自行編寫程序。測量範圍10A(內置分流器)

產品規格:
測量精度:1.0級
工作溫度:-20℃〜+ 60℃
通訊端口:RS485
電源:DC
認證:CE,FCC
尺寸:90 * 60.5 *23毫米(L * W * H)
功能和顯示格式:
電壓
1.測量範圍:0.05-300V。(當測試電壓為7V時,請使用獨立供電模式)
分辨率:0.01V。
2.測量精度:1%。
當前
1.測量範圍:0.01-10A(PZEM-003)
2.分辨率:0.01A
3.測量精度:1%
功率
1.測量範圍:0.1-3kW(PZEM-003)
2.分辨率:0.1W
3.測量精度:1%
能源消耗
1.測量範圍:0-9999kWh
2.分辨率:1Wh
3.測量精度:1%
過壓報警
1.可設定電壓閾值,分為高壓和低壓閾值,當測量電壓超過閾值時,可報警
2.默認高壓閾值為300V,默認低壓閾值為7V。

DC 0-300V 10A DC AMP Voltage Current Power Consumption Meter Communication

Specifications:
  • Measurement accuracy: 1.0 grade
  • Working temperature:-20℃~ +60℃
  • Communication port:RS485
  • Power Supply:DC
  • Certificate:CE,FCC

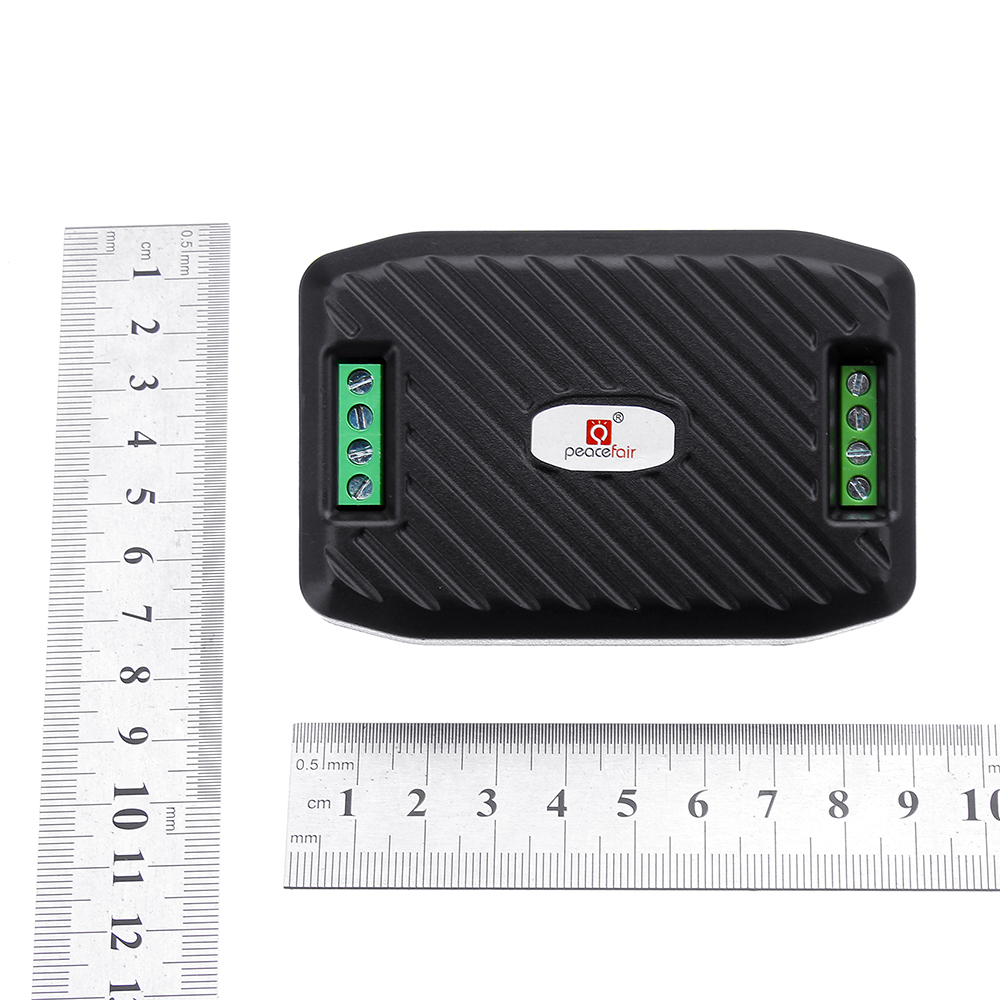

  • Dimensions:90*60.5*23mm(L*W*H)
Function and Display Format:
Voltage
  1. 1. Measuring range:0.05-300V. (when the test voltage is 7V, please use the independent power supply mode)
  2. Resolution:0.01V.
  3. 2. Measurement accuracy:1%.
Current
  1. 1. Measuring range:0.01-10A(PZEM-003)
  2. 2. Resolution:0.01A
  3. 3. Measurement accuracy:1%
Power
1. Measuring range:0.1-3kW(PZEM-003)
2. Resolution: 0.1W
3. Measurement accuracy:1%
Energy Consumption
  • 1. Measuring range: 0-9999kWh
  • 2. Resolution: 1Wh
  • 3. Measurement accuracy:1%
Over Voltage alarm
1. Voltage threshold can be set, divide into high voltage and low voltage threshold, when the measured voltage exceeds the threshold, it can alarm
2. The default high voltage threshold is 300V, the default low voltage threshold is 7V.

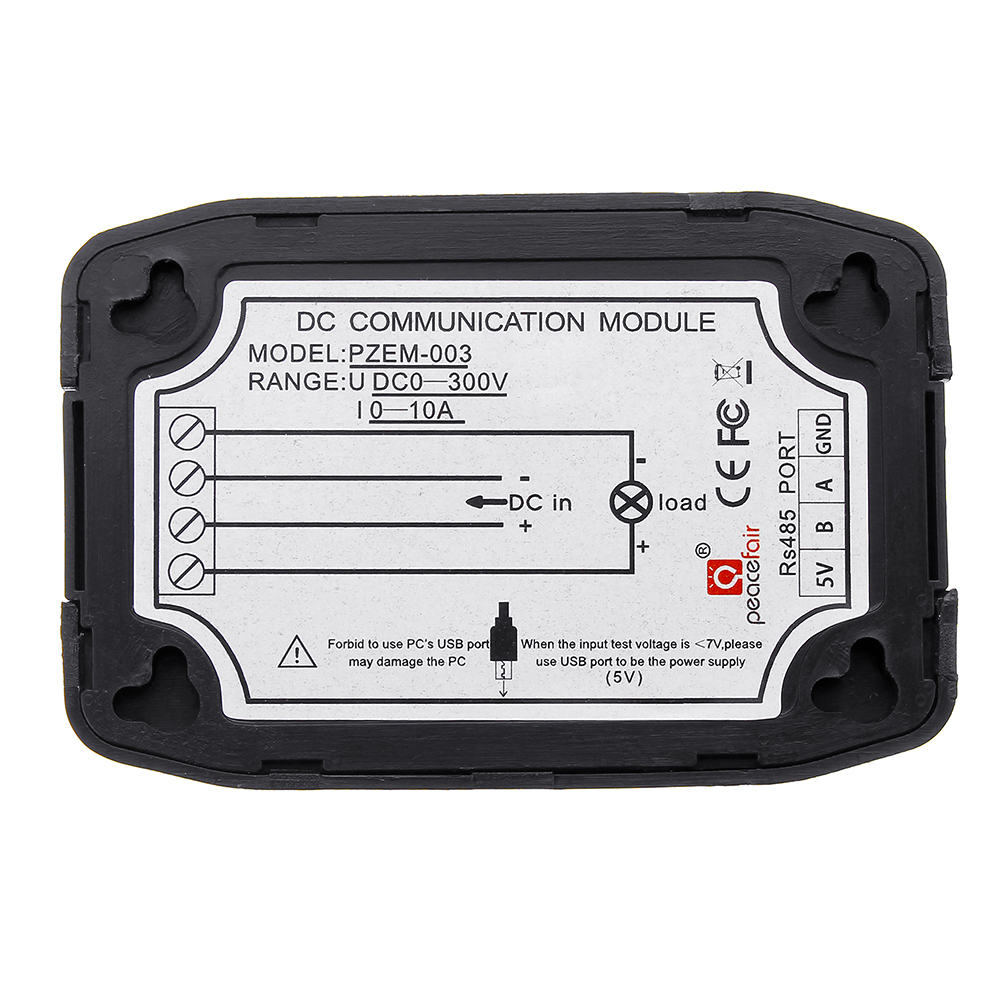

Note:
Do not use the USB port bring by your PC to be the independent power supply, otherwise it may damage your PC !

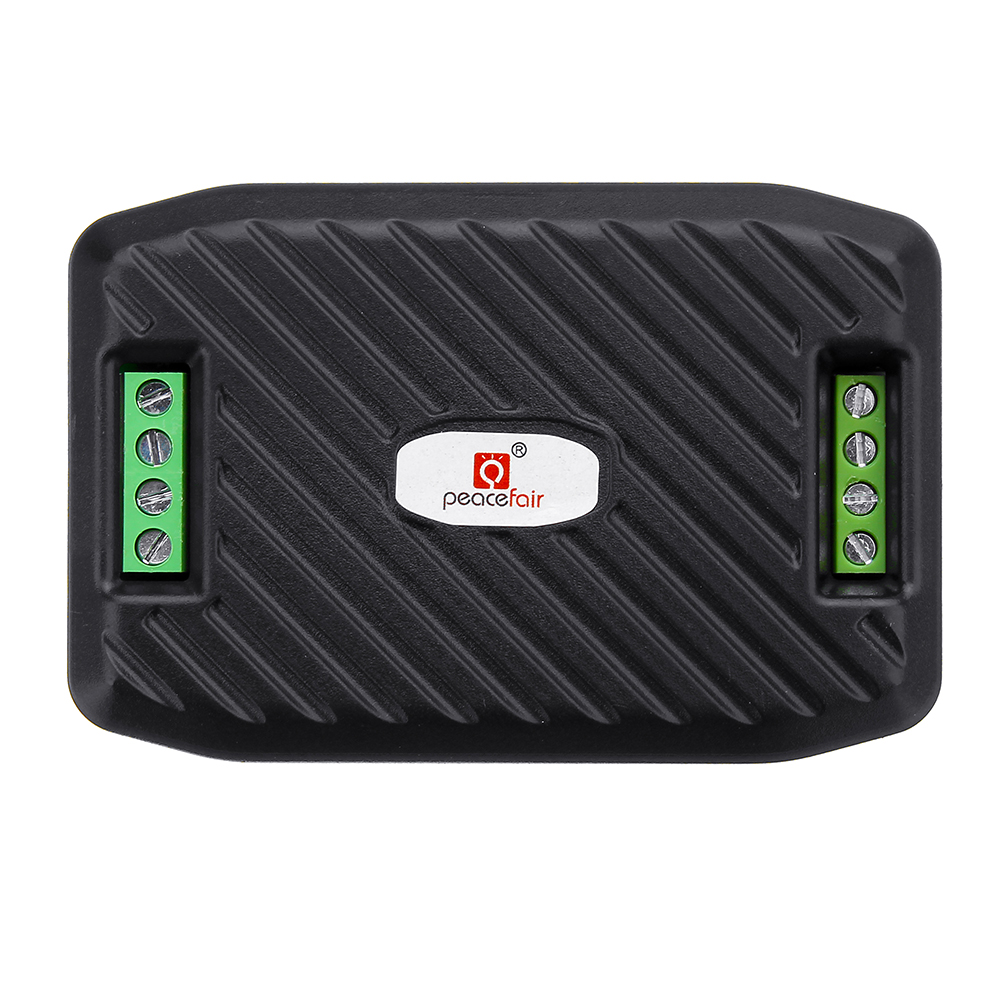

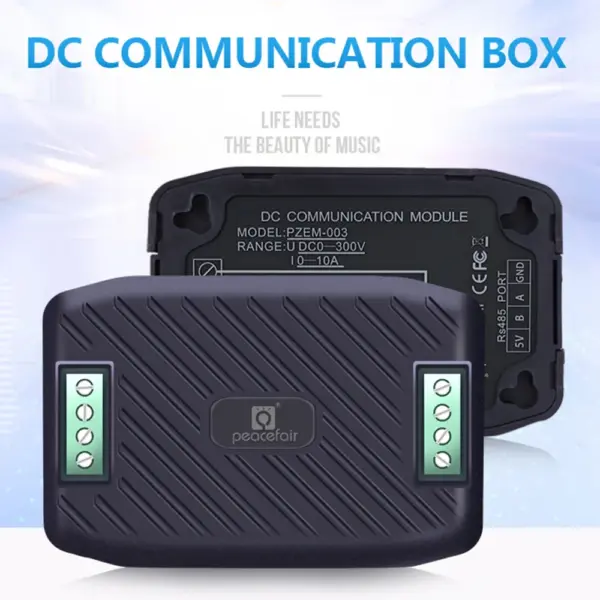

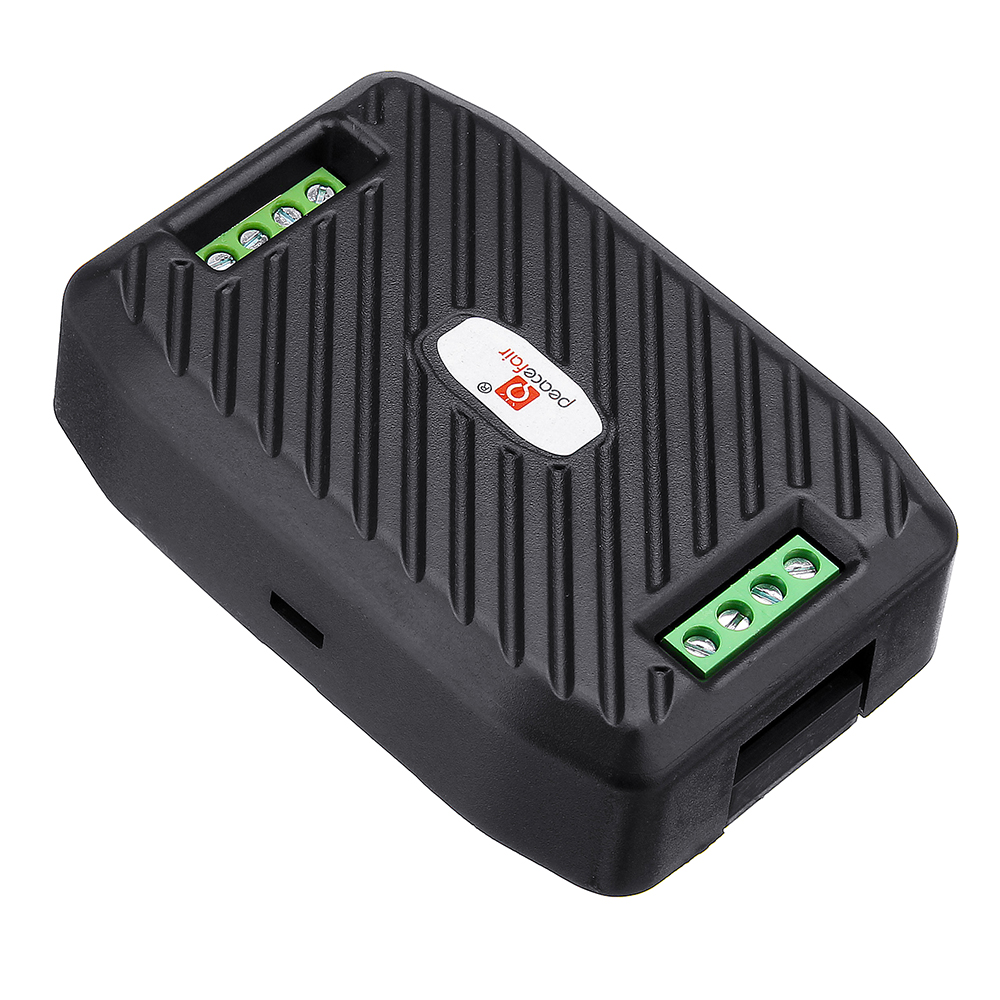

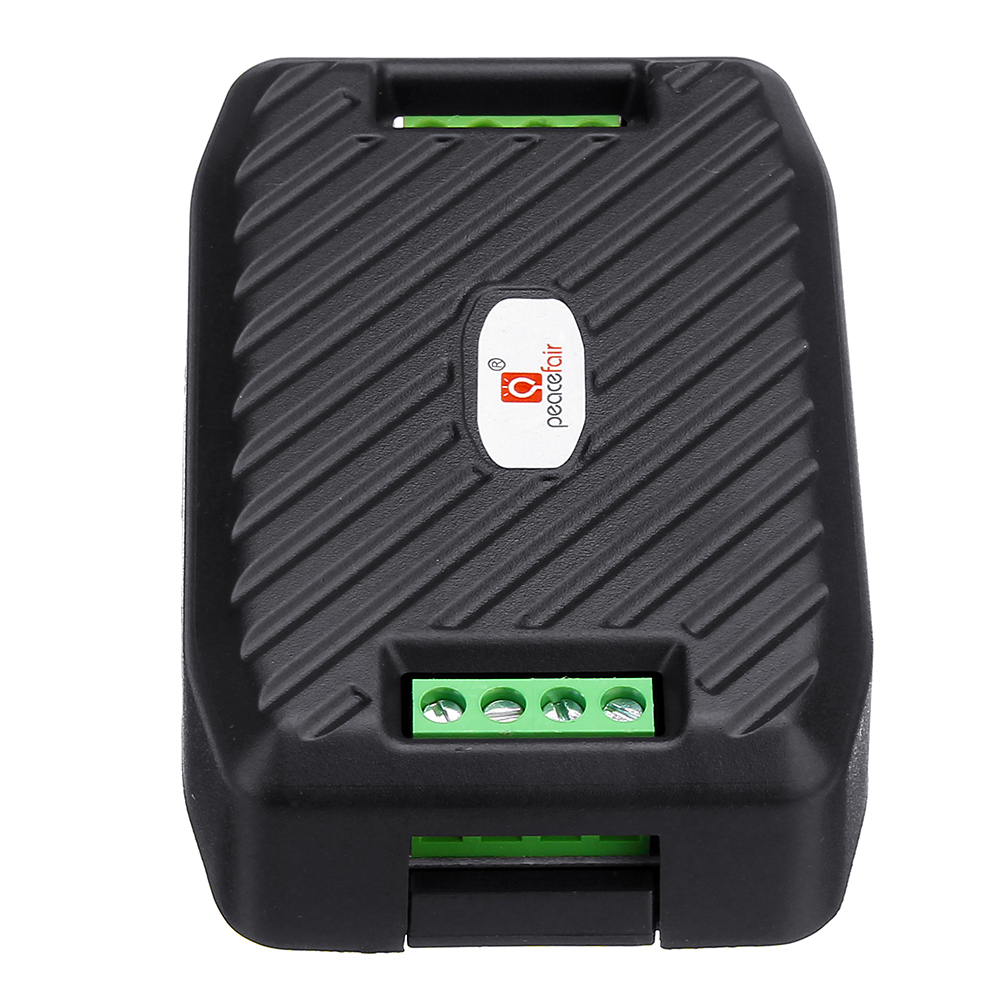

More Detailed Photos:

DC 0-300V 10A Voltmeter PZEM-003 Communication Wireless Module RS485 Modbus Voltage Current Power En
DC 0-300V 10A Voltmeter PZEM-003 Communication Wireless Module RS485 Modbus Voltage Current Power En
DC 0-300V 10A Voltmeter PZEM-003 Communication Wireless Module RS485 Modbus Voltage Current Power En
DC 0-300V 10A Voltmeter PZEM-003 Communication Wireless Module RS485 Modbus Voltage Current Power En
DC 0-300V 10A Voltmeter PZEM-003 Communication Wireless Module RS485 Modbus Voltage Current Power En
DC 0-300V 10A Voltmeter PZEM-003 Communication Wireless Module RS485 Modbus Voltage Current Power En
DC 0-300V 10A Voltmeter PZEM-003 Communication Wireless Module RS485 Modbus Voltage Current Power En
DC 0-300V 10A Voltmeter PZEM-003 Communication Wireless Module RS485 Modbus Voltage Current Power En
DC 0-300V 10A Voltmeter PZEM-003 Communication Wireless Module RS485 Modbus Voltage Current Power En
