SD Card Shield V4 SD記憶卡擴展板

描述

SD Card Shield V4 SD記憶卡擴展板 支持 SD，SDHC 和Micro SD 記憶卡

SD Card Shield V4 SD 記憶卡擴展板。它為您的 Arduino 提供了一個存儲空間。用戶可以通過 Arduino 的內置SD庫來讀/寫 SD卡。它支持 SD，SDHC 和Micro SD卡。它只會佔用你的 Arduino 的 SPI 端口。與以前的版本相比，它將標準SD插槽和 Micro SD 插槽合併為一個標準插槽，隨附的適配器可以使用Micro SD卡。您可以堆疊在與未使用的引腳一起工作的其他屏蔽上。另外，預製的 I2C 和 UART 端口可以方便您與 Grove 模組連接。

特徵

• 支持SD卡，SDHC卡和TF卡兼容
• UART Grove和I2C連接兼容
• 完全支持的SD庫
• 最少的SPI端口
• 真正可堆疊

資源與文件

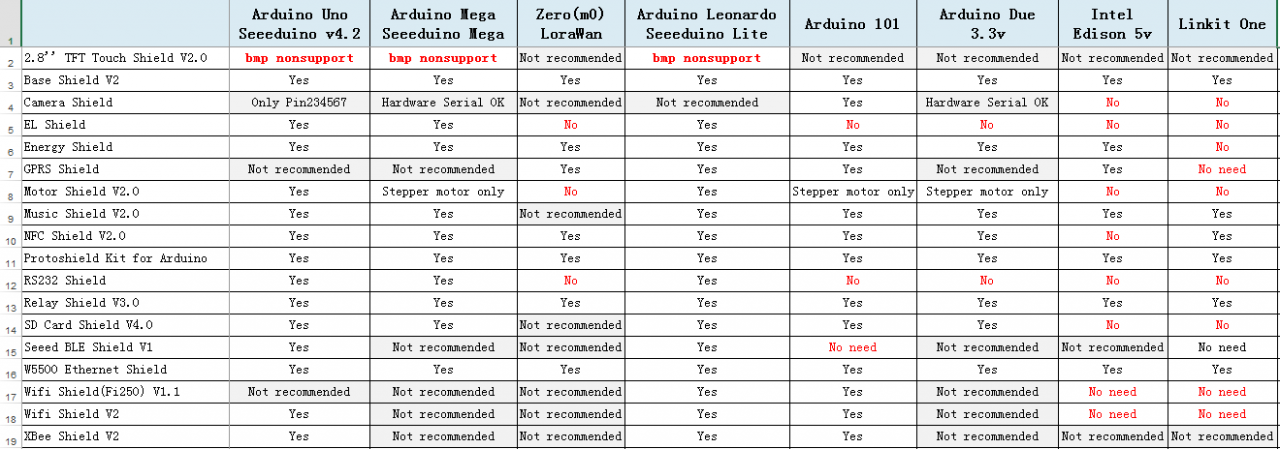

相容平台

This is the new-released SD card V4.0 shield. It provides a storage space for your Arduino. Users can read/write SD card via Arduino’s built-in SD library. It supports SD, SDHC and Micro SD cards. It will only occupy the SPI port of your Arduino. Comparing to previous versions, it combines the standard SD slot and the Micro SD slot into a standard one, the included adaptor enables using of Micro SD cards . You can stack on other shields that work with the unused pins. Additionally, the preformed I2C and UART port facilitate your connection with Grove modules.Note: Headers of this product is shipped unsoldered. Features

• Stand SD card、SDHC card and TF card compatible
• UART Grove & I2C connection compatible
• Fully supported SD Library
• Minimal number of SPI port
• Truly stackable

Specification
