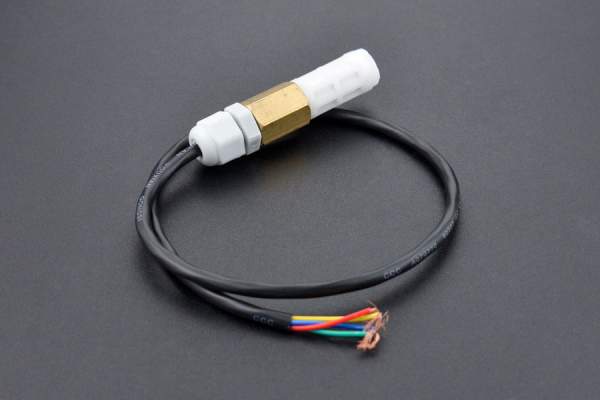

SHT20 I2C 防水防凝露溫濕度感測器 PE 防水探頭 引線長 50CM

傳感器接口：

• 紅色 VCC ( 2.1 / 3.6V ( 注意請勿用 5V 會燒毀IC )
• 黑色 GND
• 綠色 SDA
• 黃色 SCL

• 工作電壓：2.1 / 3.6V ( 注意請勿用 5V 會燒毀IC )
• 通訊接口：I2C
• 防護等級：防水防凝露
• RH響應時間：8秒（tau63％）
• 精度：±3％RH /±0.3℃
• 測量範圍：0-100％RH / -40-125℃
• 出線長度: 50CM

文件與範例

• 產品 WIKI
• SHT20 數據表

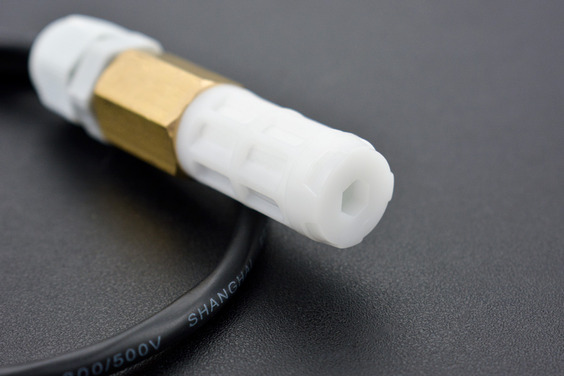

SHT20 I2C Temperature & Humidity Sensor (Waterproof Probe)

This SHT20 I2C temperature & humidity sensor is equipped with waterproof probe. It comes with the 4C CMOSens® SHT20 temperature & humidity sensor chip and the probe has gone through dual waterproof protection test.
The SHT20 I2C temperature & humidity sensor adopt Sensirion techniques. Except the humidity sensor of capacitive type and the temperature sensor of band gap , SHT20 contains an amplifier, A/D converter, OTP memory and a digital processing unit. Compared with early SHT1x series and SHT7x series, SHT20 shows a strong reliability and long-term stability. It can measure surrounding environment temperature and relative air humidity precisely.

• Operating Voltage: 3.3/5V
• Communication Interface: I2C
• Protection Class: waterproof anti-condensation
• RH Response Time: 8s (tau63%)
• Accuracy: ±3% RH / ±0.3 ℃
• Measuring Range: 0-100% RH / -40-125 ℃
• Dimension: 73mm * 17mm / 2.87 * 0.67 inches
• Weight: 44g
