SparkFun LiPo Charger Basic – MicroUSB LiPo 鋰電池充電模組

描述

SparkFun LiPo Charger Basic – MicroUSB LiPo 鋰電池充電模組

如果您需要為LiPo電池充電，SparkFun LiPo Charger Basic – MicroUSB LiPo 鋰電池充電模組 , 這款簡單的充電器就可以做到這一點，並且快速完成！SparkFun LiPo Charger Basic – MicroUSB LiPo 鋰電池充電模組 基本功能簡化了所有功能，只需做一件事 – 以500mA的速率為 3.7V LiPo 電池充電。它旨在為單節鋰離子電池或鋰聚合物電池充電。檢查下面的數據表，看看它是否可以與你的電池一起使用。

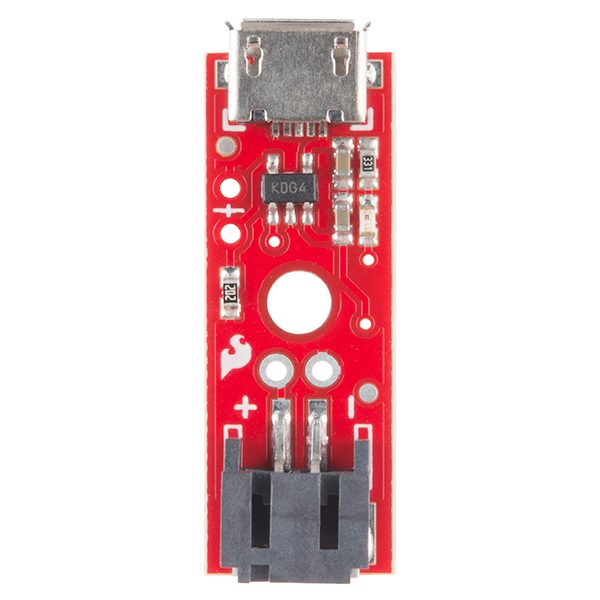

SparkFun LiPo Charger Basic 電路板包含充電電路，狀態指示燈，電池連接器（用於攜帶電池的JST型）和微型USB連接器。一個小的安裝孔允許這個充電器很容易地嵌入到項目中。

• 硬體概要
• Eagle 文件
• DataSheet 數據表（MCP73831T）
• GitHub上

SparkFun LiPo Charger Basic – MicroUSB LiPo

If you need to charge LiPo batteries, this simple charger will do just that, and do it fast! The SparkFun LiPo Charger Basic is stripped down of all features and just does one thing well – charge 3.7V LiPo cells at a rate of 500mA. It is designed to charge single-cell Li-Ion or Li-Polymer batteries. Check the datasheet below to see if it will work with your battery.

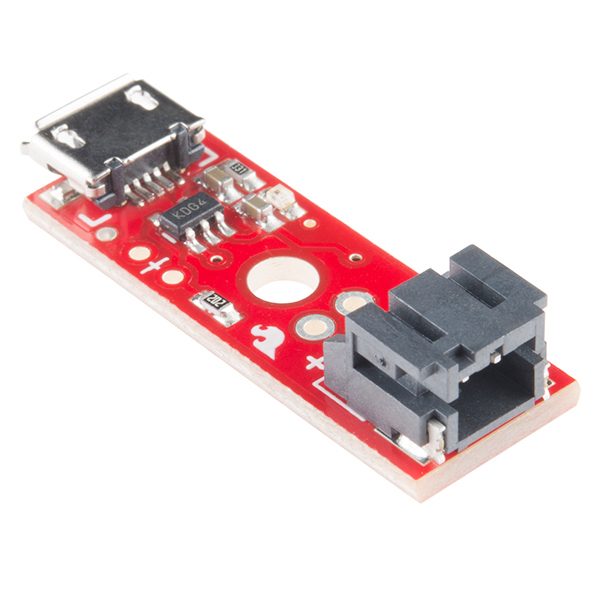

The board incorporates a charging circuit, status LED, connector for your battery (JST-type used in the batteries we carry), and a micro-USB connector. A small mounting hole allows this charger to be easily embedded into a project.
